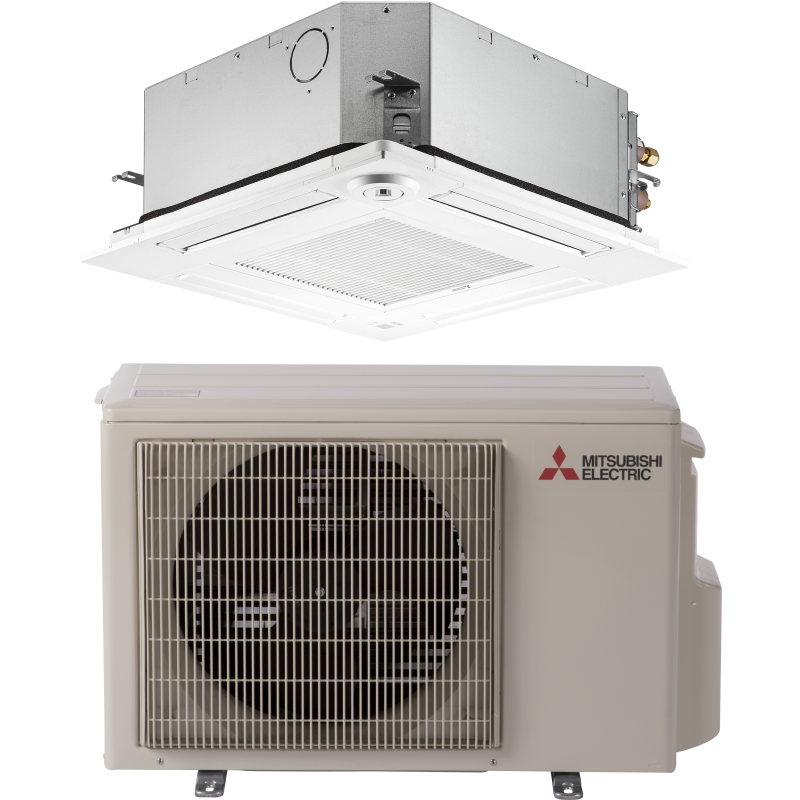

12,000 BTU 22 SEER Ceiling Cassette Mitsubishi Mini Split Single Zone Heat Pump - SZ-KF12NA

12,000 BTU 22 SEER Ceiling Cassette Mitsubishi Mini Split Single Zone Heat Pump - SZ-KF12NA
By

Mitsubishi

Out of stock
Model

SLZ-KF12NA / SUZ-KA12NA2.MX

ID

8972

OVERVIEW

The Mitsubishi SLZ-KF12NA / SUZ-KA12NA2.MX single-zone mini split system is designed to be a good fit for rooms that a wall mounted air handler is not an option. With its 12,000 BTU output and its intelligent temperature adjustment technology, the SLZ-KF12NA / SUZ-KA12NA2 lives up to the name of Mitsubishi, one of the top mini split brands on the market today.

QUICK FACTS

  • Ideal for up to a small room (depending on climate)
  • 12,000 BTU, 22 SEER single-zone mini split
  • Ceiling recessed to free up wall space in your room
  • Cassette grille included in the cost of this unit
  • Energy Star certified
12,000 BTU, 22 SEER

With an output of 12,000 BTU, the SLZ-KF12NA / SUZ-KA12NA2.MX system is designed to be able to cover up to a small room in ideal climates. At 22 SEER, Mitsubishi designed the unit to provide efficient heating and cooling to your home at a moment’s notice. Please note that the image shows an I-SEE sensor in the cassette grille, available at an additional cost. Without this upgrade, the grille will not include the enhanced functionality of more precisely redirecting the airflow of the unit.

Warranty

Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.

Enhanced Comfort

With its Inverter technology and constant temperature reading system, the SLZ-KF12NA / SUZ-KA12NA2.MX is designed to automatically ramp up and down depending on the room’s temperature requirements on a constant basis, keeping you as comfortable as possible in your home.

Intelligent Control

The Mitsubishi SLZ-KF12NA / SUZ-KA12NA2.MX is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.

Durability and Reliability

Mitsubishi designed the SLZ-KF12NA / SUZ-KA12NA2.MX system setup to be durable to withstand standard weathering and lower general wear-and-tear. Mitsubishi also designed the unit to function at a low, -4°F temperature to give you peace of mind with the unit’s reliable warming during the colder months of the year.

More Information
12,000 BTU 22 SEER Ceiling Cassette Mitsubishi Mini Split Single Zone Heat Pump - SZ-KF12NA
FeatureSpec
SKUSLZ-KF12NA / SUZ-KA12NA2.MX
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)120
AHRI Certificate Number202392022
Brand/ManufacturerMitsubishi
UPC795934784316
ControllerNot Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 65'
Additional InformationDrain: 1-1/4"
Cooling BTU12,000 BTU
Heating BTU13,000 BTU
Maximum CFM207-335 CFM
Decibel Level (dBA)Indoor Unit: 25-34 | Outdoor Unit: 49-51
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.35 gal/hr
HSPF11.4
SEER1 (Efficiency)21-22
EER13.3
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size12
Amperage Requirement15
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Min/Max Outdoor Temp for Heating-4°F - 75°F
Min/Max Outdoor Temp for Cooling14°F - 115°F
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 9-21/32" | Grille: 13/16" | Outdoor Unit: 21-5/8"
WidthIndoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 31-1/2"
DepthIndoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 11-1/4"
Additional InfoIndoor Unit Weight: 31 lbs | Outdoor Unit Weight: 81 lbs
Warranty10 Years with Online Registration
