AHRI Number:204627033
The Mitsubishi SLZ-KF15NA / SUZ-KA15NAHZ single-zone mini-split system is designed to be a good fit for rooms that a wall mounted air handler is not an option. With its intelligent temperature adjustment technology and its Hyper Heat capacity, the SLZ-KF15NA / SUZ-KA15NAHZ lives up to the name of Mitsubishi, one of the most trusted brands on the market to bring the best possible comfort to your home.

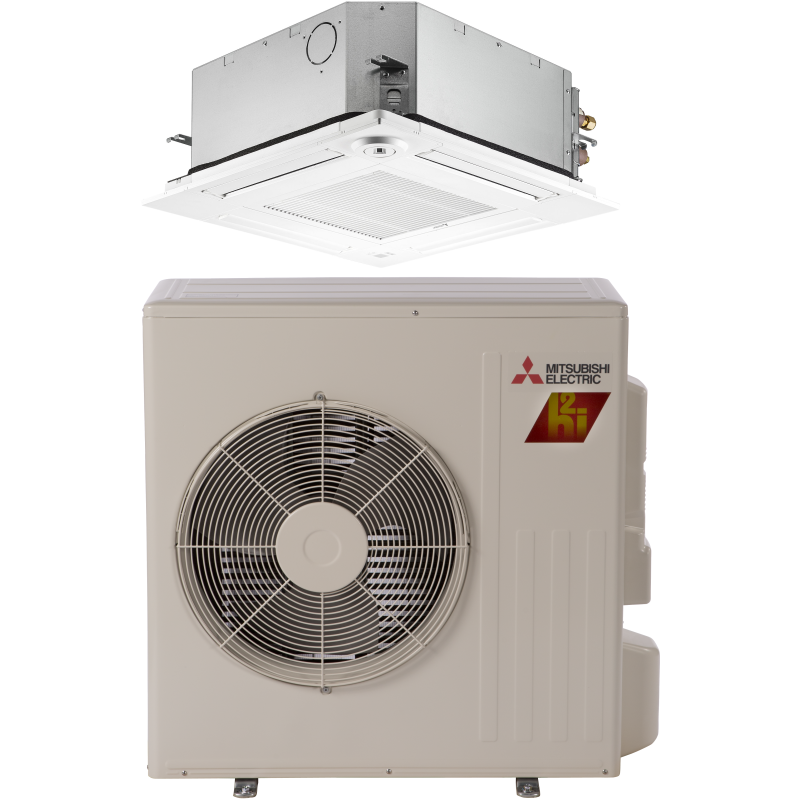

With an output of 15,000 BTU, the SLZ-KF15NA / SUZ-KA15NAHZ system is designed to be able to cover up to a small room in ideal climates. At 17.7 SEER, Mitsubishi designed the unit to provide efficient heating and cooling to your home at a moment’s notice. Please note that the image shows an I-SEE sensor in the cassette grille, available at an additional cost. Without this upgrade, the grille will not include the enhanced functionality of more precisely redirecting the airflow of the unit.
Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.
With its Inverter technology and constant temperature reading system, the SLZ-KF15NA / SUZ-KA15NAHZ is designed to automatically ramp up and down depending on the room’s temperature requirements on a constant basis, keeping you as comfortable as possible in your home.
The Mitsubishi SLZ-KF15NA / SUZ-KA15NAHZ is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.
Mitsubishi designed the SLZ-KF15NA / SUZ-KA15NAHZ system setup to be durable to withstand standard weathering and lower general wear-and-tear. With its Hyper Heat technology, Mitsubishi also designed the unit to heat down to -13°F temperature to give you peace of mind with the unit’s reliable warming during the coldest months of the year.
"15,000 BTU 17.7 SEER Ceiling Cassette Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - SZ-KF15NAHZ | |
---|---|
SKU | SLZ-KF15NA / SUZ-KA15NAHZ |
Refrigerant Charge | Pre-Charged For: 25' |
Weight (in lbs) | 162.000000 |
AHRI Certificate Number | 204627033 |
Brand/Manufacturer | Mitsubishi |
Controller | Not Included |
Additional Information | Heat Pump |
Additional Information | Maximum Line Set Length: 65' |
Additional Information | Drain: 1-1/4" |
HSPF | 9 |
Cooling BTU | 13,700 BTU |
Heating BTU | 19,000 BTU |
Maximum CFM | 221-405 CFM |
Decibel Level (dBA) | Indoor Unit: 27-39 | Outdoor Unit: 55 |
Energy Star | Yes |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.38 gal/hr |
SEER1 (Efficiency) | 16-17 |
EER | 12.5 |
Condenser Stages | Variable Speed |
Compressor Type | Rotary |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 31 |
Min. Breaker Size | 17 |
Amperage Requirement | 30 |
BTU/Tonnage | 15,000 BTU/1.25 Ton |
Mini-Split Type | Ceiling Cassette |
Min/Max Outdoor Temp for Heating | -4°-75° |
Min/Max Outdoor Temp for Cooling | 14°-115° |
Zone Compatibility | Single Zone |
Operating Mode | Cooling, Heating |
Height | Indoor Unit: 9-21/32" | Grille: 13/16" | Outdoor Unit: 34-5/8 |
Width | Indoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 38-9/16 |
Depth | Indoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 13" |
Additional Info | Indoor Unit Weight: 31 lbs | Outdoor Unit Weight: 131 lbs |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
