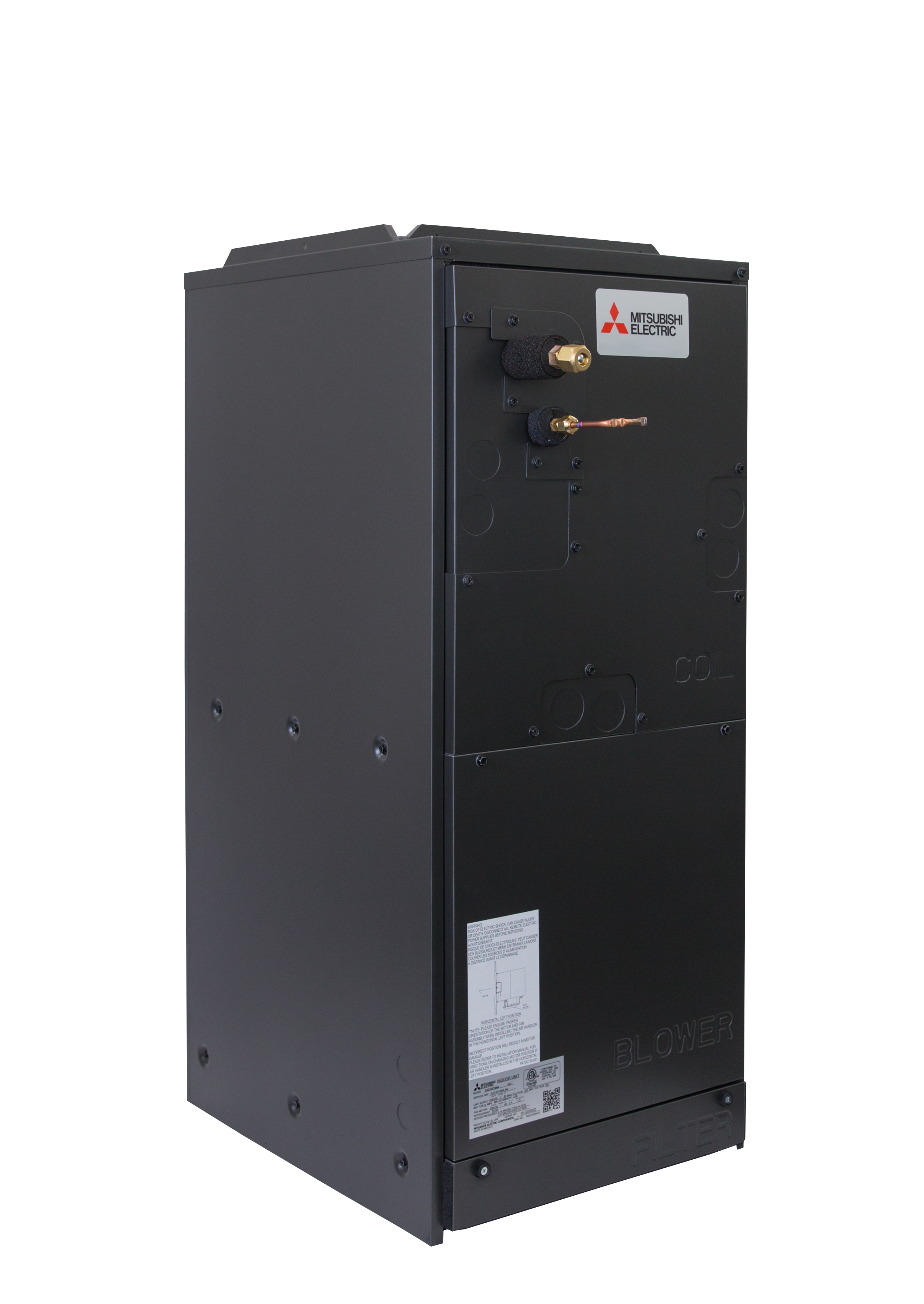

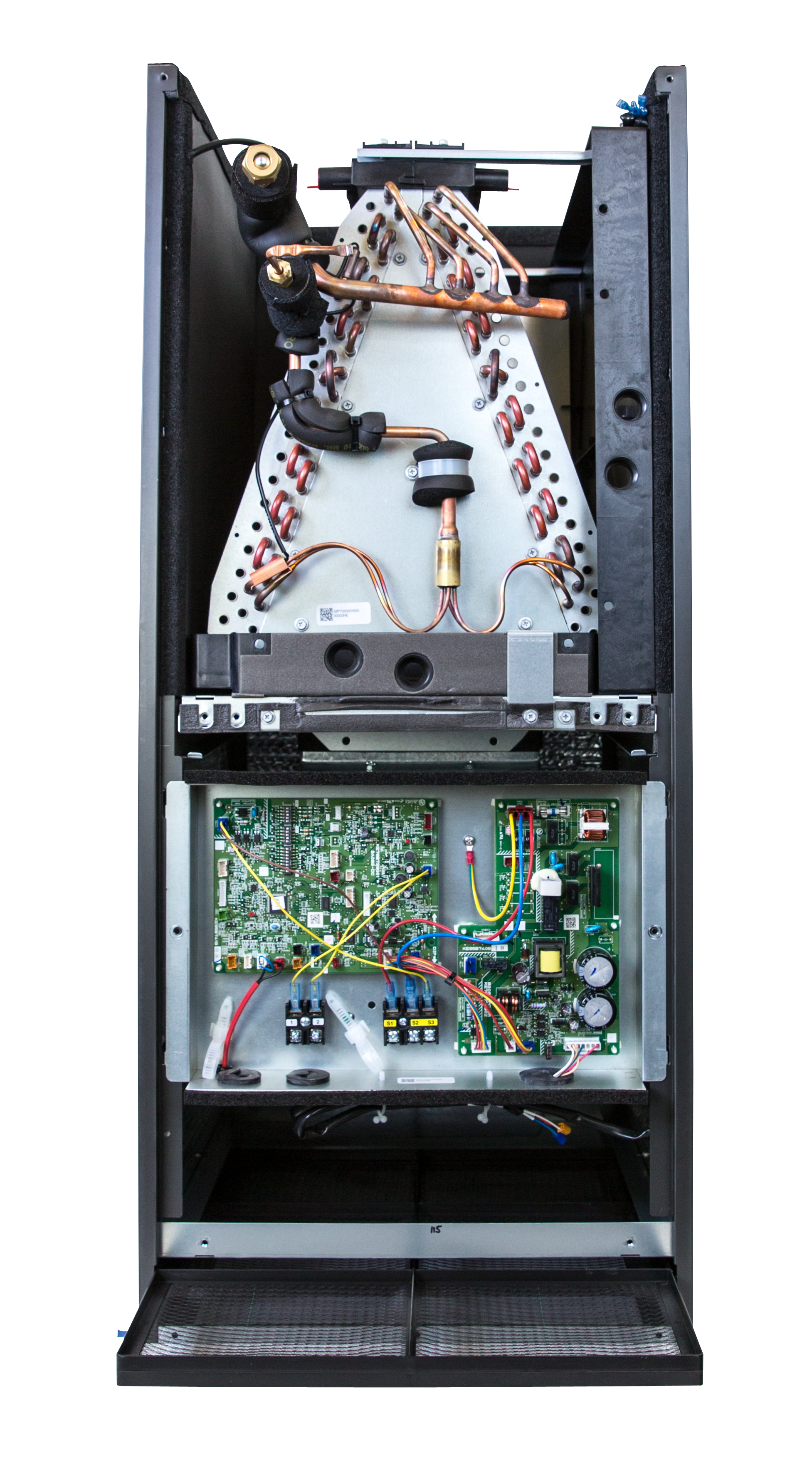

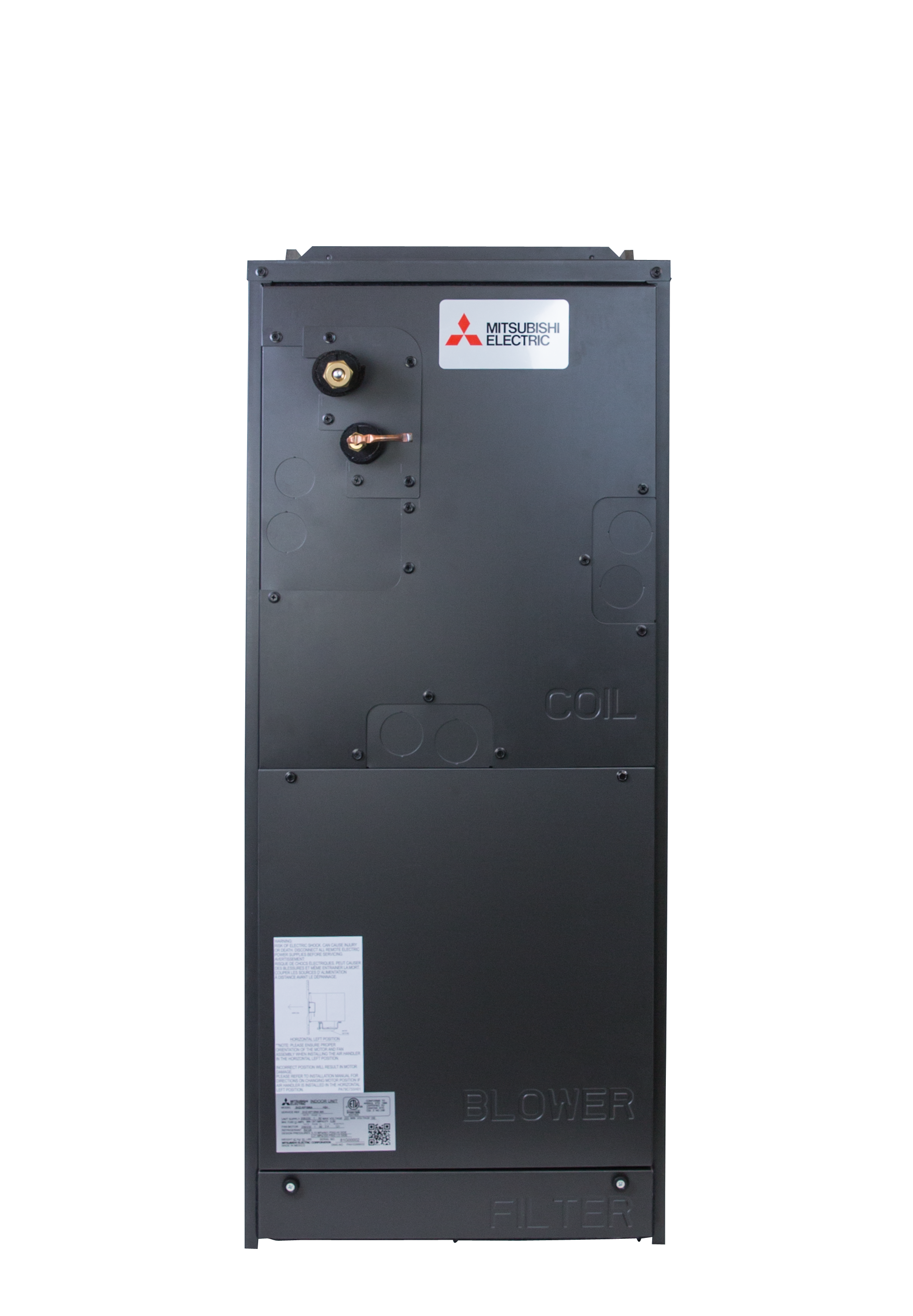

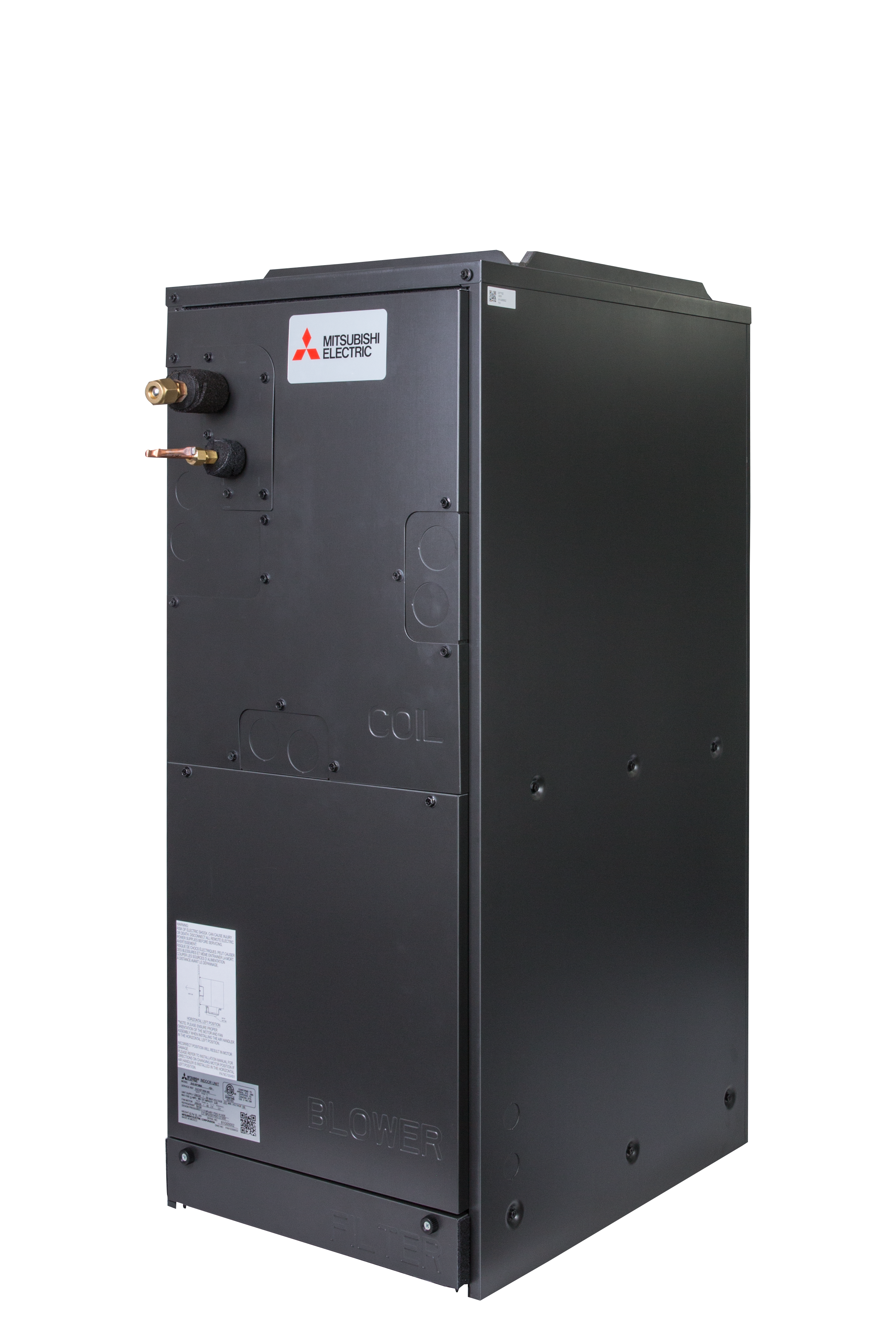

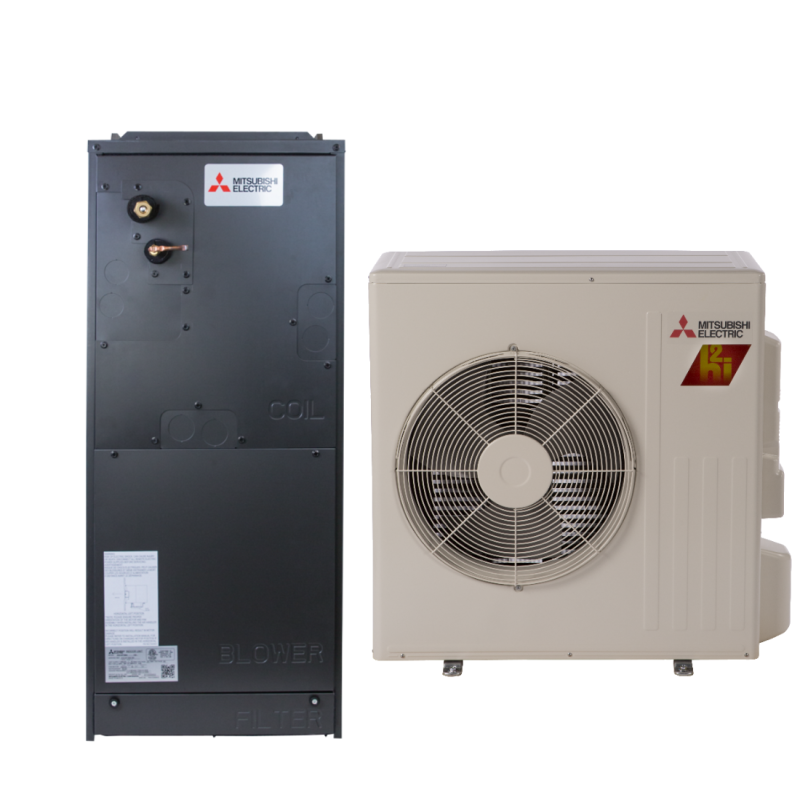

The Mitsubishi SVZ-KP18NA / SUZ-KA18NA is a unitary mini split system with an output of 18,000 BTU and an efficiency rating of 18 SEER. The system is designed to fit in your existing ductwork for ease of installation and a slimmer condenser makes it ready for a wider range of applications.
QUICK FACTS
Designed to be able to heat and cool up to a small house (depending on climate)
18,000 BTU, 18 SEER single-zone mini-split

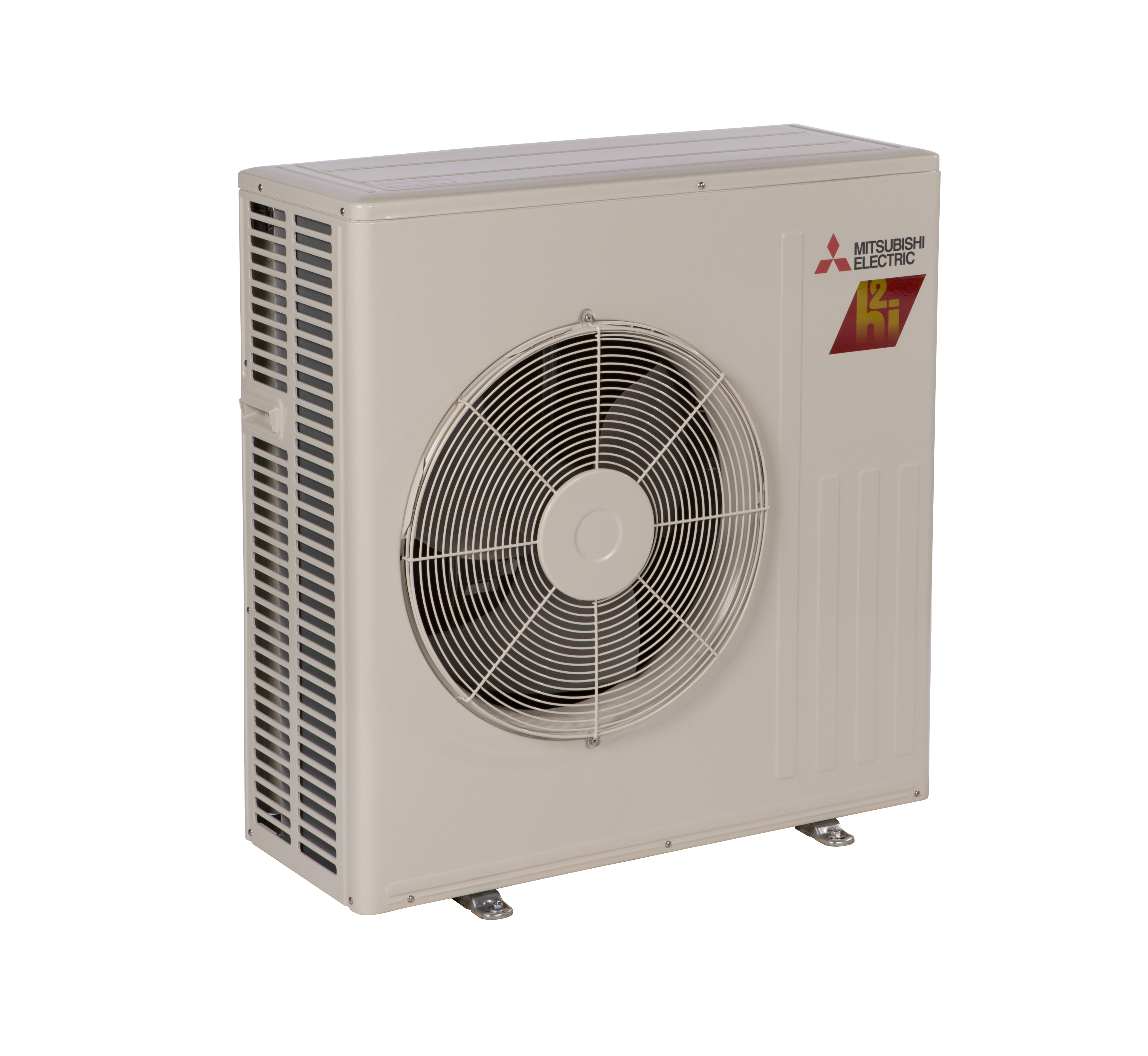

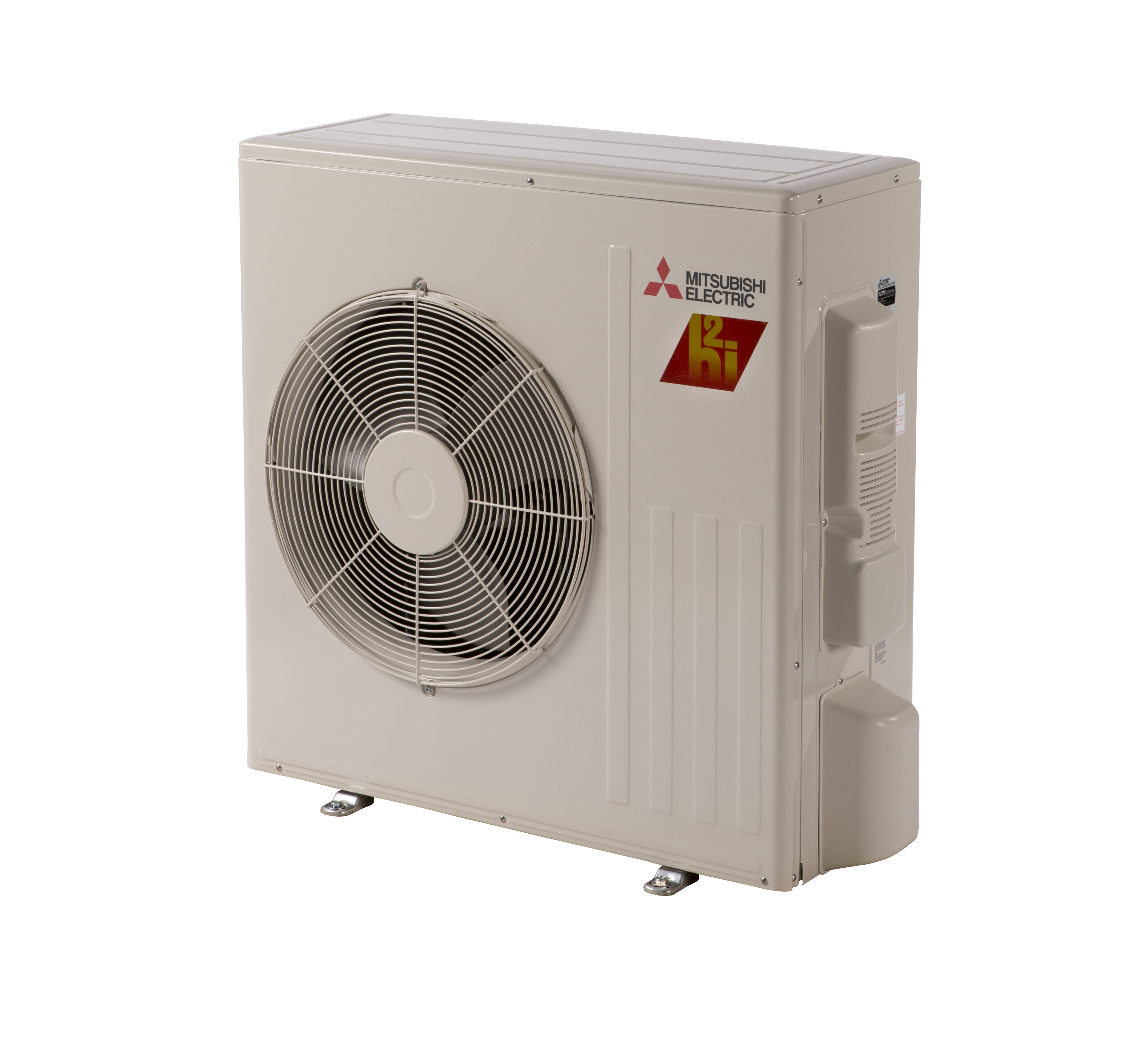

Slim design on the condenser for more installation options
18,000 BTU, 18 SEER
With an output of 18,000 BTU, the Mitsubishi SVZ-KP18NA / SUZ-KA18NA is suitable up to a small house in an average climate. The unit also has a 18 SEER rating, making it able to efficiently heat and cool your home with ease.
Warranty
Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.
Intelligent Comfort
The Mitsubishi SVZ-KP18NA / SUZ-KA18NA2 is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.
Product Specifications
More Information
Mitsubishi 1.5 Ton 18.4 SEER Ducted Central Air Inverter Heat Pump Split System | H2i Hyper Heat
SKU
SVZ-KP18NA / SUZ-KA18NAHZ
Refrigerant Charge
Pre-Charged For: 25'
Weight (in lbs)
162.000000
AHRI Certificate Number
204627056
Brand/Manufacturer
Mitsubishi
Product Features
Low Ambient Heating
Additional Information
Heat Pump
Additional Information
Maximum Line Set Length: 100'
Additional Information
Drain: 1-1/4"
HSPF
10.4
Cooling BTU
18,000 BTU
Heating BTU
21,600 BTU
Refrigerant
R410A
Capacity
Dehumidification Rate: 0 gal/hr
SEER1 (Efficiency)
18-20
EER
12.5
Condenser Stages
Variable Speed
Compressor Type
Rotary
Liquid Line
1/4"
Suction Line
1/2"
Electrical
208/230V 1 Phase 60 Hz
Phase
Single Phase
Max Breaker Size
31
Min. Breaker Size
17
System Tonnage
1.5 Ton
BTU/Tonnage
18,000 BTU/1.5 Ton
Min/Max Outdoor Temp for Heating
-4°-75°
Min/Max Outdoor Temp for Cooling
14°-115°
Zone Compatibility
Single Zone
Operating Mode
Cooling, Heating
Height
Indoor Unit: 39-13/16" | Outdoor Unit: 34-5/8
Width
Indoor Unit: 17" | Outdoor Unit: 38-9/16
Depth
Indoor Unit: 21-5/8" | Outdoor Unit: 13"
Additional Info
Indoor Unit Weight: lbs | Outdoor Unit Weight: 131 lbs
