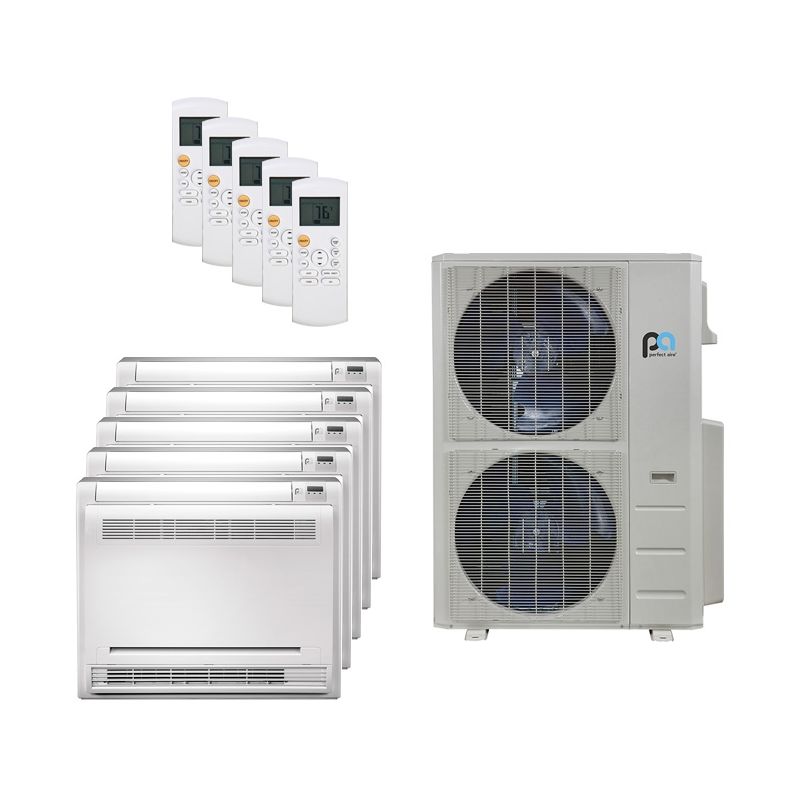

48,000 BTU 21.5 SEER Perfect Aire Five Zone Heat Pump System 9+9+9+9+12 - Floor Mounted

Required Fields *

By

Perfect Aire

Out of stock

Model

3PAMSH48-MZO5 / 4-2PAMSCONH09 / 3PAMSCONH12

ID

10375

Perfect Aire multi-zone ductless mini-split systems provide efficient year-round heating and cooling, all while using much less space and producing less noise than typical furnace and air conditioner systems. The built-in inverter technology reduces energy usage by operating at lower power levels as needed instead of running at full power in short bursts, as older systems do. Besides helping consume less energy, this also means that Perfect Aire mini-split systems keep a steadier temperature than traditional heating and cooling.

Perfect Aire condensers are built to last, with corrosion-resistant coatings made to withstand years of exposure to the elements, and also feature auto-restart, self diagnostics and refrigerant leak detection. All of this while also delivering efficiencies of up to 22.5 SEER, based on condenser and indoor air handler models used.

The indoor air handlers are designed to blend in with your home or office's decor with minimal space requirements. Air handlers can be installed as ceiling, floor, wall, or concealed duct units, and include wireless remote controls allowing each zone to be customized as needed to the temperature you desire, or turned off completely to further save on energy costs. The system's Turbo operation allows it to quickly reach a desired temperature by running at maximum output.

Perfect Aire systems come with a 30 month full replacement warranty and a 7 year compressor warranty.


Features:

  • Energy Efficienct, Variable Speed Two-Stage Inverter Compressor
  • Auto Restart
  • Auto Defrosting
  • Self Diagnosis Function
  • Refrigerant Leak Detection
  • Timer and Sleep Mode
  • Independently Customize Zones
  • Wireless Remote Control
  • Quiet Operation
  • Small Footprint
  • Easy Servicing and Maintenance
  • Multiple Operating Modes
More Information
48,000 BTU 22.4 SEER Perfect Aire Mini Split Heat Pump
FeatureSpec
SKU3PAMSH48-MZO5
Weight (in lbs)225.5
Brand/ManufacturerPerfect Aire
Replaces2PAMSH48-MZO5
UPC842149000202
Cooling BTU48,000
Heating BTU48,000
RefrigerantR410A
HSPF8.5-10.5
SEER1 (Efficiency)21
EER11
Liquid Line1/4" (5)
Suction Line1/2" (2), 3/8" (3)
Electrical208-230 V. 1 Phase 60 Hz
Max Breaker Size60
Min. Breaker Size40
BTU/Tonnage48,000 BTU/4 Ton
Height52.5"
Width37.5"
Depth16.5"
Warranty7 YEAR PARTS | 7 YEAR COMPRESSOR REPLACEMENT | 2 YEAR REMOTE-CONTROL UNIT REPLACEMENT
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Perfect Aire Floor Console Air Handler
FeatureSpec
SKU3PAMSCONH12
Weight (in lbs)33.95
Brand/ManufacturerPerfect Aire
Replaces2PAMSCONH12
UPC842149000127
Cooling BTU12,000
Heating BTU12,000
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230 V. 1 Phase 60 Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeFloor Mounted
Height8.27"
Width27.56"
Depth23.62"
Warranty2 Year Remote-Control Unit Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU 20 SEER Perfect Aire Floor Console Air Handler
FeatureSpec
SKU2PAMSCONH09
Weight (in lbs)32
Brand/ManufacturerPerfect Aire
UPCna
Cooling BTU9,000
Heating BTU9,000
RefrigerantR410A
SEER1 (Efficiency)18-20
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeFloor Mounted
Height23.63"
Width27.56"
Depth8.25"
Warranty30 Month Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU 20 SEER Perfect Aire Floor Console Air Handler
FeatureSpec
SKU2PAMSCONH09
Weight (in lbs)32
Brand/ManufacturerPerfect Aire
UPCna
Cooling BTU9,000
Heating BTU9,000
RefrigerantR410A
SEER1 (Efficiency)18-20
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeFloor Mounted
Height23.63"
Width27.56"
Depth8.25"
Warranty30 Month Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU 20 SEER Perfect Aire Floor Console Air Handler
FeatureSpec
SKU2PAMSCONH09
Weight (in lbs)32
Brand/ManufacturerPerfect Aire
UPCna
Cooling BTU9,000
Heating BTU9,000
RefrigerantR410A
SEER1 (Efficiency)18-20
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeFloor Mounted
Height23.63"
Width27.56"
Depth8.25"
Warranty30 Month Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU 20 SEER Perfect Aire Floor Console Air Handler
FeatureSpec
SKU2PAMSCONH09
Weight (in lbs)32
Brand/ManufacturerPerfect Aire
UPCna
Cooling BTU9,000
Heating BTU9,000
RefrigerantR410A
SEER1 (Efficiency)18-20
Liquid Line1/4"
Suction Line3/8"
Electrical230 V. 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeFloor Mounted
Height23.63"
Width27.56"
Depth8.25"
Warranty30 Month Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:48,000 BTU 21.5 SEER Perfect Aire Five Zone Heat Pump System 9+9+9+9+12 - Floor Mounted
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?



Why Choose a Perfect Aire Product?

Why Choose Perfect Aire?

Perfect Aire ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible fabrication can produce. These mini-split systems include revolutionary Quick Connect adaptors to enable easy DIY installation at an affordable price.
