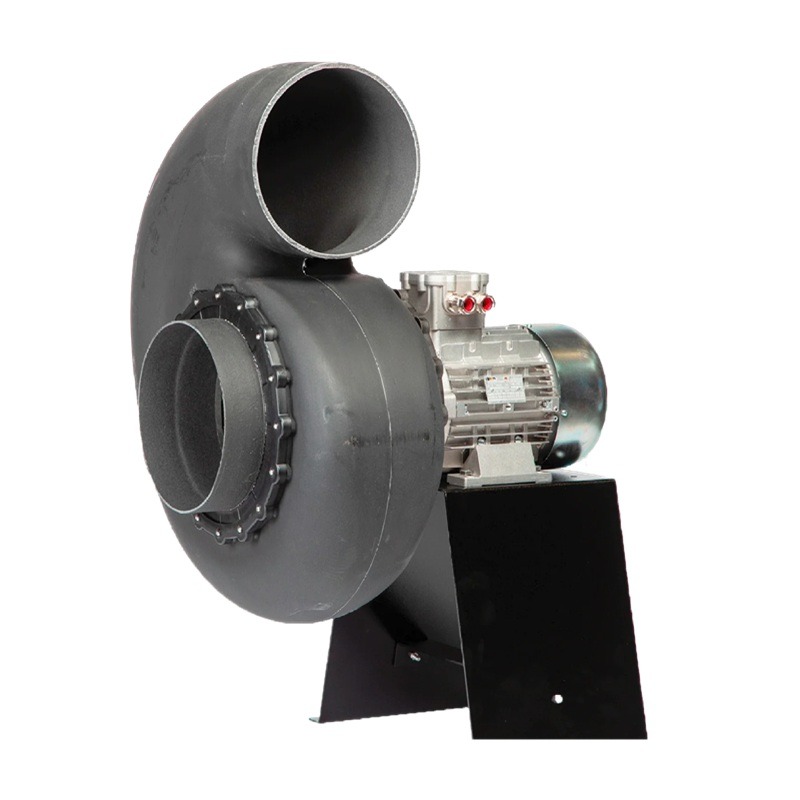

Today's Hours 8am - 11pm estPlastec 35 Series Direct Drive Forward Curve Blower XP Hazardous Location 3 HP 5000 CFM 3 Phase with Mount
Required Fields *
By
Plastec
In stock
Model
P35XT6P300 / MB35
ID
19633
Was $11,697.30
Your Low Price $10,276.30
Product Features
- Space-saving design allows for easy installation
- Forward Curve Impeller design for high airflow and quiet operation
- Built with all-polypropylene construction for superior resistance to acids and corrosion
- Designed to vent fumes from highly corrosive environments like laboratories, chemical plants, hospitals, and universities.
OVERVIEW
The Plastec 35 XP centrifugal fans are available in six sizes, ranging from 5" to 23.50" inlets. They are specifically designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, and universities. The fans are built with all-polypropylene construction and thick walls to provide maximum protection against acids and corrosion. Using explosion-proof materials, Plastec’s exhaust and blower systems are engineered to perform safely even in the most hazardous environments.
Designed to remove air contaminated with toxic fumes, dust, debris, chemicals, and a wide range of industrial pollutants, these units feature parts and motors made from carbon-impregnated polypropylene, one of the most durable synthetic materials available.
Key Features
- Carbon-Impregnated Polypropylene Construction: Allows safe operation in hazardous atmospheres by dissipating static.
- All-Polypropylene Airflow Path: No metal in the airstream, providing maximum corrosion resistance.
- HALS-Stabilized Material: Offers UV protection for outdoor and exposed installations.
- Forward-Curve, Direct-Drive Design: Delivers efficient airflow under static pressure without belts.
- Explosion-Proof Motor Compatibility: Designed for hazardous zones and XP-rated environments.
- Thick-Wall Construction: Provides enhanced durability and structural strength in aggressive conditions.
- Optional Mounting Accessories: Works with stands, hoods, or mounting systems for flexible installation.
Blower Specifications
- Direct Drive Forward Curve
- Wheel Diameter: 14.4"
- Maximum Airflow: 5000 CFM
- Sound Level: 71 dBA @ 5 Feet
- Inlet Diameter: 12.4"
- Outlet Diameter: 12.4"
- Voltage: 230/460 V, 3-Phase, 50/60 Hz
- Motor Power: 3 HP
- Motor Speed: 1150 RPM
- Motor Type: Explosion Proof, 3 Phase
- Motor Enclosure: Totally Enclosed Fan Cooled
Alternate Model Number: PLA35XT6P
Plastec Enamel Coated Metal Motor Support Stand
Enamel-coated metal motor support stand for models Storm 16 and Plastec P35 series.
Features
- Modern and Attractive Design
- Simple and Easy Installation
- Includes Stainless Steel Motor Mounting Hardware
- Durable, Strong, and Rust-Resistant Construction
- Provides flange with pre-punched holes for secure mounting and reduced vibration.
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec 35 XP is designed for extreme environments where chemical resistance, safety, and long-lasting performance are critical. Its entire airflow path, including housing, impeller, and wetted surfaces, is constructed from carbon-impregnated polypropylene (CIP). This material allows static dissipation and ensures safe operation in explosion-rated atmospheres. Built with thick, durable walls, the blower provides exceptional resistance to acids, solvents, salts, and corrosive vapors, making it ideal for hazardous locations such as laboratories, chemical plants, and coastal facilities. To withstand outdoor use and UV exposure, the polypropylene is stabilized with HALS (Hindered-Amine Light Stabilizers), which guard against material degradation caused by sunlight.
The Plastec 35 XP delivers a rugged, corrosion-resistant, and explosion-safe solution for demanding ventilation needs, ensuring reliable performance where conventional metal blowers cannot endure.
Suitable Applications for Plastec 35 XP Series Blower
- Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
- Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
- Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
- Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
- Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
- Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
- Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
