3 Ton 16.1 SEER2 Stealth EZ Connect High Efficiency Heat Pump Split System - R454B Inverter - Multi-Positional

High-Efficiency Inverter Comfort at a Better Value

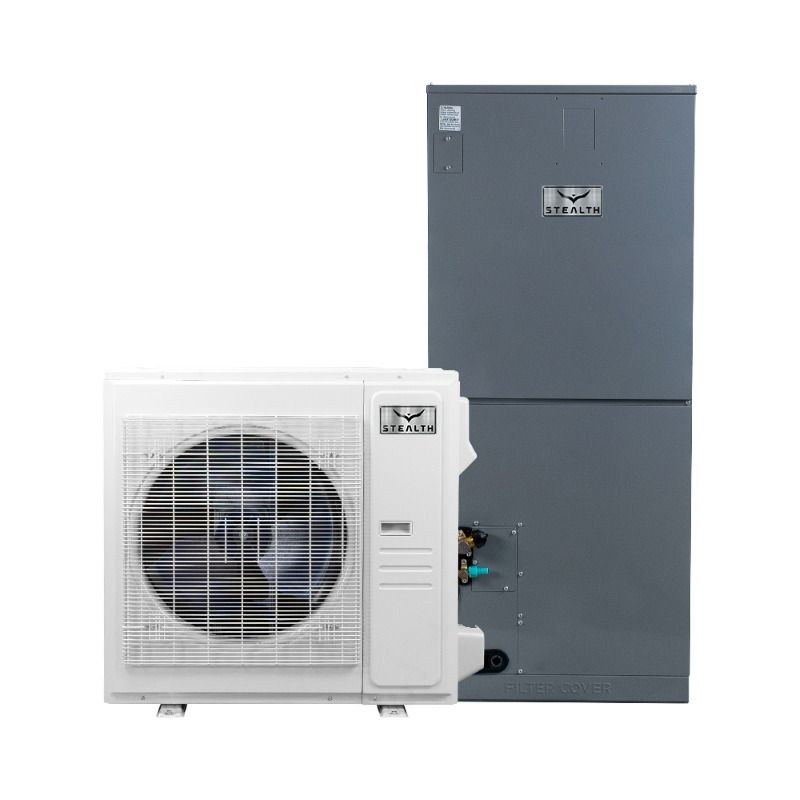

This 3 ton Stealth High-Efficiency heat pump split system combines an inverter-driven outdoor condenser with a multi-positional air handler for efficient electric heating and cooling throughout the year. Rated at 16.1 SEER2 and generally suited for homes around 1,600–2,000 sq. ft., the system provides modern central comfort at a value-focused price. The inverter compressor automatically adjusts output as conditions change, while Stealth EZ Connect pre-charged line sets simplify connections without specialized HVAC tools.

Key Benefits

• 16.1 SEER2 High-Efficiency Performance: Helps lower heating and cooling energy costs.
• Sized for Approximately 1,600–2,000 sq. ft.: Provides a helpful starting point for residential system selection.
• Inverter-Driven Comfort: Automatically adjusts output to help maintain more even temperatures.
• EZ Connect Installation: Pre-charged line sets connect without specialized HVAC tools.
• Low-Temperature Heating: Continues providing electric heat as outdoor temperatures fall.
• Multi-Positional Air Handler: Supports upflow, downflow, and horizontal installation.
• WiFi Programmable Touchscreen Thermostat Included: Convenient system control comes standard with the complete system.

Why Buy Stealth?

Stealth provides modern inverter heating and cooling at a value-focused price. The High-Efficiency series combines efficient operation, flexible indoor equipment, and EZ Connect installation features for a practical central HVAC upgrade.

---

EZ Connect, EZ Installation

Stealth makes the heat pump installation process a breeze with its pre-charged EZ Connect line sets. Each line set comes pre-charged from the factory with R454B refrigerant, eliminating the need for vacuuming or handling additional refrigerant. Their quick-connect fittings screw onto Stealth heat pump condensers with simplicity, all while maintaining a secure, leak-resistant connection. With no additional refrigerant-handling tools needed, DIY and professional installers have never had an easier time installing HVAC equipment.

---

Inverter Technology for More Consistent Home Comfort

Instead of operating only at full power and then shutting off, the inverter-driven compressor automatically adjusts output as indoor conditions change. This helps reduce large temperature swings while the variable indoor blower distributes conditioned air more consistently through the home's duct system.

Warmer Vent Temperatures than Traditional Heat Pumps

Stealth inverter heat pumps are designed to deliver warmer supply air than many older heat pump systems. This can make heating feel more comfortable at the vents during colder weather and provide a more familiar central-heating experience.

Efficiency Choices for Every Climate

The Stealth High-Efficiency series is designed to provide dependable electric heating and cooling across a broad range of seasonal conditions, helping homeowners maintain efficient comfort as outdoor temperatures change.

Flexible Multi-Positional Air Handler

The included 21-inch-wide air handler can be installed in upflow, downflow, or horizontal configurations, making it easier to adapt the system to different residential duct layouts and equipment locations. Its variable blower works alongside the inverter condenser to support steady airflow and more consistent temperatures throughout the home.

Optional Backup Electric Heat

Compatible electric heat kits up to 20 kW can be added through the air handler to provide supplemental or backup electric heat when additional heating support is needed.

Warranty

Stealth provides a 5-year limited parts and compressor warranty, extendable to 10 years with qualifying residential registration. Warranty coverage requires the equipment to be installed as part of a Stealth-certified system pairing and in accordance with manufacturer and local installation requirements.

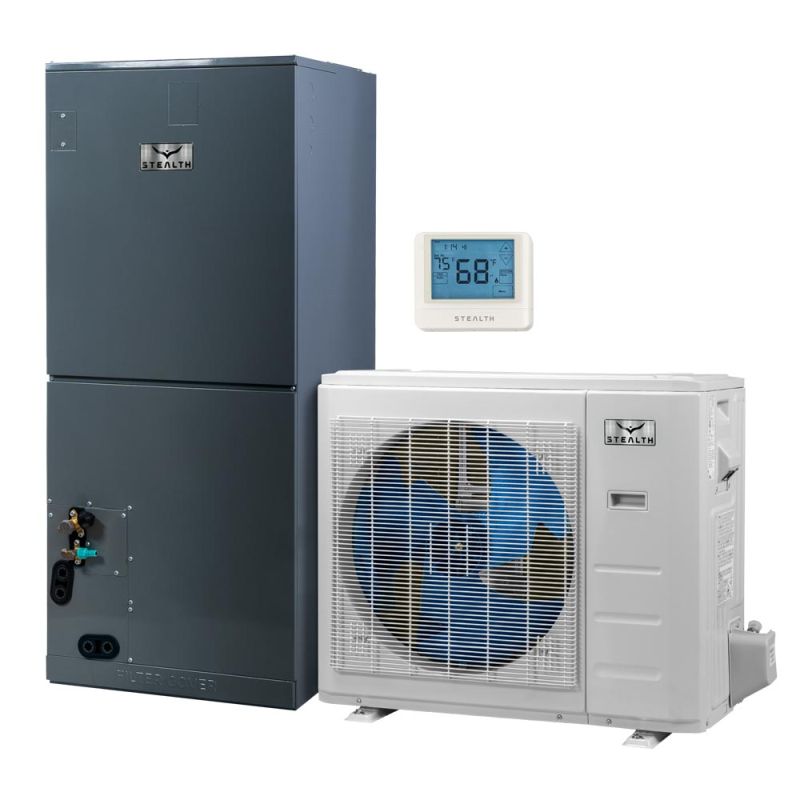

What’s Included

• Stealth High-Efficiency Heat Pump Condenser
• Stealth Multi-Positional Air Handler
• WiFi Programmable Touchscreen Thermostat

Recommended Accessories

• EZ Connect Pre-Charged Line Set: Connects indoor and outdoor equipment without specialized HVAC tools.
• Electric Heat Kit: Adds backup or supplemental electric heat. Select a compatible option up to 20 kW.
• Condenser Installation Kit: Provides common materials needed for outdoor-unit installation.
• Condenser Mounting: Select an appropriate equipment pad or mounting solution.
• Optional Dehumidifier: Adds extra humidity control when needed.

Requirements & Considerations

• Home Sizing: The 1,600–2,000 sq. ft. guideline is a general estimate. Proper sizing should account for climate, insulation, windows, ductwork, and other home characteristics.
• Electrical Requirements: Indoor and outdoor equipment require appropriately sized dedicated electrical circuits.
• Installation: Follow manufacturer installation instructions and all applicable codes.

R454B Refrigerant Notice

This system uses R454B, an A2L refrigerant. Compatible R454B equipment and accessories must be used, and installation and service must follow manufacturer instructions and applicable refrigerant safety requirements.
