Trane 4 Ton 15.2 SEER2 / 12 EER2 Commercial Split Air Conditioning System | 460V 3 Phase - R454B - Two Stage

Reliable 4-Ton Commercial Split Air Conditioner for Light Commercial Buildings with Flexible Installation

The Trane 5TTA4048A4 / 5TAM5D05AC31 is a nominal 4-ton commercial split air conditioning system intended for appropriately sized commercial cooling applications. Combining the Trane 5TTA4048A4 outdoor condensing unit with the 5TAM5D05AC31 indoor air handler, this split-system configuration separates the outdoor heat-rejection equipment from the indoor air-distribution components to provide flexibility in equipment placement. The system is designed to provide ducted cooling for compatible installations, with final performance dependent on the approved equipment combination, installation conditions, and system commissioning.

Key Benefits

• Nominal 4-Ton Cooling Capacity – Provides a nominal cooling capacity of 48,000 BTU/h for properly sized commercial spaces.
• Dedicated Outdoor Condensing Unit – Houses the refrigeration components outdoors to support heat rejection during cooling operation.
• Indoor Air Handler Integration – Circulates conditioned air through compatible ductwork to serve the occupied space.
• Flexible Split-System Installation – Allows indoor and outdoor equipment placement to be planned around building layout and installation requirements.
• Ducted Air Distribution – Supports centralized cooling for multiple areas served by a properly designed duct system.
• Compatible System Controls – Allows conventional thermostat integration when the selected controls meet the requirements of the matched equipment.
• Commercial Cooling Application – Provides a split-system configuration for suitable offices, retail spaces, and other commercial environments.
• Routine Service and Maintenance – Supports scheduled inspection and maintenance of the indoor and outdoor components according to manufacturer instructions.

Nominal 4-Ton Cooling Capacity – Commercial Comfort

The Trane 5TTA4048A4 / 5TAM5D05AC31 is configured around a nominal 48,000 BTU/h, 4-ton cooling capacity. During cooling operation, the indoor evaporator coil absorbs heat from the building's air, while the outdoor condensing unit transfers that heat to the outdoor environment. The indoor air handler circulates conditioned air through compatible ductwork. Actual cooling capacity depends on the approved matched-system combination, indoor airflow, refrigerant piping, and operating conditions. Confirm the rated capacity using the manufacturer's performance data for the exact models.

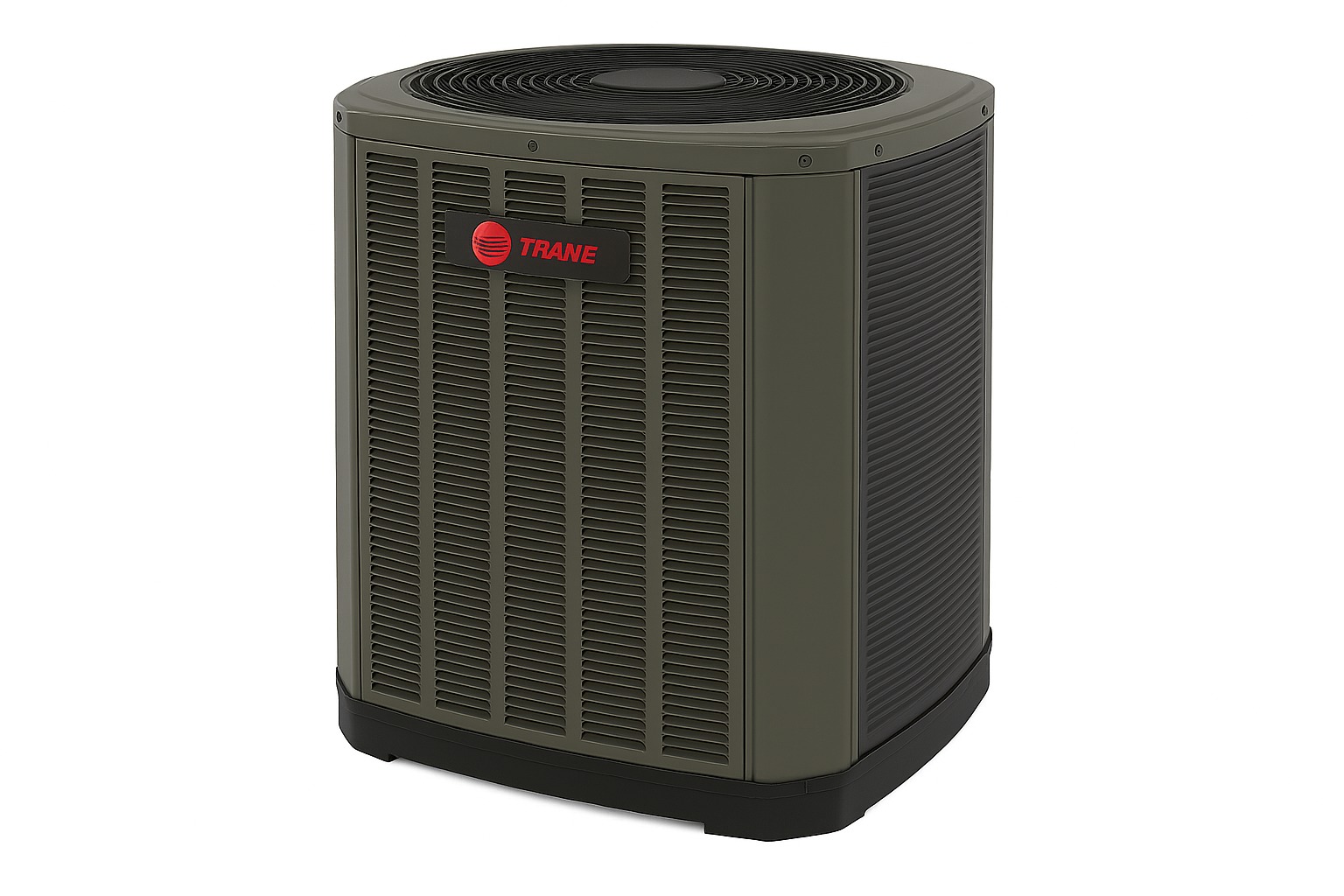

Outdoor Condensing Unit – Cooling Performance

The Trane 5TTA4048A4 outdoor condensing unit provides the refrigeration equipment required to remove heat from the indoor space. Its compressor, condenser coil, and outdoor fan work together to circulate refrigerant and reject heat during cooling operation. The specific compressor technology, condenser construction, refrigerant type, electrical requirements, and operating limits must be confirmed using the official Trane documentation applicable to the exact model. Correct installation and commissioning are essential to achieving the intended cooling performance.

System Efficiency – Energy-Conscious Cooling

The efficiency of the Trane 5TTA4048A4 / 5TAM5D05AC31 depends on the approved equipment match and its operating conditions. Applicable SEER2, EER2, or other efficiency ratings should be taken from official manufacturer performance tables or certified matched-system data. Nominal tonnage alone does not establish a system's efficiency rating. Correct airflow, refrigerant charge, duct design, coil cleanliness, and professional commissioning help the system operate according to its intended performance specifications.

Split System Design – Flexible Equipment Placement

The split-system configuration separates the outdoor condensing unit from the indoor air handler, allowing the installation to accommodate the building's layout and ductwork requirements. Refrigerant lines connect the indoor and outdoor equipment, while the air handler distributes conditioned air through compatible ducts. Equipment clearances, refrigerant line diameters, allowable piping lengths, condensate drainage, and electrical connections must comply with the installation instructions for the specific matched system. Confirm the dimensions and installation orientation of both units before planning the equipment layout.

Controls and Comfort – Compatible Thermostat Operation

The Trane 5TTA4048A4 / 5TAM5D05AC31 requires compatible system controls selected according to the electrical and operating requirements of the matched outdoor unit and indoor air handler. A correctly selected thermostat coordinates cooling demand and supported fan operation. Available control functions, cooling stages, blower settings, and accessory compatibility should be confirmed in the official documentation for the exact equipment combination. Appropriate thermostat configuration and airflow adjustment help support consistent indoor comfort.

Commercial Applications – Ducted Cooling for Business Spaces

The Trane 5TTA4048A4 / 5TAM5D05AC31 is intended for commercial applications where a ducted split air conditioning system is appropriate. Potential applications include offices, retail establishments, and similar spaces with a suitable calculated cooling load and compatible ductwork. The nominal 4-ton capacity provides a starting point for equipment selection, but final sizing should account for building characteristics, occupancy, ventilation requirements, internal heat gains, climate, and operating schedules.

Service and Maintenance – Supporting Reliable Operation

Regular inspection and maintenance help support dependable operation throughout the equipment's service life. Recommended maintenance includes inspecting and cleaning indoor and outdoor coils as needed, checking filters, inspecting condensate drainage, verifying electrical connections, and assessing refrigeration-system operation. Qualified HVAC technicians should follow the applicable Trane service documentation when inspecting the compressor, condenser, evaporator coil, blower, and associated controls. Required service clearances and manufacturer-approved maintenance procedures should be observed.

Warranty

Warranty coverage for the Trane 5TTA4048A4 / 5TAM5D05AC31 must be verified using the applicable official Trane warranty documentation for the exact models and installation. Parts and compressor coverage, warranty duration, registration requirements, exclusions, and eligibility conditions may vary according to product classification, purchase channel, installation location, and applicable warranty terms. Confirm the coverage with the equipment documentation or an authorized Trane representative before purchase.

Recommended Accessories

• Compatible Thermostat or Commercial Control – Select according to the control requirements of the approved matched system.
• Outdoor Equipment Pad or Approved Mounting Support – Provides a suitable, stable support surface for the outdoor condensing unit.
• Electrical Disconnect and Overcurrent Protection – Select and size according to the equipment nameplate, manufacturer instructions, and applicable electrical codes.
• Compatible Refrigerant Line Set and Insulation – Select the required line diameters, insulation, and permitted piping lengths according to the approved equipment combination.
• Condensate Drain Components and Duct Transitions – Select according to the indoor air handler configuration, duct design, and installation requirements.

Dependable Commercial Cooling with the Trane 5TTA4048A4 / 5TAM5D05AC31

Support commercial indoor comfort with the Trane 5TTA4048A4 / 5TAM5D05AC31 split air conditioning system. Combining a nominal 4-ton outdoor condensing unit with a compatible indoor air handler, this system provides a ducted cooling configuration for appropriately sized commercial spaces. Proper equipment matching, professional installation, and regular maintenance help support reliable operation and the intended cooling performance.
