Trane 5 Ton 14.3 SEER2 / 11.7 EER2 Commercial Split Air Conditioning System | 208/230V 3 Phase - R454B - Two Stage

Reliable 5-Ton Commercial Split Air Conditioner for Light Commercial Buildings with Flexible Installation

The Trane 5TTA4060A3 / 5TAM5D06AC41 is a nominal 5-ton commercial split air conditioning system designed to provide ducted cooling for appropriately sized commercial spaces. Combining the Trane 5TTA4060A3 outdoor condensing unit with the 5TAM5D06AC41 indoor air handler, this system separates the outdoor heat-rejection equipment from the indoor air-distribution components to provide flexibility in equipment placement. The outdoor unit supports refrigeration-based cooling, while the multi-position indoor air handler provides conditioned-air circulation through compatible ductwork. Correct equipment matching, professional installation, and appropriate maintenance help support dependable cooling performance.

Key Benefits

• Nominal 5-Ton Cooling Capacity – Provides approximately 60,000 BTU/h of nominal cooling capacity for appropriately sized commercial spaces.
• Single-Stage Cooling Operation – Provides conventional compressor-based cooling operation for straightforward system control.
• Scroll Compressor Technology – Supports refrigerant compression for dependable cooling operation.
• Multi-Position Indoor Air Handler – Supports upflow, downflow, and horizontal installation configurations when permitted by the manufacturer's installation instructions.
• Constant-Torque ECM Blower Motor – Provides indoor air circulation with electronically controlled motor operation.
• All-Aluminum Indoor Coil – Supports heat transfer between the indoor air and the refrigerant circuit.
• Flexible Split-System Configuration – Allows the indoor and outdoor equipment to be positioned according to building layout, ductwork, and service-clearance requirements.
• Optional Electric Heat Compatibility – Compatible electric heat accessories may be available for applications requiring supplemental heating, subject to model-specific approval.

5-Ton Cooling Capacity – Reliable Commercial Comfort

The Trane 5TTA4060A3 / 5TAM5D06AC41 split system combines a nominal 60,000 BTU/h, 5-ton outdoor air conditioning unit with a compatible indoor air handler. During cooling operation, the indoor evaporator coil absorbs heat from the building's air, while the outdoor condenser rejects that heat to the surrounding environment. The indoor blower circulates conditioned air through compatible ductwork to serve the occupied space. Actual cooling capacity and operating performance depend on the approved matched-system combination, airflow, refrigerant piping, and installation conditions.

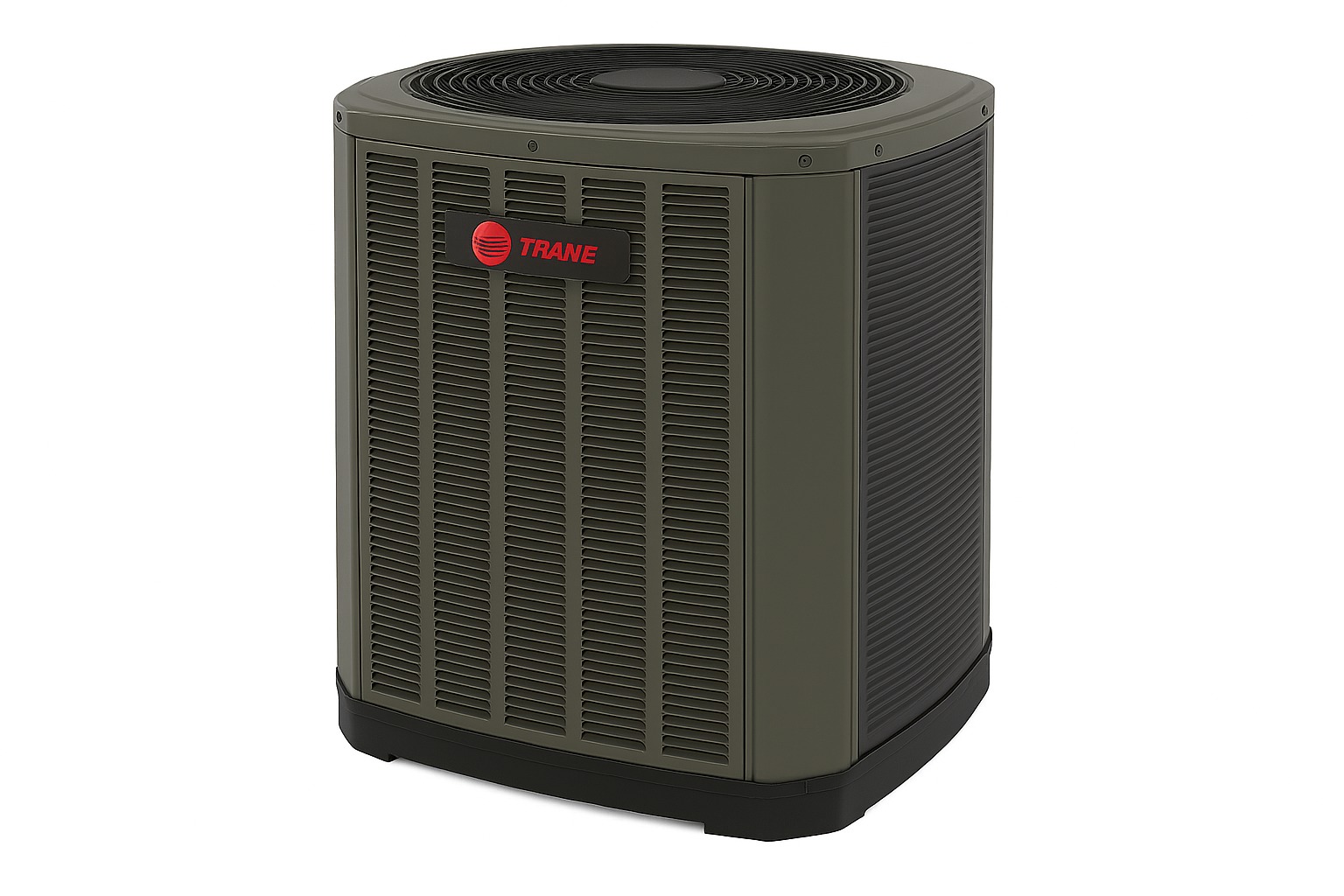

Scroll Compressor and Outdoor Condensing Unit – Cooling Performance

The Trane 5TTA4060A3 outdoor condensing unit incorporates a scroll compressor and the outdoor refrigeration components required for cooling operation. The compressor circulates refrigerant through the system, while the condenser coil and outdoor fan facilitate heat rejection. These components work together to remove heat from the indoor environment and release it outdoors. Proper equipment matching, refrigerant charge, airflow, and commissioning are essential to achieving the intended cooling performance.

System Efficiency – Performance for Commercial Cooling

The efficiency of the Trane 5TTA4060A3 / 5TAM5D06AC41 depends on the approved matched-system configuration and its operating conditions. Applicable SEER2, EER2, and other published efficiency ratings should be confirmed using the manufacturer's product and submittal data for the exact equipment combination. Correct refrigerant charge, indoor airflow, duct design, and routine coil maintenance help support the intended operating performance. Equipment selection should account for both the required cooling capacity and the applicable efficiency requirements for the installation.

Split System Design – Flexible Installation Configuration

The split-system arrangement separates the outdoor condensing unit from the indoor air handler, allowing equipment placement to accommodate the building layout and ductwork requirements. The outdoor 5TTA4060A3 unit measures approximately 45 inches high by 34 inches wide by 37 inches deep and has an estimated uncrated weight of 252 pounds. The indoor air handler supports multiple installation orientations, subject to the manufacturer's instructions and required service clearances. Refrigerant line sizing, permitted piping lengths, condensate drainage, electrical connections, and airflow settings must comply with the installation requirements for the matched equipment combination.

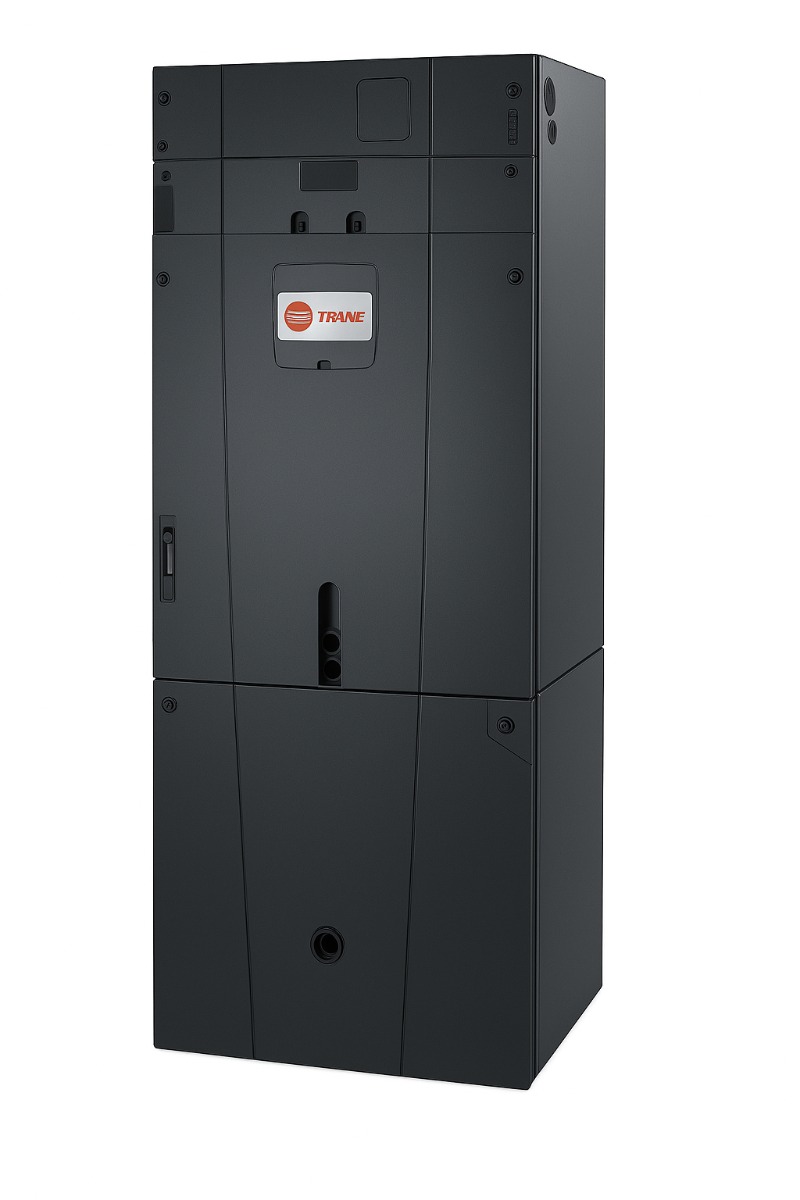

Multi-Position Air Handler – Airflow and Comfort Control

The Trane 5TAM5D06AC41 indoor air handler is designed to provide conditioned-air circulation through compatible ductwork. Its constant-torque ECM blower motor supports indoor airflow, while the all-aluminum evaporator coil facilitates heat transfer during cooling operation. The multi-position configuration provides installation flexibility for approved upflow, downflow, and horizontal arrangements. Actual airflow depends on the selected configuration, external static pressure, duct design, and equipment setup. Appropriate blower adjustment and thermostat selection help support the intended system performance.

Commercial Applications – Ducted Cooling for Business Spaces

The Trane 5TTA4060A3 / 5TAM5D06AC41 is suitable for appropriately sized commercial applications where a ducted split air conditioning system is appropriate. Potential applications include offices, retail establishments, and similar commercial spaces requiring centralized cooling. Its nominal 5-ton capacity provides a starting point for equipment selection, while the separate indoor and outdoor components allow installation planning around building requirements. Final equipment selection should be based on a cooling-load calculation, ventilation requirements, duct design, occupancy, internal heat gains, and applicable electrical and mechanical requirements.

Service & Maintenance – Supporting Dependable Operation

Regular maintenance helps preserve the performance and reliability of the Trane split system. Recommended maintenance includes inspecting and cleaning the indoor and outdoor coils as needed, checking air filters, inspecting condensate drainage, verifying electrical connections, and assessing refrigerant-system operation. Qualified HVAC technicians should follow the applicable Trane service documentation when inspecting or servicing the compressor, condenser, evaporator coil, blower, and associated controls. Proper service clearances and manufacturer-approved maintenance procedures should be observed throughout the equipment's service life.

Warranty

Warranty coverage for the Trane 5TTA4060A3 / 5TAM5D06AC41 must be confirmed using the applicable official Trane warranty documentation for the exact models and installation. Parts and compressor coverage, warranty duration, registration requirements, exclusions, and eligibility conditions may vary according to product classification, purchase channel, installation location, and applicable warranty terms. Confirm the applicable coverage with the equipment documentation or an authorized Trane representative before purchase.

Recommended Accessories

• Compatible Thermostat or Commercial Control – Select according to the control requirements of the approved matched system.
• Outdoor Equipment Pad or Approved Mounting Support – Provides a suitable, stable support surface for the outdoor condensing unit.
• Electrical Disconnect and Overcurrent Protection – Select and size according to the equipment nameplate, manufacturer instructions, and applicable electrical codes.
• Compatible Refrigerant Line Set and Insulation – Select the required line diameters, insulation, and permitted piping lengths according to the approved equipment combination.
• Compatible Electric Heat Kit – Select an approved heating accessory when supplemental electric heating is required and permitted for the indoor air handler configuration.

Dependable Commercial Cooling with the Trane 5TTA4060A3 / 5TAM5D06AC41

Experience dependable ducted cooling with the Trane 5TTA4060A3 / 5TAM5D06AC41 commercial split air conditioning system. Combining a nominal 5-ton outdoor condensing unit with a scroll compressor and a multi-position indoor air handler featuring a constant-torque ECM blower motor and an all-aluminum evaporator coil, this system provides a flexible cooling solution for appropriately sized commercial spaces. Proper equipment matching, professional installation, and regular maintenance help support reliable operation and indoor comfort.
