Trane Foundation Series 5 Ton 10.6 EER2 Commercial Packaged Air Conditioner | 460V 3 Phase - R454B - Single Stage

Reliable 5-Ton Air Conditioner Rooftop Unit for Commercial Buildings with Convertible Airflow

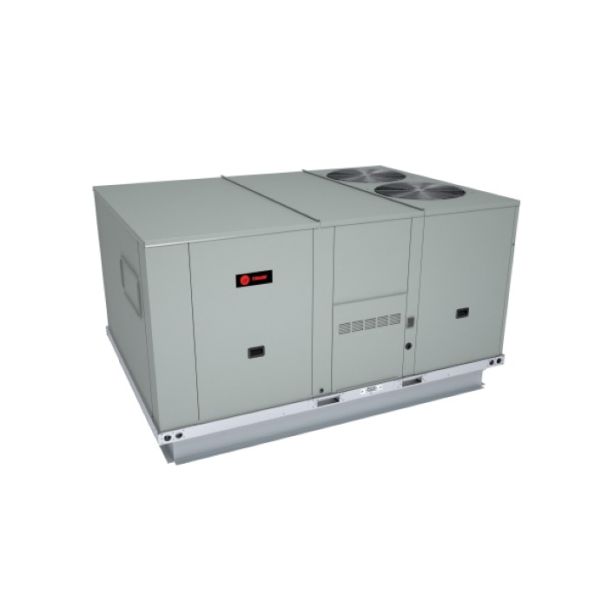

The Trane Foundation EDK060A4E0A is a 5-ton commercial packaged air conditioner designed to provide reliable cooling for commercial buildings and rooftop replacement applications. Combining packaged direct-expansion cooling with convertible airflow and electromechanical controls, this all-in-one rooftop system helps deliver dependable cooling while simplifying installation and preserving valuable indoor space.

Key Benefits

• 13.4 SEER2 & 14 SEER Efficiency – Provides efficient commercial cooling performance across varying load conditions.
• 5-Ton Packaged Cooling – Provides approximately 59,500 Btuh of cooling capacity in a self-contained rooftop configuration.
• Scroll Compressor Technology – Provides dependable refrigeration performance for commercial cooling operation.
• Convertible Airflow – Allows the unit to be configured for horizontal or vertical airflow to accommodate different installation requirements.
• Retrofit-Friendly Rooftop Design – The Foundation platform uses a footprint designed for quick and easy rooftop replacement installations.
• Phase Monitor – Helps enhance motor and compressor protection during operation.
• Electromechanical Controls – Provides straightforward equipment control for applicable commercial installations.
• Accessible Service Design – Provides practical access to major components for routine service and maintenance.

5-Ton Packaged DX Cooling – Reliable Commercial Comfort

The integrated direct-expansion air conditioning system provides nominal 5-ton cooling capacity to help maintain comfortable indoor temperatures during warm-weather operation. The EDK060A4E0A is a cooling-only Foundation configuration using R-454B refrigerant. Foundation rooftop units are available from 3 to 25 tons, with electromechanical controls used on 3- to 12.5-ton models.

Cooling Performance – Dependable Light-Commercial Cooling

The EDK060A4E0A provides nominal 5-ton packaged cooling capacity for commercial rooftop applications. The Foundation platform is offered with standard-efficiency cooling and R-454B refrigerant, providing a packaged solution for replacement and light-commercial applications.

Efficiency – Standard-Efficiency Packaged Rooftop Operation

With a standard-efficiency design and scroll compressor operation, this system is designed to provide dependable commercial comfort. The Foundation platform uses micro-channel coils designed to reduce coolant leaks, use less refrigerant, and improve reliability.

Rooftop/Installation Design – Convertible and Retrofit-Friendly Configuration

The packaged rooftop configuration combines the compressor, condenser, evaporator, blower, controls, and air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Convertible airflow allows easy on-site conversion between horizontal and vertical airflow configurations. The Foundation platform features a footprint designed for quick and easy retrofits and plug-and-play rooftop replacement installation without the extra cost and hassle of a curb adapter in compatible applications.

Controls & Comfort – Electromechanical Equipment Control

The EDK060A4E0A uses the electromechanical control configuration provided for Foundation units from 3 through 12.5 tons. The Foundation platform provides practical equipment control for commercial rooftop applications, while the product design supports straightforward installation and replacement.

Commercial Applications – Rooftop Replacement & Light-Commercial Buildings

The Trane Foundation EDK060A4E0A is designed for commercial rooftop cooling applications, particularly replacement projects where a retrofit-friendly rooftop footprint and straightforward installation are important. The Foundation platform is available from 3 to 25 tons and is specifically designed for rooftop HVAC replacement applications.

Service & Maintenance – Accessible Design & Component Protection

The Foundation design incorporates features intended to support reliable operation and service, including a phase monitor that enhances motor and compressor protection and a discharge line thermostat that provides additional compressor protection against high discharge temperatures. The micro-channel coil design is intended to reduce coolant leaks, use less refrigerant, and improve reliability.

Warranty

The Trane Foundation rooftop unit platform includes a 1-year parts warranty and a 5-year limited compressor warranty. A 10-year limited stainless steel heat exchanger warranty is also available where the applicable heat exchanger is included. Extended warranty options are available. Warranty terms, conditions, and coverage requirements should be verified against the applicable Trane warranty documentation for the installed configuration.

Recommended Accessories

• Compatible Thermostat or Control – Supports the applicable electromechanical control configuration.
• Roof Curb/Mounting Base – Compatible rooftop mounting solutions may be used where required by the existing installation.
• Unit Disconnect – Optional electrical disconnect available for applicable Foundation configurations.
• Through-the-Base Electrical Access – Available installation option for applicable configurations.
• Economizer – Optional ventilation and outdoor-air accessory available for applicable configurations.
• Condensate Overflow Switch – Optional accessory available for additional condensate protection.

Reliable Commercial Cooling with the Trane Foundation EDK060A4E0A

Experience reliable commercial cooling with the Trane Foundation EDK060A4E0A. Combining 5-ton packaged DX cooling, scroll compressor technology, convertible airflow, and electromechanical controls in one retrofit-friendly rooftop air conditioning system.
