Trane 6 Ton 11.2 EER / 14.1 IEER Commercial Split Heat Pump System | 460V 3 Phase - R454B - Two Stage

Reliable Commercial Heating and Cooling with the Trane 6-Ton Odyssey™ Split System for Commercial Buildings

The Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC is a nominal 6-ton commercial split-system configuration designed to provide dependable cooling and heat pump operation for suitable commercial applications. Combining the TWA072K4DAA**BS01 outdoor heat pump unit with the TWE072K4BAA**BC indoor air handler, this system separates the outdoor refrigeration equipment from the indoor air distribution components to support flexible installation. As part of Trane's Odyssey™ commercial split-system family, the equipment is intended for properly designed applications requiring commercial-grade heating and cooling. Confirm the exact model match, electrical requirements, and rated performance using the applicable Trane submittal and installation documentation.

Key Benefits

• Nominal 6-Ton Capacity – The 072 model designation represents the nominal 81,000 BTU/h capacity class for appropriately sized commercial applications.
• Heating and Cooling Capability – Heat pump operation can provide heating and cooling when configured and matched according to the manufacturer's specifications.
• Commercial Split-System Design – Separates the outdoor refrigeration equipment from the indoor air handler for flexible equipment placement.
• Ducted Air Distribution – Supports conditioned-air delivery through a properly designed and compatible duct system.
• Commercial Application Flexibility – The Odyssey product family offers equipment options for a range of commercial building requirements.
• Two-Circuit Refrigeration Configuration – The TWA072K*D model designation is associated with a two-refrigerant-circuit configuration in Trane's Odyssey heat pump application documentation.
• Service Access – The split configuration allows technicians to inspect and maintain indoor air-handling components and outdoor refrigeration components separately.
• Matched System Configuration – Appropriate equipment matching supports the intended system capacity, airflow, and operating performance.

Heat Pump Heating for Year-Round Comfort

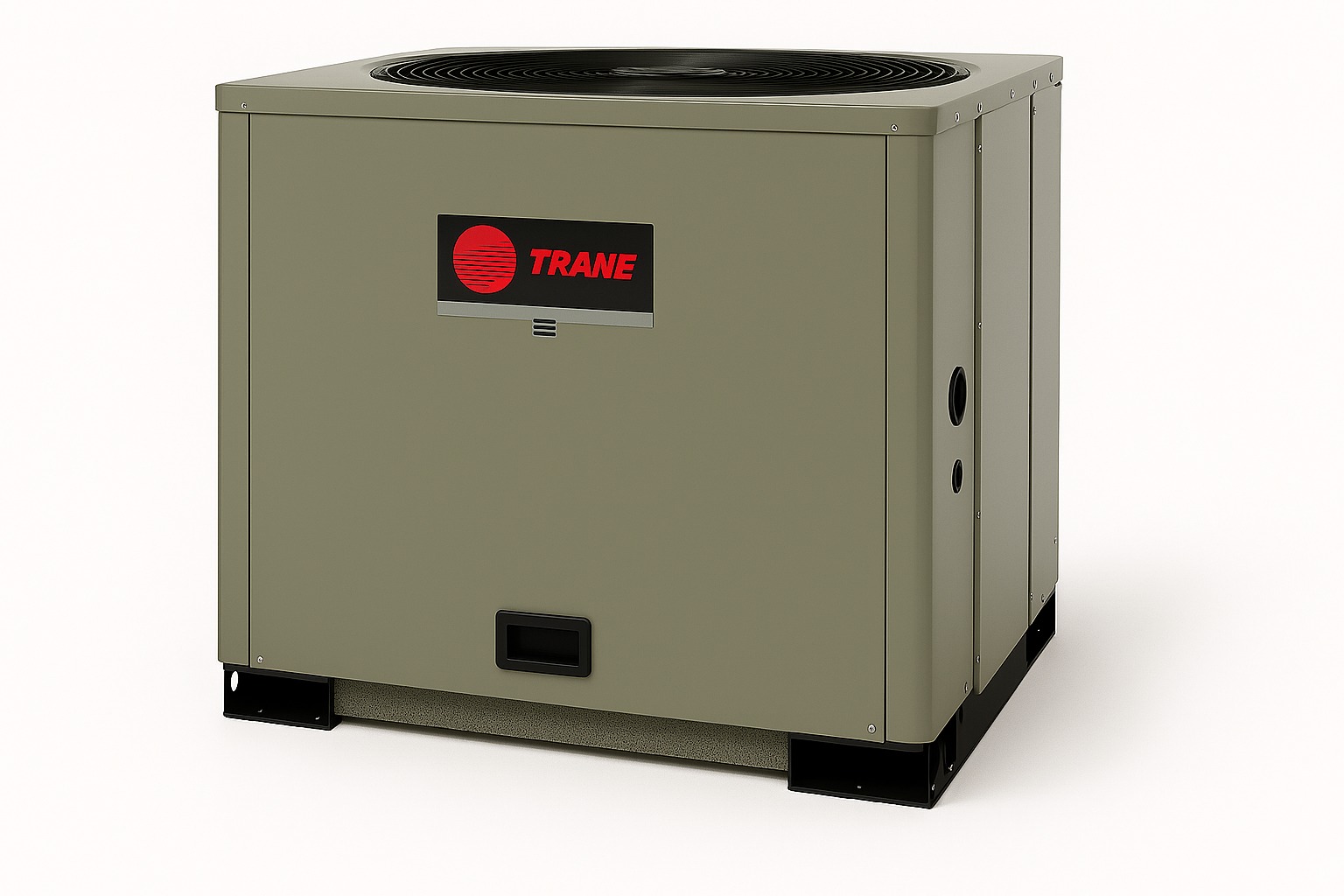

The Trane TWA072K4DAA**BS01 outdoor unit is identified within the Odyssey heat pump product family. Heat pump operation transfers heat between the outdoor environment and the conditioned space, providing heating when the system is configured for that function. Actual heating capacity, operating limits, defrost operation, and supplemental heat requirements depend on the equipment configuration and outdoor conditions. Verify the exact heating performance and required accessories using the official Trane product submittal and installation documentation.

Cooling Performance for Commercial Comfort

The Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC configuration belongs to the nominal 6-ton, 81,000 BTU/h capacity class. The outdoor unit's refrigeration system works with the compatible indoor air handler to remove heat from indoor air and reject it outdoors. Actual rated cooling capacity, airflow requirements, and operating efficiency depend on the approved equipment combination and rating conditions. Specific SEER2, EER2, IEER, and other efficiency values should be confirmed using the official performance data for the exact model configuration.

Commercial Refrigeration Design and Operating Efficiency

The Odyssey commercial heat pump product family includes configurations designed for commercial heating and cooling requirements. Trane's application documentation identifies the TWA072K*D configuration as a two-refrigerant-circuit arrangement, with circuit operation and minimum capacity steps determined by the applicable equipment design. Correct equipment matching, refrigerant charge, airflow, and system commissioning are important to achieving the intended operating performance. Exact compressor staging, refrigerant type, and efficiency ratings should be verified against the model-specific manufacturer documentation.

Split-System Design for Installation Flexibility

The Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC configuration separates the outdoor heat pump equipment from the indoor air handler. This design allows the outdoor unit to be installed separately from the building's indoor air distribution equipment and supports integration with a compatible duct system. Installation planning should verify the approved equipment match, refrigerant line diameters and lengths, electrical supply, airflow, condensate drainage, required clearances, and service access. Follow the applicable Trane installation instructions and local mechanical and electrical codes.

Controls and Indoor Comfort

Compatible system controls are required to coordinate heating and cooling operation and any supplemental heating included in the installation. The selected control arrangement must match the equipment's electrical and control requirements. Thermostat compatibility, heat pump changeover functions, auxiliary heat control, and any unit-controller features should be verified using the official documentation applicable to the exact TWA072K4DAA**BS01 and TWE072K4BAA**BC models. Proper commissioning helps ensure the equipment operates according to the approved system configuration.

Commercial Applications

The Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC configuration can be evaluated for commercial applications requiring nominal 6-ton-class ducted heating and cooling. Potential applications include offices, retail facilities, and other commercial spaces where the calculated building load and installation requirements align with the equipment's verified performance. Trane's Odyssey split-system product family is designed to serve commercial buildings with a range of equipment configurations. Final suitability depends on load calculations, ventilation requirements, duct design, electrical service, local climate, and manufacturer-approved equipment matching.

Service and Maintenance

Regular preventive maintenance helps maintain system performance and supports dependable operation. Recommended service includes inspecting air filters, checking indoor and outdoor coils, examining electrical connections, verifying condensate drainage, and checking refrigeration-system operation as appropriate. For two-circuit equipment, qualified HVAC technicians should follow the manufacturer's service procedures for each refrigeration circuit. Use the applicable Trane installation, operation, and maintenance documentation when performing inspections, troubleshooting, or repairs.

Warranty

Warranty coverage for the Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC configuration must be confirmed using the applicable official Trane warranty documentation. Coverage periods, parts and compressor provisions, registration requirements, installation conditions, and commercial-use exclusions depend on the equipment and the governing warranty terms. Consult the warranty certificate supplied for the exact models to confirm applicable coverage and requirements.

Recommended Accessories

• Compatible Thermostat or Commercial Control – Select controls approved for the exact heat pump configuration and required heating and cooling functions.
• Outdoor Equipment Support – Use a suitable equipment pad or structural support that meets the manufacturer's installation requirements.
• Electrical Disconnect – Provide a properly rated disconnect based on the equipment nameplate and applicable electrical codes.
• Refrigerant Line Set – Verify the required liquid and vapor line diameters, allowable lengths, and refrigerant charge requirements using the applicable Trane Odyssey application guide.

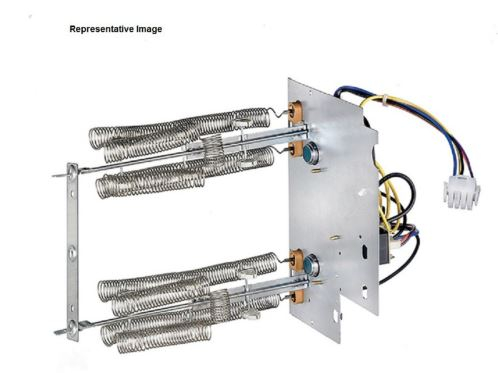

• Supplemental Heating Accessories – Where required, select only heating components approved for the indoor air handler and the available electrical service.

Commercial Comfort with the Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC

Support commercial heating and cooling requirements with the Trane TWA072K4DAA**BS01 / TWE072K4BAA**BC split-system configuration. Combining a nominal 6-ton-class outdoor heat pump unit with a separate indoor air handler, this system provides a ducted comfort solution for appropriately designed commercial applications when the equipment match is manufacturer-approved, installation requirements are satisfied, and commissioning follows Trane specifications.
