Trane 6 Ton 11.5 EER / 14.8 IEER Commercial Air Conditioning System | 460V 3 Phase - R454B - Two Stage

Reliable 6-Ton Commercial Split Air Conditioner for Commercial Buildings with Flexible Installation

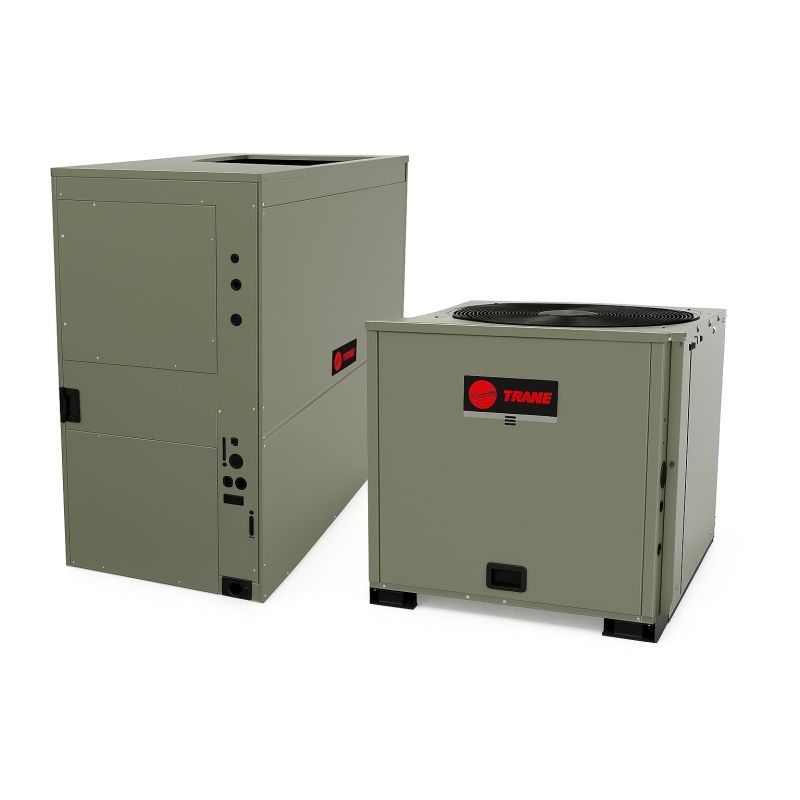

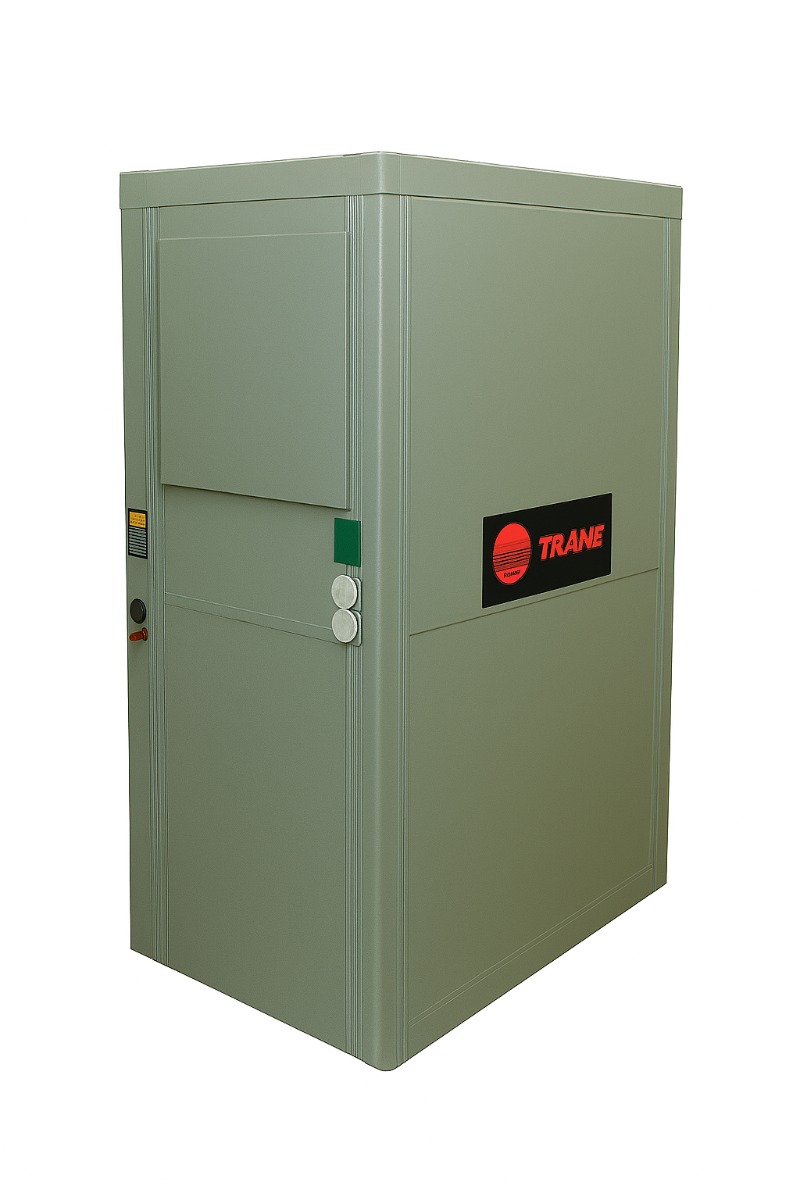

The Trane TTA072K4DAABS01 / TWE072K4BAABC is a nominal 6-ton commercial split air conditioning system designed to provide ducted cooling for appropriately sized commercial spaces. Combining the Trane TTA072K4DAABS01 outdoor condensing unit with the TWE072K4BAABC indoor air handler, this Odyssey™ split system separates the outdoor heat-rejection equipment from the indoor air-distribution components to provide flexibility in equipment placement. Designed for commercial HVAC applications, the system supports centralized cooling through compatible ductwork, with final performance dependent on the approved equipment combination, installation conditions, and system commissioning.

Key Benefits

• Nominal 6-Ton Cooling Capacity – Provides a nominal 72,000 BTU/h capacity classification for appropriately sized commercial cooling applications.
• Commercial Condensing Unit Design – Provides outdoor refrigeration components designed for commercial split-system cooling applications.
• Matched Indoor Air Handler – Works with compatible indoor equipment to circulate conditioned air through the connected duct system.
• Flexible Split-System Installation – Allows indoor and outdoor equipment placement to be planned around building layout, refrigerant piping, and service requirements.
• Commercial Ducted Air Distribution – Supports centralized cooling for occupied areas served by a properly designed duct system.
• R-454B Refrigerant Compatibility – Uses refrigerant technology specified for Trane's applicable TTA commercial condensing unit product family.
• Commercial Equipment Configuration – Provides a dedicated outdoor condensing unit and indoor air handler arrangement for suitable commercial projects.
• Serviceable Refrigeration System – Supports scheduled inspection and maintenance when serviced by qualified HVAC technicians following Trane's installation and service documentation.

6-Ton Cooling Capacity – Commercial Comfort

The Trane TTA072K4DAABS01 / TWE072K4BAABC split system belongs to the nominal 6-ton, 72,000 BTU/h capacity class. During cooling operation, the indoor evaporator coil absorbs heat from the building's air, while the outdoor condensing unit rejects that heat to the surrounding environment. The indoor air handler circulates conditioned air through compatible ductwork to serve the occupied space. Actual net cooling capacity depends on the approved matched-system combination, indoor airflow, refrigerant piping, and operating conditions. Refer to the applicable Trane performance tables for verified system capacity.

Odyssey™ Condensing Unit – Commercial Cooling Performance

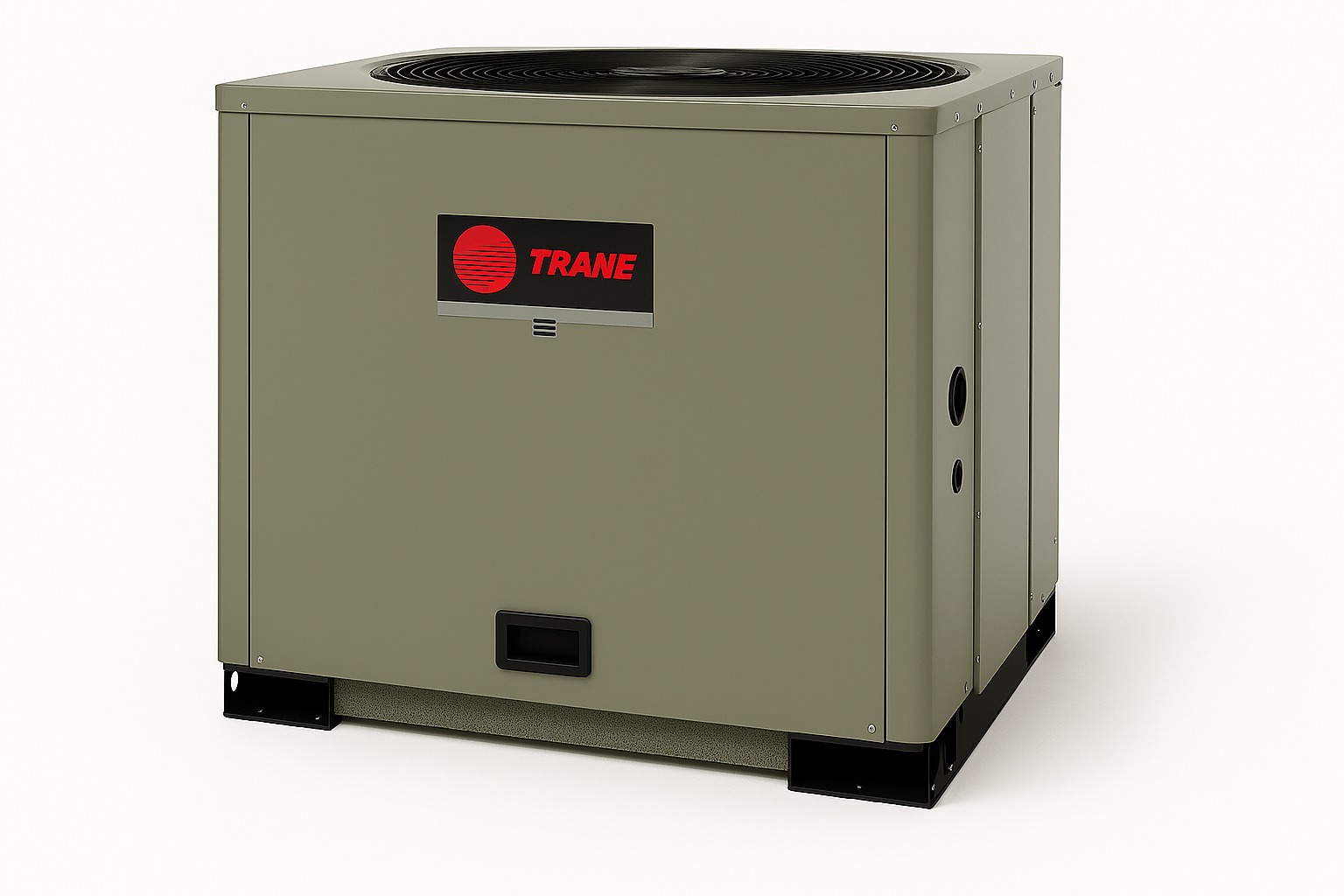

The Trane TTA072K4DAA**BS01 outdoor condensing unit is part of the Odyssey™ commercial split-system product family. Its refrigeration circuit and outdoor heat-exchange components work together to transfer heat from the indoor space to the outdoor environment. The exact compressor configuration, cooling performance, electrical requirements, and operating limits must be confirmed using the manufacturer documentation for the complete model number. Correct refrigerant piping, airflow, and system commissioning are essential to achieving the intended performance.

R-454B Refrigerant – Refrigeration Technology

Trane's applicable TTA commercial condensing unit product family is designed for R-454B refrigerant and POE compressor oil. R-454B is an A2L-class refrigerant that requires appropriately rated system components and adherence to the manufacturer's refrigerant safety requirements. Refrigerant piping must be sized and installed according to the applicable Trane application guide, including the specified requirements for line lengths, elevation differences, accessories, and refrigerant charge. The exact refrigerant charge and certified system efficiency ratings should be verified using the equipment nameplate and matched-system documentation.

Split System Design – Flexible Installation Configuration

The split-system configuration separates the outdoor condensing unit from the indoor air handler, allowing the equipment to be positioned according to the building layout, duct routing, and maintenance requirements. The indoor and outdoor components are connected through field-installed refrigerant piping and the required electrical and control connections. Trane's Odyssey™ application guidance provides model-specific recommendations for refrigerant line sizing, piping arrangements, elevation differences, and component selection. The installation must follow the instructions applicable to the exact equipment combination, including required clearances, condensate drainage, and electrical protection.

Controls and Comfort – Compatible System Operation

The Trane TTA072K4DAABS01 / TWE072K4BAABC requires controls compatible with the outdoor condensing unit and indoor air handler. Thermostat and control selection must account for the approved system configuration, supported cooling stages, blower operation, and any installed accessories. Proper control wiring, airflow adjustment, and system commissioning help support dependable operation and consistent indoor comfort. Confirm the required control sequence and available operating functions using the applicable Trane installation and service documentation.

Commercial Applications – Ducted Cooling for Business Spaces

The Trane Odyssey™ TTA072K4DAABS01 / TWE072K4BAABC split system is intended for commercial HVAC installations requiring a separate outdoor condensing unit and indoor air handler. Potential applications include offices, retail establishments, and other commercial spaces with suitable ductwork and a calculated cooling load. The nominal 6-ton capacity provides a starting point for equipment selection, but the final system design should account for building heat gains, occupancy, ventilation requirements, duct design, climate, and operating schedules.

Service & Maintenance – Supporting Reliable Operation

Regular maintenance helps support the cooling performance and service life of the Trane Odyssey™ split system. Maintenance should include inspection and cleaning of the indoor and outdoor heat-exchange surfaces as needed, filter inspection, condensate drainage checks, electrical connection verification, and assessment of refrigeration-system operation. Trane's application guidance specifies that refrigerant piping and field-installed components must be appropriate for the system refrigerant and model configuration. Only qualified HVAC technicians should perform installation, refrigerant charging, and service in accordance with the manufacturer's instructions and applicable safety requirements.

Warranty

Warranty coverage for the Trane TTA072K4DAABS01 / TWE072K4BAABC must be confirmed using the applicable official Trane commercial equipment warranty documentation. Parts and compressor coverage, warranty duration, registration requirements, exclusions, and eligibility conditions depend on the specific equipment, purchase channel, installation location, and applicable warranty terms. Consult the warranty documentation supplied with the equipment or an authorized Trane representative to verify the coverage for the exact model combination.

Recommended Accessories

• Compatible Commercial Thermostat or System Controller – Select according to the approved matched system's control requirements.
• Outdoor Equipment Pad or Approved Mounting Support – Provides a stable support surface for the outdoor condensing unit.
• Electrical Disconnect and Overcurrent Protection – Select and size according to the equipment nameplate, manufacturer instructions, and applicable electrical codes.
• Compatible Refrigerant Line Set and Insulation – Select the required line diameters, piping configuration, and permitted lengths according to Trane's model-specific application guidance.
• Refrigerant Line Components – Use manufacturer-approved filter-driers, expansion devices, access ports, and other required components compatible with R-454B and the exact system configuration.

Commercial Cooling Performance with the Trane Odyssey™ TTA072K4DAABS01 / TWE072K4BAABC

Support commercial indoor comfort with the Trane Odyssey™ TTA072K4DAABS01 / TWE072K4BAABC split air conditioning system. Combining a nominal 6-ton outdoor condensing unit with a compatible indoor air handler, this system provides a ducted cooling solution for appropriately sized commercial spaces. Correct equipment matching, refrigerant piping, professional installation, and regular maintenance help support reliable operation and the intended cooling performance.
