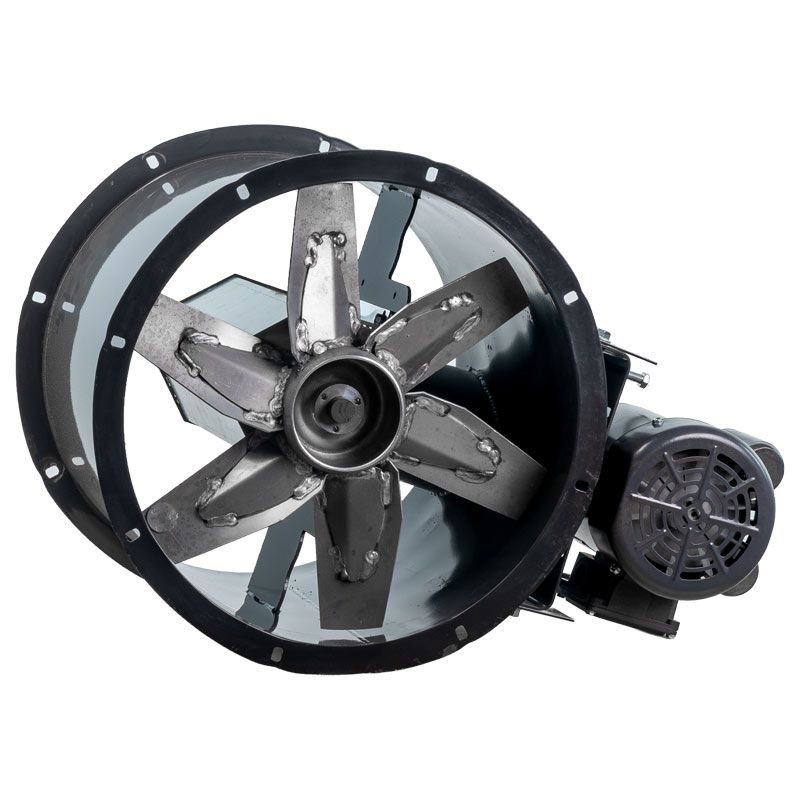

Today's Hours 8am - 11pm estACME Belt Drive Tubeaxial Fan 12" Propeller 1970 CFM .33 HP 208 Volts, 3 Phase
In Stock - Ready to Ship
By
ACME
In stock
Model
HA12F-.33-3P
ID
19987
$1,714.00
Product Features
- Propeller Diameter: 12 in.
- Material: Aluminum Propeller/Rolled Steel Housing
- Drive Type: Belt Drive
- Electrical: 208V, 3 Phase
- CFM: 1,970 CFM
- Included: Fan, Motor, Belt Drive Assembly
- Application: Commercial and Industrial General Ventilation and Exhaust
High-Performance Tubeaxial Fan Delivering Powerful Airflow with Reliable Belt Drive Performance
The ACME HA Belt Drive Tubeaxial Fan is designed to provide powerful and reliable air movement for commercial and industrial ventilation applications. The HA features a belt drive design with the motor, drives, and bearings located outside the airstream. Its streamlined belt and bearing enclosure helps eliminate turbulence and air drag, while its versatile design allows the fan to operate in any position. Mounting flanges on both ends provide convenient installation, while the heavy-duty construction and precision-balanced aluminum propeller provide reliable performance.
ACME HA Tubeaxial Fan Features & Benefits
- Powerful Airflow – Designed to deliver high airflow capacity for effective ventilation in commercial and industrial applications.
- Versatile Installation – Designed to operate in any position and includes rolled mounting flanges on both ends for convenient installation.
- Durable Housing – Heavy-gauge rolled steel construction with a standard charcoal baked enamel finish provides a tough, durable surface.
- Heavy-Duty Aluminum Propeller – All-welded aluminum construction with circular-arc blades provides high airflow capacity, while precision balancing promotes smooth, vibration-free operation.
- Reliable Bearing System – Permanently lubricated pillow block bearings are resiliently mounted in neoprene rings and rated for an L50 life of 200,000 hours.
- Durable Belt Drive – Cast iron drives are sized for 150% of drive horsepower and use static-free, oil- and heat-resistant belts for dependable operation.
- Motor Outside the Airstream – Continuous-duty motors are located outside the airstream and are shipped mounted to the fan for convenient installation.
What's Included
Each ACME HA Belt Drive Tubeaxial Fan is furnished with a heavy-duty, all-welded aluminum propeller, belt drive assembly, pillow block bearings, and a continuous-duty motor located outside the airstream. The fan also includes mounting flanges on both ends for installation.
Safety Features
- Proper Installation – The HA is designed to operate in any position and is furnished with mounting flanges on both ends. Installation must comply with all applicable local and national safety codes, including NEC and NFPA requirements.
- Rotating Parts Protection – Drive guards are available to enclose the drive assembly and provide protection from rotating parts where required for the installation.
- Hazardous Environment Protection – The fan must not be installed or operated where flammable gases, vapors, liquids, combustible dusts, or ignitable fibers or flyings are present, unless the fan is specifically designed for that hazardous application.
- Qualified Installation – The fan should be installed in accordance with the manufacturer's requirements and applicable safety and electrical codes.
Warranty Information
ACME Engineering and Manufacturing Corporation extends a limited warranty to the original purchaser and warrants that its products will be free from original defects in workmanship and materials for 2 years from the date of shipment, provided the products have been properly handled, stored, installed, serviced, maintained, and operated.
The ACME Duplex Split Pillow Block shaft and bearing assembly is covered by a 5-year warranty from the date of shipment. Belts are covered separately by a 1-year warranty from the date of shipment.
The warranty does not apply to products that have been altered or repaired without ACME's authorization, improperly installed, misused, neglected, or subjected to accidents. Components, accessories, parts, or attachments manufactured by other manufacturers are subject to the respective manufacturer's warranty.
For complete warranty details, terms, conditions, exclusions, and limitations, please refer to the ACME Limited Warranty.
Premium Materials & Construction
Every ACME HA Tubeaxial Fan is built with durable materials designed for commercial and industrial ventilation applications. The fan features a heavy-duty, all-welded aluminum propeller that is precision balanced to Grade G6.3 according to AMCA 204 for smooth operation. The housing is reinforced with rolled flanges at each end, while the standard acrylic epoxy finish provides a tough, durable surface.
The HA's belt-drive system uses heavy-duty, static-conducting, oil- and heat-resistant V-belts with machined steel or cast-iron sheaves. Permanently lubricated pillow block bearings are resiliently mounted for vibration isolation, and the belt and bearing enclosure is designed to minimize air turbulence. The motor, drives, and bearings are located outside the airstream, providing a durable configuration for commercial and industrial ventilation applications.
Suitable Applications for ACME HA Tubeaxial Fan
The ACME HA Tubeaxial Fan is designed for commercial and industrial general ventilation and exhaust applications where reliable, high-volume air movement is required.
- General commercial and industrial ventilation
- Air exhaust applications requiring high-volume airflow
- Round-duct ventilation systems
- Industrial and commercial spaces requiring continuous air movement and exhaust
- Applications requiring inline tubeaxial fan installation
Get the Right Ventilation System — Without the Guesswork
Free Personalized Quote Now
Our team is here to make your buying experience simple and stress-free. Every project is different. Request a free quote and our HVAC experts will recommend the right size, efficiency, and system —helping you avoid costly mistakes. We’ll only send what matters.
You may also qualify for our VIPro Program, which provides exclusive contractor-level pricing, personalized project support, and priority service. Even if you are not VIPro qualified, we are still ready to help! You can sign up to receive exclusive email offers and promotions as well as unlock benefits.
Simply tell us about your space and requirements, and our specialists will guide you every step of the way. No commitment. Just better answers.
