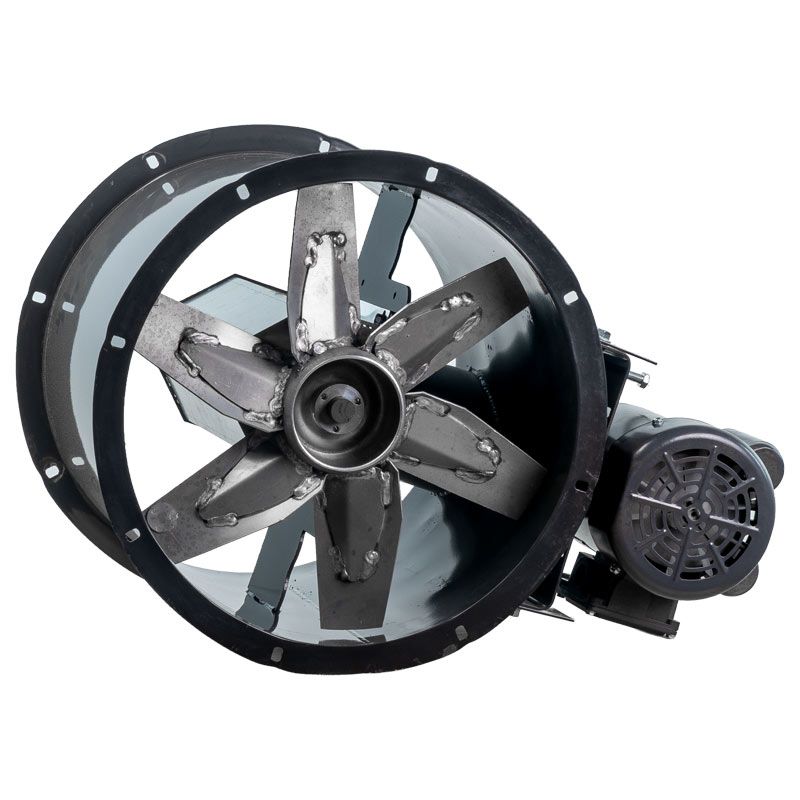

Model HA fan is a belt drive, tubeaxial exhauster with the motor, drives and bearings located outside the airstream. This model has a max CFM of 12,700. The HA is designed to operate in any position and is furnished with mounting flanges on both ends for easy installation.
Housing
Constructed of heavy gauge rolled steel
Rolled flange at each end for ease of mounting
Standard charcoal baked enamel finish provides a tough durable surface
Gasketed access door for servicing on model sizes 42" - 60"
Streamlined belt and bearing enclosure eliminates turbulence and air drag
Aluminum Propeller
Heavy duty, all welded aluminum construction standard on all sizes (except 54" and all sizes of the smoke exhaust construction which use a high grade steel)
Circular-arc blades for high airflow capacity
Precision balanced for smooth vibration free operation
Bearings
Permanently lubricated in an Acme D.S. pillow block housing
Bearings are resiliently mounted in neoprene rings
Rated at L50 life of 200,000 hours
5 year limited warranty on Acme D.S. pillow block bearings
Pillow block bearings are standard on HA60 and smoke exhaust construction
Drive Assembly
Cast iron drives sized for 150% of drive horsepower
Static free, oil and heat resistant belts
Motors
Continuous duty motors located outside the airstream
Motors shipped mounted to the fan
This product is comparable to Acme Fans, same great quality, better price.
Product Specifications
More Information
US Fan Belt Drive Tubeaxial Fan 36" Wheel 698 RPM 1 HP 208 Volts, 3 Phase
SKU
HA36J-1-3P
Weight (in lbs)
274.000000
Brand/Manufacturer
US Fan
Additional Information
Comparable to Acme Fan.
Drive Type
Belt
Maximum CFM
12700
Sone
27
Propeller Diameter
36 inches
Motor RPM
698
Horsepower
1
Horsepower
1 HP
Electrical
208-230 / 460 V, 3 Phase
Warranty
2 Year Comprehensive Warranty, 5 Year Bearing & Shaft Warranty
