US Fan Belt Drive Tubeaxial Fan 36" Propeller 1007 RPM 3 HP 208 Volts, 3 Phase

By

US Fan

In stock
Model

HA36M-3-3P

ID

20053

In Stock - Ready to Ship
$3,478.00

Free Shipping
Product Features
  • Versatile Mounting Options
  • Delivers powerful airflow while minimizing noise and vibration
  • Belt drive system reduces motor wear, lasting longer with lower maintenance
  • Built with a rugged-welded steel housing and corrosion-resistant coating for long-lasting durability

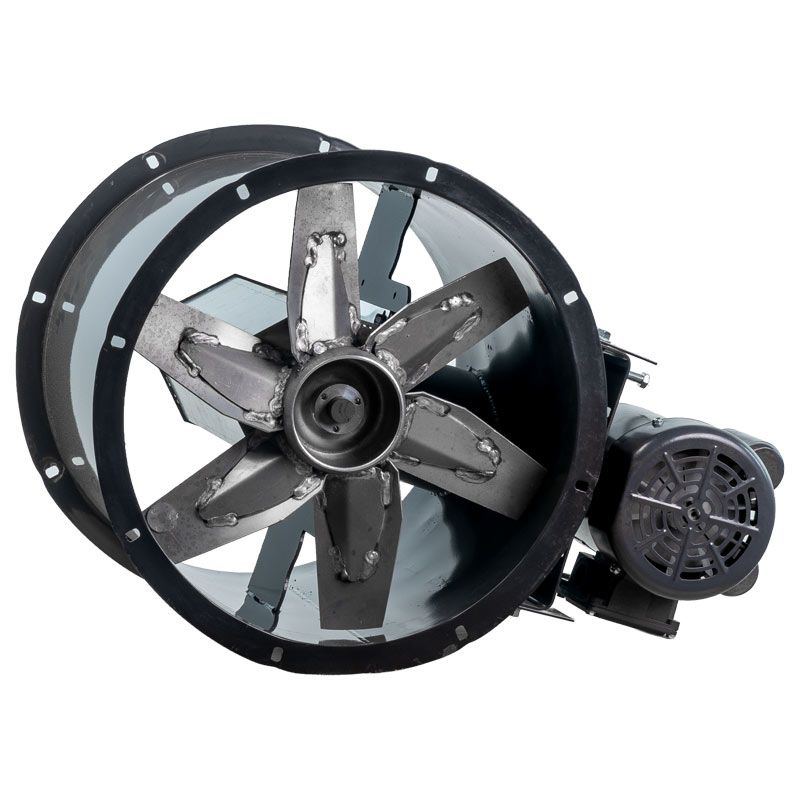

Model HA fan is a belt drive, tubeaxial exhauster with the motor, drives and bearings located outside the airstream. This model has a max CFM of 18,350. The HA is designed to operate in any position and is furnished with mounting flanges on both ends for easy installation.

Housing

  • Constructed of heavy gauge rolled steel
  • Rolled flange at each end for ease of mounting
  • Standard charcoal baked enamel finish provides a tough durable surface
  • Gasketed access door for servicing on model sizes 42" - 60"
  • Streamlined belt and bearing enclosure eliminates turbulence and air drag

Aluminum Propeller

  • Heavy duty, all welded aluminum construction standard on all sizes (except 54" and all sizes of the smoke exhaust construction which use a high grade steel)
  • Circular-arc blades for high airflow capacity
  • Precision balanced for smooth vibration free operation

Bearings

  • Permanently lubricated in an Acme D.S. pillow block housing
  • Bearings are resiliently mounted in neoprene rings
  • Rated at L50 life of 200,000 hours
  • 5 year limited warranty on Acme D.S. pillow block bearings
  • Pillow block bearings are standard on HA60 and smoke exhaust construction

Drive Assembly

  • Cast iron drives sized for 150% of drive horsepower
  • Static free, oil and heat resistant belts

Motors

  • Continuous duty motors located outside the airstream
  • Motors shipped mounted to the fan

This product is comparable to Acme Fans, same great quality, better price.

More Information
US Fan Belt Drive Tubeaxial Fan 36" Propeller 1007 RPM 3 HP 208 Volts, 3 Phase
SKUHA36M-3-3P
Weight (in lbs)310.000000
Brand/ManufacturerUS Fan
Additional InformationComparable to Acme Fan.
Drive TypeBelt
Maximum CFM18350
Sone56
Propeller Diameter36 inches
Motor RPM1007
Horsepower3
Horsepower3 HP
Electrical208-230 / 460 V, 3 Phase
Warranty2 Year Comprehensive Warranty, 5 Year Bearing & Shaft Warranty
