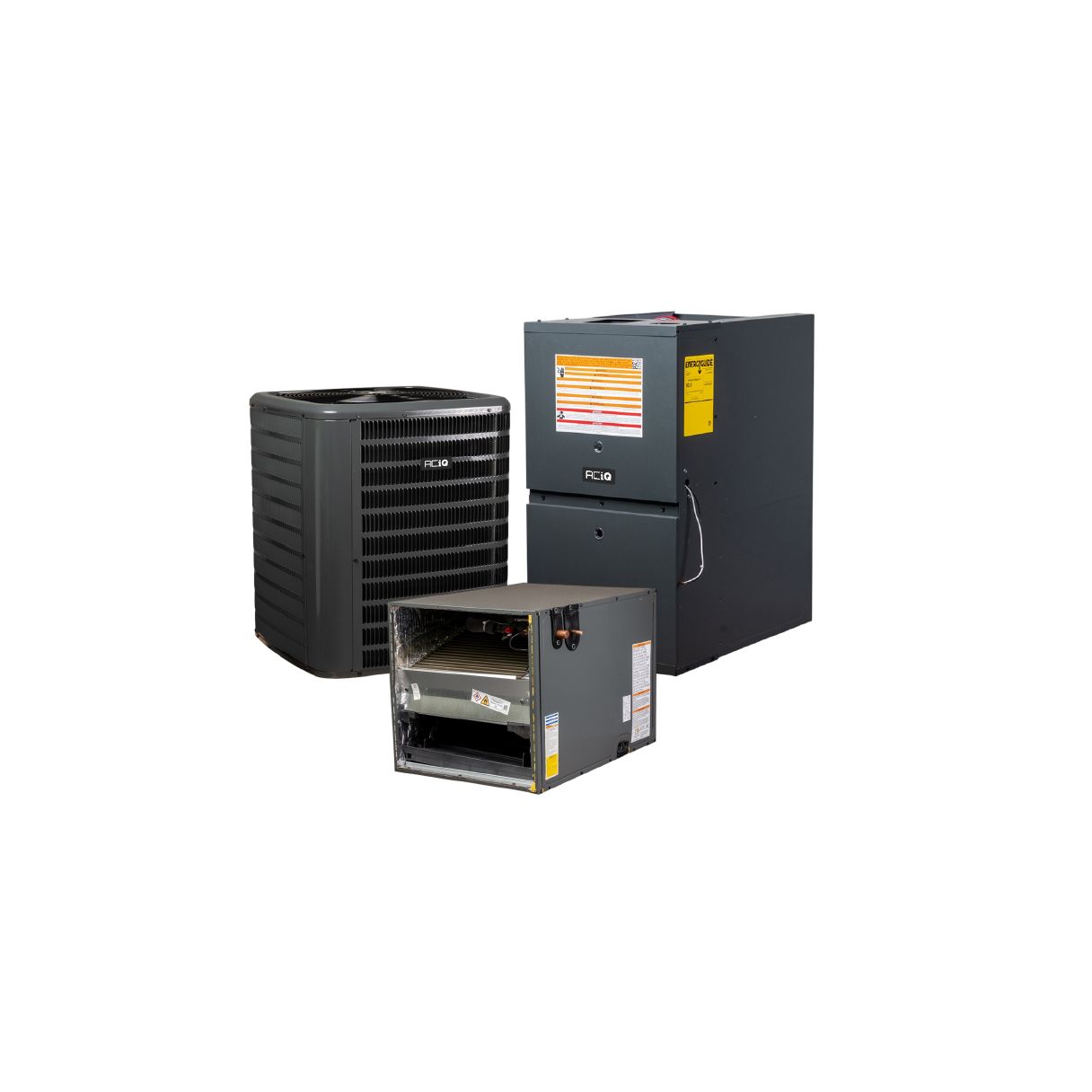

1.5 Ton 13.4 SEER2 80% AFUE 40,000 BTU Low NOx Gas Furnace and R32 Air Conditioner System - Horizontal
Required Fields *
By
Private Brand
In stock
Model
AQ-GLXS3BN1810 / AQ-CHPTA1822A3 / AQ-GD9S800403AX
ID
214805
Ships in 5-7 Business Days
Was $3,833.00
Your Low Price $2,977.00
Free Shipping
1.5 Ton AC - Perfect for Smaller Homes
Standard Efficient 80% AFUE Gas Furnace
Pre-charged with R32 refrigerant
40,000 BTU Furnace
Can be installed in horizontal applications
Requires: Metal Flue Vent Piping
- days
- Hours
- Minutes
- Seconds
Best Selling Goodman Systems
2.5 Ton 13.4 SEER2 92% AFUE 80,000 BTU Goodman Gas Furnace and R32 Air Conditioner System - Upflow
Rating:
98%
Was $4,815.00
Special Price $4,333.00
3 Ton 13.4 SEER2 92% AFUE 80,000 BTU Goodman Gas Furnace and R32 Air Conditioner System - Horizontal
Rating:
98%
Was $5,062.00
Special Price $4,555.00
2 Ton 13.4 SEER2 80% AFUE 60,000 BTU Goodman Gas Furnace and R32 Air Conditioner System - Downflow
Rating:
96%
Was $3,981.00
Special Price $3,581.00
3 Ton 13.4 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and R32 Air Conditioner System - Upflow
Rating:
98%
Was $4,479.00
Special Price $4,030.00
An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, the ACiQ gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.
1.5 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ AQ-GLXS3BN1810 is a durable, high-quality condenser unit that is the perfect cooling solution for homes up to 1100 square feet in northern states. At a capacity of 1.5 tons and a SEER2 rating of 13.4, this cooling-only condenser won’t break the bank while still reliably cooling your home for years to come. Easy to access service valves make installation by a licensed HVAC professional a breeze. Pay for high-end performance without the high-end price tag when you choose ACiQ.
QUICK FACTS
- 13.4 SEER2, 1.5 tons AC-only Condenser: With a 13.4 SEER2 efficiency rating and a tonnage of 1.5, this AC condenser is a great choice for smaller homes that experience shorter, milder summers.
- Single Stage: When properly sized and installed, a single stage condenser is a cost-effective and durable option to cool your home.
- R32 Refrigerant: With R32 refrigerant, this unit complies with Clean Air Act refrigerant requirements.
- Fully Charged for Up to 15' of Line Set: The condenser comes fully pre-charged with enough refrigerant for up to 15 feet of line set.
Durability and Reliability
The AQ-GLXS3BN1810 is designed to last with features like a baked-on powder-paint finish that is approved for up to 500 hours of salt-spray. The factory-installed filter dryer also lowers general wear-and-tear on the unit while the enhanced copper tube prevents coil degradation, ensuring lasting and reliable comfort in your home.
Warranty
If the AQ-GLXS3BN1810 condenser fails, the unit comes with the manufacturer’s standard 10-year parts warranty as long as it is installed following state and local codes and registered online. Backed by the same trusted manufacturing partners behind major HVAC brands, the ACiQ warranty further guarantees the high-quality performance expected from any other major brand.
Disclaimer
- Due to Department of Energy efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
- For this unit to function, an indoor air handler or coil is required.
- This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-307-5604 if you have any questions.
Same Quality, Better Value
Our private-label heating and cooling systems are built to the same rigorous standards as the industry’s leading brands — but deliver better value for your investment. Each unit features durable components, proven technology, and the performance you expect from a top-tier HVAC manufacturer. With fewer middlemen and lower overhead, you get exceptional comfort and reliability at a value that simply can’t be beat.
Backed by Trusted Expertise
Every system is backed by HVACDirect.com’s decades of industry experience and support. We work directly with the manufacturer to ensure every unit meets our strict performance and reliability standards. Plus, our U.S.-based support team is here to help you choose, install, and maintain your system with confidence — giving you peace of mind long after your purchase.
Built for Lasting Comfort
Designed for dependable year-round performance, these systems deliver quiet operation, consistent temperatures, and efficient energy use — all while keeping maintenance simple. With high-quality materials and precision engineering, each system is made to provide lasting comfort and lower long-term costs for your home or business.
1.5 Ton 14" Height Horizontal Cased Evaporator Coil - TXV - R32
OVERVIEW
The ACiQ AQ-CHPTA1822A3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the AQ-CHPTA1822A3 lives up to ACiQ's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Quick Facts
- 1.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
1.5 Tons
At an output of 1.5 tons, the ACiQ AQ-CHPTA1822A3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.
Warranty
The AQ-CHPTA1822A3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CHPTA1822A3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.
Enhanced Comfort and Efficiency
The ACiQ AQ-CHPTA1822A3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the AQ-CHPTA1822A3 to live up to the ACiQ quality name.
Same Quality, Better Value
Our private-label heating and cooling systems are built to the same rigorous standards as the industry’s leading brands — but deliver better value for your investment. Each unit features durable components, proven technology, and the performance you expect from a top-tier HVAC manufacturer. With fewer middlemen and lower overhead, you get exceptional comfort and reliability at a value that simply can’t be beat.
Backed by Trusted Expertise
Every system is backed by HVACDirect.com’s decades of industry experience and support. We work directly with the manufacturer to ensure every unit meets our strict performance and reliability standards. Plus, our U.S.-based support team is here to help you choose, install, and maintain your system with confidence — giving you peace of mind long after your purchase.
Built for Lasting Comfort
Designed for dependable year-round performance, these systems deliver quiet operation, consistent temperatures, and efficient energy use — all while keeping maintenance simple. With high-quality materials and precision engineering, each system is made to provide lasting comfort and lower long-term costs for your home or business.
80% 40,000 BTU Single Stage Low NOx Gas Furnace - 14" Width - Downflow/Horizontal
OVERVIEW
The AQ-GD9S800403AX ACiQ low NOx gas furnace features high-quality construction and efficient operation at a great value. The AQ-GD9S800403AX single-stage, multi-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GD9S800403AX.
QUICK FACTS
- This furnace is ideal to heat a smaller house (depending on climate)
- 40,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the downflow or horizontal (right or left) orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
The AQ-GD9S800403AX ACiQ gas furnace is 40,000 BTU's, which is the smallest ACiQ furnace size currently available. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 32,000 BTU's (40,000 X 80% AFUE) per hour. In ideal climate conditions, this 40,000 BTU furnace is usually used to heat a small house.
80% Efficiency Rating
The AQ-GD9S800403AX ACiQ gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.
In California, many counties have a lower NOx emission requirement than the rest of the United States. The AQ-GD9S800403AX ACiQ gas furnace is California Low NOx compliant. With a built-in low emission filter, this ACiQ gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx furnace. If you have any questions, please contact us.Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. For all Low NOx furnaces, click here. For all Ultra-Low NOx furnaces, click here. If you have any questions, please contact us.
Single Stage Furnace
The AQ-GD9S800403AX ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Natural Gas or LP Furnace
From the factory, the AQ-GD9S800403AX runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
Multi-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GD9S800403AX utilizes a multi-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Igniter
The hot surface igniter on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GD9S800403AX model has a more universal design, which consists of its ability to be installed in both an downflow or horizontal (right or left) configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
Same Quality, Better Value
Our private-label heating and cooling systems are built to the same rigorous standards as the industry’s leading brands — but deliver better value for your investment. Each unit features durable components, proven technology, and the performance you expect from a top-tier HVAC manufacturer. With fewer middlemen and lower overhead, you get exceptional comfort and reliability at a value that simply can’t be beat.
Backed by Trusted Expertise
Every system is backed by HVACDirect.com’s decades of industry experience and support. We work directly with the manufacturer to ensure every unit meets our strict performance and reliability standards. Plus, our U.S.-based support team is here to help you choose, install, and maintain your system with confidence — giving you peace of mind long after your purchase.
Built for Lasting Comfort
Designed for dependable year-round performance, these systems deliver quiet operation, consistent temperatures, and efficient energy use — all while keeping maintenance simple. With high-quality materials and precision engineering, each system is made to provide lasting comfort and lower long-term costs for your home or business.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACiQ Non-Programmable 1H/1C Large Display Thermostat
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
- 1 Heat / 1 Cool Non-Programmable Thermostat
- Operable with AAA batteries or 24v power
- Large, easy to ready clear LCD display with different backlight color options
- Configurable with Electric or Gas Systems
- Separate B & O terminals
- Handles heating and cooling temperature swing adjustments separately
- Toggleable 5 minute compressor delay protection
- Temperature Range: 32°F-99°F (1°C-40°C)
- Temperature Accuracy: ±1.8°F (±1°C)
Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
Smarter Comfort. Sleek Control.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
QUICK FACTS
- Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems
- Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
- Modern Touchscreen: Auto-wake screen with responsive touch interface
- Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
- Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
- Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
Santa Fe Ultra70 Whole House Dehumidifier - 110/120V - R454B (SKU 4044100)
The Santa Fe Ultra70 is a high-efficiency, ventilating dehumidifier designed to control excess humidity throughout your entire home. Capable of integrating directly with your HVAC system, this unit removes up to 70 pints of moisture per day and is ideal for spaces up to 1,800 square feet.
High Efficiency
The Ultra70 is the perfect dehumidifier for residential use, including low-clearance crawl spaces, basements, and whole-house applications. Drawing just 4.1 amps, this unit offers powerful moisture control with low energy consumption. It utilizes a MERV-13 filter—one of the most efficient in its class—and uses R454B refrigerant for a more environmentally responsible performance.
Versatile Applications
- Compact Design: Weighs just 55 lbs and measures only 12” wide, making it easy to place in tight spaces.
- Flexible Installation: Can be used as a free-standing unit or ducted into your home's HVAC system.
- Plug-in Ready: Includes a 9-foot power cord and plug-in wiring style for easy setup.
Industry Usage: Perfect for homes, apartments, and condominiums.
Operating Temperature Range: Effective in environments from 49°F to 95°F.
Bonus Features
- Auto Restart: Automatically resumes operation after a power outage.
- Advanced Control Panel: Includes a built-in dehumidistat for precise manual humidity control.
- Automatic Defrost: Prevents frost buildup in colder environments for uninterrupted performance.
Warranty
Santa Fe offers an industry-leading warranty to ensure long-term performance and peace of mind:
- 5-Year Warranty: Covers operational failures.
- 6-Year Warranty: Covers faulty components.
In the event of a malfunction, Santa Fe will repair or replace the unit. Please refer to the Owner’s Manual for full warranty details and terms.
E Lite Equipment Pad 32" x 32" x 3"
E Lite is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems 42"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 42" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Propane (LP) Conversion Kit for Goodman GR9S80 and GD9S80 FurnacesThis propane (LP) conversion kit is for Goodman's GR9S80 and GD9S80 furnace series.
| 1.5 Ton 13.4 SEER2 80% AFUE 40,000 BTU Low NOx Gas Furnace and R32 Air Conditioner System - Horizontal | |
|---|---|
| SKU | AQ-GLXS3BN1810 / AQ-CHPTA1822A3 / AQ-GD9S800403AX |
| Weight (in lbs) | 0.000000 |
| AHRI Certificate Number | 215276917 |
| Exhaust Flue Requirement | Metal |
| Brand/Manufacturer | Private Brand |
| Product Features | Low NOx |
| Furnace Efficiency / AFUE | 80% |
| Cooling BTU | 18,000 |
| Heating BTU | 40,000 |
| Maximum CFM | 580 |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| System Tonnage | 1.5 Ton |
| Low NOx | Low NOx |
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
