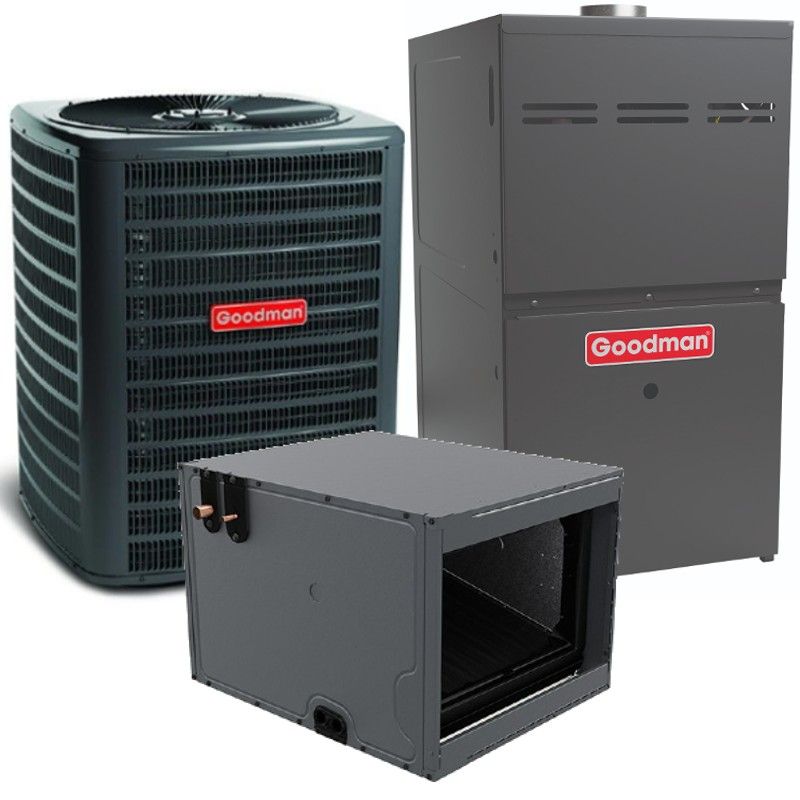

1.5 Ton 13.4 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal

By

Goodman

Out of stock

Model

GSXN3N1810 / CHPTA2426B4 / GM9S800803BN

ID

152449

Rating:
98% of 100
Availability: In Stock - Ready to Ship
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:210566441

People that viewed this product purchased this instead:
SAVE $895.00
1.5 Ton 13.4 SEER2 80% AFUE 90,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
SAVE $899.00
1.5 Ton 13.4 SEER2 80% AFUE 90,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
1.5 Ton 13.4 SEER2 80% AFUE 90,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
SAVE $901.00
1.5 Ton 13.4 SEER2 80% AFUE 90,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
SAVE $1,057.00

Description

A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.

80,000 BTU 80% AFUE 9-Speed Single Stage Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

The GM9S800803BN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S800803BN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S800803BN.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU

The GM9S800803BN Goodman gas furnace is 80,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU’s (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The GM9S800803BN Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. For the Low NOx equivalent of this furnace, click here. If you have any questions, please contact us.

Single Stage Furnace

The GM9S800803BN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the GM9S800803BN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GM9S800803BN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GM9S800803BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

2 Ton 17.5" Height Goodman Horizontal Evaporator Coil - Cased

OVERVIEW

The Goodman CHPTA2426B4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA2426B4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

  • 2 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

2 Tons

At an output of 2 tons, the Goodman CHPTA2426B4 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA2426B4 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA2426B4 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA2426B4 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA2426B4 to live up to the Goodman quality name.

1.5 Ton ACiQ AC Inverter Upgrade

OVERVIEW

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning System - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for cooling - The self-adjusting inverter design allows you to size your system based on demand. The ACiQ Inverter Condensers automatically adjusts to run like a 1 ton to keep you cool and dry.

QUICK FACTS

  • 12,000 BTU to 24,000 BTU variable output based on demand
  • Inverter heat pump system for use with ductwork
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Efficient heating from 5°F to 75°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation at even the highest workloads

24,000 BTU, 16 SEER

With an efficiency rating of 16 SEER, the variable output ACIQ-18-AC-UPG will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 24,000 BTU without short cycling.


ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

Product Specifications

More Information
80,000 BTU 80% AFUE 9-Speed Single Stage Goodman Gas Furnace - Upflow/Horizontal
SKUGM9S800803BN
Weight116.000000
AHRI Certificate Number207254783
Config SearchUpflow/Horizontal
Exhaust Flue RequirementMetal
ManufacturerGoodman
Furnace Efficiency / AFUE 80%
Heating BTU80,000
Blower Motor9 Speed - ECM
Maximum CFM1200
ConfigurationUpflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width17 1/2"
Depth28"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
Goodman 1.5 Ton 13.4 SEER2 Air Conditioner Condenser
SKUGSXN3N1810
Weight130.000000
ManufacturerGoodman
ReplacesGSX130181
Cooling BTU18,000
Decibel Level (dBA)73
RefrigerantR410A
SEER213.4
Condenser StagesSingle Stage
Compressor TypeRotary
Liquid Line3/8"
Suction Line3/4"
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 V. 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size15 amps
Min. Breaker Size8.3 amps
Tonnage1.5 Ton
Valve TypeSweat
Height27"
Width26"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
2 Ton 17.5" Height Goodman Horizontal Evaporator Coil - Cased
SKUCHPTA2426B4
Weight57.000000
ManufacturerGoodman
ConfigurationHorizontal
RefrigerantR410A
Liquid Line3/8"
Suction Line7/8"
Tonnage2 Ton
StyleA-Coil
CertificationETL Listed | AHRI Certified
Height17.5"
Width26"
Depth21"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
1.5 Ton ACiQ AC Inverter Upgrade
SKUACIQ-18-AC-UPG
Weight109.130000
ManufacturerACiQ
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
