The ACIQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
ACiQ Extreme Series Single Zone Systems
The ACiQ Extreme Series Single Zone Mini Split Systems are engineered for maximum performance in demanding climates, delivering exceptional heating and cooling with industry-leading efficiency. Designed for homeowners who want premium comfort, these systems provide reliable operation in extreme temperatures, ultra-quiet performance, and advanced inverter technology for year-round savings and comfort.

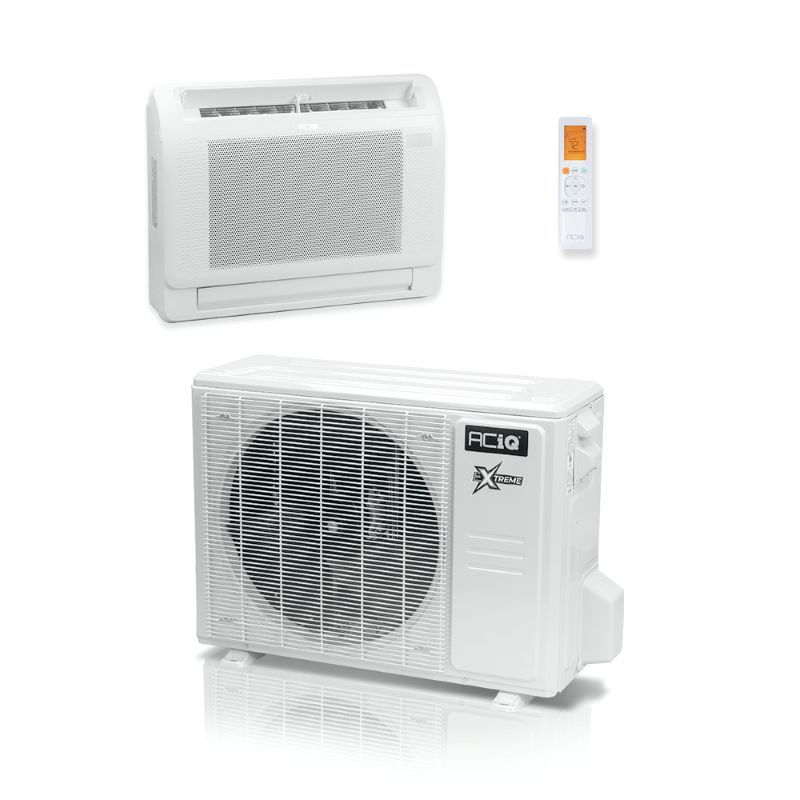

12,000 BTU Extreme Single Zone Condenser w/ Hyper Heat
OVERVIEW
The ACIQ Extreme series features Extreme Heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.
QUICK FACTS
Maximum performance at an affordable cost
Ideal for smaller rooms (depending on climate)
12,000 BTU, 25.4 SEER2 mini split
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Gold fin condenser full-protection coating
Quiet operation at even the highest workloads
12,000 BTU, 25.4 SEER2
The ACIQ-12ZPL-HP230C Condenser, when matched with a compatible 12,000 BTU air handler, has enough capacity for small to medium rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

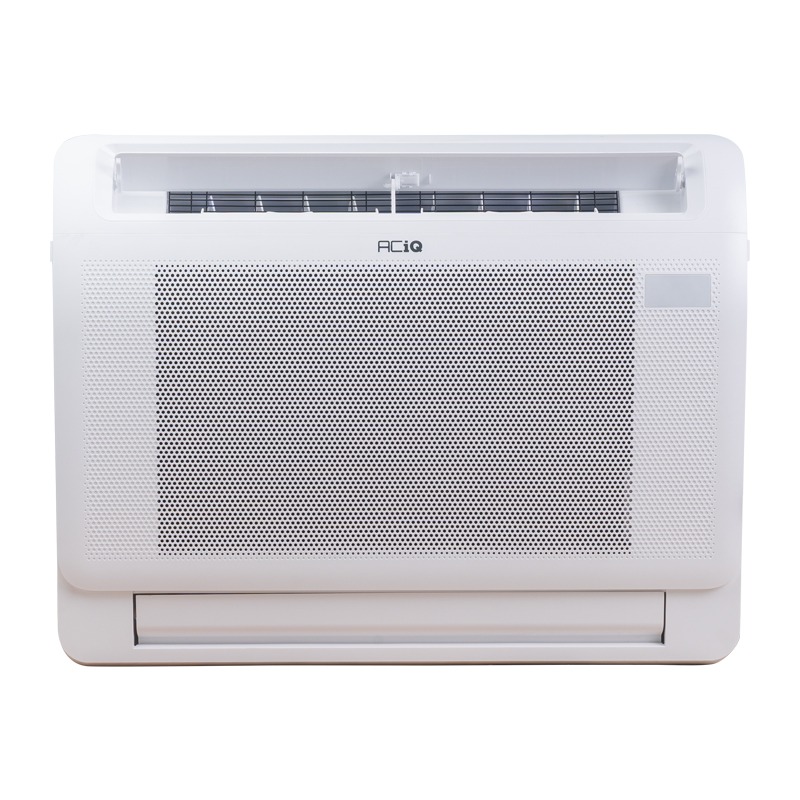

12,000 BTU Floor Mount Air Handler
ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
FEATURES
12,000 BTU of Heating or Cooling
Dry and Fan modes also available
Good for a small room in most climates
Remote control thermostat included
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
15 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
15 ft. insulated refrigerant line set
15 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
25 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
25 ft. insulated refrigerant line set
25 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
White Line Set Cover Guard – Complete Wall Duct Kit (12 ft.)
Keep your A/C installation neat and protected with this all-in-one line set cover kit. Designed for professional-grade durability, this kit includes everything needed to conceal and safeguard your mini-split or conventional A/C line set.
Features & Benefits: ✔ Comprehensive Coverage: Includes (3) 4' duct lengths, (2) couplers, (1) wall inlet, (1) end fitting, and (1) 90° elbow for a complete 12 ft. setup. ✔ Sleek & Professional Look: White ducting seamlessly blends with most exteriors, ensuring a clean, finished appearance. ✔ Universal Compatibility: Ideal for mini-splits, high-velocity systems, and traditional split A/C installations. ✔ Superior Protection: Shields line sets, wiring, and drain hoses from harsh weather, vandalism, pets, and pests. ✔ Quick & Easy Installation: Installs in minutes and allows for hassle-free access when servicing or replacing components.
Upgrade your HVAC installation with this reliable and professional-grade line set cover kit!
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
17” Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
30 ft. insulated refrigerant line set
30 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
35 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
35 ft. insulated refrigerant line set
35 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
50 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-12FM-HH-MD
Weight (in lbs)
41.89
Brand/Manufacturer
ACiQ
UPC
810175551272
Controller
Wireless Included
Cooling BTU
12,000 BTU
Heating BTU
12,000 BTU
Maximum CFM
441.4 Turbo / 376.7 Hi / 323.7 Med / 188.4 Lo (Airflow)
Decibel Level (dBA)
24 - 44 dBA
Refrigerant
R454B
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
12,000 BTU/1 Ton
Mini Split Type
Floor Mounted
Zone Compatibility
Multi Zone, Single Zone
Height
24.45"
Width
31.26"
Depth
7.87"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
