12,000 BTU Mitsubishi 17.2 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V

Required Fields *

By

Mitsubishi

In stock

Model

SUZ-AA12NL / SEZ-AD12NL

ID

216060

In Stock - 10 Ready to Ship
Was $3,785.63
Your Low Price $3,028.50

Free Shipping
Customize 12,000 BTU Mitsubishi 17.2 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V
12,000 BTU Mitsubishi Single Zone Condenser - R454B
12,000 BTU Mitsubishi Single Zone Condenser - R454B   + $1,696.50
12,000 BTU Mitsubishi KD-Series Concealed Duct Mini Split Air Handler - R454B
12,000 BTU Mitsubishi KD-Series Concealed Duct Mini Split Air Handler - R454B   + $1,332.00

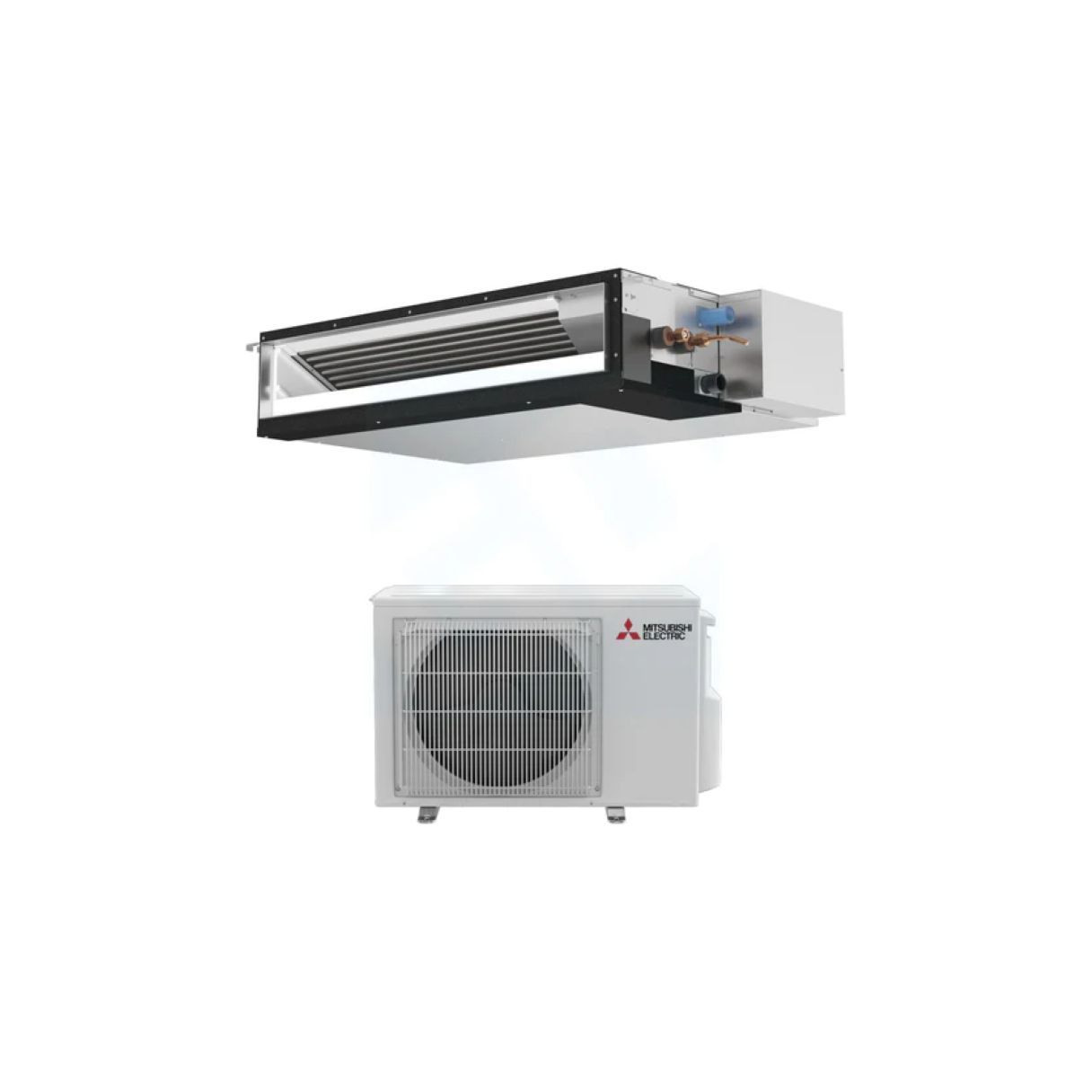

12,000 BTU Mitsubishi SEZ-AD 17.2 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V - SUZ-AA12NL / SEZ-AD12NL

$3,028.50

People that viewed this product purchased this instead:

12,000 BTU Mitsubishi SEZ-AD 17.6 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System – R454B | 230V

The SEZ-AD12NL / SUZ-AA12NL is a Mitsubishi Single Zone Mini-Split Heat Pump designed for efficient heating and cooling in residential spaces. Its ductless configuration makes it perfect for room additions, converted spaces, or areas without ductwork.

Product Overview

  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 12,000 BTU
  • SEER2: Up to 17.6
  • Refrigerant: R454B
  • Voltage: 230V

Key Features

  • Quiet Operation: Operates at low noise levels for a comfortable environment.
  • Durable Design: Built with corrosion-resistant components for long-lasting performance.
  • Energy Efficient: High SEER2 rating reduces energy consumption and costs.
  • Ductless Installation: Quick installation without the need for ductwork.
  • Self-Diagnostics: Easy troubleshooting with built-in error codes and indicators.

Warranty

Eligible equipment may receive a 10 Years with Online Registration with Mitsubishi.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.
More Information
Mitsubishi 12,000 BTU KD-Series Concealed Duct Mini Split Air Handler – R454B | 230V
SKUSEZ-AD12NL
Weight50.000000
ManufacturerMitsubishi
ReplacesSEZ-KD12NA4R1.TH
ControllerNot Included
Additional InformationDrain: 1-1/4"
Cooling BTU11,500 BTU
Heating BTU13,600 BTU
Maximum CFM222-388 CFM
Decibel Level (dBA)22-33
RefrigerantR454B
CapacityDehumidification Rate: 0.24 gal/hr
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height7-7/8"
Width39"
Depth27-9/16"
Warranty10 Years with Online Registration
Resources
Safety InformationPROPOSITION 65 WARNING
Mitsubishi 12,000 BTU M-Series Single Zone Mini Split Heat Pump Condenser – R454B | 230V
SKUSUZ-AA12NL
Weight81.000000
ManufacturerMitsubishi
ReplacesSUZ-KA12NA2.MX
Cooling BTU12000
Heating BTU12,000 BTU
Decibel Level (dBA)51
RefrigerantR454B
SEER219.6
Compressor TypeHigh Efficiency Rotary
Liquid Valve Size 1/4
Suction Valve Size 3/8
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size23
Min. Breaker Size14
BTU/Tonnage12,000 BTU/1 Ton
Zone CompatibilitySingle Zone
Height21.63"
Width31.50"
Depth11.25"
Warranty10 Years with Online Registration
