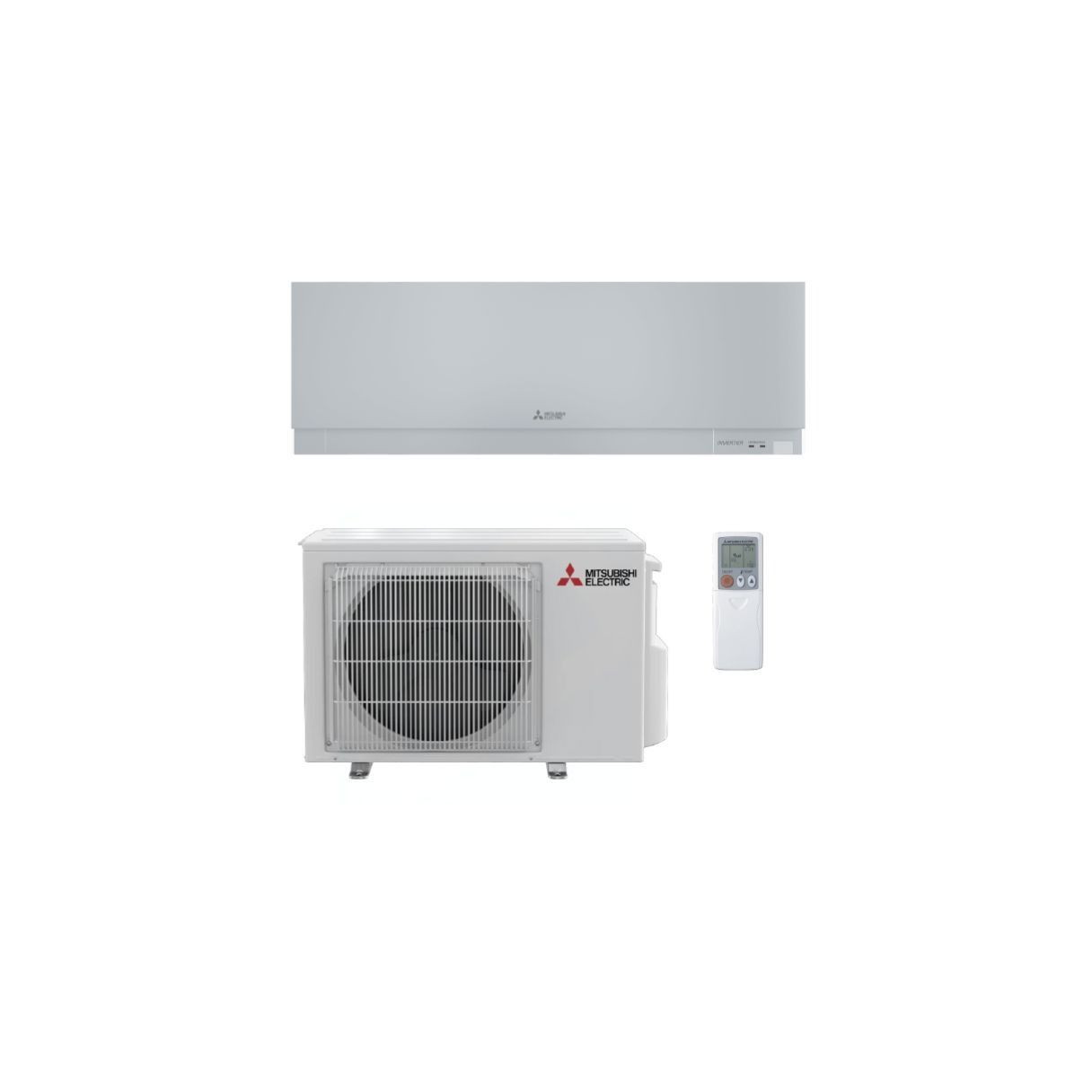

Mitsubishi 12,000 BTU EX-Series 21.7 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V

Mitsubishi 12,000 BTU EX-Series 21.7 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V
Image 87762 EL1838-3 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MSK001 MSZ-EX12NLS MSZ-EX12NLS MSZ-EX12NLS MSZ-EX12NLS SUZ-AA12NL SUZ-AA12NL SUZ-AA12NL MHK2 MHK2 201813 366390 216740 366395 366396 HW-600 MHK2 MHK2

Required Fields *

By

Mitsubishi

In stock

Model

SUZ-AA12NL / MSZ-EX12NLS

ID

199089

Be the first to review this product
In Stock - Ready to Ship
Was $3,223.13
Your Low Price $2,578.50

Free Shipping
Customize Mitsubishi 12,000 BTU EX-Series 21.7 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V
12,000 BTU Mitsubishi Single Zone Condenser - R454B
12,000 BTU Mitsubishi Single Zone Condenser - R454B
12,000 BTU Mitsubishi Single Zone Condenser - R454B   + $1,696.50
12,000 BTU Mitsubishi EX-Series Silver Wall Mount Mini Split Air Handler - R454B
12,000 BTU Mitsubishi EX-Series Silver Wall Mount Mini Split Air Handler - R454B
12,000 BTU Mitsubishi EX-Series Silver Wall Mount Mini Split Air Handler - R454B   + $882.00
Installation Kit for Condensers
Equipment Pad
Mitsubishi MHK2 Wireless Remote Controller
15 feet - 1/4" and 3/8" Line Set
9,000 BTU Mitsubishi EX-Series Mini Split | SEER2 21.7 | Inverter | R454B

$2,578.50

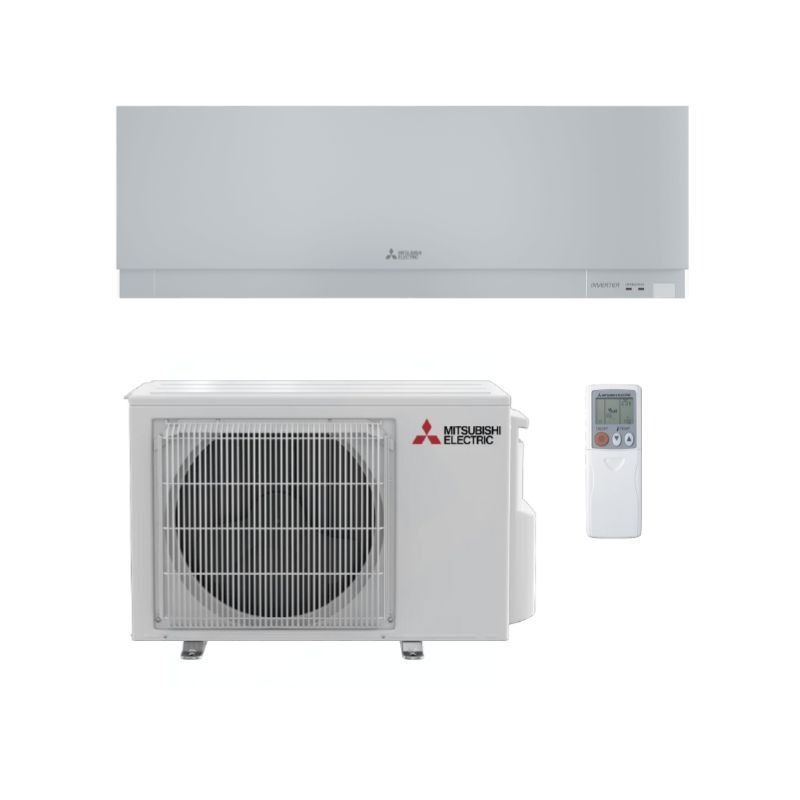

12,000 BTU Mitsubishi EX-Series 21.7 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | SUZ-AA12NL / MSZ-EX12NLS

The 12,000 BTU Mitsubishi EX-Series Wall Mounted Mini Split Heat Pump System is a highly efficient and eco-friendly solution for residential and light commercial spaces. With an outstanding 21.7 SEER2 rating, this system delivers superior energy savings while maintaining optimal temperature control. Featuring the advanced R454B refrigerant, it provides reliable heating and cooling with minimal environmental impact. The system's sleek, wall-mounted design ensures it integrates seamlessly into any interior.

Key Features:
  • 21.7 SEER2 Efficiency: With a high SEER2 rating of 21.7, this system ensures energy-efficient operation, reducing electricity costs while keeping your space comfortable year-round.
  • Wall-Mounted Design: The MSZ-EX12NLS indoor unit is designed for wall mounting, making it an excellent option for saving floor space without sacrificing performance or style.
  • Inverter Technology: The inverter-driven compressor automatically adjusts its speed to match the space's heating or cooling demand, resulting in energy savings and precise comfort.
  • Quiet Operation: The Mitsubishi EX-Series system operates quietly, offering an unobtrusive solution that ensures peace and comfort in your home or office.
  • Eco-friendly R454B Refrigerant: Designed with the environmentally friendly R454B refrigerant, this system provides high performance while reducing its environmental footprint.
System Components:
  • Indoor Unit: MSZ-EX12NLS Wall-Mounted Air Handler
  • Outdoor Unit: SUZ-AA12NL Heat Pump Condenser
Additional Benefits:
  • High energy efficiency with a 21.7 SEER2 rating for cost-effective operation
  • Space-saving design that integrates into any room seamlessly, providing both style and functionality
  • Advanced inverter technology offers superior energy control and comfort
  • Ultra-quiet operation creates a peaceful indoor environment
  • Environmentally friendly with the use of R454B refrigerant, contributing to lower carbon emissions

Designed to provide reliable heating and cooling with exceptional efficiency, the 12,000 BTU Mitsubishi EX-Series mini split heat pump system is the perfect solution for those seeking superior comfort, energy savings, and minimal environmental impact. With its high SEER2 rating and quiet operation, it is ideal for spaces where performance and efficiency matter most.

Mitsubishi 12,000 BTU M-Series Single Zone Mini Split Heat Pump Condenser – R454B | 230V

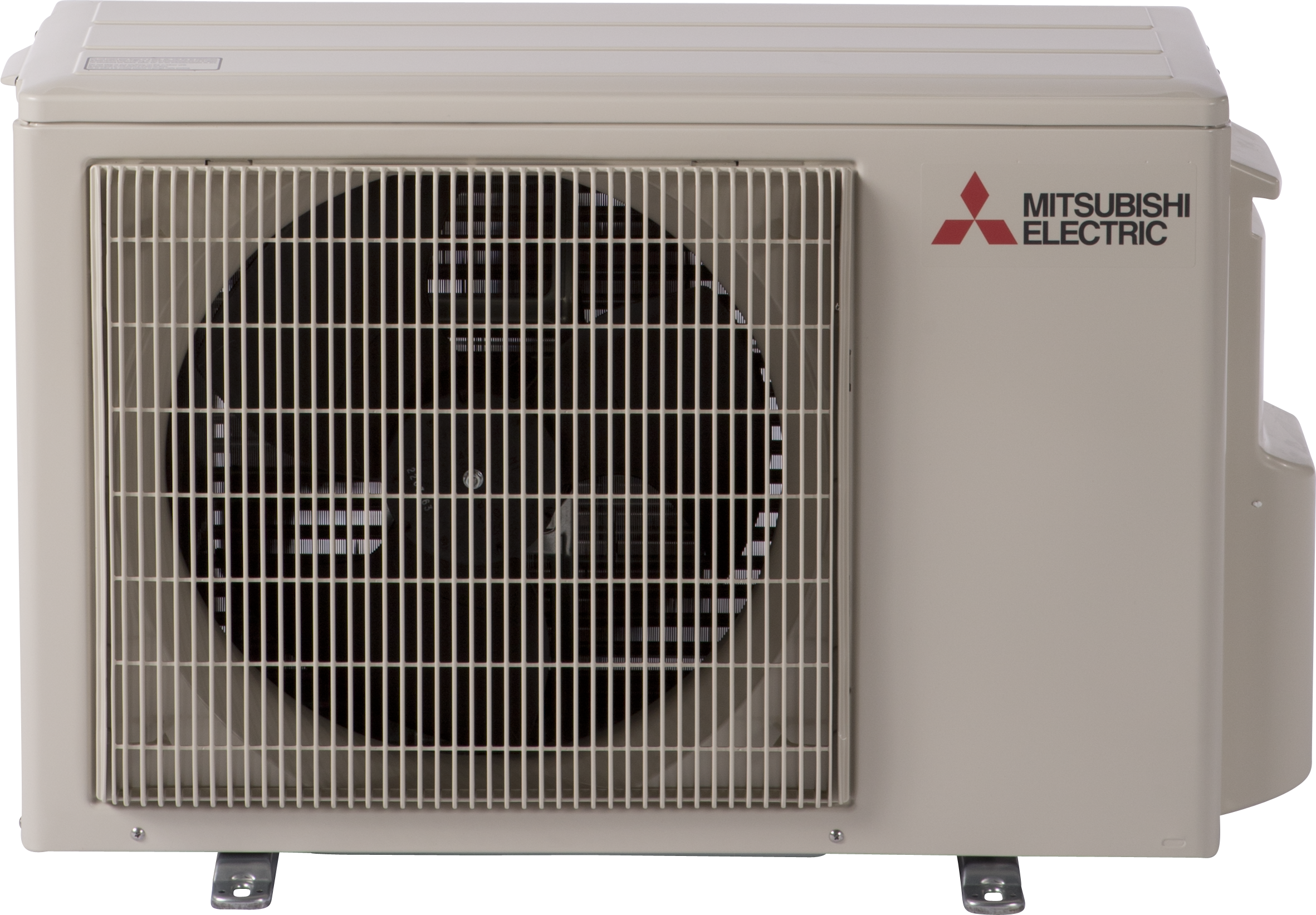

SUZ-AA12NL - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NL is a highly efficient 12,000 BTU outdoor heat pump unit designed to provide both heating and cooling for residential and commercial spaces. It features advanced technology and robust performance for a variety of environmental conditions, ensuring comfort year-round.

Outdoor Unit Features (SUZ-AA12NL):

  • Blue Fin Coating: Anti-corrosion treatment applied to the aluminum fins of the heat exchanger, preventing damage from salt, sulfur, and other airborne contaminants.
  • High-Performance Grooved Piping: Optimizes heat exchange efficiency for better energy performance and more reliable operation.
  • Hot-Start Technology: Ensures that the fan only operates once the heat exchanger is sufficiently warm, preventing cold air bursts during startup.
  • INVERTER-Driven Compressor: Offers precise capacity control to maintain a stable temperature while reducing energy consumption.
  • Joint Lap DC Motor: An advanced motor design providing high efficiency and long-term reliability.
  • Pulse Amplitude Modulation Technology: Optimizes the compressor's energy efficiency by adjusting power supply, leading to lower energy use.
  • Quiet Operation: Designed for quiet operation, both the outdoor unit and the indoor units are significantly quieter than traditional systems.
  • Single-Zone Setup: Connects one outdoor unit to one indoor unit for simplified and efficient operation in a single zone.

Specifications:

  • Cooling Capacity: Rated at 12,000 BTU/h, with a minimum capacity of 2,500 BTU/h.
  • Heating Capacity: 15,000 BTU/h at 47°F, with a reduced capacity at lower temperatures (e.g., 9,700 BTU/h at 17°F).
  • SEER2 Rating: 19.6, delivering superior energy efficiency for long-term savings.
  • Power Input: Rated at 950 W for cooling and 1,240 W for heating.
  • Sound Levels: As low as 49 dB(A) in cooling mode and 51 dB(A) in heating mode, ensuring minimal noise disruption.
  • Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 93 lbs.
  • Refrigerant: Uses R454B refrigerant for efficient heat transfer and environmental friendliness.

The SUZ-AA12NL is a compact and powerful heat pump outdoor unit that ensures year-round comfort and reliable performance for both cooling and heating needs.

Mitsubishi 12,000 BTU EX-Series Silver Single or Multi Zone Wall Mounted Mini Split Air Handler – R454B | 230V

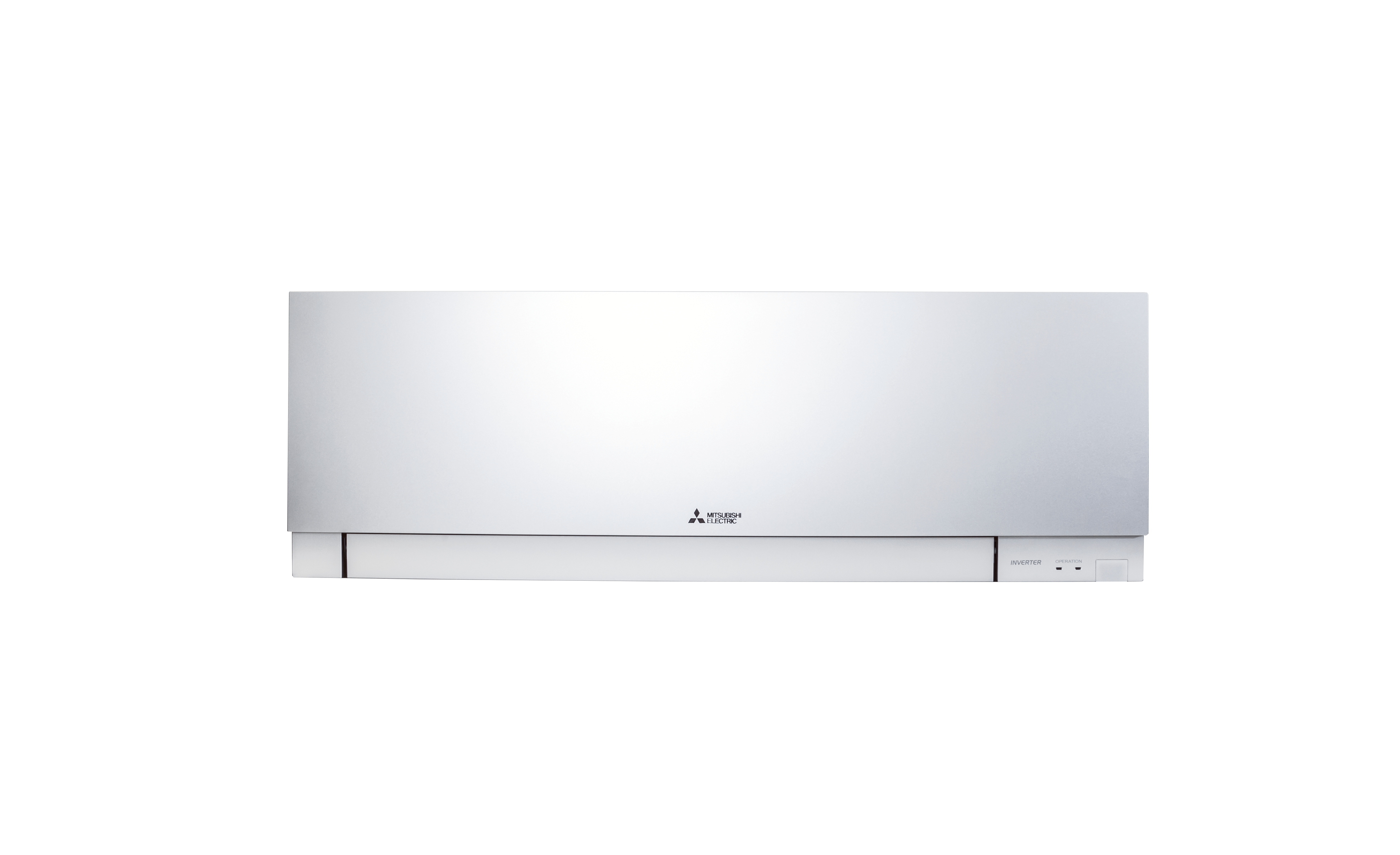

Mitsubishi Electric MSZ-EX12NLS Wall-Mounted Indoor Unit

The Mitsubishi Electric MSZ-EX12NLS is a high-performance, wall-mounted indoor unit designed to deliver efficient heating and cooling for residential and commercial applications. Paired with the SUZ-AA12NL outdoor unit, this system offers a balanced combination of comfort and energy efficiency.

Key Features

  • Dual Barrier Coating: This patented feature minimizes the accumulation of contaminants such as dust, fibers, smoke, and oil on the internal surfaces of the heat exchanger, ensuring optimal airflow and simplifying maintenance.
  • Econo Cool Mode: This function automatically adjusts the airflow based on the heat exchanger's temperature, slightly increasing the set temperature to conserve energy while maintaining comfort.
  • Modern, Sleek Design: The unit's contemporary aesthetics allow it to seamlessly blend into various interior decors.
  • Multiple Control Options: Includes a back-lit screen hand-held remote controller and is compatible with comfort apps, third-party interfaces, and both wired and wireless controllers for versatile operation.

Performance Specifications

  • Cooling Capacity: Rated at 9,000 BTU/h, with a maximum capacity of 9,000 BTU/h and a minimum of 2,300 BTU/h.
  • Heating Capacity: Rated at 12,000 BTU/h, with a maximum capacity of 13,000 BTU/h and a minimum of 5,300 BTU/h.
  • Moisture Removal: Capable of removing up to 0.2 pints per hour, aiding in effective humidity control.
  • Airflow Rates (Cooling, Dry): Offers multiple fan speed settings with airflow rates of 143, 164, 228, 305, and 391 CFM to cater to diverse comfort preferences.
  • Sound Pressure Levels (Cooling): Ranges from 21 dB(A) at the lowest fan speed to 42 dB(A) at the highest, ensuring quiet operation.
  • Energy Efficiency Ratings: Achieves a Seasonal Energy Efficiency Ratio (SEER2) of 21.7 and an Energy Efficiency Ratio (EER2) of 12.8, reflecting high energy efficiency.
  • ENERGY STAR® Certification: Yes, signifying compliance with energy efficiency guidelines set by the U.S. Environmental Protection Agency.

Electrical Specifications

  • Voltage: Operates on 208/230 V AC, single-phase, 60 Hz.
  • Guaranteed Voltage Range: Functional within a voltage range of 198 - 253 V AC.
  • Indoor Unit Fan Motor Output: 30 W, contributing to the unit's energy-efficient performance.

Physical Specifications

  • Indoor Unit Dimensions (W x D x H): 34-13/16" x 7-11/16" x 11-3/4" (885 mm x 195 mm x 299 mm).
  • Indoor Unit Weight: 26 lbs (11.5 kg).
  • Drain Pipe Size: 5/8" (16 mm) outer diameter.

Outdoor Unit Features

  • Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
  • High-Performance Grooved Piping: Designed to enhance heat exchange efficiency.
  • Hot-Start Technology: Ensures the fan activates only once the heat exchanger is warm, preventing cold air blasts during start-up.
  • Inverter-Driven Compressor: Provides precise capacity control to maintain the desired temperature efficiently.
  • Joint Lap DC Motor: Enhances efficiency and reliability in operation.
  • Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, and the system automatically restarts when power returns after an outage.
  • Pulse Amplitude Modulation Technology: Optimizes compressor performance for enhanced energy efficiency and reduced consumption.
  • Quiet Operation: Designed to operate as quietly as a typical conversation, ensuring minimal disruption.
  • Single-Zone Configuration: One outdoor unit connects to one indoor unit to control the comfort in a single space.

The Mitsubishi Electric MSZ-EX12NLS indoor unit, combined with the SUZ-AA12NL outdoor unit, offers advanced technology and user-friendly features to provide a comfortable and energy-efficient environment. Its innovative design and high-performance capabilities make it an excellent choice for those seeking reliable climate control solutions.

Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

  • Insulated
  • Flared Line Ends
  • Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

Mitsubishi MHK2 Wireless Remote Controller

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

  • Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
  • Backlit display
  • Can sense temperature at indoor unit (default) or at controller
  • Fahrenheit °F / Celsius °C
  • No batteries required
  • Single zone compatible
  • Multi zone compatible
  • English, French, Spanish

Compatible Indoor Units:

Wall Mounted

  • GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
  • FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
  • EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
  • JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
  • WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
  • D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
  • P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

  • KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
  • P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

  • KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
  • KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
  • P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

  • MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

  • KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
  • P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

  • P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
More Information
Mitsubishi 12,000 BTU M-Series Single Zone Mini Split Heat Pump Condenser – R454B | 230V
SKUSUZ-AA12NL
Weight81.000000
ManufacturerMitsubishi
ReplacesSUZ-KA12NA2.MX
Cooling BTU12000
Heating BTU12,000 BTU
Decibel Level (dBA)51
RefrigerantR454B
SEER219.6
Compressor TypeHigh Efficiency Rotary
Liquid Valve Size 1/4
Suction Valve Size 3/8
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size23
Min. Breaker Size14
BTU/Tonnage12,000 BTU/1 Ton
Zone CompatibilitySingle Zone
Height21.63"
Width31.50"
Depth11.25"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Mitsubishi 12,000 BTU EX-Series Silver Single or Multi Zone Wall Mounted Mini Split Air Handler – R454B | 230V
SKUMSZ-EX12NLS
Weight26.000000
ManufacturerMitsubishi
ReplacesMSZ-EF12NAS-U2
HSPF212.9
Decibel Level (dBA)21-46
RefrigerantR454B
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height7.69"
Width11.75"
Depth34.81"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
SKU201813
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
SKU366395
Weight35.000000
ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
SKU366396
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
SKU366390
Weight25.000000
ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
SKU216740
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
SKUMHK2
Weight2.000000
ManufacturerMitsubishi
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Mitsubishi 12,000 BTU EX-Series 21.7 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
