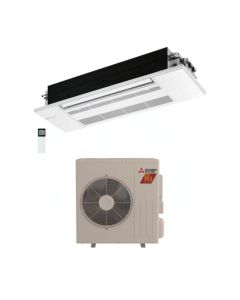

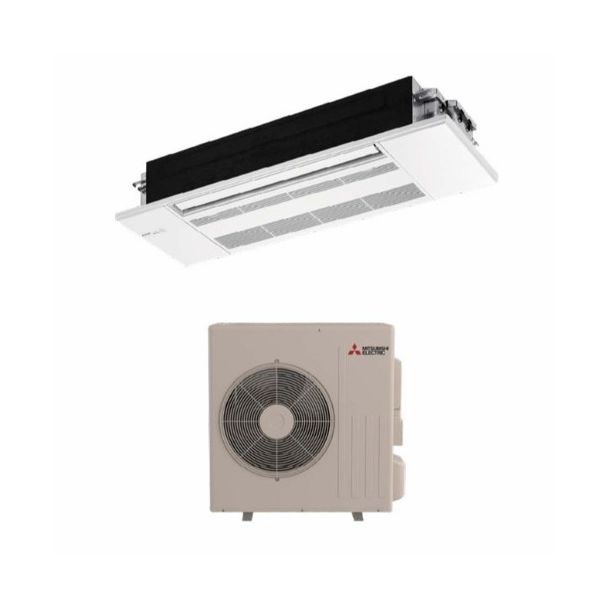

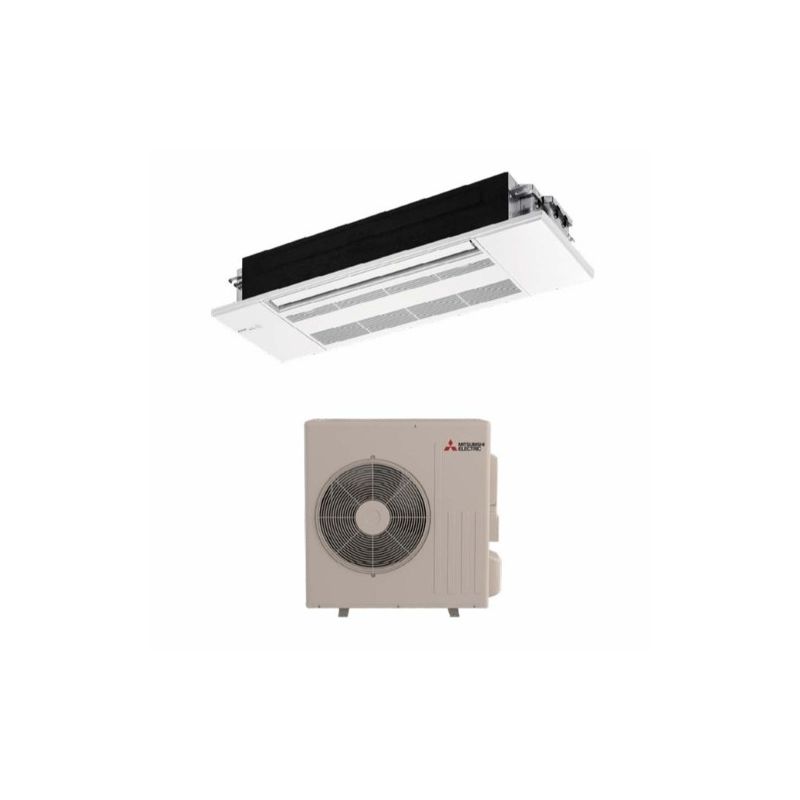

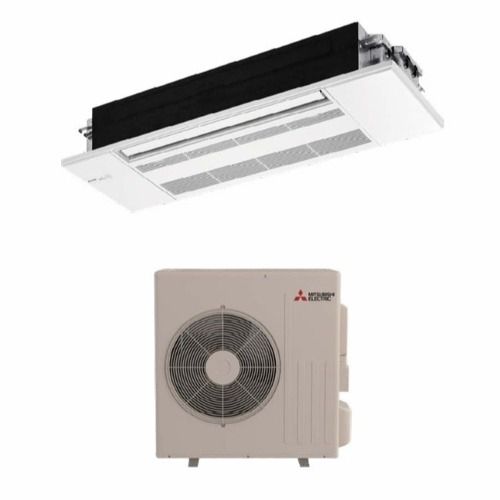

Mitsubishi 12,000 BTU SEZ-AD-Series 20.7 SEER2 Single Zone Ceiling Mount Mini Split Heat Pump System – R454B | 230V

SUZ-AA12NL - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NL is a highly efficient 12,000 BTU outdoor heat pump unit designed to provide both heating and cooling for residential and commercial spaces. It features advanced technology and robust performance for a variety of environmental conditions, ensuring comfort year-round.

Outdoor Unit Features (SUZ-AA12NL):

• Blue Fin Coating: Anti-corrosion treatment applied to the aluminum fins of the heat exchanger, preventing damage from salt, sulfur, and other airborne contaminants.
• High-Performance Grooved Piping: Optimizes heat exchange efficiency for better energy performance and more reliable operation.
• Hot-Start Technology: Ensures that the fan only operates once the heat exchanger is sufficiently warm, preventing cold air bursts during startup.
• INVERTER-Driven Compressor: Offers precise capacity control to maintain a stable temperature while reducing energy consumption.
• Joint Lap DC Motor: An advanced motor design providing high efficiency and long-term reliability.
• Pulse Amplitude Modulation Technology: Optimizes the compressor's energy efficiency by adjusting power supply, leading to lower energy use.
• Quiet Operation: Designed for quiet operation, both the outdoor unit and the indoor units are significantly quieter than traditional systems.
• Single-Zone Setup: Connects one outdoor unit to one indoor unit for simplified and efficient operation in a single zone.

Specifications:

• Cooling Capacity: Rated at 12,000 BTU/h, with a minimum capacity of 2,500 BTU/h.
• Heating Capacity: 15,000 BTU/h at 47°F, with a reduced capacity at lower temperatures (e.g., 9,700 BTU/h at 17°F).
• SEER2 Rating: 19.6, delivering superior energy efficiency for long-term savings.
• Power Input: Rated at 950 W for cooling and 1,240 W for heating.
• Sound Levels: As low as 49 dB(A) in cooling mode and 51 dB(A) in heating mode, ensuring minimal noise disruption.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 93 lbs.
• Refrigerant: Uses R454B refrigerant for efficient heat transfer and environmental friendliness.

The SUZ-AA12NL is a compact and powerful heat pump outdoor unit that ensures year-round comfort and reliable performance for both cooling and heating needs.

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

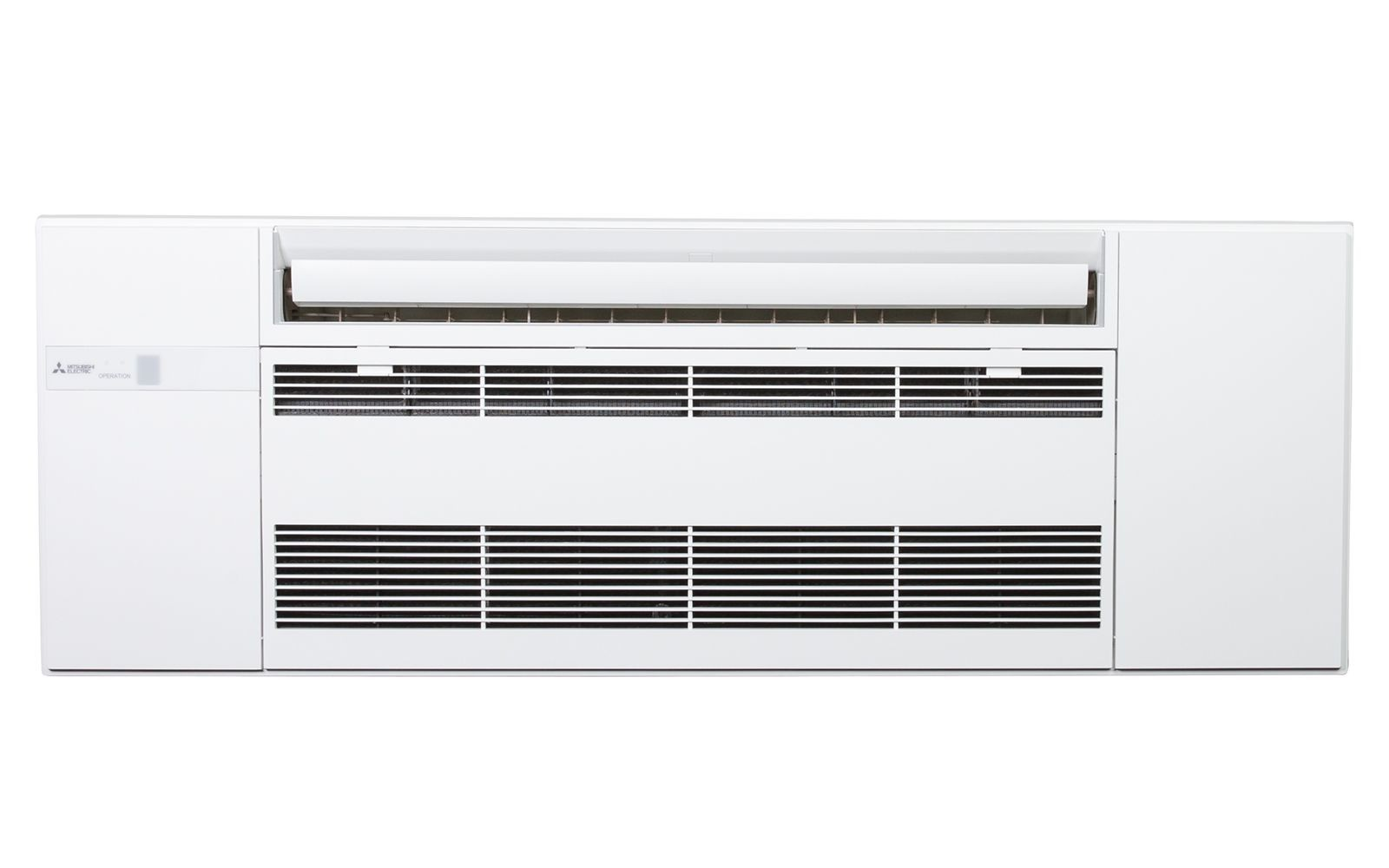

The Mitsubishi MLP-449WU is one of the grille options required to complete a KP cassette installation.

Features:

• Allows for direct service of unit from below.
• Overlaps a 1.5' x 4' area to hide the ceiling cassette body in a drop ceiling or recessed between 16" on center joists.

Compatible Indoor Units:

Ceiling Cassette

• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

• Insulated
• Flared Line Ends
• Heavy Duty Refrigerant Lines

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included
