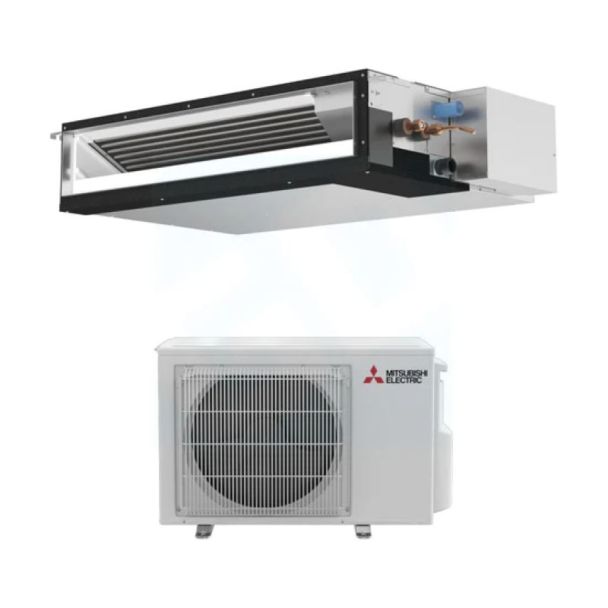

12,000 BTU Mitsubishi P-Series 19.7 SEER2 Single Horizontal-Ducted Mini Split Heat Pump System - R454B | SUZ-AA12NL / PEAD-AA12NL

SUZ-AA12NL - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NL is a highly efficient 12,000 BTU outdoor heat pump unit designed to provide both heating and cooling for residential and commercial spaces. It features advanced technology and robust performance for a variety of environmental conditions, ensuring comfort year-round.

Outdoor Unit Features (SUZ-AA12NL):

• Blue Fin Coating: Anti-corrosion treatment applied to the aluminum fins of the heat exchanger, preventing damage from salt, sulfur, and other airborne contaminants.
• High-Performance Grooved Piping: Optimizes heat exchange efficiency for better energy performance and more reliable operation.
• Hot-Start Technology: Ensures that the fan only operates once the heat exchanger is sufficiently warm, preventing cold air bursts during startup.
• INVERTER-Driven Compressor: Offers precise capacity control to maintain a stable temperature while reducing energy consumption.
• Joint Lap DC Motor: An advanced motor design providing high efficiency and long-term reliability.
• Pulse Amplitude Modulation Technology: Optimizes the compressor's energy efficiency by adjusting power supply, leading to lower energy use.
• Quiet Operation: Designed for quiet operation, both the outdoor unit and the indoor units are significantly quieter than traditional systems.
• Single-Zone Setup: Connects one outdoor unit to one indoor unit for simplified and efficient operation in a single zone.

Specifications:

• Cooling Capacity: Rated at 12,000 BTU/h, with a minimum capacity of 2,500 BTU/h.
• Heating Capacity: 15,000 BTU/h at 47°F, with a reduced capacity at lower temperatures (e.g., 9,700 BTU/h at 17°F).
• SEER2 Rating: 19.6, delivering superior energy efficiency for long-term savings.
• Power Input: Rated at 950 W for cooling and 1,240 W for heating.
• Sound Levels: As low as 49 dB(A) in cooling mode and 51 dB(A) in heating mode, ensuring minimal noise disruption.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 93 lbs.
• Refrigerant: Uses R410A refrigerant for efficient heat transfer and environmental friendliness.

The SUZ-AA12NL is a compact and powerful heat pump outdoor unit that ensures year-round comfort and reliable performance for both cooling and heating needs.

PEAD-AA12NL Air Handler Overview

The PEAD-AA12NL is a high-performance air handler designed for residential and light commercial applications. This unit is built for maximum energy efficiency and quiet operation, ensuring optimal comfort and reliability. Paired with the PUY-AK12NL outdoor unit, the PEAD-AA12NL delivers powerful heating and cooling capabilities to meet the demands of modern spaces. Its versatile design allows for easy installation in various settings, making it an ideal choice for both new construction and retrofitting existing systems.

Key Features

• Inverter Technology: The PEAD-AA12NL features advanced inverter-driven technology, allowing the compressor to adjust its speed according to the cooling or heating requirements, ensuring energy-efficient operation and stable indoor temperatures.
• Quiet Operation: Designed with noise reduction in mind, this air handler operates quietly, making it suitable for bedrooms, offices, and other environments where a peaceful atmosphere is essential.
• Energy Efficient: The PEAD-AA12NL's inverter compressor optimizes energy usage, reducing overall power consumption while providing consistent, reliable temperature control. This leads to lower energy bills and a smaller carbon footprint.
• Flexible Installation Options: This air handler can be installed in a variety of configurations, including both horizontal and vertical orientations, offering flexibility in tight or constrained spaces.
• Compact and Space-Saving Design: With its compact dimensions, the PEAD-AA12NL is an excellent choice for installations where space is limited. Its sleek design allows it to be integrated seamlessly into existing systems.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 13,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 30-1/4" x 11-3/4" x 24-1/8”
• Weight: 26.5 lbs
• Refrigerant: R410A
• Airflow: 600 CFM

Benefits

• Enhanced Comfort: The PEAD-AA12NL provides consistent temperature control, ensuring a comfortable indoor environment year-round, whether you're heating in the winter or cooling in the summer.
• Improved Efficiency: By adjusting to the exact needs of the space, the inverter compressor helps achieve maximum efficiency, which reduces both energy consumption and environmental impact.
• Low Maintenance: The unit's design minimizes maintenance needs, and regular cleaning of filters and routine checks help maintain optimal performance for years.
• Durability: Built with high-quality materials and components, the PEAD-AA12NL is designed for long-lasting durability, ensuring reliable operation with minimal downtime.
• Quiet Operation: Thanks to the optimized fan and compressor design, the air handler ensures minimal noise during operation, providing a comfortable environment without disturbance.

Maintenance

• Easy Filter Maintenance: The PEAD-AA12NL is equipped with washable filters, reducing the need for frequent replacements and simplifying maintenance. Regular cleaning of the filters is essential for maintaining performance.
• Access for Service: The air handler is designed for easy access to internal components, allowing quick servicing and reducing downtime when repairs are needed.
• Long-Term Reliability: Regular maintenance ensures the air handler operates at its peak, extending its lifespan and minimizing the risk of costly repairs.

Applications

• Residential Use: Ideal for homes that require efficient cooling and heating in compact spaces, the PEAD-AA12NL is perfect for installation in ceilings, mechanical rooms, or closets where space is a premium.
• Light Commercial Use: The unit is well-suited for light commercial applications such as small offices, retail spaces, or restaurants, where maintaining a comfortable and quiet environment is essential.

In conclusion, the PEAD-AA12NL air handler is an excellent choice for both residential and light commercial applications. It offers outstanding energy efficiency, quiet operation, and flexibility in installation. With its durable design and ability to maintain comfortable indoor temperatures, this unit is perfect for a variety of settings. Whether for new builds or retrofits, the PEAD-AA12NL is an ideal solution for achieving reliable and efficient heating and cooling performance.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
