ACiQ Single Zone mini split systems provide precise temperature control, near silent operation, and maximum efficiency at a competitive price. ACiQ systems complement your space, with attention to detail in design, and state-of-the-art manufacturing. Get a system that blends with your environment to create seamless comfort. Get ACiQ.
18,000 BTU 20 SEER2 ACiQ Single Zone Condenser - R410A
No Return Policy: All sales of this product are final and are non-refundable.
OVERVIEW
The ACiQ Single Zone SC-18ZGLD-HP230 heat pump condenser has a Gen 3 variable inverter compressor for even, predictable cooling and heating without temperature swings, or noisy on and off cycling. The condenser ships with a pre-charge of eco-friendly R410a refrigerant.
QUICK FACTS
Superior engineering for maximum comfort with minimum noise
18,000 BTU of heating and cooling
Rugged construction with acrylic resin fin coating for durability
Intelligent defrost means more heat time and lower energy use
I-Feel function allows you to control temp sensing location
Sleep mode and Energy Saving mode give you more ways to save
18,000 BTU, 20 SEER
A system this size is suitable for rooms up to 750 square feet depending on climate in your area. The SEER rating of 20 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. ACiQ means elite performance at affordable prices.
12 Year Warranty
ACiQ features a 12 warranty with online registration. The standard warranty on the SC-18ZGLD-HP230 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the warranty increases to 12 years for the compressor and 7 years for parts.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every ACiQ mini split heat pump system, resulting in powerful performance across a punishing range of conditions. This SC-18ZGLD-HP230 provides continuous heat even with outside temperatures down to 0 degrees Fahrenheit.
Installation and Maintenance
Every ACiQ condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. ACiQ heat pumps feature self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.

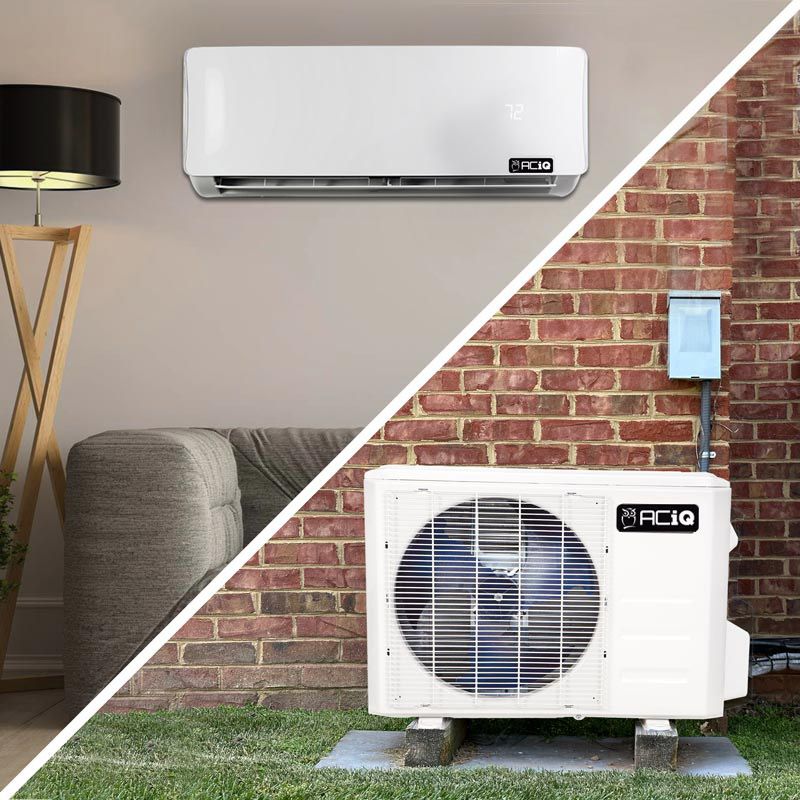

Please note: This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Smart Home Compatibility
The Stealth Pinnacle Series has native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the Apple Store or Google Play. You can also sync your system with Google Home or Alexa. See instructions for set-up.
 14 Year Warranty
The Stealth Emerald Series features a 14 warranty. The standard warranty is a 5-year part and a 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
 14 Year Warranty
The Stealth Emerald Series features a 14 warranty. The standard warranty is a 5-year part and a 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
Quiet Operations
The Stealth Emerald Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.
Stealth Emerald Series Specifications
Effective cooling from as low as 0°F to 115°F outdoor temperatures
Effective heating from as low as -4° to 75°F outdoor temperatures
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Emerald provides continuous heat even with outside temperatures down to -4 degrees Fahrenheit.
Installation and Maintenance
Every Stealth series condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Emerald Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.
Installation Kit for Condensers - Accessory Set
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU 20 SEER2 ACiQ Single Zone Condenser - R410A
Feature
Spec
SKU
SC-18ZGLD-HP230
Weight
124.600000
AHRI Certificate Number
208650743
Manufacturer
ACiQ
Product Features
Low Ambient Heating
Additional Information
Heat Pump
Additional Information
Maximum Line Set Length: 82'
Additional Information
Minimum Line Set Length: 10'
Additional Information
Drain: 5/8"
HSPF
10.5
Cooling BTU
18,000
Heating BTU
19,800
Maximum CFM
335-559 CFM
Decibel Level (dBA)
55 dB(A)
Electric Heat
Heat Pump
Energy Star
Yes
Refrigerant
R410A
SEER
18-20
SEER2
20
EER
12.5
Liquid Line
1/4"
Suction Line
5/8"
Electrical
208/230V 1 Phase 60 Hz
Electric Phase Filter
Single Phase
Max Breaker Size
25 Amps
Min. Breaker Size
16 Amps
Tonnage
1.5 Ton
BTU/Tonnage
18,000 BTU/1.5 Ton
Mini Split Type
Wall Mounted
Min/Max Outdoor Temp for Heating
-4- 75F
Min/Max Outdoor Temp for Cooling
0F - 115F
Zone Compatibility
Single Zone
Height
27.6"
Width
37.6"
Depth
14.3"
Warranty
12 year compressor, 7 year parts with online registration
