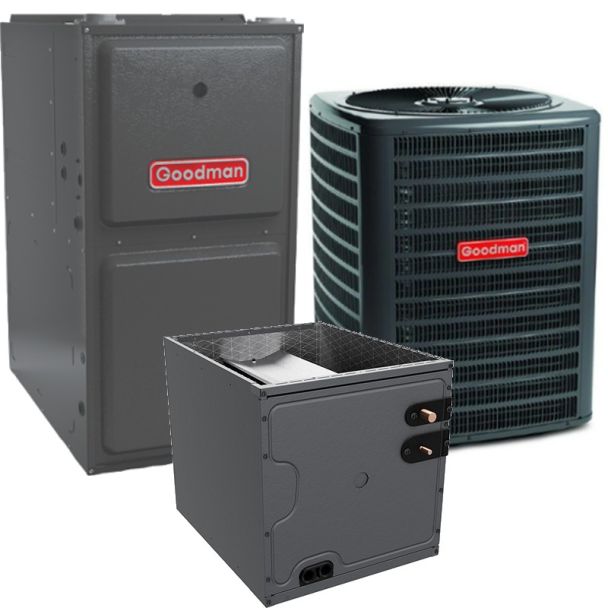

2 Ton 15.2 SEER2 96% AFUE 80,000 BTU Goodman Gas Furnace and R32 Heat Pump System - Upflow

Goodman Furnace Integration Kit for R-32 Refrigerant Systems

The Goodman Furnace Integration Kit is designed to seamlessly integrate with R-32 refrigerant systems, enhancing system efficiency and performance. This kit includes all necessary components to ensure a smooth installation and optimal operation of your heating system. Ideal for those upgrading to R-32 refrigerant, it supports environmental sustainability while providing reliable heating. Upgrade your system with this advanced kit to achieve both efficiency and eco-friendliness.

OVERVIEW

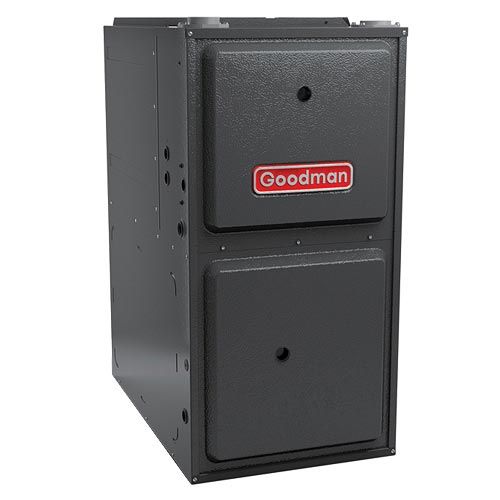

As a high-efficiency system, the GM9C960804CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GMEC960804CN is a good way to go if you want to lower your gas bill.

QUICK FACTS

• This furnace is ideal to heat a medium-sized house (depending on climate)
• 80,000 BTU 96% AFUE natural gas furnace
• Requires plastic/PVC flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with an optional conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

Heating up to a medium-sized house in normal conditions, the GM9C960804CN Goodman gas furnace has an input of 80,000 BTU’s and an output of 76,800 BTU’s. The output in this case is determined by taking the input times the efficiency rating.

96% AFUE

The GM9C960804CN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.

Two Stage 9-Speed Furnace

With a two stage burner, the GM9C960804CN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home’s comfort needs and provide a slightly higher efficiency.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durability and Reliability

The exterior casing on the GM9C960804CN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn’t stop at efficiency. The GM9C960804CN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GM9C960804CN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.

OVERVIEW

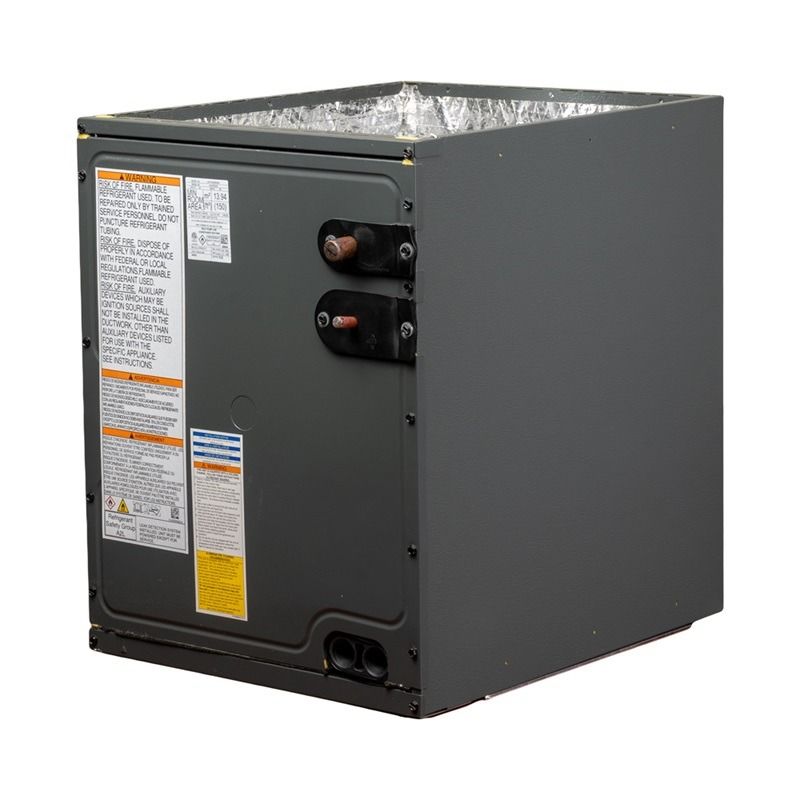

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

• All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
• 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Smarter Comfort. Sleek Control.

The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.

QUICK FACTS

• Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems

• Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
• Modern Touchscreen: Auto-wake screen with responsive touch interface
• Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
• Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
• Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology

The Santa Fe Ultra70 is a high-efficiency, ventilating dehumidifier designed to control excess humidity throughout your entire home. Capable of integrating directly with your HVAC system, this unit removes up to 70 pints of moisture per day and is ideal for spaces up to 1,800 square feet.

High Efficiency

The Ultra70 is the perfect dehumidifier for residential use, including low-clearance crawl spaces, basements, and whole-house applications. Drawing just 4.1 amps, this unit offers powerful moisture control with low energy consumption. It utilizes a MERV-13 filter—one of the most efficient in its class—and uses R454B refrigerant for a more environmentally responsible performance.

Versatile Applications

• Compact Design: Weighs just 55 lbs and measures only 12” wide, making it easy to place in tight spaces.
• Flexible Installation: Can be used as a free-standing unit or ducted into your home's HVAC system.
• Plug-in Ready: Includes a 9-foot power cord and plug-in wiring style for easy setup.

Industry Usage: Perfect for homes, apartments, and condominiums.

Operating Temperature Range: Effective in environments from 49°F to 95°F.

Bonus Features

• Auto Restart: Automatically resumes operation after a power outage.
• Advanced Control Panel: Includes a built-in dehumidistat for precise manual humidity control.
• Automatic Defrost: Prevents frost buildup in colder environments for uninterrupted performance.

Warranty

Santa Fe offers an industry-leading warranty to ensure long-term performance and peace of mind:

• 5-Year Warranty: Covers operational failures.
• 6-Year Warranty: Covers faulty components.

In the event of a malfunction, Santa Fe will repair or replace the unit. Please refer to the Owner’s Manual for full warranty details and terms.

This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 1/2" x 6' Electrical Whip – SKU: 84136
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
