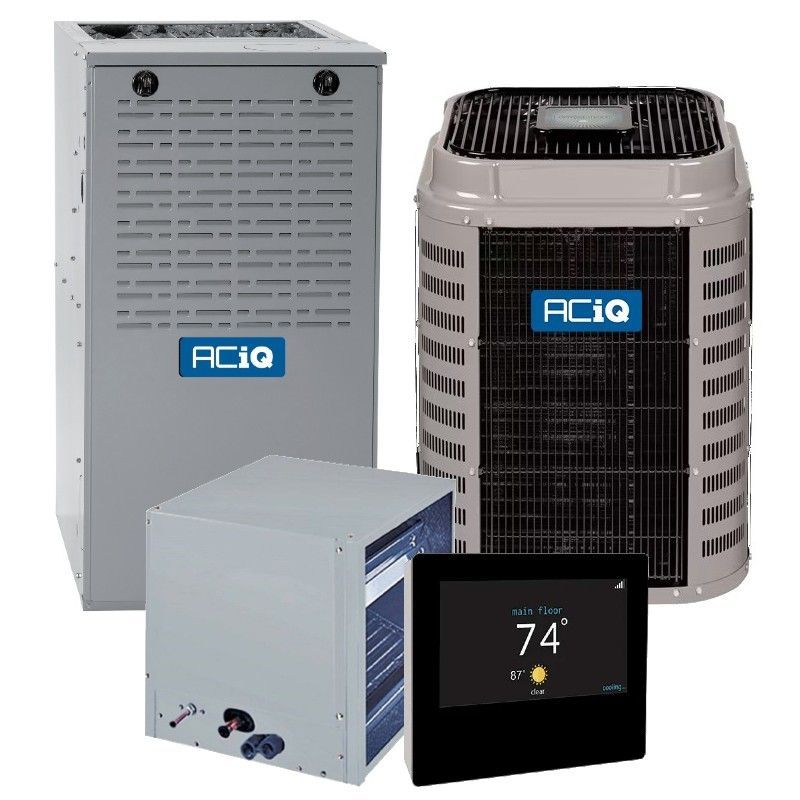

An ACiQ combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the G80CTL0451712A is a perfect choice for heating.
All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.
ACiQ 80% 40,000 BTU Two Stage Gas Furnace | 17.5" Width | Multi-Positional
OVERVIEW
With its variable speed blower motor and two stage burner, the ACiQ G80CTL0451712 can provide a consistently superior comfort to almost any application.
QUICK FACTS
44,000 BTU, 80% AFUE natural gas furnace
Generally suitable for up to a small house in ideal applications
Communicating variable speed blower with a two stage burner
Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
California Low NOx compliant
Field-convertible to propane with an optional LP kit
On board self-diagnostics
44,000 BTU, 80% AFUE
The ACiQ G80CTL0451712 has an input of 44,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 35,000 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.
Warranty
ACiQ offers a 10 year no hassle unit replacement, 10 year parts, and lifetime heat exchanger limited warranty. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal), the ACiQ G80CTL0451712 is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.
Superior Comfort
All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G80CTL0451712 definitely lives up to the name thanks in part to its communicating variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
Ion System Control
Don't call it a thermostat -- mere thermostats simply don't offer all of the features and functionality of the Ion™ System Control. Offering full command over a communicating comfort system, including temperature, humidity, ventilation, comfort scheduling, energy management and more, this is our most fully-featured control. Anywhere in the connected world, you are just a touch or a tap away from full system control with an internet-enabled device.
High resolution, smartphone-like touchscreen
Wi-Fi enabled for remote access and control
Pair with our communicating, modulating gas furnace; variable-speed fan coil; inverter-driven outdoor units; and zoning system for a complete Ion Comfort System
Capable of controlling temperatures and fan speeds in up to eight zones
Local weather 5-day forecast
Humidity control for enhanced comfort
Dual fuel system management capable
Auto changeover between heating and cooling
Four levels of "constant ON" fan speeds
7-day programming with temperature control throughout the day and week (wake, away, home, sleep)
Advanced smart setback for optimal energy savings during "away" and ramp up periods
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 2 Ton 19 SEER Central Air Conditioner Condenser - R410A Variable Speed
Feature
Spec
SKU
HVA924GKA
Weight (in lbs)
128
Brand/Manufacturer
ACiQ
UPC
686797004935
Equivalent
Carrier Equivalent: 24VNA924B003
Tempstar Equivalent: TVA924GKA
Bryant Equivalent: 189BNV024000
Communicating
Yes
Cooling BTU
24,000
Drive Type
Direct
Maximum CFM
2500
Decibel Level (dBA)
67
Motor RPM
825
Horsepower
.2 HP
Energy Star
Yes
Refrigerant
R410A
SEER1 (Efficiency)
19
EER
10-11
Condenser Stages
Variable Speed
Compressor Type
Rotary
Liquid Valve Size
3/8"
Suction Valve Size
3/4"
Electrical
208/230v 1 Phase 60 Hz
Phase
Single Phase
Max Breaker Size
20 Amps
Min. Breaker Size
13.5 Amps
Amperage Requirement
13.5 Amps
Tonnage
2 Ton
Connection
Sweat
Certification
UL Listed
Height
32 1/8"
Width
23 1/8"
Depth
23 1/8"
Warranty
10 Year No Hassle Replacement and 10 Year Parts with Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 2.5 Ton 17.5" Width Horizontal Evaporator Cased Coil
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Ion System Control
Feature
Spec
SKU
SYST0101CW
Weight (in lbs)
1
Brand/Manufacturer
ACiQ
Warranty
10 Years No Hassle Replacement / 10 Years Parts with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
A complex thermostat has a lot steps, procedures, and settings. Having a readily available and knowledgeable service support is really appreciated.
Review byTim
Posted on
Great experience
Quality
100%
Price
100%
Service
100%
Great Experience.
I really appreciated the courtesy phone call a few days prior to delivery. It allowed me some time to get prepared.
The site is very user friendly and generates helpful recommendations on the parts needed for installation.
Thanks Again!
Review byTrent
Posted on
Fantastic customer support.
Quality
100%
Price
100%
Service
100%
I'm using most of the features this controller offers and it was tricky to get my old ventilator working with this new HVAC system. When we exhausted the knowledge in-house at HVACdirect.com, they referred me to a local expert who stuck with me until all capabilities were functioning perfectly. One thing to know about this controller... If running a whole house ventilation system... there is a 1-1/2 minute delay before the furnace fan begins to do its part. That delay kept me wondering what was wrong for a few weeks but now it all works perfectly. Highly recommend HVACdirect.com and the ION system controller.
ACiQ air conditioning systems, standard heat pumps, and gas furnaces are manufactured by the largest HVAC manufacturer in America, who also happens to be the seller of the nation’s #1 brand. However, because our prices are SO LOW, they will not allow us to mention their name! They must protect their current market share where typical home systems retail between $15,000 to $25,000 for the identical equipment that we let you buy direct for under $3,000. We offer homeowners and contractors the highest quality and best warranty HVAC systems in the industry at the absolute lowest price. With our industry-leading, high-tech ACiQ equipment, your home and your savings just got a whole lot smarter!
What happens if this breaks down?
HVACDirect.com gives you lifetime tech support. Many common problems can be solved with a phone call to us. HVACDirect.com is an authorized dealer of ACiQ, therefore equipment we sell carries the full manufacturer's warranty. The warranty applies to all parts. You have to register the products online in order to extend the warranty to the full 10 years, otherwise the term is 5 years. If a part fails under warranty, you will not pay anything for the replacement part. Should a part fail under warranty, the first step is to have a professional confirm what part needs to be replaced. Then, contact us at customerservice@hvacdirect.com or by calling and asking for customer service.
What happens if it arrives damaged?
If you are present during drop-off and you see obvious signs of damage or rough handling in transit - please ask the driver to wait while you inspect the equipment. If it is damaged badly enough that you believe it can not function, you have the right to refuse the damaged portion of the shipment. If you discover the damage after the driver has left, take photos of the damage and send them to customerservice@hvacdirect.com. Please refer to your order number in the email. This starts the process and one of our representatives will be in touch with you promptly.
How can I find an installer?
It’s easier than you think – the key is to find an independent contractor or small company as opposed to a larger HVAC service. A one or two person outfit will do the work more quickly and cheaply than a bigger company, too. Yelp.com, Thumbtack.com, and Porch.com are websites are designed to help you connect with a professional in your area. You could also place a call to the last professional who did work on your home and see if they have any recommendations.
Is it cheaper to buy a furnace and AC together? (Should I replace my furnace and air conditioner at the same time?)
Remember to factor labor into the budget. Many times the labor can cost as much as the equipment. Therefore, spending a bit more now to replace everything can be less expensive than re-using an older furnace that still works, or putting in a furnace with a plan to ‘add air conditioning later.” By replacing everything at the same time, you will get matching equipment that is all warrantied together. Then you can typically not have to worry about the system for another 15 to 25 years with proper maintenance.
