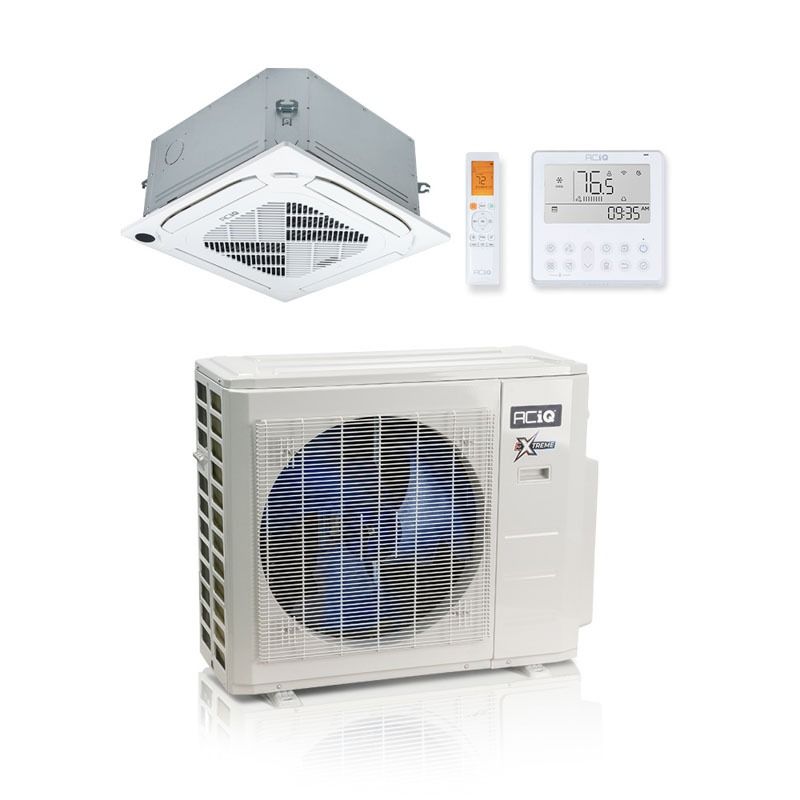

24,000 BTU ACiQ Extreme 20.7 SEER2 Single Zone Ceiling Cassette Mini Split System - R454B | 230V

SAVE $1,596.26
24,000 BTU ACiQ Extreme 20.7 SEER2 Single Zone Ceiling Cassette Mini Split System - R454B | 230V

Required Fields *

Customer reviews
Rating:
4.9 out of 5
In Stock - 49 Ready to Ship
Free Shipping
By

ACiQ

In stock

Model

ACIQ-24ZPL-HP230C / ACIQ-24CC-HH-MC

ID

198939

Was $4,346.25
Your Low Price $2,749.99

  • Maximum Performance at an Affordable Cost
  • Heating & Cooling
  • Ductless Solution perfect for 250-400 sq ft Room
  • Efficient Cooling from -22°F - 122°F Outdoor Temperatures
  • Efficient Heating from -22°F - 75°F Outdoor Temperatures
  • Single Zone/Room Compatible
Customize 24,000 BTU ACiQ Extreme 20.7 SEER2 Single Zone Ceiling Cassette Mini Split System - R454B | 230V
24,000 BTU ACiQ Extreme Single Zone Mini Split Heat Pump Condenser - R454B | 230V
24,000 BTU ACiQ Extreme Single Zone Mini Split Heat Pump Condenser - R454B | 230V   + $1,649.99
24,000 BTU ACiQ Single Zone Ceiling Cassette Air Handler - R454B
24,000 BTU ACiQ Single Zone Ceiling Cassette Air Handler - R454B   + $1,100.00
 15 feet - 3/8" and 5/8" Line Set & Control Wire
Ceiling Cassette Grille (24K-48K MC Models)
21" Wall Mount Bracket
Installation Kit for Condensers
Cielo Breez Max Mini Split Thermostat with WiFi
24,000 BTU 23 SEER ACIQ Single Zone Ceiling Cassette Mini Split System | Extreme Series - ACIQ-24ZPL-HP230C / ACIQ-24CC-HH-MC

$2,749.99

The ACIQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

ACiQ Extreme Series Single Zone Systems

The ACiQ Extreme Series Single Zone Mini Split Systems are engineered for maximum performance in demanding climates, delivering exceptional heating and cooling with industry-leading efficiency. Designed for homeowners who want premium comfort, these systems provide reliable operation in extreme temperatures, ultra-quiet performance, and advanced inverter technology for year-round savings and comfort.

More Information
24,000 BTU ACiQ Extreme Single Zone Mini Split Heat Pump Condenser - R454B | 230V
FeatureSpec
SKUACIQ-24ZPL-HP230C
Refrigerant Charge4.0 lbs (Pre-charged for 25 ft line set)
Weight (in lbs)141.310000
AHRI Certificate Number218457913, 216032354, 216032347, 216032341, 216032337, 216032288, 216032281, 216032275, 216032271
Brand/ManufacturerACiQ
Cooling BTU24,000 BTU
Heating BTU29,000 BTU
Decibel Level (dBA)61.5 dBA
Energy StarYes
RefrigerantR454B
HSPF213.5
SEER2 (Efficiency)21
EER213.0
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V | 1 Phase | 60 Hz
Max Breaker Size25 Amps
Min. Breaker Size24.9 Amps
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-22° - 75°F
Min/Max Outdoor Temp for Cooling-22° - 122°F
Zone CompatibilitySingle Zone
CertificationEnergy Star, NEEP, UL AHRI
Height31.89"
Width37.24"
Depth16.14"
Warranty12 Year Compressor / 7 Year Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
24,000 BTU ACiQ Platinum Single Zone Ceiling Cassette Mini Split Air Handler - R454B | 230V
FeatureSpec
SKUACIQ-24CC-HH-MC
Weight (in lbs)59.080000
Brand/ManufacturerACiQ
ControllerWireless Included
Cooling BTU23,400 BTU
Heating BTU25,000 BTU
Maximum CFM765.2 Turbo / 706.3 Hi / 635.7 Med / 547.4 Lo (Airflow)
Decibel Level (dBA)33.5 - 48.5 dBA
RefrigerantR454B
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V | 1 Phase | 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.07"
Width32.68"
Depth32.68"
Warranty12 Year Compressor / 7 Year Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Ceiling Cassette Grille (24K-48K MC Models)
FeatureSpec
SKUACIQ-CC-GRILLE-24C
Weight (in lbs)0.100000
Brand/ManufacturerACiQ
Safety InformationPROPOSITION 65 WARNING
21" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKU230-B2L
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length40"
Height3"
Width6"
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Cielo Breez Max Mini Split Thermostat with WiFi
FeatureSpec
SKUBM101WA
Weight (in lbs)1.000000
Brand/ManufacturerCielo
ElectricalMicro USB with Standard Plug
Height4.25"
Width4.25"
Depth1"
Warranty1 Year Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 15 feet
FeatureSpec
SKU221885 / CW-144-15
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 25 feet
FeatureSpec
SKU366426 / CW-144-25
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 30 feet
FeatureSpec
SKU216748 / CW-144-30
Weight (in lbs)30.000000
Brand/ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 35 feet
FeatureSpec
SKU366427 / CW-144-35
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 50 feet
FeatureSpec
SKU366428 / CW-144-50
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Good
    Quality
    100%
    Service
    100%
    Price
    100%
    Yippee

    Review by

    Posted on

  2. Great with two flaws
    Quality
    80%
    Service
    100%
    Price
    100%
    This unit is working very well in my garage/shop. At 8 deg F outdoor temperature it had no issues keeping the shop at 60 deg F. It may well warm it up higher, but that's what I had it set at. The first issue I have is that if you want to attach the line set to the right of the indoor unit, you have to bend the indoor unit pipes 180 degrees. Suction line (large) had no issues but the 3/8" line kinked, requiring me to hire a professional to braze the pipe at the right angle. It's fixed and working now, but that was a $300 adder. Second issue is that the lowest you can set the heating setpoint is 60 deg, which means I have to keep the shop warmer than necessary when I just want to keep the bricks warmer than 40 deg F. I'm sure others would like the ability to leave for a few days and keep pipes from freezing without heating all the way to 60 deg. It's possible there is an operational issue that requires the indoor temp to be that high, but I suspect it's just poor assumptions.

    Review by

    Posted on

  3. ACiQ
    Quality
    100%
    Service
    100%
    Price
    100%
    Purchased the 24k Extreme mini split from HVAC Direct. Delivery was fast and flawless. The quality of the ACiQ is amazing. Looking forward to seeing how well it works in the Winter for my Shop. Thank You!

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
