The ACIQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
ACiQ Extreme Series Single Zone Systems
The ACiQ Extreme Series Single Zone Mini Split Systems are engineered for maximum performance in demanding climates, delivering exceptional heating and cooling with industry-leading efficiency. Designed for homeowners who want premium comfort, these systems provide reliable operation in extreme temperatures, ultra-quiet performance, and advanced inverter technology for year-round savings and comfort.

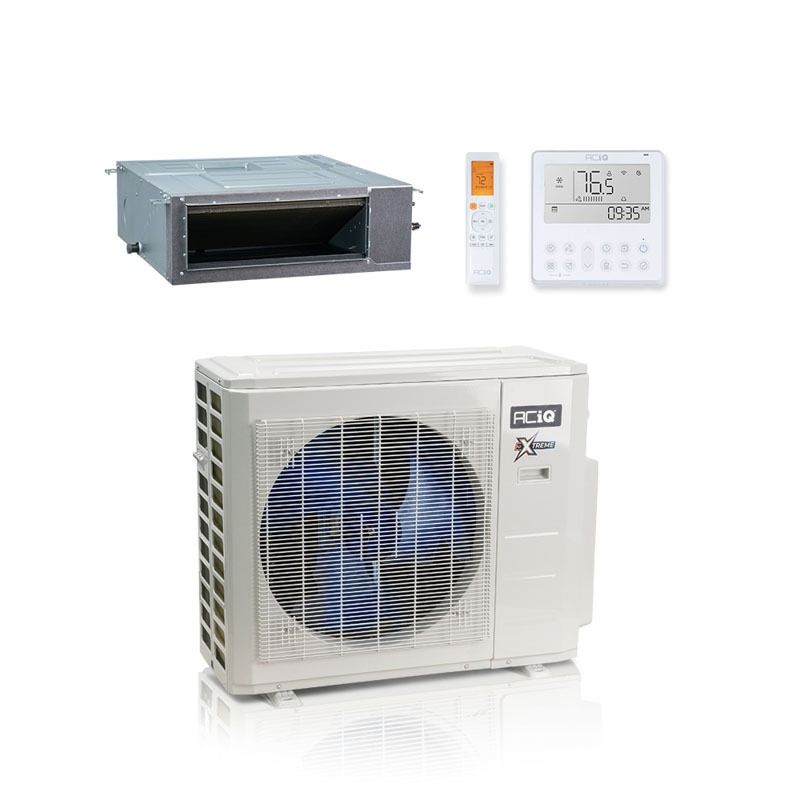

24,000 BTU ACiQ Extreme Single Zone Mini Split Heat Pump Condenser - R454B | 230V
Overview
The ACIQ Extreme series showcases Extreme Heat - hyper heat technology, providing continuous heating capabilities down to -22 degrees outside. Achieve optimal efficiency for both cooling and heating your space with its high SEER2 and high HSPF ratings.
Quick Facts
Delivers maximum performance at an affordable cost
Perfectly suited for spaces of approximately 1,000 - 1,500 square feet (varies depending on climate)
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Equipped with a gold fin condenser and full-protection coating
Operates quietly even under heavy workloads
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
24,000 BTU ACiQ Single Zone Concealed Duct Air Handler - R454B
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.
The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.
Installation Considerations
Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.
FEATURES
24,000 btu of Heating or Cooling
Dry and Fan modes also available
Good for a medium room in most climates
Wall mounted thermostat included
Concealed Duct
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.  Â
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
21" Wall Mount Bracket
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
21" Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
Energy Savings
WiFi Connectivity
Weekly Schedule
Geofencing
Temperature Range Lock
Real-Time Notifications
HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
15 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
15 ft. insulated refrigerant line set
15 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
25 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
25 ft. insulated refrigerant line set
25 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
30 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
30 ft. insulated refrigerant line set
30 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
35 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
35 ft. insulated refrigerant line set
35 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
50 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
24,000 BTU ACiQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-24CD-HH-MC
Weight (in lbs)
91.930000
Brand/Manufacturer
ACiQ
Controller
Wireless Included
Cooling BTU
24,000 BTU
Heating BTU
26,000 BTU
Maximum CFM
853.5 Turbo / 706.3 Hi / 618 Med / 500.3 Lo (Airflow)
Decibel Level (dBA)
29.5 - 40 dBA
Refrigerant
R454B
Liquid Line
3/8"
Suction Line
5/8"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
24,000 BTU/2 Ton
Mini Split Type
Concealed Duct
Zone Compatibility
Multi Zone, Single Zone
Height
9.65"
Width
39.37"
Depth
29.53"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
