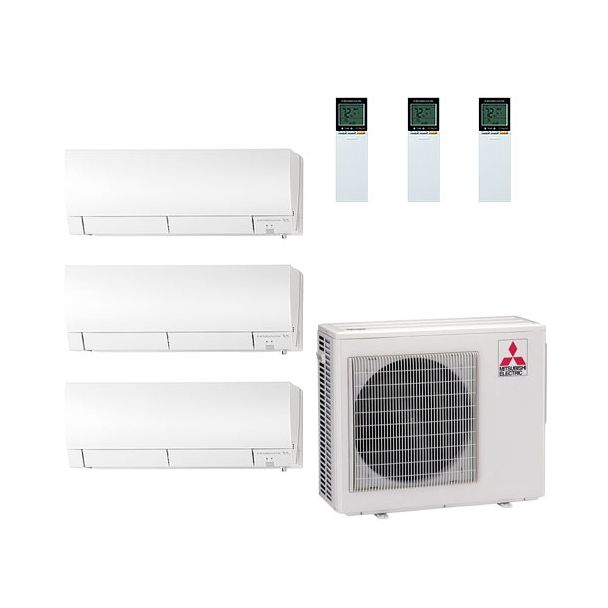

24,000 BTU Mitsubishi GX-Series 20 SEER2 Three Zone Wall Mounted Mini Split Heat Pump System - R454B | 6 + 9 + 9

MSZ-GX06NL 6,000 BTU/H Wall-Mounted Indoor Unit

The MSZ-GX06NL is a 6,000 BTU/H wall-mounted indoor unit designed to provide efficient cooling and heating solutions. Its advanced features ensure both comfort and energy savings for residential or light commercial spaces.

• Cooling Capacity: 6,000 BTU/h
• Heating Capacity: 7,200 BTU/h
• Electrical Specifications: 208/230 V, 1 Phase, 60 Hz
• Airflow Rate (Cooling, Dry): 151-448 CFM
• Airflow Rate (Heating, Dry): 151-459 CFM
• Unit Dimensions: 31-13/32 x 9-21/32 x 11-25/32 inches (798 x 245 x 299 mm)
• Weight: 23 lbs (10.4 kg)
• Piping: Liquid pipe size 1/4 inch (6.35 mm), Gas pipe size 3/8 inch (9.52 mm)
• Drain Pipe: 5/8 inch (16 mm)

Key Features

• Dual Barrier Coating: Prevents dust, fibers, and smoke from collecting on the heat pump's inner surface, ensuring optimal airflow.
• Econo Cool: Adjusts the airflow based on heat exchanger temperature to save energy while maintaining comfort.
• Electrostatic Enzyme Filter: Attracts charged particles, including airborne non-living particulates like dust and smoke.
• Quiet Operation: Both the indoor and outdoor units operate quietly, providing a peaceful environment.
• Powerful Mode: Temporarily increases fan speed to quickly bring the room to the desired temperature.
• Smart Dry Mode: Improves humidity control with minimal over-cooling.
• Wi-Fi Enabled: Pairs with the Comfort app for remote control over temperature, fan speeds, and settings.
• Multiple Control Options: Includes a back-lit remote controller, comfort app, and both wired and wireless controllers.

Indoor Unit Accessories

• Wireless Remote Controller: RCMKP1CB
• Microparticle Filter: MAC-EMF515FT-E
• Condensate Pump Options: Blue Diamond Advanced Mini Condensate Pump X87-721, Refco Condensate Pump COMBI

MXZ-3D24NL - Heat Pump Outdoor Unit

The MXZ-3D24NL is a high-performance outdoor heat pump unit designed for residential and light commercial applications. It offers efficient heating and cooling capabilities, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 51 dB(A) in cooling mode and 55 dB(A) in heating mode, minimizing noise disturbances.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
• Seacoast Protection: Rated for 2,000 hours of spraying time per ASTM B117 Standard, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum: 22,000 BTU/h
  • Rated: 22,800 BTU/h (Mixed), 23,600 BTU/h (Ducted)
  • Minimum: 11,600 BTU/h (Non-Ducted), 11,300 BTU/h (Mixed), 11,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum: 30,600 BTU/h
  • Rated: 25,200 BTU/h (Mixed), 25,400 BTU/h (Ducted)
  • Minimum: 13,200 BTU/h (Mixed), 12,800 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated: 15,600 BTU/h (Mixed), 16,000 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum: 19,800 BTU/h
• Efficiency Ratings:
  • SEER2: 18 (Mixed), 16 (Ducted)
  • EER2: 12.70 (Mixed), 11.70 (Ducted)
  • HSPF2 (IV): 9.30 (Mixed), 8.60 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 28.7 A
  • Maximum Overcurrent Protection (MOCP): 48 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)
• Unit Dimensions:
  • Width: 37-11/32 inches
  • Depth: 13 inches
  • Height: 31-11/32 inches
  • Weight: 137 lbs

The MXZ-3D24NL is ideal for applications requiring efficient heating and cooling performance. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
