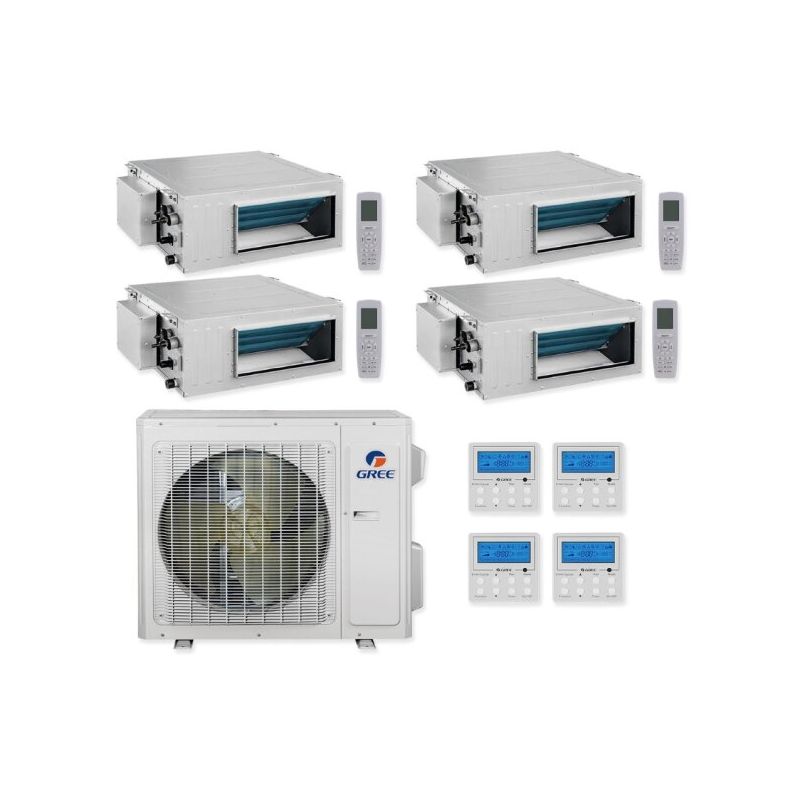

36,000 BTU 16 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+9+9+18

By

Gree

Model

MULTI36HP230V1CO / 3-DUCT09HP230V1BD / DUCT18HP230V1BD

ID

53082

Availability: In Stock - Ready to Ship
Gree

Authorized Gree Dealer

Your Low Price $6,619.70

Free Shipping

Required Fields *

Customize 36,000 BTU 16 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+9+9+18
36k BTU Heat Pump Condenser (2-4 Zone)
36k BTU Heat Pump Condenser (2-4 Zone)   + $3,540.30
9k BTU Concealed Duct - High Static
9k BTU Concealed Duct - High Static   + $719.19
9k BTU Concealed Duct - High Static
9k BTU Concealed Duct - High Static   + $719.19
9k BTU Concealed Duct - High Static
9k BTU Concealed Duct - High Static   + $719.19
18k BTU Concealed Duct - High Static
18k BTU Concealed Duct - High Static   + $921.83
Condenser Risers - 4" x 18" - 2 Pack
36,000 BTU 16 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+9+9+18

$6,619.70

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
  1. 36,000 BTU 20 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
    36,000 BTU 20 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
    Rating:
    98%
    Suggested Retail $8,104.40
    Special Price $5,196.00
  2. 48,000 BTU 20.5 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
    48,000 BTU 20.5 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
    Rating:
    98%
    Suggested Retail $9,327.40
    Special Price $6,144.00
  3. 55,000 BTU 19 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
    55,000 BTU 19 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
    Rating:
    99%
    Suggested Retail $9,694.40
    Special Price $6,319.00
SAVE $2,908.40
36,000 BTU 20 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
12 Year Warranty
SAVE $3,183.40
12 Year Warranty
SAVE $3,375.40
55,000 BTU 19 SEER2 ACiQ 4-Zone Concealed Duct Mini Split System - 9+9+9+18
12 Year Warranty
SAVE $3,768.40
48,000 BTU 21.8 SEER2 ACiQ  4-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+9+9+18
12 Year Warranty

Description

The Gree Quad Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 16 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

36,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2-4 Zone Heat Pump Condenser

The Gree MULTI36HP230V1EO is a 36,000 BTU multi-zone heat pump that offers superior comfort and efficiency. Advanced G-10 inverter technology ensures stable operation and saves up to 20% power per year, compared to other models. The condenser also runs at lower noise levels than other mini split condensers. The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.

The MULTI36HP230V1EO is AHRI Certified and comes with a 5-year limited warranty. It can be connected to up to 4 indoor units, and is compatible with a wide range of indoor units from Gree.

Features:

  • 36,000 BTU capacity
  • Advanced G-10 inverter technology
  • Low noise operation
  • Eco-friendly R-410A refrigerant
  • Optimized fan with anti-corrosion coating
  • Brushless fan motor
  • AHRI Certified
  • 5-year limited warranty

Compatible Indoor Units:

Wall Mounted

  • LIVO GEN3: LIVV09HP230V1AH, LIVV12HP230V1AH, LIVV18HP230V1AH, LIVV24HP230V1AH
  • LIVO GEN4: 4LIV05HP230V1AH, 4LIV07HP230V1AH, 4LIV09HP230V1AH, 4LIV12HP230V1AH, 4LIV18HP230V1AH, 4LIV24HP230V1AH
  • VIREO GEN3: 3VIR09HP230V1AH & BH, 3VIR12HP230V1AH & BH, 3VIR18HP230V1AH & BH, 3VIR24HP230V1AH & BH
  • SAPPHIRE: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH<, SAP24HP230V1AH/li>

HIGH STATIC CONCEALED SLIM DUCT

  • DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD

CEILING CASSETTE

  • CAS12HP230V1BC, CAS18HP230V1BC, CAS24HP230V1BC

FLOOR / CEILING

  • FLR09HP230V1BF, FLR12HP230V1BF, FLR18HP230V1BF, FLR24HP230V1BF

MINI-CONSOLE

  • CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
9,000 BTU Concealed Duct Gree Mini-Split High Static Multi Zone Air Handler

The Gree High Static Slim Duct indoor unit offers flexibility. It is designed to be installed above suspended ceilings, or in open closet spaces. This unit delivers conditioned air via ducting and ceiling or wall grilles. It has a high static pressure capability and is only 13-5/8" High.

The Gree High Static Slim Duct is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Heating, Cooling, Dry, and Fan modes
  • Fahrenheit °F / Celsius °C
  • Handheld IR remote control and XK-19 wall mounted control included
18,000 BTU Concealed Duct Gree Mini-Split High Static Multi Zone Air Handler

The Gree High Static Slim Duct indoor unit offers flexibility. It is designed to be installed above suspended ceilings, or in open closet spaces. This unit delivers conditioned air via ducting and ceiling or wall grilles. It has a high static pressure capability and is only 13-5/8" High.

The Gree High Static Slim Duct is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Heating, Cooling, Dry, and Fan modes
  • Fahrenheit °F / Celsius °C
  • Handheld IR remote control and XK-19 wall mounted control included
Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

Product Specifications

More Information
36,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2-4 Zone Heat Pump Condenser
SKUMULTI36HP230V1EO
Refrigerant ChargePre-charged for: 131'
Weight (in lbs)215.600000
AHRI Certificate Number210278980 & 210278979
Brand/ManufacturerGree
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 246'
HSPF210
Cooling BTU34,000
Heating BTU36,000
Decibel Level (dBA)Outdoor Unit: 61 dB(A)
Energy StarYes
RefrigerantR410A
SEER2 (Efficiency)21
Compressor TypeRotary
Liquid Lineliquid_line=1/4" (5)
Suction Linesuction_line=3/8" (5)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size23 amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-5F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Height43.4"
Width40"
Depth14.8"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU Concealed Duct Gree Mini-Split High Static Multi Zone Air Handler
SKUDUCT09HP230V1BD
Weight (in lbs)84.000000
Brand/ManufacturerGree
Additional InformationDrain: 1"
Cooling BTU9,000
Heating BTU9,500
Maximum CFM188-324 CFM
Decibel Level (dBA)Indoor Unit: 25-42 dB(A)
RefrigerantR410A
Liquid Lineliquid_line=1/4"
Suction Linesuction_line=3/8"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini-Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height13.6"
Width32.7"
Depth29.7"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
18,000 BTU Concealed Duct Gree Mini-Split High Static Multi Zone Air Handler
SKUDUCT18HP230V1BD
Weight (in lbs)107.000000
Brand/ManufacturerGree
Additional InformationDrain: 1"
Cooling BTU18,000
Heating BTU19,000
Maximum CFM288-588 CFM
Decibel Level (dBA)Indoor Unit: 26-39 dB(A)
RefrigerantR410A
Liquid Lineliquid_line=3/8"
Suction Linesuction_line=5/8"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini-Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height13.6"
Width44.5"
Depth29.7"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight (in lbs)397.000000
Brand/ManufacturerOnline Supply
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
