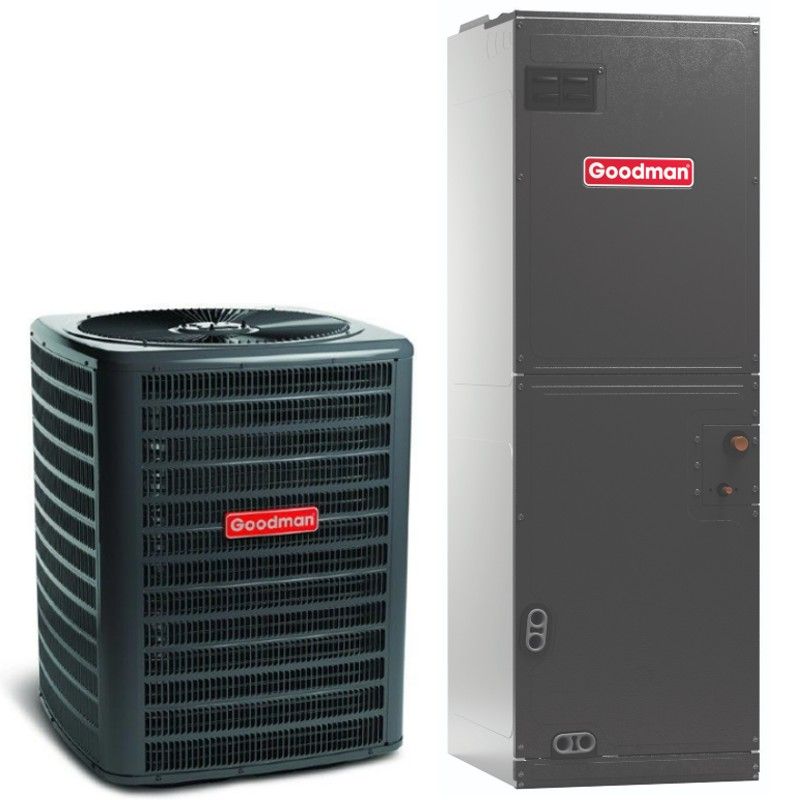

Goodman 4 Ton 15.2 SEER2 Heat Pump Split System - R32 Single Stage - Multi-Positional
Required Fields *
By
Goodman
In stock
Model
GLZS4BA4810 / AMST48CU1300
ID
182330
Was $6,111.00
Your Low Price $5,518.00
Â
Free Shipping
Product Features
- Complete all-electric heating and cooling system
- Pre-charged with R32 refrigerant
- Can be installed in upflow, downflow, or horizontal applications
- Well-suited for medium to large homes in various climates
- days
- Hours
- Minutes
- Seconds
People that viewed this product purchased this instead:

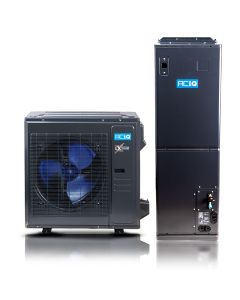

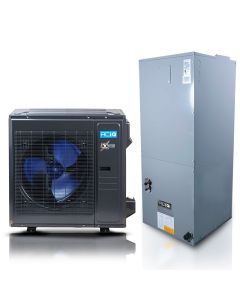

ACiQ Extreme+ Series 4 Ton 17.5 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Multi-Positional
Rating:
97%
Was $7,247.00
Special Price $5,797.00
ACiQ Extreme Series 4 Ton 16.5 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Multi-Positional
Was $6,884.00
Special Price $5,507.00
ACiQ 4 Ton 15 SEER2 High Efficiency Heat Pump Split System - R410A Inverter - Upflow/Horizontal
Was $6,600.00
Special Price $5,280.00
The Goodman Heat Pump Split System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, the Goodman Heat Pump Split System is a perfect choice for all of your heating and cooling needs.

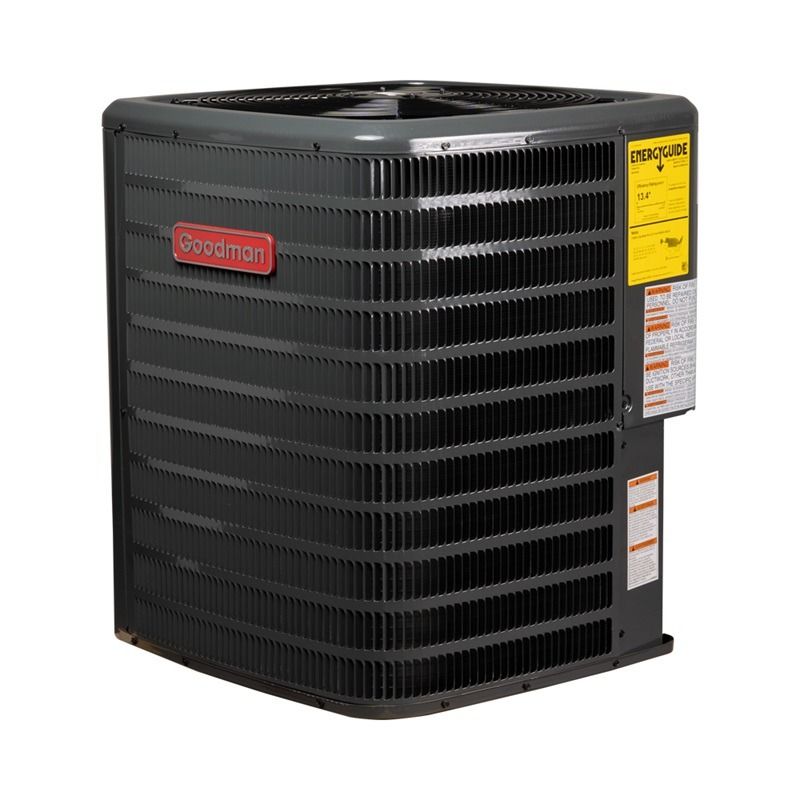

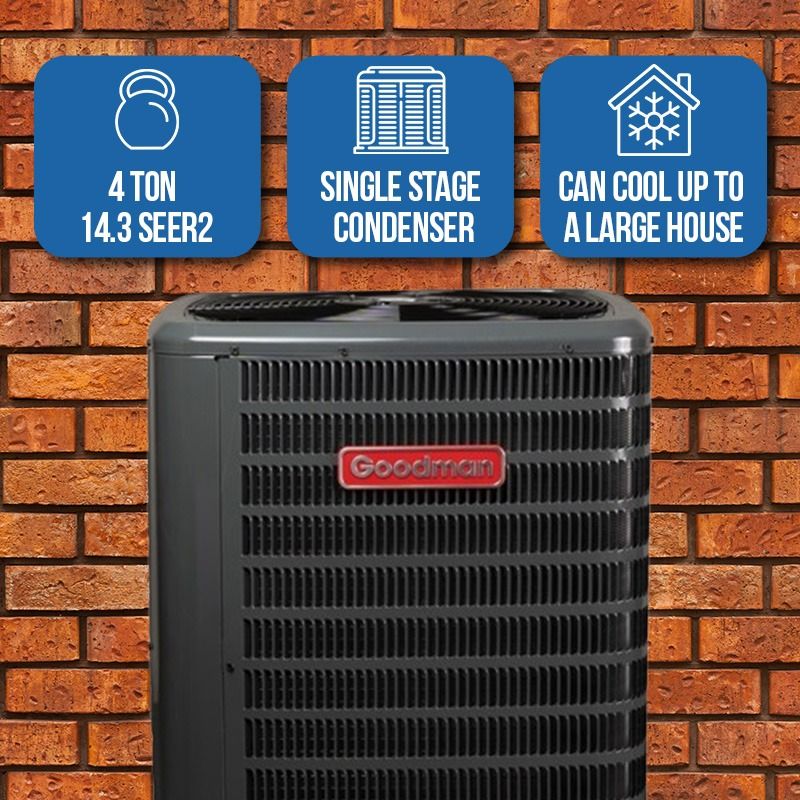

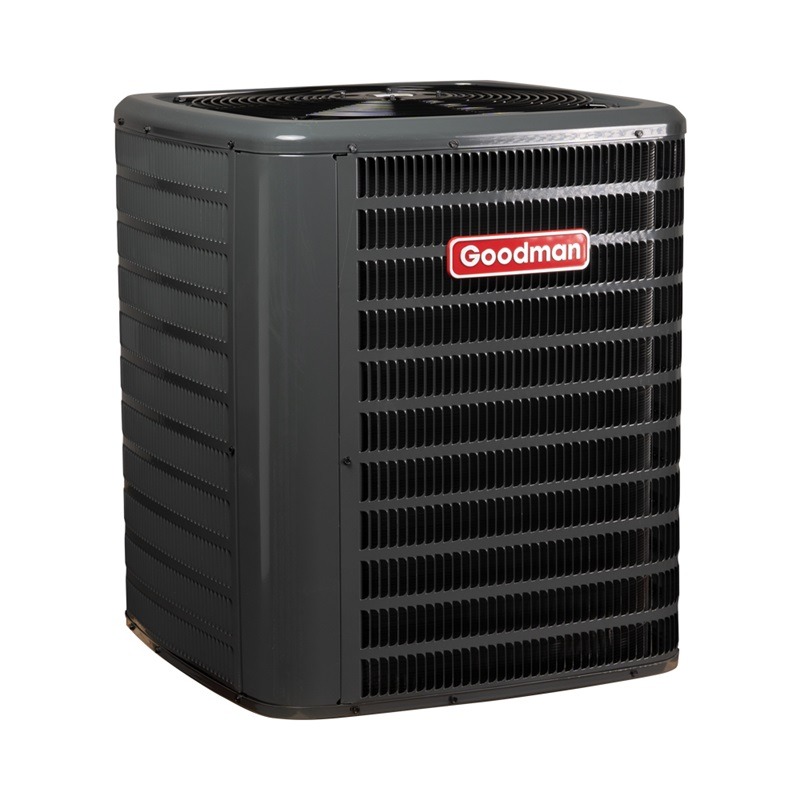

Goodman 4 Ton 14.3 SEER2 Heat Pump Condenser - R32 Single Stage
OVERVIEW
The Goodman GLZS4BA4810 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GLZS4BA4810 is manufactured with high-quality materials to provide a superior comfort in your home.
Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Ideal size to cover a medium to large house in ideal climates
- 4 ton, 14.3 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
4 Ton
The Goodman GLZS4BA4810 heat pump has a capacity of 4 tons. In an ideal climate, this tonnage will normally cover up to a medium to large house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.
14.3 SEER2
At 14.3 SEER2, the GLZS4BA4810 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.
Warranty
The GLZS4BA4810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The Goodman GLZS4BA4810 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.
Installation and Maintenance
The Goodman GLZS4BA4810 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.
Comfort in Mind
With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GLZS4BA4810 heat pump has some of the lowest sound outputs on a single stage unit on the market today.
Why Buy at HVACDirect.com
HVACDirect.com is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-397-1392 if you have any questions.

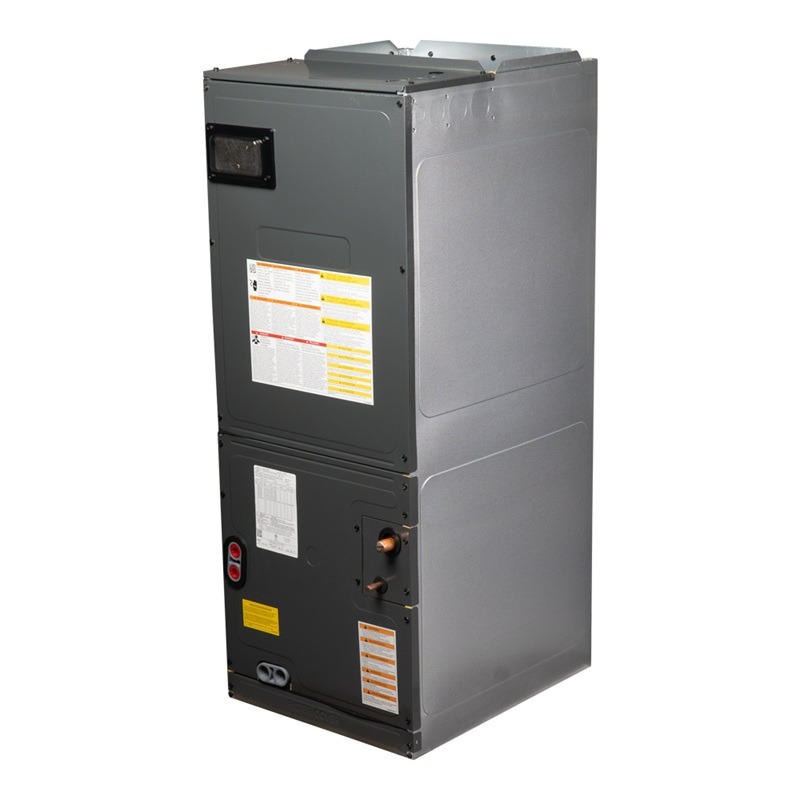

4 Ton Multi-Positional Goodman Air Handler - R32
OVERVIEW
The Goodman AMST48CU1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 4 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
4 Tons
The Goodman AMST48CU1300 air handler is rated for an output of 4 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AMST48CU1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMST48CU1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The Goodman AMST48CU1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AMST48CU1300 air handler lives up to Goodman's comfort expectations with its multi-speed ECM motor, which provides a more precise and efficient temperature control.
50 Feet of 3/8" LL x 1 1/8" SL x 3/8" Insulated Line Set
Ensure maximum refrigerant flow and HVAC system efficiency with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 1 1/8" suction line (SL) for optimal refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for larger capacity heat pumps and split systems requiring greater refrigerant flow.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Suitable for larger residential, commercial, and industrial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, built for long-lasting performance, efficiency, and durability.
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation reduces energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.

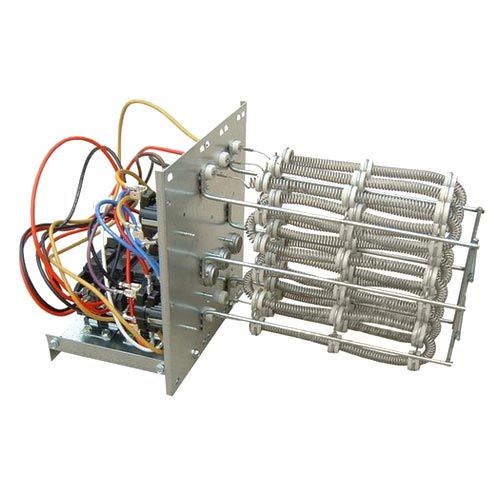

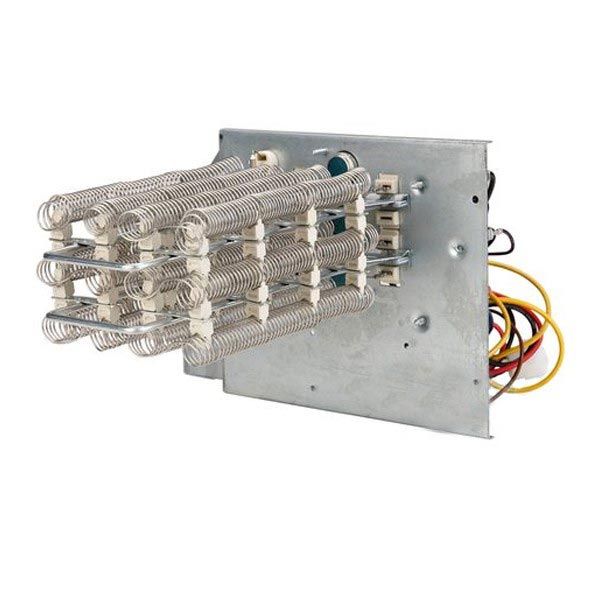

10 Kilowatt 34,100 BTU Goodman Heater Coil
The Goodman HKTSD Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKTSD Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Compatible With
- Goodman AMST R32 Air Handlers
- Goodman AMVT R32 Air Handlers
- Goodman AMVE R32 Air Handlers
5 Kilowatt 16,200 BTU Goodman Heater Coil
The Goodman HKTSD Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKTSD Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Compatible With
- Goodman ARPT Air Handlers
- Goodman ARUF Air Handlers
- Goodman ASPT Air Handlers
- Goodman ASUF Air Handlers
- Goodman AVPTC Air Handlers
8 Kilowatt 23,800 BTU Goodman Heater Coil
The Goodman HKTSD Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKTSD Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Compatible With
- Goodman ARPT Air Handlers
- Goodman ARUF Air Handlers
- Goodman ASPT Air Handlers
- Goodman ASUF Air Handlers
- Goodman AVPTC Air Handlers
15 Kilowatt 51,150 BTU Goodman Heater Coil
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 51,150 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.Â
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
Compatible With
- Goodman ARPT Air Handlers - 30,000+ BTU
- Goodman ARUF Air Handlers - 30,000+ BTU
- Goodman ASPT Air Handlers - 36,000+ BTU
- Goodman ASUF Air Handlers - 42,000+ BTU
- Goodman AVPTC Air Handlers - 36,000+ BTU

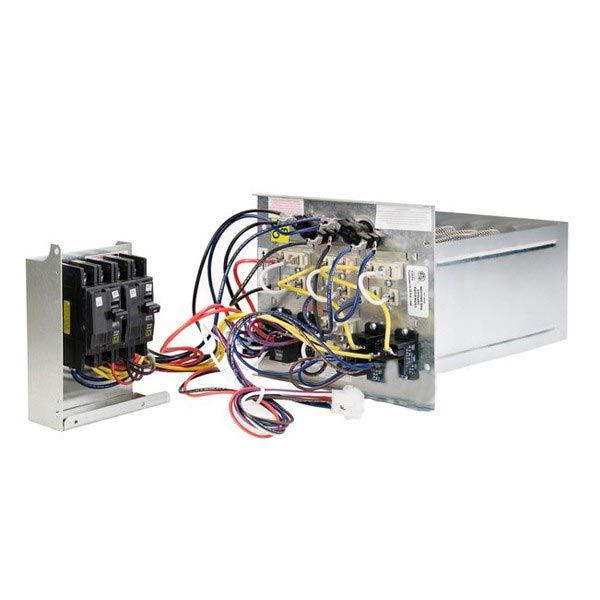

19 Kilowatt 64,800 BTU Goodman Heater Coil
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 64,800 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.Â
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
Compatible With
- Goodman ARPT36C14 Air Handlers
- Goodman ARUF30C14 Air Handlers
- Goodman ARUF36C14 Air Handlers
- Goodman ARUF42C14 Air Handlers
- Goodman ASPT36C14 Air Handlers
- Goodman ASPT42C14 Air Handlers
- Goodman ASPT48C14 Air Handlers
- Goodman ASUF39C14 Air Handlers
- Goodman ASUF49C14 Air Handlers
- Goodman AVPTC36C14 Air Handlers
- Goodman AVPTC48C14 Air Handlers

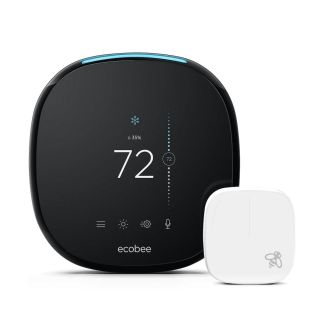

Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
ACiQ Single-Stage Dual Powered Non-Programmable Thermostat
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
- 1 Heat / 1 Cool Non-Programmable Thermostat
- Operable with AAA batteries or 24v power
- Large, easy to ready clear LCD display with different backlight color options
- Configurable with Electric or Gas Systems
- Separate B & O terminals
- Handles heating and cooling temperature swing adjustments separately
- Toggleable 5 minute compressor delay protection
- Temperature Range: 32°F-99°F (1°C-40°C)
- Temperature Accuracy: ±1.8°F (±1°C)
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
Smarter Comfort. Sleek Control.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
ÂQUICK FACTS
- Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems Â
- Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
- Modern Touchscreen: Auto-wake screen with responsive touch interface
- Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
- Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
- Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology

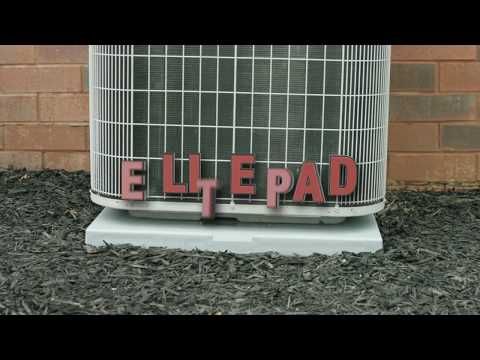

E Lite Equipment Pad 36" x 36" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.

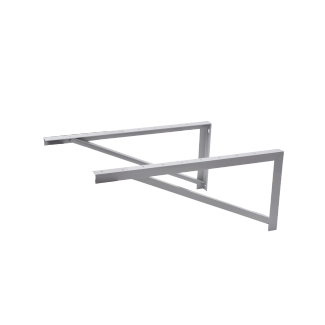

Wall Mount Bracket for Condensers 48"
This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
| Goodman 4 Ton 14.3 SEER2 Heat Pump Condenser - R32 Single Stage | |
|---|---|
| SKU | GLZS4BA4810 |
| Weight (in lbs) | 284.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | GSZ140481, GSZB404810 |
| Product Features | New Refrigerant Compliant |
| HSPF2 | 7.8 |
| Cooling BTU | 48,000 |
| Heating BTU | 48,000 |
| Decibel Level (dBA) | 74 |
| Horsepower | 1/4 HP |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Line | 3/8" |
| Suction Line | 1 1/8" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 7/8" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 25.5 Amps |
| Tonnage | 4 Ton |
| Connection | Sweat |
| Height | 36 1/2" |
| Width | 35 1/2" |
| Depth | 35 1/2" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 4 Ton Multi-Positional Goodman Air Handler - R32 | |
| SKU | AMST48CU1300 |
| Weight (in lbs) | 153.000000 |
| Brand/Manufacturer | Goodman |
| Product Features | New Refrigerant Compliant |
| Blower Motor | Multi-Speed Direct Drive ECM Motor |
| Maximum CFM | 1495 |
| Horsepower | 0.75 HP |
| Electric Backup Heat Capabilities (Optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts |
| Refrigerant | R32 |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 7/8" |
| Electrical | 208/240v 1 Phase 60Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 7.1 Amps |
| Tonnage | 4 Ton |
| Connection | 3/4" FPT |
| Height | 58" |
| Width | 21 1/8" |
| Depth | 21" |
| Warranty | 10 Years Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
, |
| 50 Feet of 3/8" LL x 1 1/8" SL x 3/8" Insulated Line Set | |
| SKU | LS381183850 |
| Weight (in lbs) | 48.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 1 1/8" |
| Suction Line Insulation Thickness | 1/2" |
| Length | 50 feet |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
| SKU | LS38783830 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Suction Line Insulation Thickness | 3/8" |
| Length | 30 feet |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 10 Kilowatt 34,100 BTU Goodman Heater Coil | |
| SKU | HKTSD10X1 |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | HKSC10XC |
| Heating BTU | 34,100 |
| Electric Heat | 10 Kilowatts |
| Electrical | 208-240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 60 amps |
| Min. Breaker Size | 57 amps |
| Warranty | 10 Years with Online Registration |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 5 Kilowatt 16,200 BTU Goodman Heater Coil | |
| SKU | HKTSD05X1 |
| Weight (in lbs) | 8.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | HKSC05XC |
| Heating BTU | 16,200 |
| Electric Heat | 5 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 35 amps |
| Min. Breaker Size | 32 amps |
| Warranty | 10 Years with Online Registration |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 8 Kilowatt 23,800 BTU Goodman Heater Coil | |
| SKU | HKTSD08X1 |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | HKSC08XC |
| Heating BTU | 23,800 |
| Electric Heat | 8 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 50 amps |
| Min. Breaker Size | 48 amps |
| Warranty | 10 Years with Online Registration |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 15 Kilowatt 51,150 BTU Goodman Heater Coil | |
| SKU | HKTSD15XB |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | HKSC15XB |
| Heating BTU | 51,150 |
| Electric Heat | 15 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 25 amps |
| Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 25 amps |
| Warranty | 10 Years with Online Registration |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 19 Kilowatt 64,800 BTU Goodman Heater Coil | |
| SKU | HKTSD19CB |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | HKSC19CB |
| Heating BTU | 64,800 |
| Electric Heat | 19 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 50 amps |
| Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 50 amps |
| Warranty | 10 Years with Online Registration |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Ecobee Smart WiFi Thermostat with Alexa | |
| SKU | EB-STATE6P-01 |
| Weight (in lbs) | 0.500000 |
| Brand/Manufacturer | ecobee |
| Product Features | Programmable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool |
| Energy Star | Yes |
| Warranty | 3 years |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ Single-Stage Dual Powered Non-Programmable Thermostat | |
| SKU | STN701 |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Non Programmable, 1 Heat, 1 Cool |
| Resources | Braeburn Brochure
Braeburn User Guide |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 7-Day Programmable Thermostat with WiFi | |
| SKU | STN855W |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible | |
| SKU | TL04-1 |
| Weight (in lbs) | 0.700000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 36" x 36" x 3" | |
| SKU | EL3636-3 |
| Weight (in lbs) | 28.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 36" |
| Depth | 36" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Condensers 48" | |
| SKU | ACB-48 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
What is the electric LRA #?
The LRA is 127.7 Amps.
If you have any further questions, please call us and we will be happy to assist you.
Can this unit be established in the attic area?
Yes. This system is multi-positional, so it can fit in the attic as long as you have enough space for it.
If you have any further questions, please call us and we will be happy to assist you.
Did you find what you were looking for?
Why Choose Goodman?
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
