The ACIQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

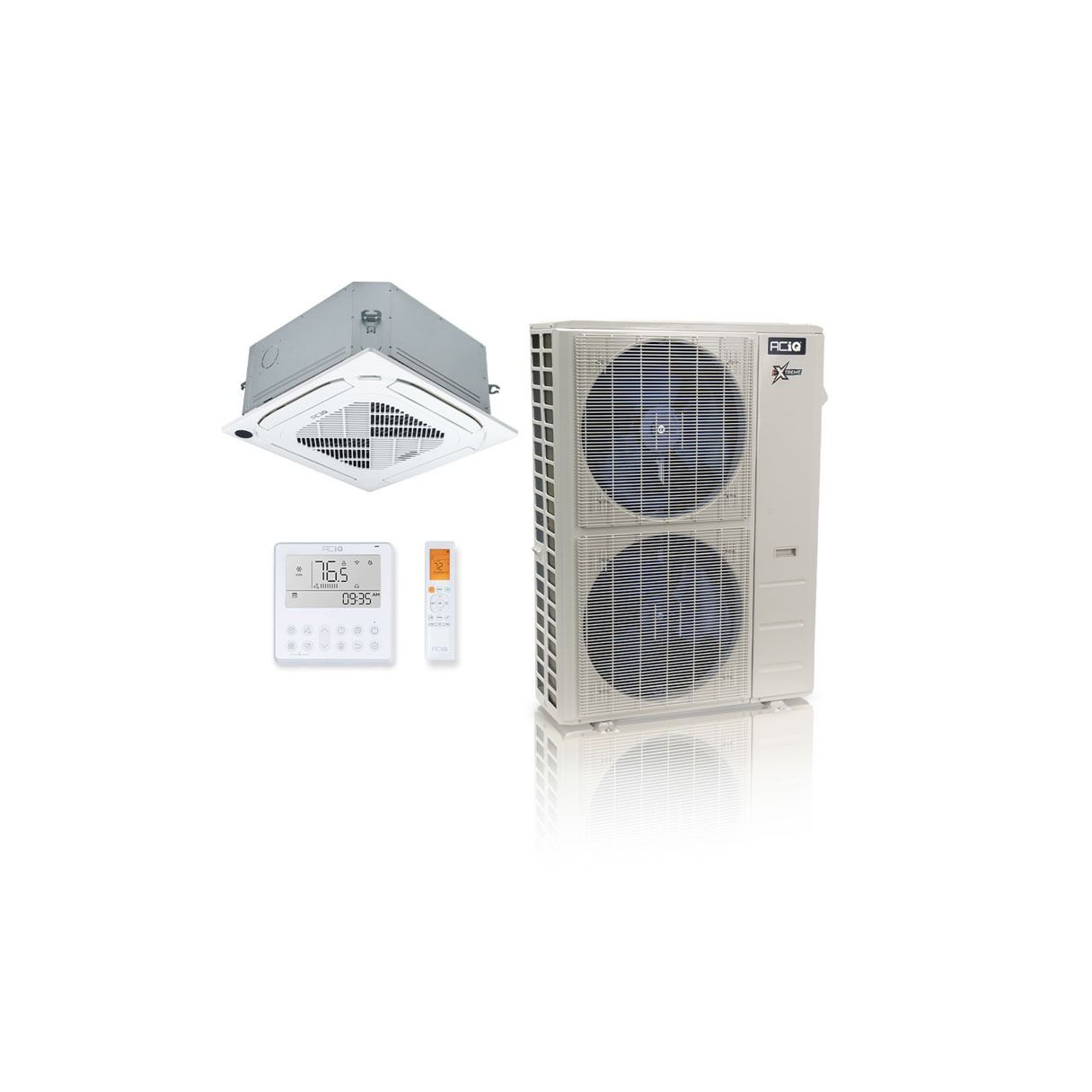

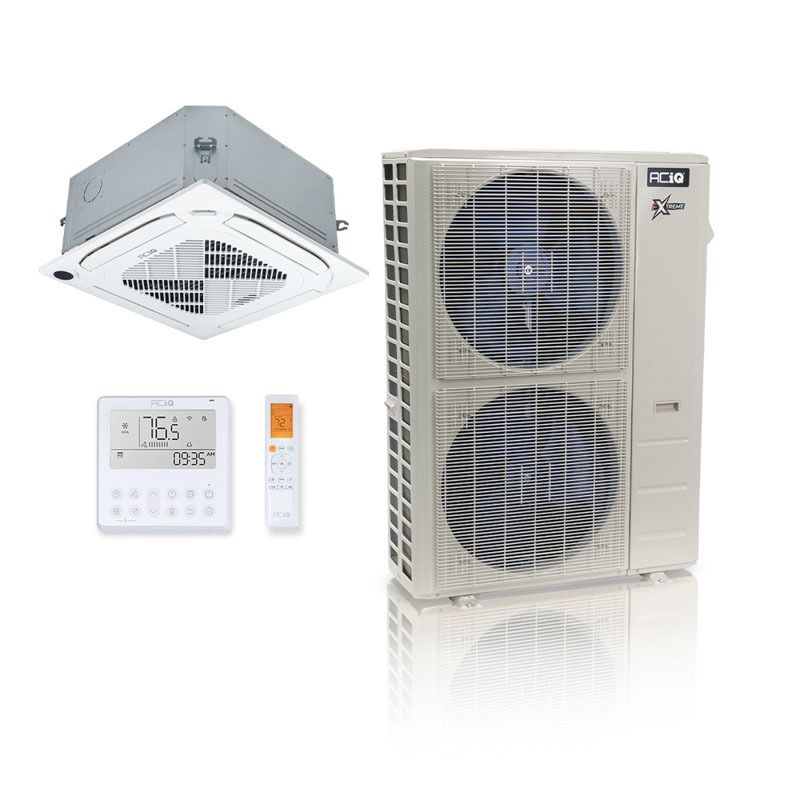

ACiQ Extreme Series Single Zone Systems
The ACiQ Extreme Series Single Zone Mini Split Systems are engineered for maximum performance in demanding climates, delivering exceptional heating and cooling with industry-leading efficiency. Designed for homeowners who want premium comfort, these systems provide reliable operation in extreme temperatures, ultra-quiet performance, and advanced inverter technology for year-round savings and comfort.
48,000 BTU Extreme Single Zone Condenser w/ Hyper Heat
OVERVIEW
The ACIQ Extreme series features hyper heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.
QUICK FACTS
Maximum performance at an affordable cost
Ideal for large rooms (depending on climate)
Efficient cooling from 5°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Gold fin condenser full-protection coating
Quiet operation at even the highest workloads
High capacity, high efficiency
The ACIQ-48ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct or floor mount air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

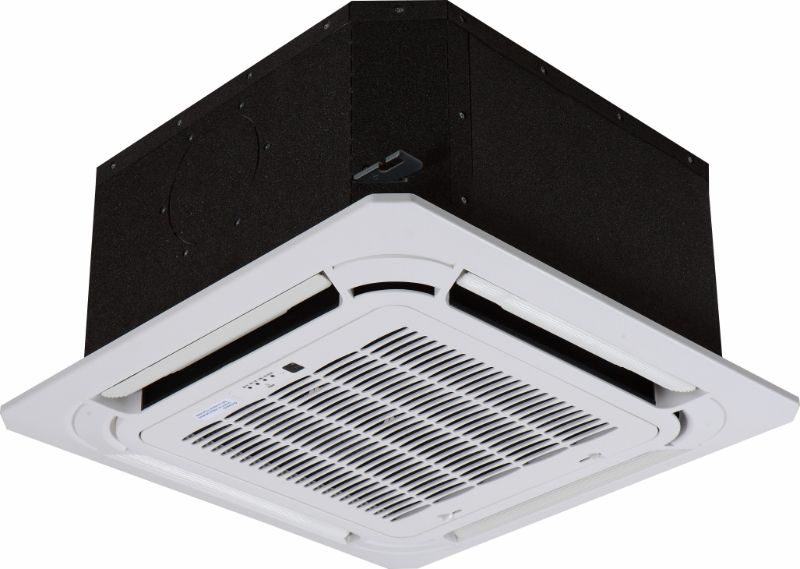

Ceiling Cassette Grille (24K-48K MC Models)
Designed for seamless integration with HH-MC series ceiling cassette air handlers (24,000–48,000 BTU), this grille delivers efficient airflow and a clean, low-profile finish. Ideal for residential or light commercial spaces, it ensures quiet operation and optimal air distribution.
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

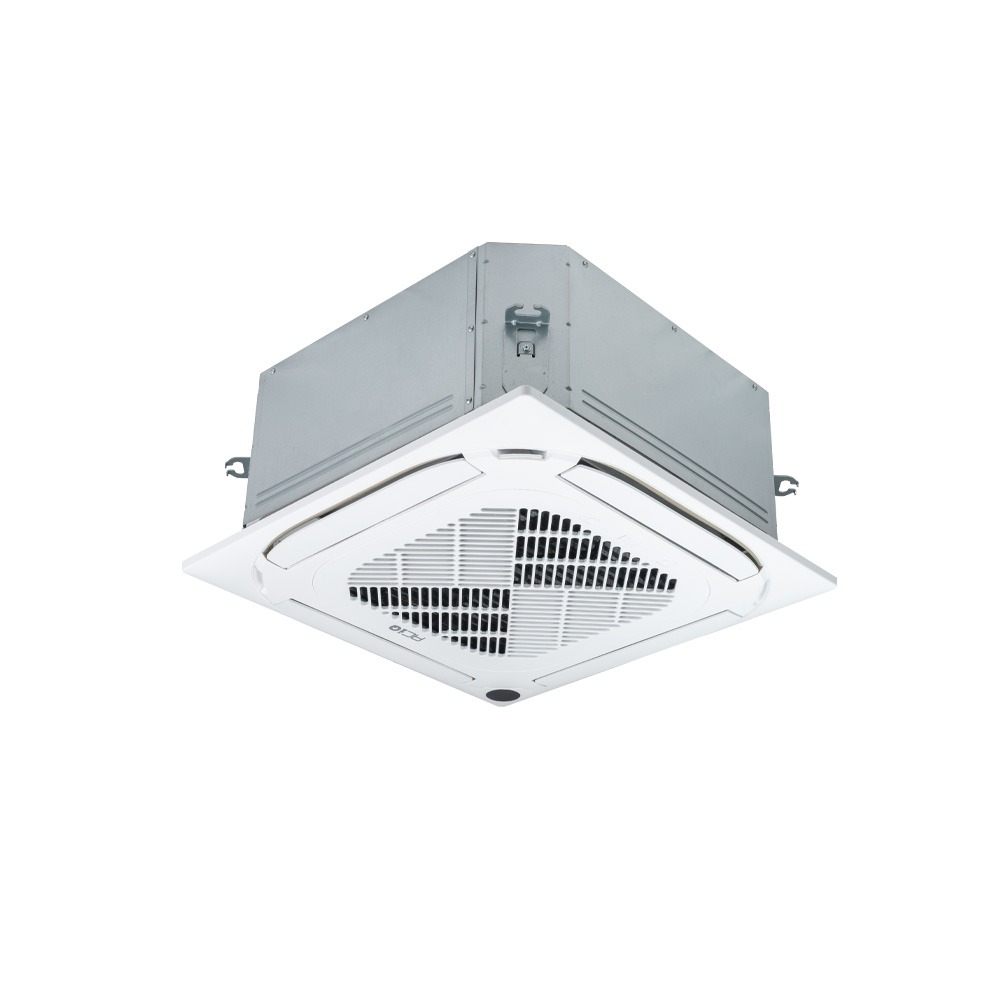

48,000 BTU Ceiling Cassette Air Handler
Mini Split systems are great, but what if you don't want the air handler on your wall? ACIQ offers the ACIQ-24CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The 24k Ceiling cassette is large format (see specs below) and will require modifications to ceiling framing in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
FEATURES
24,000 btu of Heating or Cooling
Dry and Fan modes also available
Good for a medium room in most climates
4 Way Air Supply for consistent room coverage
Handheld remote included
Decorative Grille included
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
White Line Set Cover Guard – Complete Wall Duct Kit (12 ft.)
Keep your A/C installation neat and protected with this all-in-one line set cover kit. Designed for professional-grade durability, this kit includes everything needed to conceal and safeguard your mini-split or conventional A/C line set.
Features & Benefits: ✔ Comprehensive Coverage: Includes (3) 4' duct lengths, (2) couplers, (1) wall inlet, (1) end fitting, and (1) 90° elbow for a complete 12 ft. setup. ✔ Sleek & Professional Look: White ducting seamlessly blends with most exteriors, ensuring a clean, finished appearance. ✔ Universal Compatibility: Ideal for mini-splits, high-velocity systems, and traditional split A/C installations. ✔ Superior Protection: Shields line sets, wiring, and drain hoses from harsh weather, vandalism, pets, and pests. ✔ Quick & Easy Installation: Installs in minutes and allows for hassle-free access when servicing or replacing components.
Upgrade your HVAC installation with this reliable and professional-grade line set cover kit!
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
48,000 BTU ACiQ Single Zone Ceiling Cassette Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-48CC-HH-MC
Weight (in lbs)
76.06
Brand/Manufacturer
ACiQ
UPC
810175551166
Controller
Wireless Included
Cooling BTU
48,000 BTU
Heating BTU
53,000 BTU
Maximum CFM
1236.1 Turbo / 1124.2 Hi / 1018.3 Med / 688.7 Lo (Airflow)
Decibel Level (dBA)
38 - 52 dBA
Refrigerant
R454B
Liquid Line
3/8"
Suction Line
3/4"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
48,000 BTU/4 Ton
Mini Split Type
Ceiling Cassette
Zone Compatibility
Single Zone
Height
11.30''
Width
32.68''
Depth
32.68"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
