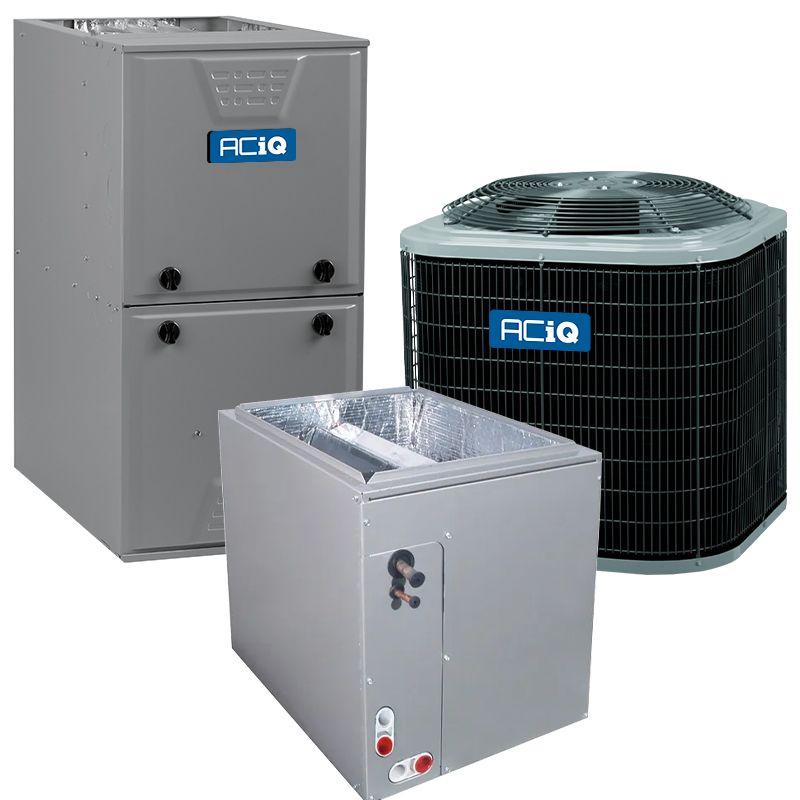

5 Ton 13.8 SEER2 96% AFUE 100,000 BTU ACIQ Gas Furnace and Air Conditioner System - Multi-Positional - R454B

OVERVIEW

The ACIQ R5A5S60AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 5 Ton 13.8 SEER2 ACIQ Air Conditioner Condenser
• Can cool a large house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

5 Tons

The ACIQ R5A5S60AKAWA air conditioner condenser has an output of 5 tons, generally enough to cool a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.8 SEER2

The ACIQ R5A5S60AKAWA air conditioner condenser is rated at 13.8 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A5S60AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM5X60M24A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.

QUICK FACTS

• 5 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

5 Tons

The ACIQ EAM5X60M24A is rated for up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

OVERVIEW

Designed to be a high-efficiency furnace, the ACiQ N96MSN1002120A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS

• 100,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to a medium to large house in ideal applications
• Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics
• Energy Star certified

100,000 BTU, 96% AFUE

The ACiQ N96MSN1002120A has an input of 100,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 96,000 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N96MSN1002120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

The Santa Fe Ultra70 was the first compact whole house ventilating dehumidifier built for tight, low-clearance installs. It removes up to 70 pints of moisture per day and covers homes up to 1,800 square feet, which makes it a strong match for smaller houses, condos, and apartments.

Ducted into your HVAC system, the Ultra70 controls humidity everywhere at once instead of one room at a time. That means no musty basement smell, no clammy upstairs bedrooms, and no conditions that let mold and wood rot get started.

The cabinet measures 12" W x 12" H x 28" L and converts between horizontal and vertical airflow discharge, so it works in mechanical rooms, closets, attics, basements, and crawl spaces alike. Now running R454B refrigerant, it exceeds Department of Energy efficiency standards and is built at Santa Fe's headquarters in Madison, Wisconsin.

Key Features:

• 70 Pints Per Day – Whole-home moisture control for spaces up to 1,800 sq. ft.
• Optional Fresh Air Ventilation – Duct outdoor air in to dilute indoor pollutants
• MERV-13 Filtration – Standard filter captures fine airborne particles
• Convertible Discharge – Rotate the panel for horizontal or vertical airflow
• Compact 12" x 12" x 28" Cabinet – Fits where standard units can't
• R454B Refrigerant – Exceeds DOE efficiency standards
• 115V / 5.4 Amps – Plugs into a standard grounded outlet
• Made in Madison, Wisconsin – Heavy-duty steel construction

Customized Installation and Operation

The Ultra70 gives you three ways to install it. Tie it into your existing HVAC system with a dedicated 8" return and a supply connection with backdraft damper. Run it on its own separate ductwork. Or set it freestanding in a basement or crawl space when ducting isn't practical.

Both the return air inlet and supply air outlet use 8" duct collars. The back panel comes configured for horizontal flow through and rotates for vertical flow through with a T20 torx bit, which is what lets the same unit work in an attic, a closet, or under a floor.

Fresh air ventilation is optional and simple to add. A "T" into the inlet duct brings outdoor air into the system to dilute pollutants and maintain normal oxygen levels indoors, and the volume is adjustable with a range of dampers and controls.

• HVAC Integration – Dedicated return plus ducted supply to the air handler
• Dedicated Ducting – Runs on its own duct system independent of HVAC
• Freestanding Operation – Works standalone in basements and crawl spaces
• Optional Outdoor Air – Ventilation duct T's into the inlet, regulated by dampers and controls
• Continuous Drain – Gravity drainage, no manual emptying

Warranty Information

Santa Fe warrants the Ultra70 Dehumidifier to be free from defects in materials and workmanship. The unit includes a 5-year limited warranty, with extended coverage on select components. Warranty coverage may vary based on installation, application, and registration requirements. Refer to the manufacturer’s documentation for complete warranty details.
