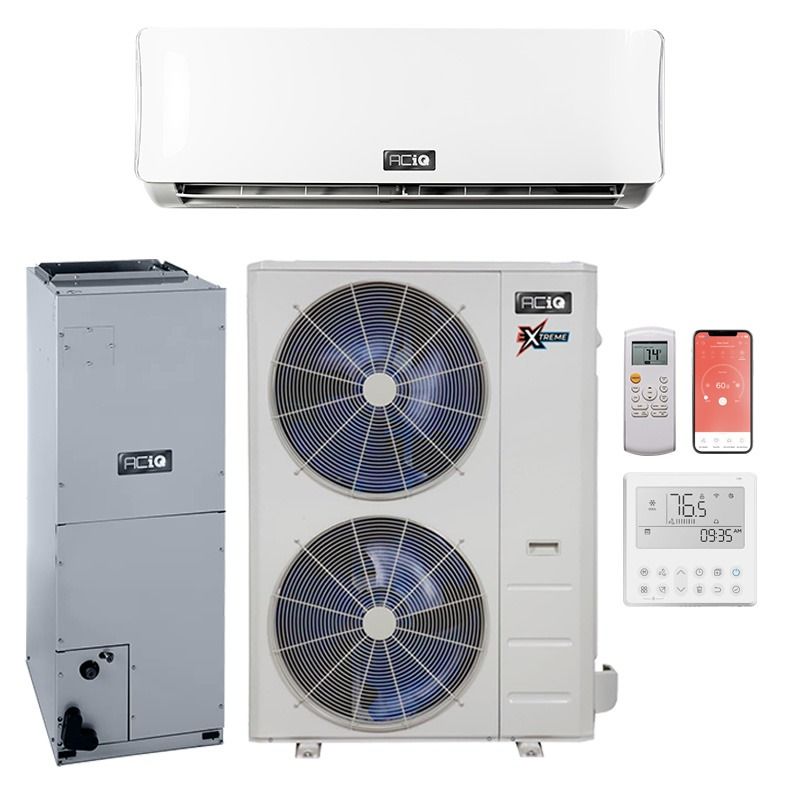

55,000 BTU 20.4 SEER2 ACiQ Mini Split System w/ 36k Central Ducted Air Handler and 24k Wall Mount w/ WiFi | Extreme Series 36+24

Name: 55,000 BTU 20.4 SEER2 ACiQ Mini Split System w/ 36k Central Ducted Air Handler and 24k Wall Mount w/ WiFi | Extreme Series 36+24
Brand: ACiQ
SKU: ACiQ-55Z-HH-M5B / ACIQ-24W-HH-MC / ACIQ-36AHB-HH-M
Price: 259.31 USD
Availability: OutOfStock

SAVE $700.69

Required Fields *

Customer reviews

Rating:

4.9 out of 5

4.9 out of 5 View All 59 Reviews Add Your Review

Out of stock

ACiQ

Out of stock

Model

ACiQ-55Z-HH-M5B / ACIQ-24W-HH-MC / ACIQ-36AHB-HH-M

188793

Description

This ACiQ-55Z-HH-M5B / ACIQ-24W-HH-MC / ACIQ-36AHB-HH-M versatile ACiQ system combines the best of both worlds, featuring a 36K BTU central ducted air handler for your main living spaces and a 24K BTU wall-mounted mini split air handler for areas that may need extra comfort control, such as an addition or bonus room. Ideal for homes with existing ductwork, this setup provides seamless climate control throughout your home while extending cooling and heating to areas not connected to your central duct system. This hybrid solution ensures every room feels just right, delivering targeted comfort where you need it most without the need for extensive renovations.

Equipment Pad

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

30" Wall Mount Bracket

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

24k BTU Wall Mounted (1,000 - 1,500 sq ft)

ACIQ 24,000 BTU R410A Platinum Multi Zone Air Handler w/ WiFi

The ACIQ-24W-HH-MC multi-zone air handler provides precise heating and cooling for rooms up to 1,000 sq ft, using R410A refrigerant for reliable, year-round comfort.

Key Features

24,000 BTU wall-mounted air handler for multi-zone mini split systems.
Compatible with R410A refrigerant.
WiFi-enabled for remote control and smart home integration.
Energy-efficient operation designed to reduce utility costs.
Quiet performance suitable for large rooms, open areas, and offices.
Modern wall-mounted design for sleek home integration.

Feature Highlights

Smart WiFi Control

The unit connects to WiFi, allowing you to monitor and control temperature, fan speed, and schedules via the ACIQ app. This provides convenient, remote access and helps optimize energy usage.

Powerful Multi-Zone Comfort

Designed to work with compatible multi-zone outdoor condensers, this 24,000 BTU air handler delivers consistent, customizable comfort for a single large zone or multiple smaller spaces connected through zoning.

Quiet, Reliable Operation

Advanced airflow design and inverter technology ensure stable indoor temperatures with minimal noise, providing a comfortable and peaceful environment while maintaining energy efficiency.

What’s Included

1 x 24,000 BTU ACIQ Platinum Wall-Mounted Indoor Air Handler
Wireless Remote Control
Mounting Plate
Installation Manual

Recommended Accessories

Compatible ACIQ Multi-Zone Outdoor Condenser
Pre-Charged Line Set for R410A connection
Line Set Covers for exterior protection and clean appearance
Condensate Drain Line
Wall Sleeve for wall penetration

Warranty

ACIQ provides a manufacturer warranty for the Platinum 24,000 BTU multi-zone air handler when installed with compatible equipment and according to manufacturer guidelines.

Product Specs

More Information
55,000 BTU ACiQ Multi Zone Condenser Extreme Series-R410A
Feature	Spec
SKU	ACIQ-55Z-HH-M5B
Refrigerant Charge	125'
Weight (in lbs)	265.87
AHRI Certificate Number	210857380
Brand/Manufacturer	ACiQ
Cooling BTU	55000
Heating BTU	55000
Maximum CFM	4500
Decibel Level (dBA)	63
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
HSPF2	9.3
SEER2 (Efficiency)	22
EER2	10.5
Compressor Type	Rotary
Liquid Line	1/4" (5)
Suction Line	3/8" (3); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	60 A
Min. Breaker Size	40 A
BTU/Tonnage	55,000 BTU/4.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Height	52.48"
Width	37.48"
Depth	16.34"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Brochure Installation and Owner's Manual Service Manual Specification Sheet Submittal AHRI Certificate - Ducted Indoor Units AHRI Certificate - Non-Ducted Indoor Units Warranty Information You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 36,000 BTU R410A Multi Zone Ducted Air Handler
Feature	Spec
SKU	ACIQ-36AHB-HH-M
Refrigerant Charge	25'
Weight (in lbs)	153
Brand/Manufacturer	ACiQ
UPC	0850038750053
Cooling BTU	36,000 BTU
Heating BTU	38,000 BTU
Maximum CFM	1188.24
Decibel Level (dBA)	47.5
Electric Heat	Heat Pump
Electric Backup Heat Capabilities (Optional)	5 Kilowatts, 10 Kilowatts
Energy Star	Yes
Refrigerant	R410A
HSPF	9
HSPF2	7
SEER2 (Efficiency)	15
EER2	8.2
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	35
Min. Breaker Size	25
Tonnage	3 Ton
System Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Multi-Positional
Zone Compatibility	Single Zone
Height	49.02"
Width	21.02"
Depth	21.02"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal Installation Manual Service Manual Owner's Manual Warranty Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 24,000 BTU R410A Platinum Multi Zone Air Handler w/ WiFi
Feature	Spec
SKU	ACiQ-24W-HH-MC
Weight (in lbs)	39.68
Brand/Manufacturer	ACiQ
Cooling BTU	24000 BTU
Heating BTU	24000 BTU
Maximum CFM	611.18
Decibel Level (dBA)	44
Electric Heat	Heat Pump
Refrigerant	R410A
SEER1 (Efficiency)	18-20
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Length	46.85"
Height	14.59"
Depth	11.20"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal Remote Control Manual Installation & Owner's Manual Wi-Fi Manual Warranty Information You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad 18" x 38" x 3"
Feature	Spec
SKU	EL1838-3
Weight (in lbs)	16
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	ACB-30
Weight (in lbs)	9.2
Brand/Manufacturer	Online Supply
Length	30"
Height	16"
Width	2"
Resources	Installation Manual Data Sheet You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
