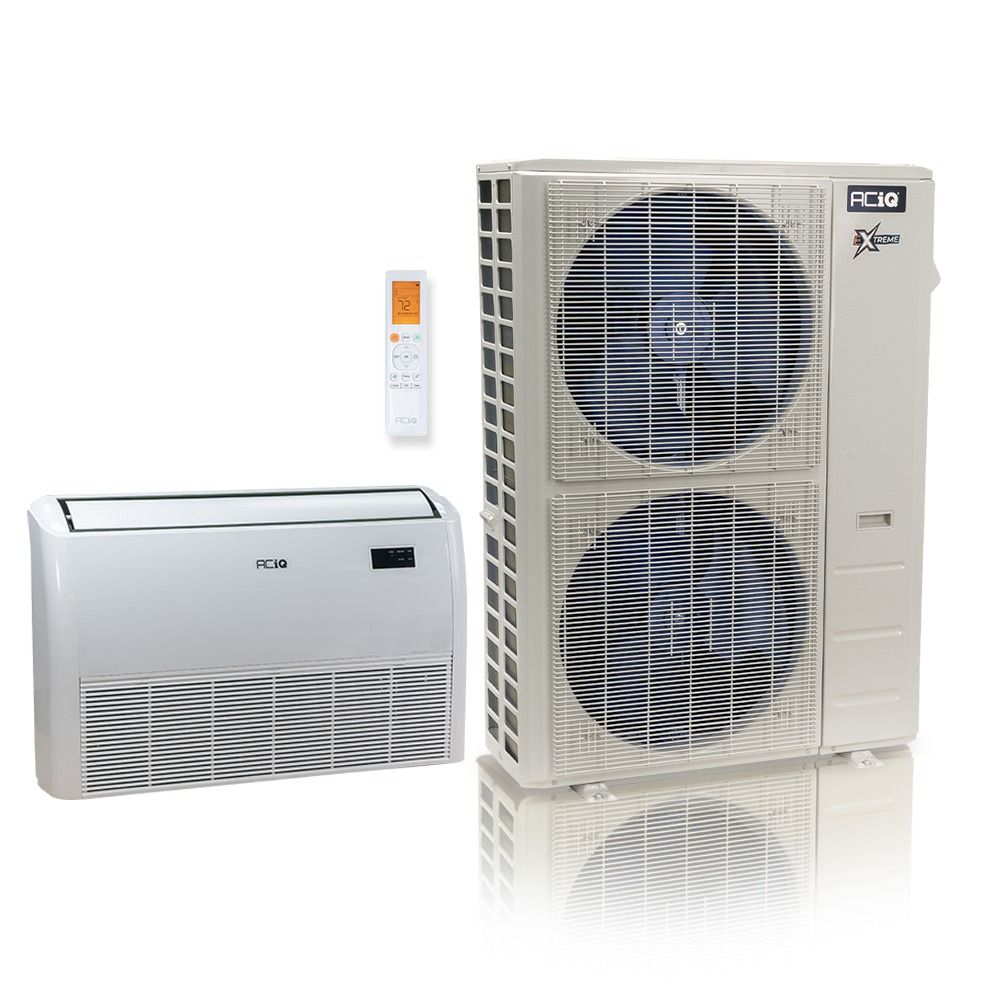

60,000 BTU 23 SEER ACiQ Single Zone Floor Mount Mini Split System | Extreme Series

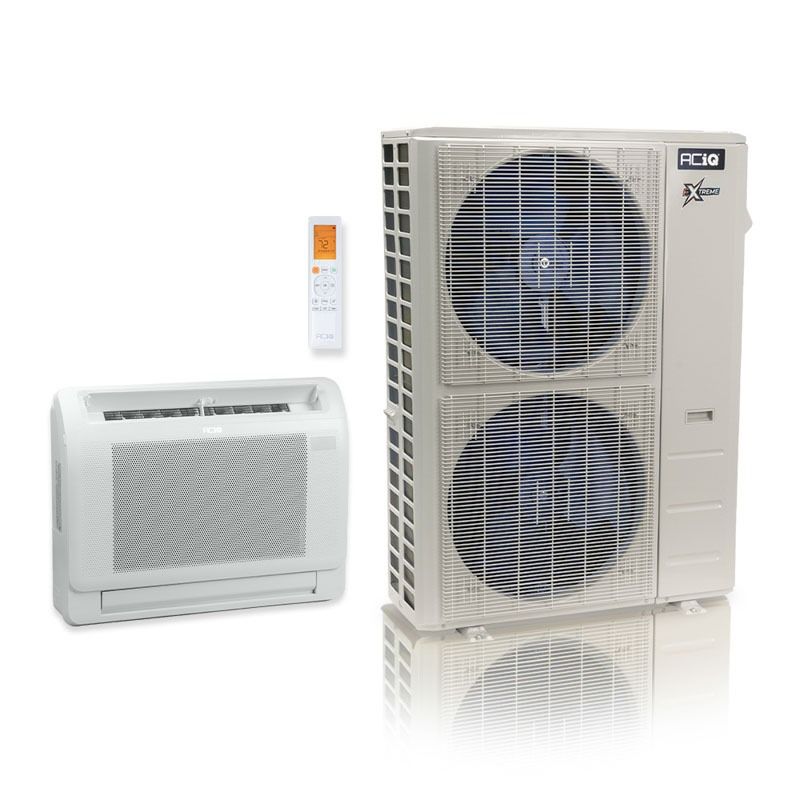

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

Optimized for Heat

Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.

Features

• Can heat and cool up to an average-sized room in ideal conditions
• 24,000 BTU floor console air handler with remote
• Quiet and efficient operation
• Multiple settings to customize your comfort

Specifically designed to direct airflow up instead of down relative to the unit, the Carrier 40MBFQ24-3 Performance series floor console air handler is designed for applications where you need a wall mounted air handler that is mounted close to the floor instead of high up on the wall. With the 40MBFQ24-3, Carrier continues to provide a superior comfort for any space, no matter the limitations of the application.

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 1/2" x 6' Electrical Whip – SKU: 84136
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
