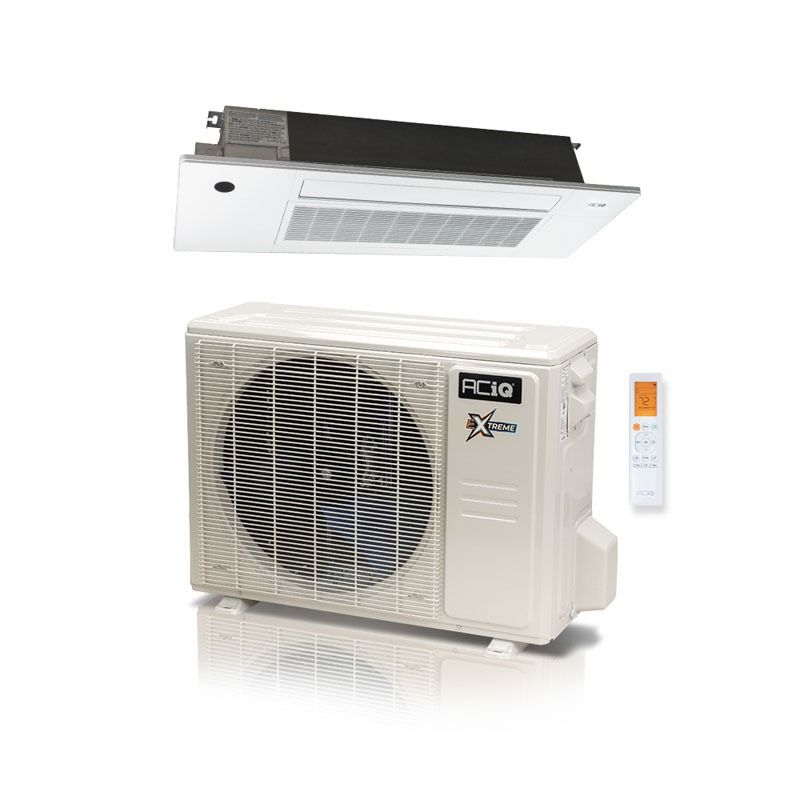

9,000 BTU ACiQ Extreme 24 SEER2 Single Zone Slim Ceiling Cassette Mini Split System - R454B | 230V

9,000 BTU 23 SEER ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series - ACIQ-09ZPL-HP230C / SCC-0612-HH-MB
9,000 BTU 23 SEER ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series - ACIQ-09ZPL-HP230C / SCC-0612-HH-MB 9,000 BTU 23 SEER ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series 9,000 BTU 23 SEER ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series 9,000 BTU 23 SEER ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series Image ACIQ-09ZPL-HP230C ACIQ-09ZPL-HP230C SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB SCC-0612-HH-MB 201813 / CW-144-15 366390 / CW-144-25 216740 / CW-144-30 366395 / CW-144-35 366396 / CW-144-50 HW-600 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MSK001 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 84105 Image 84105
SAVE $1,130.76
9,000 BTU ACiQ Extreme 24 SEER2 Single Zone Slim Ceiling Cassette Mini Split System - R454B | 230V

Required Fields *

Customer reviews
Rating:
5 out of 5
5 out of 5 View All 1  Review Add Your Review
ONLY 2 LEFT!
Free Shipping
By

ACiQ

In stock

Model

ACIQ-09ZPL-HP230C / SCC-0612-HH-MB

ID

198655

Was $3,230.75
Your Low Price $2,099.99

  • Maximum Performance at an Affordable Cost
  • Heating & Cooling
  • Ductless Solution perfect for 250-400 sq ft Room
  • Efficient Cooling from -22°F - 122°F Outdoor Temperatures
  • Efficient Heating from -22°F - 75°F Outdoor Temperatures
  • Single Zone/Room Compatible
Customize 9,000 BTU ACiQ Extreme 24 SEER2 Single Zone Slim Ceiling Cassette Mini Split System - R454B | 230V
9,000 BTU Extreme Single Zone Condenser w/ Hyper Heat
9,000 BTU Extreme Single Zone Condenser w/ Hyper Heat
9,000 BTU Extreme Single Zone Condenser w/ Hyper Heat   + $1,049.99
6-12,000 BTU Slim Ceiling Cassette Air Handler
6-12,000 BTU Slim Ceiling Cassette Air Handler
6-12,000 BTU Slim Ceiling Cassette Air Handler   + $1,050.00
15 feet - 1/4" and 3/8" Line Set & Control Wire
17" Wall Mount Bracket for Mini Split Systems
Installation Kit for Condensers
White Line Set Cover Guard – Complete Wall Duct Kit (12 ft.)
9,000 BTU 23 SEER ACiQ Single Zone Slim Ceiling Cassette Mini Split System | Extreme Series - ACIQ-09ZPL-HP230C / SCC-0612-HH-MB

$2,099.99

The ACIQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

ACiQ Extreme Series Single Zone Systems

The ACiQ Extreme Series Single Zone Mini Split Systems are engineered for maximum performance in demanding climates, delivering exceptional heating and cooling with industry-leading efficiency. Designed for homeowners who want premium comfort, these systems provide reliable operation in extreme temperatures, ultra-quiet performance, and advanced inverter technology for year-round savings and comfort.

More Information
9,000 BTU ACiQ Extreme Single Zone Mini Split Heat Pump Condenser - R454B | 230V
FeatureSpec
SKUACIQ-09ZPL-HP230C
Refrigerant Charge2.2 lbs (Pre-charged for 25 ft line set)
Weight (in lbs)78.7
AHRI Certificate Number218457910, 217739015, 216032359, 216032351, 216032344, 216032338, 216032334, 216032293, 216032285, 216032278, 216032272, 216032268
Brand/ManufacturerACiQ
UPC810175550947
Cooling BTU9,000 BTU
Heating BTU12,000 BTU
Decibel Level (dBA)56 dBA
Energy StarYes
RefrigerantR454B
HSPF212.5
SEER2 (Efficiency)27.4
EER215.4
Compressor TypeRotary
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V | 1 Phase | 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size15 Amps
BTU/Tonnage9,000 BTU/0.75 Ton
Min/Max Outdoor Temp for Heating-22° - 75° F
Min/Max Outdoor Temp for Cooling-22° - 122° F
Zone CompatibilitySingle Zone
CertificationEnergy Star, NEEP, UL AHRI
Height21.81"
Width31.69"
Depth12.99"
Warranty12 Year Compressor / 7 Year Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
6,000 BTU - 12,000 BTU ACiQ Single Zone Slim Ceiling Cassette Mini Split Air Handler - R454B | 230V
FeatureSpec
SKUSCC-0612-HH-MB
Weight (in lbs)82.45
Brand/ManufacturerACiQ
UPC810175551333
ControllerWireless Included
Cooling BTU6,000 / 9,000 / 12,000 BTU
Heating BTU6,000 / 9,000 / 12,000 BTU
Maximum CFM353.2 Turbo / 312 Hi / 282.5 Med / 247.2 Lo (Airflow)
Decibel Level (dBA)24 - 41 dBA
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V | 1 Phase | 60 Hz
Mini Split TypeSlim Ceiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.98"
Width50.31"
Depth13.19"
Warranty12 Year Compressor / 7 Year Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
17" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUHW-600
Weight (in lbs)9.2
Brand/ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
FeatureSpec
SKU201813 / CW-144-15
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Liquid Line1/4"
Suction Line3/8"
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
FeatureSpec
SKU366390 / CW-144-25
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
FeatureSpec
SKU216740 / CW-144-30
Weight (in lbs)30
Brand/ManufacturerOnline Supply
UPCna
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
FeatureSpec
SKU366395 / CW-144-35
Weight (in lbs)35
Brand/ManufacturerOnline Supply
UPCna
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
FeatureSpec
SKU366396 / CW-144-50
Weight (in lbs)45
Brand/ManufacturerOnline Supply
UPCna
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
White Line Set Cover Guard – Complete Wall Duct Kit (12 ft.)
FeatureSpec
SKU84105
Weight (in lbs)10
Brand/ManufacturerOnline Supply
UPCna
Safety InformationPROPOSITION 65 WARNING
Customer reviews
100% of 100
5 out of 5
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Review this product

Share your thoughts with other customers

Write a customer review
Top reviews
  1. Good unit
    Quality
    100%
    Service
    100%
    Price
    100%
    No issues works good

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
