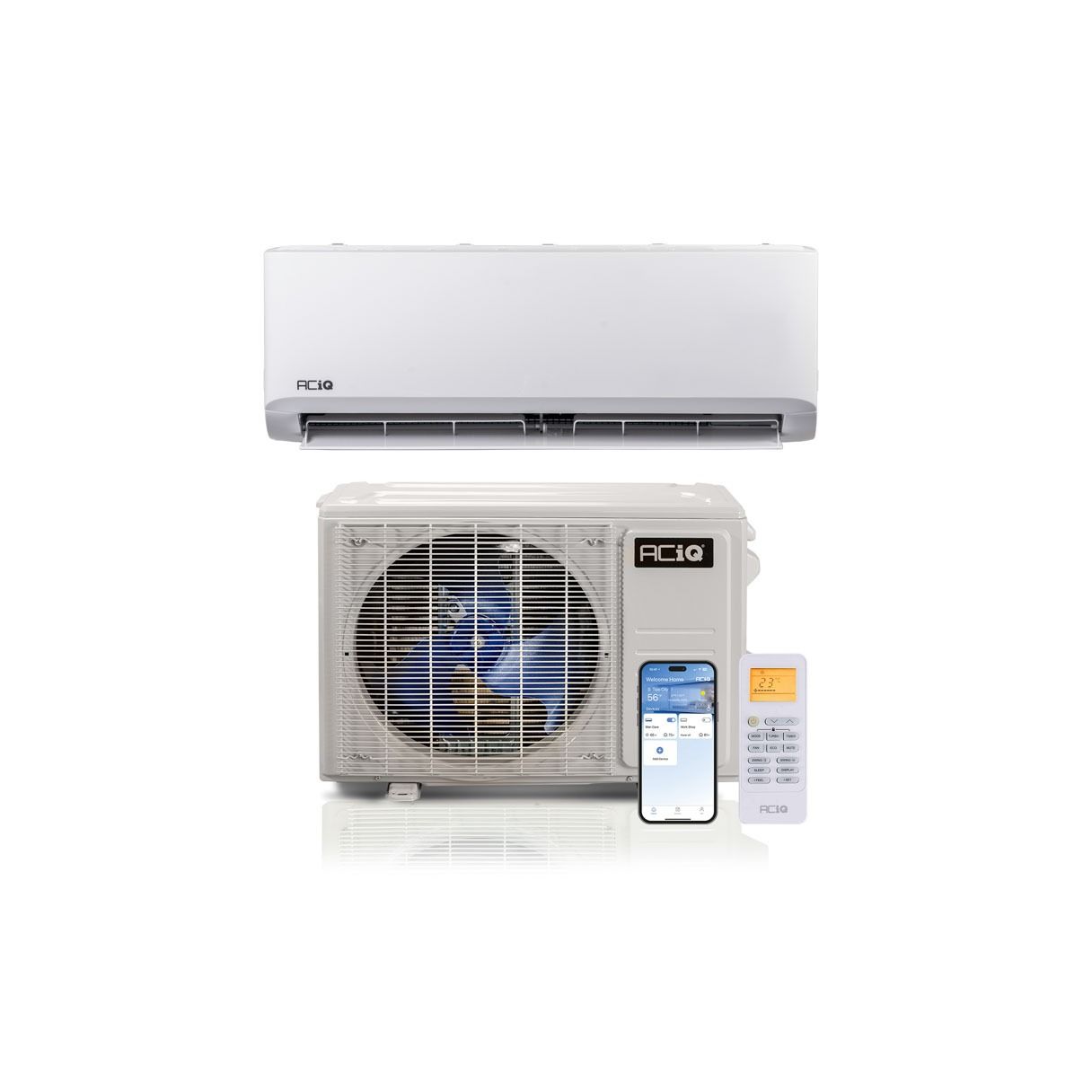

9,000 BTU ACiQ Standard 24.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

OVERVIEW

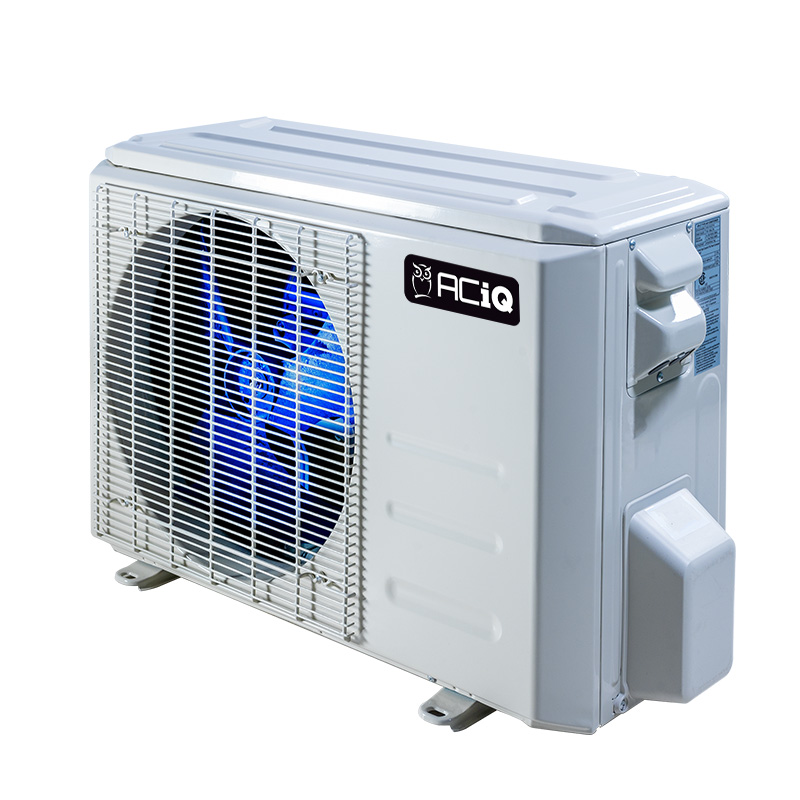

The ACIQ Single Zone series ACIQ-09ZS-HP115C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-09ZS-HP115C uses as little power as possible without sacrificing comfort. That's why we say that ACIQ brings intelligence to your heating and cooling needs.

QUICK FACTS

• Intelligent comfort at an affordable cost
• Ideal for up to a small room (depending on climate)
• 9,000 BTU, 24.5 SEER2 wall mounted mini split
• Efficient cooling from 5 F to 122 F outdoor temperatures
• Efficient heating from 5 F to 86 F outdoor temperatures
• Gold Fin full-protection coating
• Quiet operation at even the highest workloads

9,000 BTU, 24.5 SEER2

At a rated capacity of 9,000 BTU, the output of the ACIQ-09ZS-HP115C when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-09ZS-HP115C has an efficiency of 24.5 SEER2. With such a high system 24.5 SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

OVERVIEW

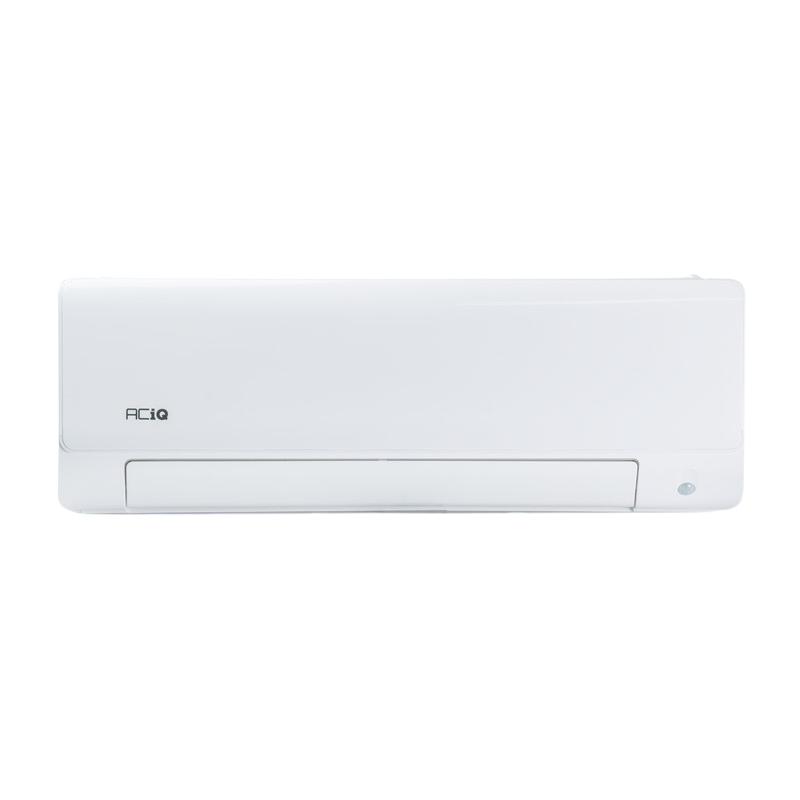

ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACIQ-09WS-HP115C single zone air handler can handle smaller spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

• Able to cover up to a small room in ideal conditions
• 9,000 BTU wall-mounted air handler with remote
• Intelligent comfort at an affordable cost

Intelligent Heating and Cooling

The ACIQ-09WS-HP115C air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

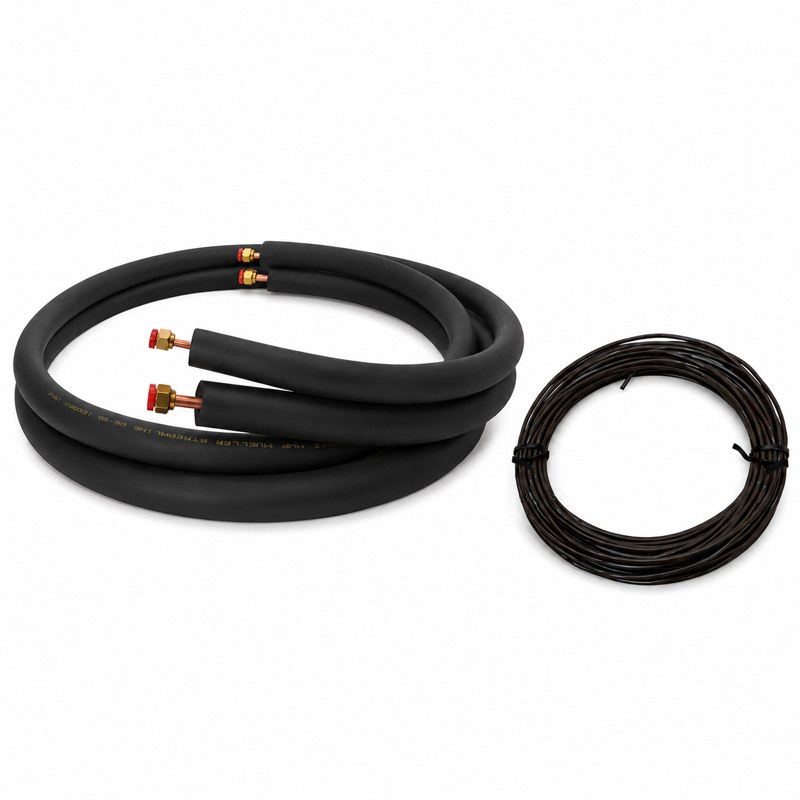

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

• 35 ft. insulated refrigerant line set
• 35 ft. 14/4 mini-split control wire
• 1/4" liquid line with flared ends
• 3/8" suction line with flared ends

Features

• 1/2" thick insulation for improved efficiency
• Heavy-duty refrigerant line construction
• Stranded copper wire for reliable conductivity
• Flexible and durable installation materials
• Compatible with most mini-split systems
• Ideal for HVAC installations and replacements
