ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - High Heat | 460V 3 Phase - R454B - Two Stage

ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - High Heat | 460V 3 Phase - R454B - Two Stage
By

ACiQ

In stock
Model

RGF120LF2A0AAA

ID

197099

Was $16,749.00 Your Low Price Special Price $13,399.00
ONLY 1 LEFT!

Product Features
  • Designed for Easy Retrofit Installs
  • Custom Roof Curbs designed to fit your current adapter!
  • Precharged with R454b Refrigerant
  • 2-Stage Condenser
  • 208/230V 3 Phase
  • Up to a 10-Year Limited Warranty with Online Registration

Call 800-397-1392 for Best Prices!

High-Efficiency 10-Ton Gas Packaged Unit for Light Commercial Applications with X-Vane Fan Technology

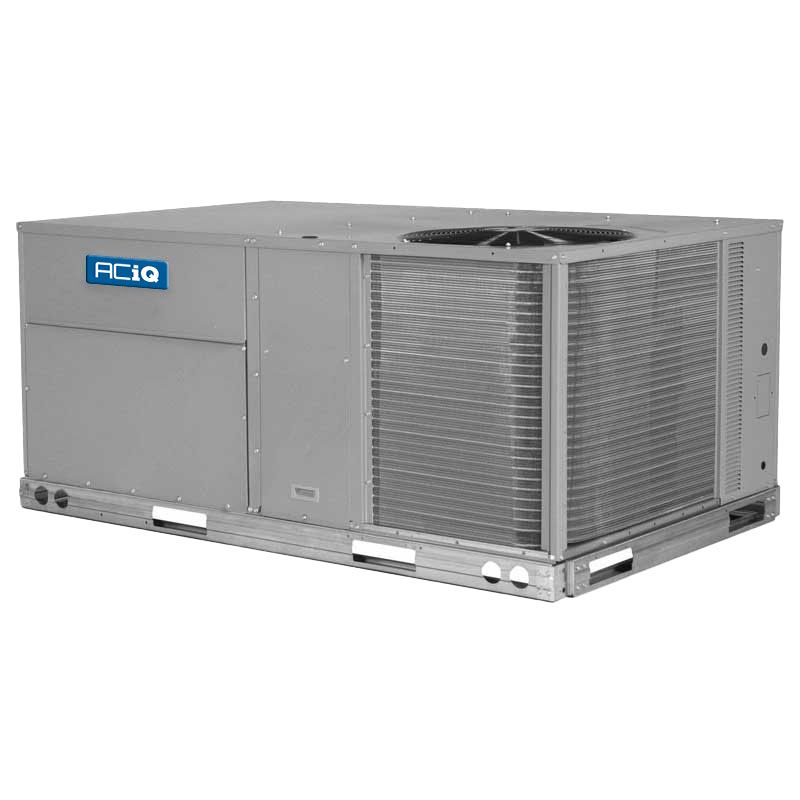

The ACiQ RGF120LF2A0AAA is a 10-ton commercial gas packaged unit designed to provide reliable year-round heating and cooling for light commercial applications. Combining up to 180,000 BTU of gas heating capacity with 118,000 BTU of cooling capacity, this all-in-one rooftop system helps deliver reliable comfort while simplifying installation and preserving valuable indoor space.

Key Benefits

  • 15.0 IEER / 11.0 EER Efficiency – Helps provide efficient commercial cooling performance during full-load and part-load operation.
  • Two-Stage Gas Heat – Provides up to 180,000 BTU of heating capacity with 80% AFUE for dependable heating performance.
  • Two-Stage Condenser – Supports efficient cooling operation and helps match system output to commercial comfort demands.
  • Direct-Drive X-Vane Fan – Uses a beltless vane axial fan and ECM motor to reduce moving parts and eliminate fan-belt and bearing maintenance.
  • Packaged Rooftop Configuration – Combines the major heating and cooling components in one outdoor unit to conserve indoor space and simplify equipment placement.
  • R-454B Refrigerant – Uses R-454B refrigerant with a fixed refrigerant metering device for the cooling system.
  • Accessible Controls – Centralizes low-voltage connections and troubleshooting points on the unit control board for easier setup and service.
  • Service-Friendly Design – Provides easy-access service handles, a corrosion-resistant composite drain pan, and a naturally draining heat exchanger to help reduce maintenance requirements.

Two-Stage Gas Heating for High-Capacity Comfort

The integrated gas furnace provides up to 180,000 BTU of heating capacity with 80% AFUE and two-stage burner operation to support dependable commercial heating performance. The naturally draining heat exchanger is designed to eliminate the need for periodic manual draining associated with positive-pressure heat exchangers, helping reduce service labor and maintenance requirements.

Two-Stage Cooling Performance

The cooling system provides 118,000 BTU of cooling capacity with an 11.0 EER and 15.0 IEER rating. The two-stage condenser and reliable fixed-speed scroll compressor are designed to provide dependable cooling performance for commercial applications.

15.0 IEER Efficiency with Direct-Drive Fan Technology

With a 15.0 IEER and 11.0 EER rating, this system is designed to provide efficient commercial cooling performance. The direct-drive X-Vane indoor fan uses a vane axial fan with an electrically commutated motor, eliminating fan belts, blower bearings, and shafts while reducing the number of moving parts compared with traditional belt-drive systems.

Packaged Rooftop Design for Flexible Installation

The packaged rooftop configuration combines the gas furnace, cooling system, indoor fan, and associated controls into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The RGF series is field-convertible to horizontal airflow, providing installation flexibility when job-site conditions require an alternate airflow configuration. The unit also provides single-point gas and electrical connections.

Controls & Comfort

The unit control board centralizes low-voltage connections and troubleshooting points, while an intuitive switch and rotary-dial arrangement simplifies indoor fan setup. The direct-drive ECM fan system provides variable fan-speed adjustment to support appropriate airflow configuration for the installation.

Commercial Applications

The ACiQ RGF120LF2A0AAA is designed for light commercial applications requiring a high-capacity gas/electric packaged system. Its 10-ton cooling capacity, up to 180,000 BTU heating capacity, high-static airflow capability, and field-convertible horizontal airflow make it well suited for commercial rooftop installations where dependable year-round heating and cooling are required.

Service & Maintenance

The RGF120LF2A0AAA is designed for simplified service with easy-access handles for normally serviced components, a large control box for convenient access to controls and accessory installation, and a beltless direct-drive fan system that eliminates routine belt, pulley, blower-bearing, and shaft maintenance. Standard features include high- and low-pressure switches, a filter drier, and 2-inch filters. A sloped corrosion-resistant composite drain pan helps shed water and resist rust.

Warranty

The ACiQ RGF120LF2A0AAA includes a 10-year warranty on the aluminized heat exchanger, a 5-year warranty on the compressor, and a 1-year warranty on replacement parts. Warranty coverage requires installation in accordance with applicable state and local codes and proper maintenance, including at least annual service.

Recommended Accessories

  • Commercial Thermostat or Control – Select based on the specific installation and control requirements
  • ACiQ Roof Curb/Mounting Base – Compatible curb selection should be verified for the installation
  • Equipment Disconnect – Select based on applicable electrical requirements
  • Duct/Transition Accessory – Select based on the required airflow configuration
  • Hot Gas Re-Heat Dehumidification System – Optional accessory for improved part-load humidity performance

Reliable Commercial Comfort with the ACiQ RGF120LF2A0AAA

Experience dependable year-round commercial comfort with the ACiQ RGF120LF2A0AAA. Combining two-stage gas heating up to 180,000 BTU with two-stage cooling, direct-drive X-Vane fan technology, and a packaged rooftop design, this 10-ton system provides high-capacity heating and cooling in a service-friendly outdoor unit.

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - High Heat | 460V 3 Phase - R454B - Two Stage
FeatureSpec
SKURGF120LF2A0AAA
Refrigerant ChargePre-Charged
Weight878
ManufacturerACiQ
EquivalentCarrier Equivalent: 48FCFM12A3A5-0A0A0
Furnace Efficiency / AFUE 80%
Cooling BTU118,000 BTU
Heating BTU180,000 BTU
Drive TypeDirect
Maximum CFM3500
Decibel Level (dBA)79 Decibels
RefrigerantR454B
EER11.0
IEER15.0
Condenser StagesTwo Stage
Compressor TypeScroll
Electrical460v 3 Phase 60 Hz
Electric Phase FilterThree Phase
Tonnage10 Ton
Burner StagesTwo
Height49 3/8"
Width84 7/8"
Depth53 7/8"
Warranty10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - High Heat | 460V 3 Phase - R454B - Two Stage
Your Rating
Customer Questions
What is a Commercial Gas Packaged Unit?
A commercial packaged gas/electric unit is an all-in-one HVAC system that contains the air conditioner, gas furnace, evaporator coil, condenser, compressor, and controls inside a single cabinet. Unlike split systems, everything is housed in one outdoor unit, typically installed on a roof or concrete pad. This simplifies installation and frees up indoor space.
What types of buildings use Rooftop Gas Packaged Units?
Commercial Gas Package Units are commonly used for: Retail Stores Restaurants Churches Warehouses Office Buildings Schools Light Industrial Facilities Most Gas Package Units can be used on a rooftop or at ground level
How does a Commercial Gas Packaged Unit work?
Commercial Gas Packaged Unit uses two separate heating and cooling methods: Cooling Mode The electric air conditioning system removes heat from the building. A scroll compressor circulates refrigerant to provide cooling. Heating Mode Natural gas is burned inside the furnace section. Heated air is distributed through the ductwork. Your Commercial Gas Packaged Unit will automatically switch between heating and cooling based on thermostat demand
What is the life expectancy of the typical Commercial Gas Packaged Rooftop Unit?
The typical life expectancy of a Commercial Gas Rooftop Packaged Unit is approximately 15–20 years with proper installation and routine preventative maintenance. Factors such as operating hours, weather exposure, maintenance frequency, and overall operating conditions can affect equipment longevity. Regular filter changes, coil cleaning, inspections, and servicing of burners and heat exchangers can help extend the unit's lifespan.
Can a Commercial Gas Packaged Unit provide suitable year-round operation?
Yes. A commercial gas packaged unit provides year-round heating and cooling by combining a gas furnace for heating with an electric air conditioner for cooling in one self-contained system. During colder months, the gas furnace provides reliable heat, while the cooling components operate during warmer months to maintain comfortable indoor temperatures. This makes gas packaged units a versatile HVAC solution for commercial buildings that require heating and cooling throughout the year.
What does BTU and Tonnage Mean?
BTU (British Thermal Unit) measures the amount of heating or cooling energy a commercial rooftop packaged unit can produce per hour, while tonnage measures the unit's nominal cooling capacity. One ton of cooling equals 12,000 BTU/h, meaning a 10-ton commercial rooftop unit provides approximately 120,000 BTU/h of cooling capacity. Both measurements help contractors and customers determine the appropriate HVAC system size and output for a building's heating and cooling requirements.
What accessories or additional components are needed to install a Commercial Rooftop Units?
Installing a commercial rooftop unit may require several accessories and additional components depending on the building's existing setup and installation requirements. Common components include a roof curb or curb adapter, ductwork transitions, electrical disconnects, thermostats, economizers, dampers, and supplemental heating kits when applicable. Additional accessories, such as hail guards, smoke detectors, and condensate drain components, may also be recommended based on the application. Always verify equipment compatibility and manufacturer installation requirements before purchasing additional components.
Can I replace my existing Commercial Rooftop Unit without replacing the ductwork?
Yes. In many cases, an existing commercial rooftop unit can be replaced without replacing the current ductwork, provided the duct system is in good condition and compatible with the new equipment. Before installation, an HVAC professional should evaluate the ductwork, airflow requirements, unit capacity, and existing connections to ensure proper system performance. Additional modifications may be necessary if the new unit has different dimensions, airflow configurations, or connection requirements.
What is the difference between EER and IEER ratings on Commercial Rooftop Units?
EER (Energy Efficiency Ratio) and IEER (Integrated Energy Efficiency Ratio) are ratings used to measure the cooling efficiency of commercial HVAC equipment. EER measures how efficiently a unit operates under specific full-load outdoor temperature and operating conditions, while IEER evaluates efficiency across multiple operating conditions, including part-load performance. IEER provides a broader picture of how efficiently a commercial rooftop unit operates under varying cooling demands throughout the year. Higher EER and IEER ratings generally indicate greater energy efficiency and potentially lower operating costs.
Can a Commercial Rooftop Unit be installed on the ground instead of the roof?
Yes. Some commercial packaged rooftop units can be installed at ground level when the equipment is designed for horizontal airflow rather than vertical rooftop discharge. These horizontal-flow units require adequate space, a stable mounting surface, proper ductwork connections, and sufficient clearance for airflow and servicing. Always verify the manufacturer's installation requirements and local building codes before selecting a ground-level installation.
Do Commercial Rooftop Units require professional installation?
Yes. Commercial rooftop units should be installed by qualified HVAC professionals to ensure proper equipment placement, electrical connections, ductwork compatibility, refrigerant handling, and system performance. Professional installation helps ensure the unit operates safely and efficiently while meeting applicable building codes, manufacturer requirements, and local regulations.
