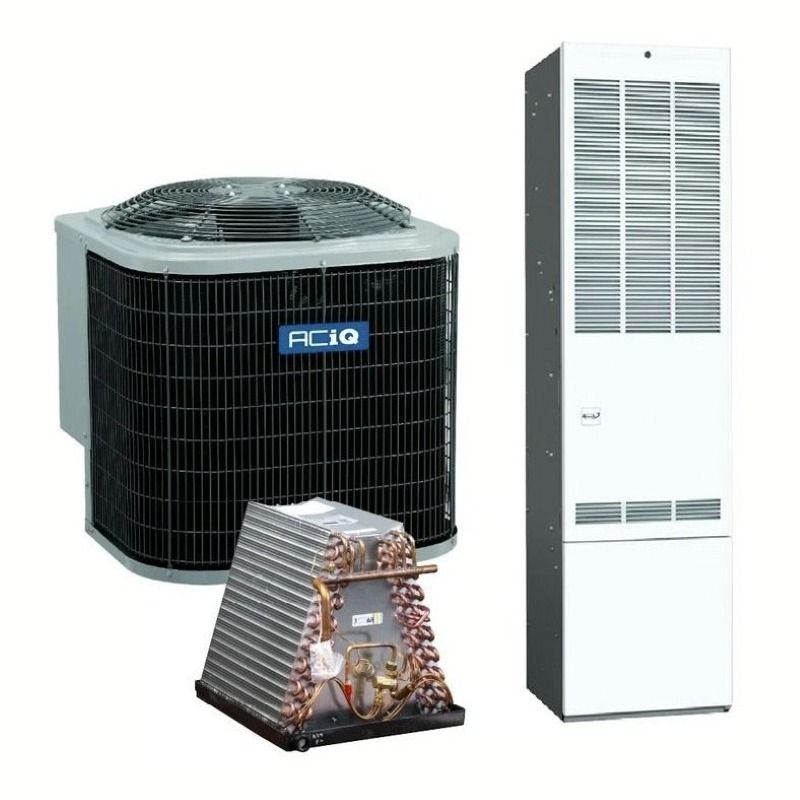

ACIQ 3.5 Ton 13.4 SEER2 95% AFUE 45,000 BTU Mobile Home Air Conditioner and Gas Furnace System| R454B

ACiQ RDS Kit Features

• Kit includes all components needed for RDS installation
• Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
• Flexible installation location, ideal for installs on existing equipment
• System designed to last the useful life of the evaporator coil
• Optional relay for controlling additional components

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

OVERVIEW

The ACIQ-MH59AU4VWEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.

QUICK FACTS

• 3.5 - 5 ton downflow evaporator coil
• R454B-refrigerant compatible
• Designed for mobile and manufactured home use only
• AHRI certifiable with all brands of air conditioners and heat pumps
• For use with manufactured homes furnaces
• Sturdy and compact design
• Rifled aluminum tubing with enhanced aluminum fins
• Left-hand refrigerant and plumbing connections
• Heavy duty polypropylene drain pans
• Downflow plate kit included

3.5 - 5 Tons

The ACIQ-MH59AU4VWEC evaporator coil is rated to be compatible with condensers with 3.5 to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.

Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.

Mobile Home Buying & Sizing Guide

• Mobile home approved product types
• Product differences
• Figuring out the right size unit for your needs
• Determining factors
• Repair vs. replace

Mobile Home Buying & Sizing Guide

OVERVIEW

The Style Crest-Revolv high-efficiency MG2R-B045F1ACM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG2R-B045F1ACM1 will save you money both up front and over time.

QUICK FACTS

• 45,000 BTU, 95% natural gas furnace
• Can generally heat a small mobile home in ideal applications
• Compatible with R410A and R454B refrigerant
• Natural gas out of the box, but comes with an LP kit for field installation if needed
• Low maintenance requirements
• Efficient multi-speed ECM blower motor
• AC coil cabinet included with purchase (condenser and coil sold separately)

45,000 BTU, 95% AFUE

With a system input of 45,000 BTU, The Style Crest-Revolv MG2R-B045F1ACM1 furnace can generally heat small mobile homes in ideal applications. With a high efficiency rating of 95% AFUE, this input equates to an output of 42,750 BTU, and 95% of the fuel going into the unit is contributed to heating your home and only 5% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you are coming from our site’s sizing calculator, please note that it is a good idea to upsize any calculation to compensate for limited insulation and other factors that cause a mobile home to differ from traditional home sizing. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.

Warranty

Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.

Installation and Maintenance

The Style Crest-Revolv MG2R-B045F1ACM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.

Mobile Home Buying & Sizing Guide

• Mobile home approved product types
• Product differences
• Figuring out the right size unit for your needs
• Determining factors
• Repair vs. replace

Mobile Home Buying & Sizing Guide

OVERVIEW

The ACIQ R5A4S42AKANA-MH is a standard AC-only mobile home condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 3.5 ton, 13.4 SEER2 AC-only mobile home condenser
• Can cool a medium-sized house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

3.5 Tons

The ACIQ R5A4S42AKANA-MH mobile home air conditioner condenser has an output of 3.5 tons, generally enough to cool a medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.4 SEER2

The ACIQ R5A4S42AKANA-MH mobile home air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.

This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A4S42AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

Upgrade to a Mobile Home System!

Upgrading to an HVAC system could mean saving thousands of dollars over its lifetime. We offer Mobile Home specific systems so you can get exactly what you need, nothing more. At HVACDirect.com, we make it easy to find the system you need with up to $0 down financing and an additional 3% discount on orders over $2,000!

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
