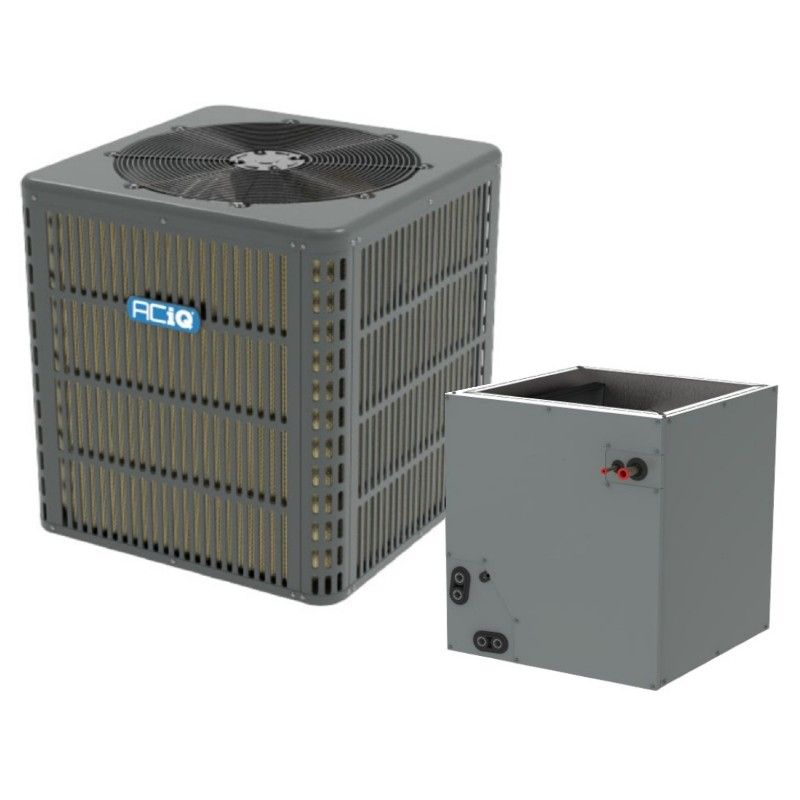

Today's Hours 8am - 11pm estACiQ 3.5 Ton 14.3 SEER2 Air Conditioner with 24.5" Multi-Positional Cased Coil - R32
Required Fields *
By
ACiQ
In stock
Model
AC-I-42AC14 / AC-I-4860ACL-24
ID
223646
Was $3,290.00
Your Low Price $2,707.00
Product Features
- Well-suited for medium size homes in various climates
- Multi-positional airflow direction
- Shippable to Northern and Southern states
- Pre-charged with R32 refrigerant
Matched AC and Coil Designed to Pair with any Flush-Fit Furnace
An ACiQ air conditioner and coil system is the perfect choice for any partial HVAC system replacement. Designed to pair with any furnace of a matching cabinet width, this coil system is the best choice for all of your cooling needs.
FEATURES
- 3.5 ton 14.3 SEER2 air conditioning condenser with 24.5" wide coil
- Pre-charged with R32 refrigerant
- Multi-positional coil - Can be installed in upflow, downflow, or horizontal orientations
- R32 refrigerant leak mitigation kit included with coil
- 10 year compressor and 7 year parts warranties
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
ACiQ 3.5 Ton 14.3 SEER2 Central Air Conditioner Condenser - R32
Reliable Cooling for Medium-Sized Homes
This ACiQ central air conditioner condenser is a dependable cooling-only option for medium-sized homes. It is designed for use with compatible indoor equipment and gives homeowners a straightforward replacement or system-building option with quiet operation and durable outdoor construction.
Key Benefits
- Sized for Medium-Sized Homes – 3.5 ton cooling capacity is generally suitable for homes approximately 1,900–2,200 sq. ft., depending on climate, insulation, home layout, and a professional sizing review.
- 14.3 SEER2 Efficiency – Provides reliable cooling performance for compatible central air installations.
- Quiet Outdoor Operation – Rated at approximately 60 dBA to help keep outdoor sound levels lower.
- Durable Outdoor Design – Built for residential outdoor use with corrosion-resistant construction.
- Pre-Charged for Installation – Comes pre-charged with R32 refrigerant to support the installation process.
Cooling Capacity for Medium-Sized Homes
With 3.5 tons of cooling capacity, this condenser is commonly used for homes approximately 1,900–2,200 sq. ft. in various climates. Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
14.3 SEER2 Cooling Efficiency
This condenser provides dependable cooling-only performance when paired with compatible indoor equipment. It is a practical choice for homeowners replacing an outdoor condenser or building a matched central air setup.
Built for Outdoor Performance
The top-discharge cabinet is designed for residential cooling applications and offers quiet operation, service-friendly access, and durable outdoor construction for long-term use.
Warranty
This condenser includes a 10-Year Compressor Warranty and 7-Year Parts Warranty with online registration. Installation must follow state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
What’s Included
- ACiQ Central Air Conditioner Condenser – Outdoor cooling-only condenser for compatible split-system applications.
Recommended Accessories
- Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow.
- Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.
Requirements & Considerations
- Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible R32 evaporator coil or air handler.
- Electrical Requirements – Requires a 208 / 230 V, 1 Phase, 60 Hz electrical supply.
- Breaker Requirements – Requires a 35 Amps max breaker and 25 Amps minimum breaker size.
- Line Set Selection – Use the line set option and connection sizing shown on the live product page or confirmed by Product installation guidance.
- Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
ACiQ 3.5 to 5 Ton 24.5" Width Multi-Positional Evaporator Coil - Cased - R32
The ACiQ AC-I-4860ACL-24 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 3.5 to 5 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
Key Features
- Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
- Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
- Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
- 24.5" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
- AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
- Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.
Warranty
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
E Lite Equipment Pad 32" x 32" x 3"
The E Lite is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACiQ Non-Programmable 1H/1C Large Display Thermostat
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
- 1 Heat / 1 Cool Non-Programmable Thermostat
- Operable with AAA batteries or 24v power
- Large, easy to ready clear LCD display with different backlight color options
- Configurable with Electric or Gas Systems
- Separate B & O terminals
- Handles heating and cooling temperature swing adjustments separately
- Toggleable 5 minute compressor delay protection
- Temperature Range: 32°F-99°F (1°C-40°C)
- Temperature Accuracy: ±1.8°F (±1°C)
Wall Mount Bracket for Condensers 48"
This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
ACiQ WiFi Programmable Touchscreen Thermostat
The STN855W is a versatile WiFi thermostat offering 7-day, 5/1/1 programmable, or non-programmable options. It features a temperature range of 32°F-99°F (1°C-40°C) and precise control from 44°F-90°F (7°C-32°C) with an accuracy of ±1°C. Powered by 24V, it comes in a compact design with dimensions of 120 x 98 x 28 mm, making it ideal for efficient and customizable temperature management.
- 7-Day or 5/1/1 programmable scheduling
- 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump thermostat
- Temperature range: 32°F-99°F (1°C-40°C)
- Control temperature range: 44°F-90°F (7°C-32°C)
- Accurate temperature measurement: ±1°C (at 20°C)
- Easy menu-driven programming
- White, blue, or green backlight settings
- Configurable with electric or gas setups
- Keypad lockout
- Heating and cooling setpoint limits
- Filter change indicator (can be toggled on/off)
- Works with Alexa
- 24v power
- Compact design (120 x 98 x 28 mm)
Recommended: ACiQ TL04-1 Smart Thermostat - 24V & HA/HB Compatible
Smarter Comfort. Sleek Control.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
ÂQUICK FACTS
- Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems Â
- Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
- Modern Touchscreen: Auto-wake screen with responsive touch interface
- Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
- Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
- Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
