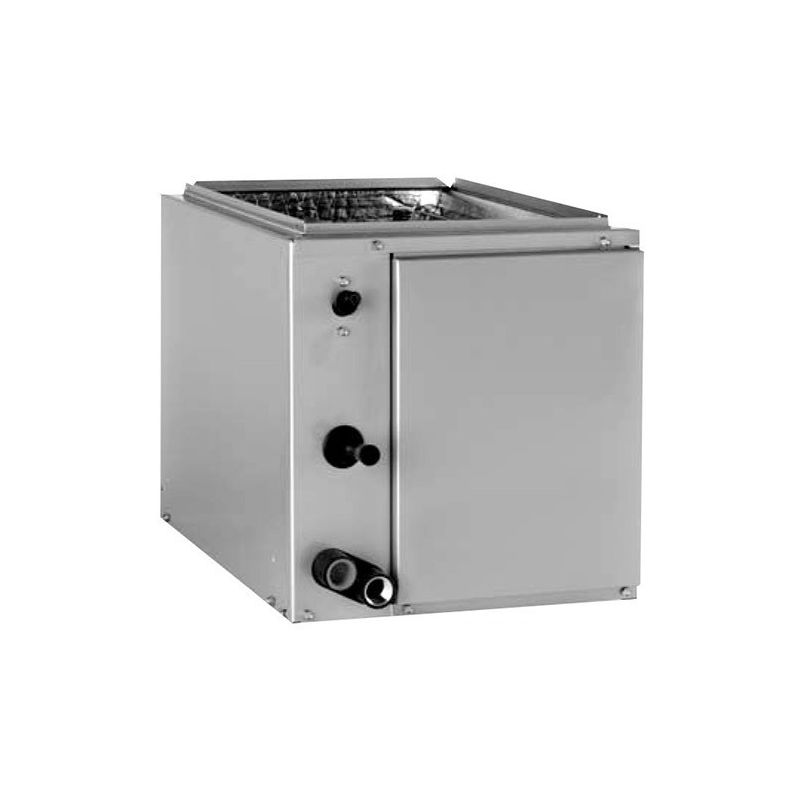

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the END4X42L17A vertical coil is a superior option for almost any application while maintaining the entire uni°s efficiency with a factory-integrated TXV kit for enhanced energy optimization.
The ACiQ END4X42L17A is rated for up to 3.5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
| ACiQ 3.5 Ton 17.5" Width Vertical Evaporator Cased Coil | |
|---|---|
| SKU | END4X42L17A |
| Weight (in lbs) | 52.000000 |
| Brand/Manufacturer | ACiQ |
| Equivalent | Carrier Equivalent: CNPVP4217ALA Tempstar Equivalent: END4X42L17A Bryant Equivalent: CNPVP4217ALA |
| Configuration | Upflow / Downflow |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Tonnage | 3.5 Ton |
| Style | N-Coil |
| Certification | UL Listed |
| Height | 21 1/8" |
| Width | 17 1/2" |
| Depth | 21" |
| Warranty | 10 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
