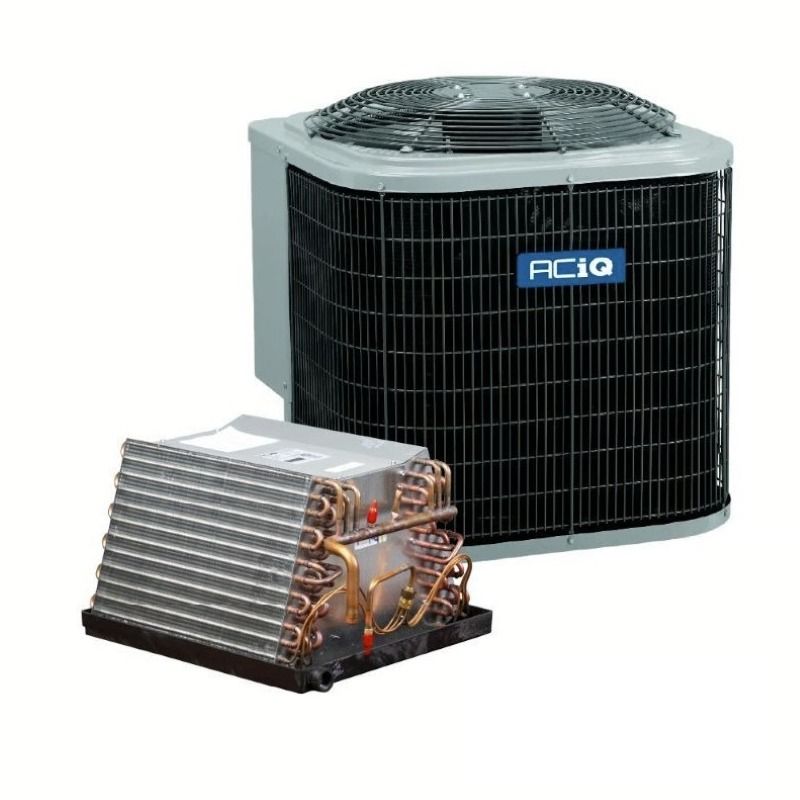

ACIQ 5 Ton 13.4 SEER2 Air Conditioner with Mobile Home Coil| R454B

ACiQ RDS Kit Features

• Kit includes all components needed for RDS installation
• Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
• Flexible installation location, ideal for installs on existing equipment
• System designed to last the useful life of the evaporator coil
• Optional relay for controlling additional components

OVERVIEW

The ACIQ-MH59AU4VWEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.

QUICK FACTS

• 3.5 - 5 ton downflow evaporator coil
• R454B-refrigerant compatible
• Designed for mobile and manufactured home use only
• AHRI certifiable with all brands of air conditioners and heat pumps
• For use with manufactured homes furnaces
• Sturdy and compact design
• Rifled aluminum tubing with enhanced aluminum fins
• Left-hand refrigerant and plumbing connections
• Heavy duty polypropylene drain pans
• Downflow plate kit included

3.5 - 5 Tons

The ACIQ-MH59AU4VWEC evaporator coil is rated to be compatible with condensers with 3.5 to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.

Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.

Mobile Home Buying & Sizing Guide

• Mobile home approved product types
• Product differences
• Figuring out the right size unit for your needs
• Determining factors
• Repair vs. replace

Mobile Home Buying & Sizing Guide

OVERVIEW

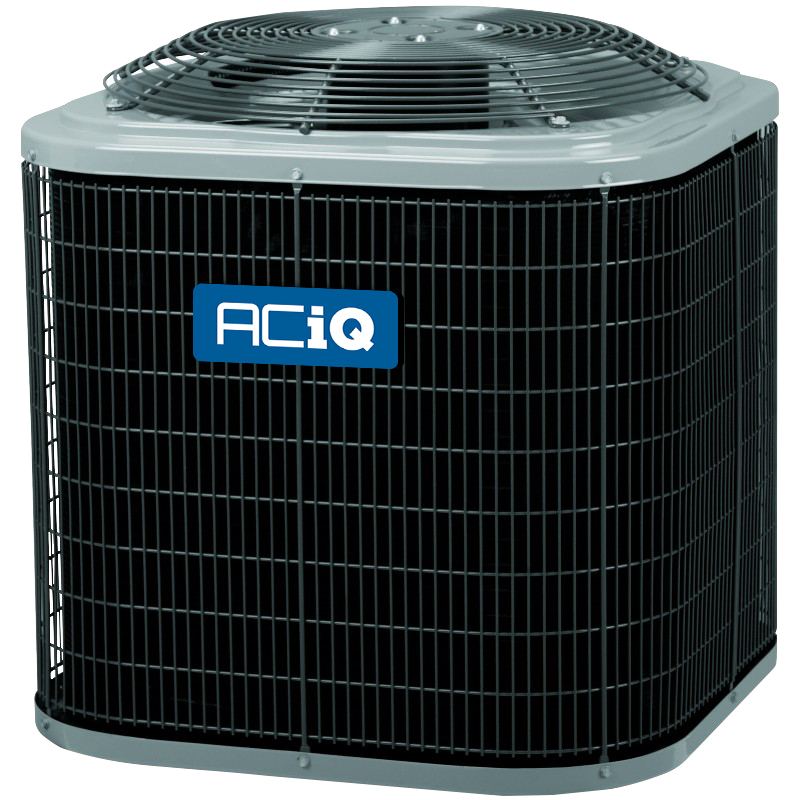

The ACIQ R5A4S60AKANA-MH is a standard AC-only mobile home condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 5 ton, 13.4 SEER2 AC-only mobile home condenser
• Can cool up to a large house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

5 Tons

The ACIQ R5A4S60AKANA-MH mobile home air conditioner condenser has an output of 5 tons, generally enough to cool up to a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.4 SEER2

The ACIQ R5A4S60AKANA-MH mobile home air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.

This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A4S60AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

Upgrade to a Mobile Home System!

Upgrading to an HVAC system could mean saving thousands of dollars over its lifetime. We offer Mobile Home specific systems so you can get exactly what you need, nothing more. At HVACDirect.com, we make it easy to find the system you need with up to $0 down financing and an additional 3% discount on orders over $2,000!

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
