OVERVIEW

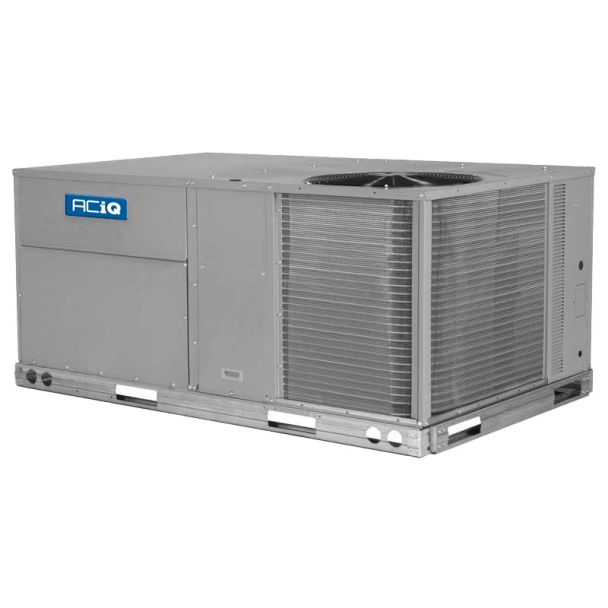

The RHV060H0FA0AAA is a 5-ton packaged rooftop heat pump designed for commercial applications requiring both efficient cooling and heating. Engineered with advanced features like the patented X-Vane™ Fan Technology and a variable-speed ECM motor, this unit offers enhanced energy efficiency, reduced maintenance, and versatile installation options. Ideal for spaces such as offices, retail stores, and restaurants, it provides reliable year-round comfort.
Features
- 5 Ton, 14 SEER, 15.2 EER
- Up to 60,000 Heating BTUs with 80-82% efficiency
- R-410A refrigerant and a fixed refrigerant metering device
- Fixed-speed scroll compressor for reliable performance
- Patented Vane Axial fan with electric commutated variable-speed motor, reducing energy consumption and maintenance
- Field-convertible between vertical and horizontal airflow
- Upgraded unit control board with intuitive indoor fan adjustment

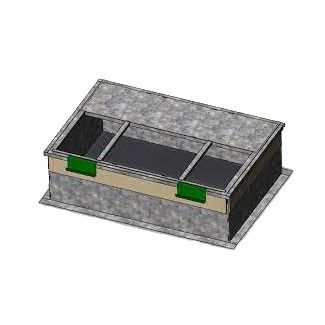

- Single-point electrical connections; designed to fit existing roof curbs dating back to 1989
- Meets or exceeds ASHRAE Standard 90.1-2016 and IECC-2018 minimum efficiency requirements
Easy to Maintain
With the new vane axial fan and direct drive ECM motor, there is no longer a need to adjust belts or pulleys as in past designs, reducing maintenance and installation time. Easy access handles provide fast access to all normally serviced components. The "œno-strip" screw system has superior holding power and guides screws into position while preventing the screw from stripping the unit's metal. Sloped, corrosion resistant composite drain pan sheds water and prevents rust. RHV units are designed with a naturally draining heat exchanger. Unlike positive pressure heat exchangers, this does not need to be periodically, manually drained, saving costs on labor and maintenance.
Easy to Use
The unit control board puts all connections and troubleshooting points in one convenient place. Most low voltage connections are made to the same board for easy access. Setting up the fan is made simple by an intuitive switch and rotary dial arrangement. Packaged Heat Pump Units have high and low pressure switches, a filter drier, and 2-in. filters standard.
X-Vane Fan Technology
The direct drive X-Vane indoor fan system uses a vane axial fan design and electrically commutated motors. This vane axial design compared to past belt drive systems has 75% fewer moving parts, uses up to 40% less energy and has no fan belts, blower bearings, or shaft.
Warranty
ACiQ offers a very comprehensive warranty policy on Packaged Heat Pump Units, including a 10 year warranty on the aluminized heat exchanger, a 5 year warranty on the compressor, and a 1 year warranty on any replacements parts. For these warranties to be upheld, the packaged unit must be installed following your state and local codes. They must also be properly serviced maintained over the warranty's life, requiring a minimum of once-per year maintenance.
