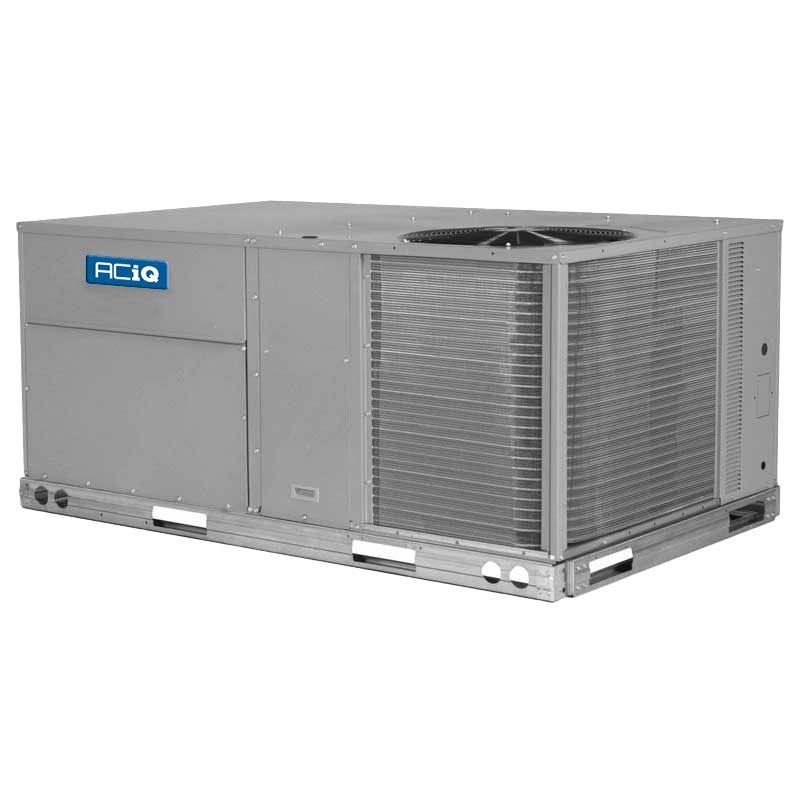

ACiQ 8.5 Ton 11.0 EER Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R410A - Two Stage

ACiQ 8.5 Ton 11.0 EER Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R410A - Two Stage
SAVE $4,117.00
By

ACiQ

In stock
Model

RHV102H02A0AAA

ID

205000

Was $15,249.00 Your Low Price Special Price $11,132.00
ONLY 1 LEFT!

Product Features
  • Direct Drive Type
  • 8.5 Ton, 102,000 Heating BTU
  • Certified for use with R410A refrigerant
  • 10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts Warranty

Reliable Year-Round Comfort 8.5-Ton Packaged Heat Pump for Commercial Buildings with X-Vane™ Fan Technology

The ACiQ RHV102H02A0AAA is an 8.5-ton commercial heat pump packaged unit designed to provide reliable heating and cooling for commercial buildings and light commercial applications. Combining heat pump heating with 102,000 BTU of nominal cooling capacity, this all-in-one rooftop system helps deliver dependable year-round comfort while simplifying installation and preserving valuable indoor space.

Key Benefits

  • 11.0 EER / 15.0 IEER Efficiency – Provides efficient commercial cooling performance while meeting applicable DOE and commercial efficiency requirements.
  • Heat Pump Heating – Provides 102,000 BTU of rated cooling capacity for dependable commercial comfort.
  • Two-Stage Cooling – Tandem scroll compressor technology provides two-stage cooling operation for reliable commercial performance and improved part-load efficiency.
  • Field-Convertible Airflow – Allows the unit to be converted to horizontal airflow in the field without requiring a dedicated horizontal model.
  • Packaged Rooftop Configuration – Combines the major heating and cooling components into one outdoor unit to simplify equipment placement and preserve indoor space.
  • X-Vane™ Fan Technology – Uses a direct-drive vane axial fan with an electronically commutated variable-speed motor, providing fewer moving parts and improved fan efficiency compared with traditional belt-drive forward-curve fans.
  • Accessible Unit Controls – The redesigned unit control board places most low-voltage connections and troubleshooting points in one convenient location.
  • Service-Friendly Design – Tool-less filter access, handled access panels, a slide-out fan and motor assembly, and direct-drive fan technology help simplify routine service and maintenance.

X-Vane™ Fan Technology – Primary Heating and Airflow Benefit

The integrated X-Vane™ indoor fan system uses a vane axial fan with an electronically commutated variable-speed motor. Compared with traditional belt-drive forward-curve fan systems, this design has 75% fewer moving parts, uses up to 40% less energy, and eliminates fan belts, pulleys, shafts, and shaft bearings. Slow ramp-up capability supports sound and comfort control, while the slide-out blower assembly helps simplify service.

Two-Stage Cooling Performance

The heat pump provides 96,000 BTU of nominal cooling capacity with an 11.0 EER and 15.0 IEER. Two-stage cooling uses tandem scroll compressor technology and a fully active evaporator coil to provide reliable commercial cooling performance and efficient part-load operation.

Commercial Efficiency

With an 11.0 EER and 15.0 IEER rating, the RHV102H02A0AAA is designed to provide efficient commercial cooling operation. The two-speed indoor fan and electronically commutated motor help support efficient airflow, while the unit meets the DOE 2023 efficiency standard and applicable ASHRAE 90.1 and IECC minimum IEER requirements.

Rooftop Installation Design

The packaged rooftop configuration combines the heat pump, compressors, indoor fan, outdoor fans, coils, and controls into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The RHV102 is field-convertible to horizontal airflow, allowing installation flexibility when jobsite conditions require a different duct configuration. The unit is also designed to fit existing compatible roof curbs installed as far back as 1989, helping simplify replacement installations.

Controls & Comfort

The redesigned unit control board places most low-voltage connections and troubleshooting points in one convenient location. An intuitive switch and rotary-dial arrangement simplifies indoor fan setup and adjustment. The system includes high- and low-pressure switches, a mixed-air temperature switch, and provisions for compatible thermostats, temperature sensors, economizer controls, and other commercial control accessories.

Commercial Applications

The ACiQ RHV102H02A0AAA is designed for commercial applications such as offices, retail stores, restaurants, and other commercial spaces requiring packaged rooftop heating and cooling. Its 8.5-ton capacity, two-stage cooling, field-convertible airflow, and X-Vane™ Fan Technology make it well suited for commercial replacement and new-installation applications where efficient operation and service accessibility are important considerations.

Service & Maintenance

The unit is designed for simplified service with easy-access handles, tool-less filter access, and a filter track that tilts out for filter removal and replacement. The direct-drive X-Vane™ fan eliminates belts, pulleys, shafts, and shaft bearings, reducing the number of moving components requiring maintenance. The fan and motor assembly slides out for easier service, while the sloped corrosion-resistant composite drain pan helps shed water without rusting. Standard equipment includes 2-inch filters, high- and low-pressure switches, a mixed-air temperature switch, and a filter drier.

Warranty

The ACiQ RHV102H02A0AAA includes a 10-year limited warranty on the aluminized heat exchanger, a 5-year limited warranty on the compressor, and a 1-year limited warranty on replacement parts. Warranty coverage is subject to applicable installation, service, maintenance, and warranty requirements.

Recommended Accessories

  • Compatible Thermostat or Commercial Control – Select a compatible thermostat, temperature sensor, or commercial control for the required application.
  • Roof Curb/Mounting Base – Compatible 14-inch or 24-inch roof curbs are available for rooftop installation.
  • Equipment Disconnect – A non-fused disconnect is available as an applicable factory option subject to unit electrical requirements.
  • Duct/Transition Accessory – A compatible supply duct transition or field-installed configuration may be used when converting the unit to horizontal airflow.
  • Economizer – Compatible EconoMi$er® options and outdoor-air accessories are available for ventilation and free-cooling applications.

Reliable Commercial Comfort with the ACiQ RHV102H02A0AAA

Experience reliable year-round commercial comfort with the ACiQ RHV102H02A0AAA. Combining heat pump heating, two-stage cooling, and X-Vane™ Fan Technology in one 8.5-ton packaged rooftop system, this unit provides efficient airflow, flexible installation, accessible controls, and a service-friendly direct-drive fan design for commercial HVAC applications.

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
ACiQ 8.5 Ton 11.0 EER Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R410A - Two Stage
FeatureSpec
SKURHV102H02A0AAA
Refrigerant ChargePre-Charged
Weight812
ManufacturerACiQ
UPC605468048931
Cooling BTU102,000 BTU
Heating BTU102,000 BTU
Drive TypeDirect
Maximum CFM3400
Decibel Level (dBA)84 Decibels
RefrigerantR410A
EER11.0
IEER15.0
Condenser StagesTwo Stage
Compressor TypeScroll
Electrical208/230v 3 Phase 60 Hz
Electric Phase FilterThree Phase
Tonnage8.5 Ton
Burner StagesTwo
Height40 3/8"
Width88 1/8"
Depth59 1/2"
Warranty10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:ACiQ 8.5 Ton 11.0 EER Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R410A - Two Stage
Your Rating
Customer Questions
What does BTU and Tonnage Mean?
BTU (British Thermal Unit) measures the amount of heating or cooling energy a commercial rooftop packaged unit can produce per hour, while tonnage measures the unit's nominal cooling capacity. One ton of cooling equals 12,000 BTU/h, meaning a 10-ton commercial rooftop unit provides approximately 120,000 BTU/h of cooling capacity. Both measurements help contractors and customers determine the appropriate HVAC system size and output for a building's heating and cooling requirements.
What accessories or additional components are needed to install a Commercial Rooftop Units?
Installing a commercial rooftop unit may require several accessories and additional components depending on the building's existing setup and installation requirements. Common components include a roof curb or curb adapter, ductwork transitions, electrical disconnects, thermostats, economizers, dampers, and supplemental heating kits when applicable. Additional accessories, such as hail guards, smoke detectors, and condensate drain components, may also be recommended based on the application. Always verify equipment compatibility and manufacturer installation requirements before purchasing additional components.
Can I replace my existing Commercial Rooftop Unit without replacing the ductwork?
Yes. In many cases, an existing commercial rooftop unit can be replaced without replacing the current ductwork, provided the duct system is in good condition and compatible with the new equipment. Before installation, an HVAC professional should evaluate the ductwork, airflow requirements, unit capacity, and existing connections to ensure proper system performance. Additional modifications may be necessary if the new unit has different dimensions, airflow configurations, or connection requirements.
What is the difference between EER and IEER ratings on Commercial Rooftop Units?
EER (Energy Efficiency Ratio) and IEER (Integrated Energy Efficiency Ratio) are ratings used to measure the cooling efficiency of commercial HVAC equipment. EER measures how efficiently a unit operates under specific full-load outdoor temperature and operating conditions, while IEER evaluates efficiency across multiple operating conditions, including part-load performance. IEER provides a broader picture of how efficiently a commercial rooftop unit operates under varying cooling demands throughout the year. Higher EER and IEER ratings generally indicate greater energy efficiency and potentially lower operating costs.
What are the different types of Commercial Rooftop HVAC Units?
Commercial rooftop HVAC units are available in several configurations designed to meet different building heating and cooling requirements. The most common types include cooling-only air conditioner units, gas/electric packaged units, heat pump units, and dual-fuel units. These systems combine major HVAC components into a single outdoor cabinet, providing centralized temperature control for commercial spaces. The best option depends on the building's heating and cooling needs, energy requirements, and installation specifications.
How does a Commercial Rooftop Heat Pump Unit work?
A commercial rooftop heat pump works by transferring heat between the indoor and outdoor environments to provide both heating and cooling. During warmer months, the system removes heat from indoor air and transfers it outside to cool the building. During colder months, the refrigeration cycle reverses, extracting heat from outdoor air and transferring it indoors to provide warmth. This allows a single packaged rooftop unit to deliver year-round temperature control without relying on a traditional gas furnace.
How well do Commercial Rooftop Heat Pumps work in freezing temperatures?
Commercial rooftop heat pumps can provide heating in freezing temperatures by extracting available heat from outdoor air and transferring it indoors. However, heating capacity and efficiency generally decrease as outdoor temperatures drop, and performance varies depending on the unit's design and operating temperature range. Many commercial rooftop heat pumps include supplemental electric heat to maintain indoor comfort during extremely cold conditions. Always check the manufacturer's published low-ambient operating limits and heating performance specifications when selecting a unit for colder climates.
Does a Commercial Heat Pump require supplemental electric heat?
A commercial rooftop heat pump does not always require supplemental electric heat, but it can be beneficial in colder climates or during periods of extremely low outdoor temperatures. As temperatures drop, a heat pump's heating capacity and efficiency typically decrease, making supplemental electric heat useful for maintaining comfortable indoor temperatures when the system cannot meet the building's heating demand on its own. Whether supplemental heat is necessary depends on the unit's heating capacity, operating temperature range, building requirements, and local climate.
What is a good efficiency rating for a Commercial Rooftop Heat Pump?
A good efficiency rating for a commercial rooftop heat pump depends on the unit's size, application, and operating requirements. When comparing models, look at SEER2 and EER2 ratings for cooling efficiency and COP (Coefficient of Performance) or heating performance ratings for heating efficiency. Higher ratings generally indicate better energy efficiency and lower operating costs. IEER is also an important rating to consider for commercial rooftop equipment because it measures cooling efficiency under varying operating conditions and part-load capacities. Always compare ratings within the same equipment category and capacity range when selecting a commercial rooftop heat pump.
What types of Commercial buildings benefit most from Rooftop Heat Pump Units?
Commercial rooftop heat pump units are ideal for buildings that require reliable year-round heating and cooling, including offices, retail stores, restaurants, schools, warehouses, and light industrial facilities. They are especially beneficial for businesses looking for an energy-efficient, all-electric HVAC solution that provides both heating and cooling in one self-contained system. Rooftop heat pumps can also help free up indoor space by housing major HVAC components outside the building.
