The Goodman mobile home air conditioner, electric furnace, and coil is the next generation of HVAC products designed specifically for mobile homes. This mobile home air conditioner will provide comfort to your home in all-electric system setups.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
ACiQ RDS Kit Features
Kit includes all components needed for RDS installation
Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
Flexible installation location, ideal for installs on existing equipment
System designed to last the useful life of the evaporator coil
Optional relay for controlling additional components
ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32
OVERVIEW
The ACIQ-MH36BU3VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
3 ton downflow evaporator coil
Designed for mobile and manufactured home use only
AHRI certifiable with all brands of air conditioners and heat pumps
For use with manufactured homes furnaces
Sturdy and compact design
Rifled aluminum tubing with enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
Downflow plate kit included
3 TON
The ACIQ-MH36BU3VYEC evaporator coil is rated to be compatible with condensers with up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
50 Feet of 3/8" x 7/8"
Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Ideal for heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and secure connections. ✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.
30 Feet of 3/8" x 7/8"
Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation reduces energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.

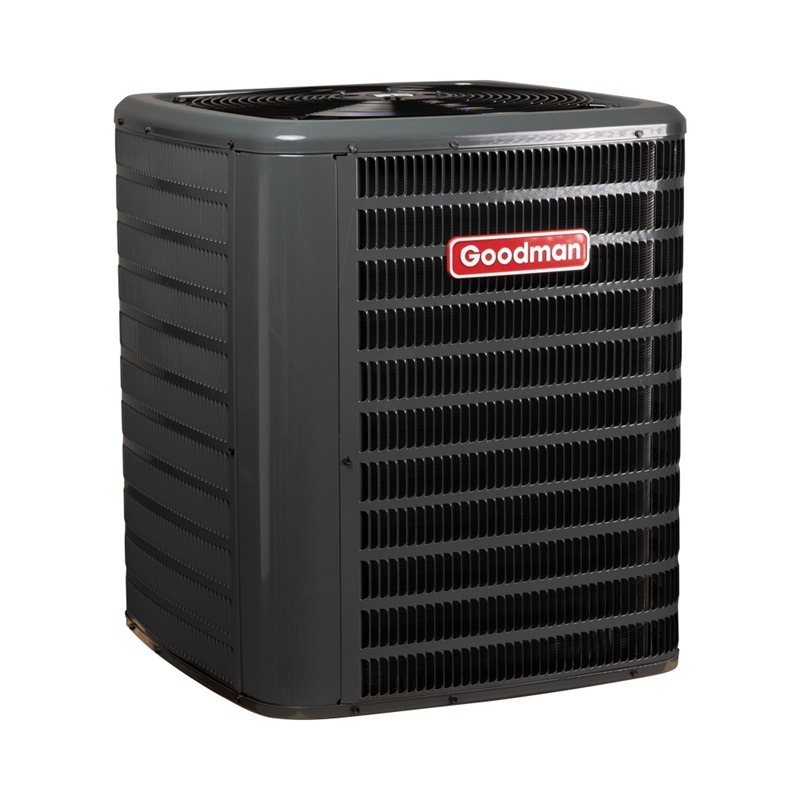

Goodman 2.5 Ton 13.4 SEER2 Mobile Home Air Conditioner Condenser - R32 Single Stage
Dependable Cooling for Small to Medium Mobile Homes
Keep your home comfortable through warm weather with a budget-friendly Goodman central air conditioner condenser built for reliable split-system cooling. This outdoor condenser is a practical choice for homeowners replacing an existing AC component or completing a compatible cooling setup with a matching indoor coil or air handler. It balances dependable performance, durable outdoor construction, and straightforward installation support for small to medium mobile homes.
Key Benefits
Sized for Small To Medium Mobile Homes – 2.5 ton cooling capacity is generally suitable for Mobile Homes approximately 900–1,300 sq. ft., depending on climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
Budget-Friendly Efficiency – 13.4 SEER2 performance provides dependable cooling at an economical efficiency level for approved installation regions.
Cooling-Only Performance – Designed for central air conditioning applications when paired with a compatible indoor evaporator coil or air handler.
Low Outdoor Sound – Designed with sound-dampening features and rated at approximately 74 dBA.
Factory-Charged for Installation – Comes factory charged for up to 15' of line set to support a cleaner installation process.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Durable Outdoor Construction – Heavy-gauge galvanized steel cabinet with a baked-on powder-paint finish is built for long-term outdoor durability.
Cooling Capacity for Small to Medium Mobile Homes
With 2.5 tons of cooling capacity, this condenser is commonly used for Mobile Homes approximately 900–1,300 sq. ft. in various climates. It is a cooling-only outdoor unit and must be paired with a compatible indoor evaporator coil or air handler to operate.
Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
Budget-Friendly 13.4 SEER2 Efficiency
A 13.4 SEER2 efficiency rating provides dependable cooling while keeping equipment costs affordable for eligible installation locations.
Installation Restrictions
Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
Built for Reliable Outdoor Performance
An enhanced copper tube and aluminum fin coil, factory-installed filter drier, and heavy-gauge galvanized steel cabinet support dependable long-term operation. Easy-access service ports and top and side access panels also make installation and maintenance more straightforward for qualified HVAC professionals.
Goodman Central AC System: How Does it Work?
Designed to deliver reliable heating and cooling performance, this system helps keep your home comfortable through changing outdoor conditions.
Durable construction and thoughtful system design support dependable operation, while efficiency-focused features help manage comfort throughout the year.
Whether replacing an older system or completing a new installation, this product offers a practical solution for whole-home comfort.
Warranty
This condenser includes a 10-Year Limited Parts Warranty with online registration. Installation must comply with state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
What’s Included
Goodman Central Air Conditioner Condenser – Outdoor cooling unit for a compatible split-system installation.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Recommended Accessories
Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow; select the 30' or 50' option that matches the installation.
Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.
Requirements & Considerations
Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible indoor evaporator coil or air handler.
Electrical Requirements – Requires a 208 / 230 V. 1 Phase 60 Hz electrical supply.
Line Set Connections – Uses a 3/8" liquid line and a 3/4" suction line.
Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
ACiQ 15kW Mobile Home Electric Downflow Furnace for 2-3 Ton Systems - R454B/R32 Compatible
OVERVIEW
The ACiQ-EFS1520FD-MH electric furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-electric system setups.
QUICK FACTS
15 kW electric furnace
R454B and R32 refrigerant compatible
Can generally heat a small mobile home in ideal applications
Low maintenance requirements
Efficient multi-speed ECM blower motor
Effective air filter to improve air quality
Built-in circuit breakers for safety and dependability
Sturdy, galvanized steel cabinet
AC coil cabinet included with purchase (condenser and coil sold separately)
Modular Electric Heat Kit
The ACiQ-EFS1520FD-MH is generally able to heat up to a small mobile home in average installations. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
Warranty
Hassle-free five-year limited parts warranty.
Installation and Maintenance
The ACiQ-EFS1520FD-MH electric furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 15kW Mobile Home Electric Downflow Furnace for 2-3 Ton Systems - R454B/R32 Compatible
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Goodman 2.5 Ton 13.4 SEER2 Mobile Home Air Conditioner Condenser - R32 Single Stage
Feature
Spec
SKU
GLXS3BN3010-MH
Weight (in lbs)
149
Brand/Manufacturer
Goodman
Replaces
Add GSX130301 and GSXN3N3010
UPC
663051715882
Cooling BTU
30,000
Decibel Level (dBA)
74
Horsepower
1/8 HP
Refrigerant
R32
SEER2 (Efficiency)
13.4
Condenser Stages
Single Stage
Compressor Type
Rotary
Liquid Line
3/8"
Suction Line
3/4"
Liquid Valve Size
3/8"
Suction Valve Size
3/4"
Electrical
208 / 230 V. 1 Phase 60 Hz
Max Breaker Size
25 Amps
Min. Breaker Size
14.7 Amps
Tonnage
2.5 Ton
Connection
Sweat
Height
32 1/2"
Width
26"
Depth
26"
Warranty
10 Years Parts Limited Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Most owners report strong cooling performance, with one unit delivering trouble‑free operation for 7 1/2 years and another Goodman lasting 45 years before replacement, while a newly installed system quickly cooled a trailer after two weeks without heat. Buyers cite quiet operation on some 2.5‑ton units and fast delivery, responsive shipping damage resolution, and savings of at least $3,000 with installation, though others report loud startup thuds, occasional shutdowns on very hot days, compressor hard starts, dents on arrival, and one complaint of compressor failure.
AI Generated from the text of customer reviews
Top reviews
Very good
Quality
80%
Service
80%
Price
60%
I had this installed last Friday. It is working like a champ. The air coming out of it is so cold & running my condenser unit like it is supposed to run. have only used the heat portion once when it was first stared & it warmed my trailer very quickly after not having any heat for 2 weeks. Very good unit.
Review byDoc
Posted on
HVAC equipment
Quality
100%
Service
100%
Price
100%
Ordered furnace, ac coil, and condenser to match. Upon arrival all three items we're damaged, I refused shipment and took pictures. I contacted HVAC direct immediately and informed them of the situation. They sent out new equipment without any delay and the new shipment arrived quicker than the first. Second time around all HVAC equipment is in great condition. I have not finished installing yet, but I am impressed with the speed in which HVAC direct solved my shipping damage. I will be ordering more in the future because of their willingness to make a bad situation good!
Review byOnion
Posted on
Air conditioner
Quality
100%
Service
100%
Price
100%
Very happy with it wish I got it sooner since now it’s cooling off
Review byDwight
Posted on
Fabulous
Quality
100%
Service
100%
Price
100%
The customer service was exceedingly exceptional the quality and the price were amazing really a great value you will not find any better people
Review byBlitz
Posted on
Fine I guess.
Quality
60%
Service
100%
Price
100%
The unit cools our house well most of the time. Occasionally it shuts off on sweltering hot days. And sometimes the compressor hard starts several times before kicking on.
Review byQpc
Posted on
High-quality
Quality
100%
Service
100%
Price
100%
Great customer service when I ordered, super fast shipping, excellent quality, and price, with installation, I saved a minimum of,$3,000
Review byFreebirdd2011@yahoo.com
Posted on
Impressed
Quality
100%
Service
100%
Price
100%
I called customer service just to see if the equipment could be picked up by me at the warehouse. James Nesbitt answered the call and verified customer pick up was an option then offered to help me buy the system that was the best fit for me, his help was very appreciated.
Review byTodd
Posted on
Good american made.
Quality
100%
Service
100%
Price
100%
Being from Houston were they make them the quality is very good the dependable is very good overall I've had good luck over a 30 year investment in goodman products. Some give them a bad wrap but I would put them up against the big names any day.
