The Goodman® GSX14 14 SEER Central Air Conditioner uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and air conditioning industry. R-410A is chlorine-free to help prevent damage to the ozone layer. The GSX14 central air conditioner features a high-efficiency Copeland® scroll compressor and is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly cooling performance.
This central air unit can be 14 or 15 SEER depending on which indoor unit it is paired with. If it is installed with the manufacturer-recommended evaporator coil, variable speed furnace, variable speed air handler, or variable speed modular blower, and also sometimes a thermostatic expansion valve (TXV), it is a 15 SEER system (see Accessories tab above for actual products compatible with this central air conditioner, or the Documents tab above for Goodman's spec sheet details). A 15 SEER central air conditioning system will reduce your electric bill approximately 7% more than a 14 SEER system.
Some models of the Goodman condensers include an orifice (also called "flow rater" or "piston") in a small bag taped to the side of the condenser. If the condenser you purchase includes this orifice, you will need to replace the orifice already inside the evaporator coil or air handler you purchase with this orifice included with the condenser. Doing so makes the condenser and evaporator coil compatible. You can viewthis step-by-step guide to see how to easily change the orifice.
Please note that this equipment comes precharged with R-410A liquid refrigerant, and by Federal law cannot be released to the atmosphere. You can purchase this equipment without being certified, and if you are mechanically inclined you can perform about 90% of the equipment installation yourself. However, you must have a professional heating/cooling contractor do the final part of the installation which requires managing the refrigerant.
Â
Central Air Conditioner's Standard Features
Â
Cabinet Features
The AVPTC 's blower design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. This air handler is ideal for either new or retrofit installations.
Standard Features
Cabinet Features
Please note: This is a brand new unit, never shipped, but the box has some cosmetic issues. Unit will still receive the full manufacturer warranty.
The Goodman AVPTC25B14 air handler is a variable speed, energy efficient unit compatible with ComfortNet communicating technology. If you want the best of the best air handler for your home, the AVPTC25B14 is the best option for you.
The AVPTC25B14 air handler is rated for an output of 2 tons. In many cases, this tonnage will be larger than the condenser it is paired with, which increases the overall efficiency of the unit. Please note that this air handler needs a condenser to heat or cool. For straight heating or when backup heat is necessary in a heat pump application, the air handler is able to accommodate heat strips, available at an additional cost to be field-installed.
Goodman offers a 10 year parts warranty with online registration and when the unit is matched with a covered condenser. Please note that installation that follows your state and local codes is required, normally requiring an EPA-certified installer for most of the work.
The Goodman AVPTC25B14 comes with a factory-installed TXV kit, preventing the need to install one to increase the unit's efficiency. The unit is also able to be installed in any orientation - upflow, downflow, or horizontal - which allows it to be extremely versatile in application. For easy maintenance, there are two access panels on the unit, and there is a CFM indicator and a front-panel sight glass. There is also a built-in control board function that helps you diagnose the unit should the need arise.
The Goodman AVPTC25B14 is ComfortNet compatible, allowing it to communicate with compatible condensers. The variable speed motor provides the most precise temperature control possible. Both of these features keep you as comfortable as possible, no matter what temperature you like to keep the thermostat set on.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

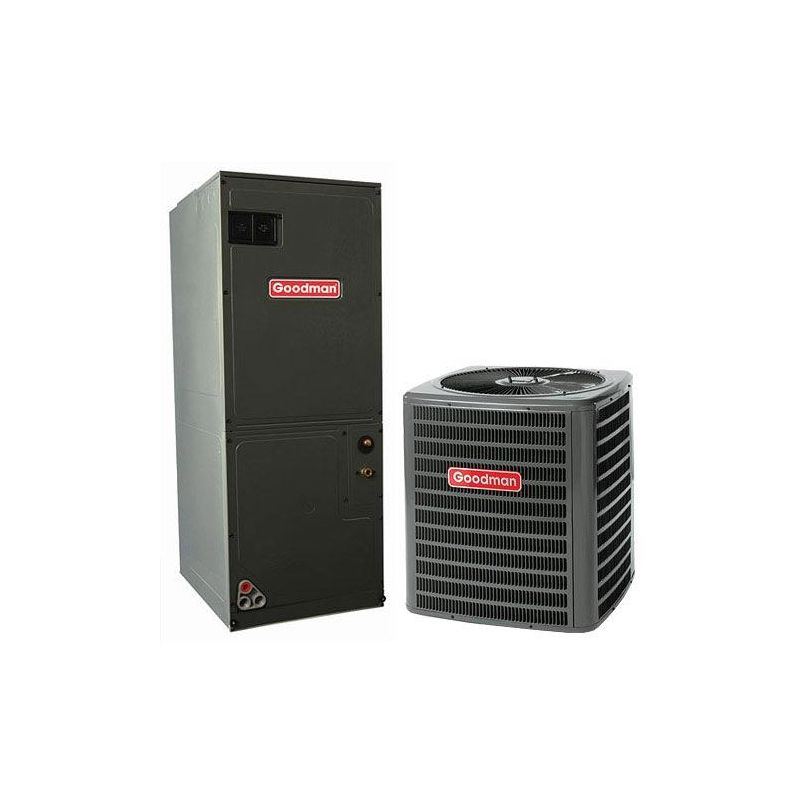

2 Ton 14 SEER Goodman Air Conditioner Condenser | |
---|---|
SKU | GSX140241 |
Weight (in lbs) | 146.000000 |
Brand/Manufacturer | Goodman |
Cooling BTU | 24,000 |
Decibel Level (dBA) | 71 |
Energy Star | No |
Refrigerant | R410A |
SEER1 (Efficiency) | 14 |
Condenser Stages | Single Stage |
Compressor Type | Rotary |
Liquid Valve Size | 3/8" |
Suction Valve Size | 3/4" |
Electrical | 208 / 230 V. 1 Phase 60 Hz |
Max Breaker Size | 25 amps |
Min. Breaker Size | 14.3 amps |
Tonnage | 2 Ton |
Height | 27.5" |
Width | 26" |
Depth | 26" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
2 Ton Multi-Positional Variable Speed Goodman Air Handler | |
SKU | AVPTC25B14 |
Weight (in lbs) | 100.000000 |
Brand/Manufacturer | Goodman |
Blower Motor | Variable Speed - ECM |
Maximum CFM | 1,165 |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
Refrigerant | R410A |
Filter Size | 16" x 20" |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/240 V, 1 Phase, 60 Hz |
Max Breaker Size | 15 amps |
Min. Breaker Size | 4.9 amps |
Tonnage | 2 Ton |
Fuel Type | Electric |
Height | 45" |
Width | 17.5" |
Depth | 21" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
5 Kilowatt 16,200 BTU Goodman Heater Coil | |
SKU | HKSC05XC |
Weight (in lbs) | 8.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 16,200 |
Electric Heat | 5 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | 35 amps |
Min. Breaker Size | 32 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
8 Kilowatt 23,800 BTU Goodman Heater Coil | |
SKU | HKSC08XC |
Weight (in lbs) | 9.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 23,800 |
Electric Heat | 8 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | 50 amps |
Min. Breaker Size | 48 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
10 Kilowatt 34,100 BTU Goodman Heater Coil | |
SKU | HKSC10XC |
Weight (in lbs) | 9.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 34,100 |
Electric Heat | 10 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | 60 amps |
Min. Breaker Size | 57 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
SKU | LS38343830 |
Weight (in lbs) | 35.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Suction Line Insulation Thickness | 3/4" |
Length | 30 feet |
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
SKU | LS38343850 |
Weight (in lbs) | 22.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Suction Line Insulation Thickness | 3/4" |
Length | 50 feet |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
2 Ton ACiQ Hybrid Upgrade | |
SKU | ACIQ-24-EHPB-UPG |
Weight (in lbs) | 120.000000 |
Brand/Manufacturer | ACiQ |
Refrigerant | R410A |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
