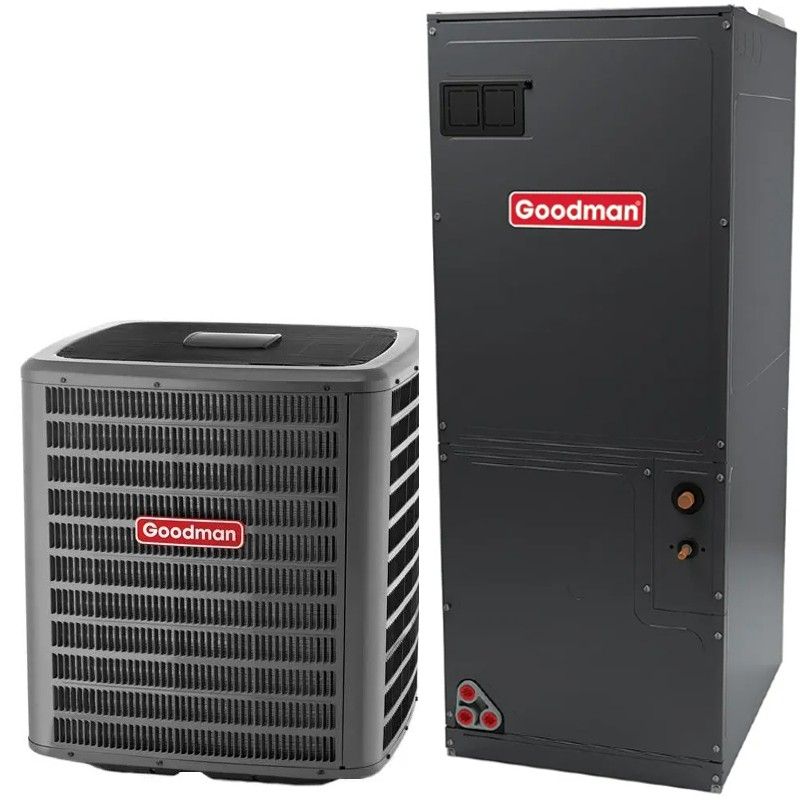

Goodman 3 Ton SEER Air Conditioner Split System - R410A Two Stage - Multi-Positional

Goodman 3 Ton  SEER Air Conditioner Split System - R410A Two Stage - Multi-Positional

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

Goodman

Out of stock

Model

GSXC703610 / AVPTC37D14

ID

138630

Stay cool and save money with the Goodman 3 Ton 17.2 SEER2 Air Conditioner Variable Speed Split System. Whether you need it for your home or business, this efficient cooling system boasts a high SEER2 rating of 16, helping you save on energy bills. Its variable speed compressor and blower motor give you precise temperature control and energy savings. Count on this reliable and efficient system to keep you comfortable without breaking the bank.

3 Ton Multi-Positional Variable Speed Goodman Air Handler

OVERVIEW

The Goodman AVPTC37D14 air handler is a variable speed, energy efficient unit compatible with ComfortNet communicating technology. If you want the best of the best air handler for your home, the AVPTC37D14 is the best option for you.

QUICK FACTS

  • 3 ton air handler
  • Electric heat compatible
  • Efficient multi-speed blower
  • Multi-positional (upflow, downflow, or horizontal)

3 Tons

The AVPTC37D14 air handler is rated for an output of 3 tons. In many cases, this tonnage will be larger than the condenser it is paired with, which increases the overall efficiency of the unit. Please note that this air handler needs a condenser to heat or cool. For straight heating or when backup heat is necessary in a heat pump application, the air handler is able to accommodate heat strips, available at an additional cost to be field-installed.

Warranty

Goodman offers a 10 year parts warranty with online registration and when the unit is matched with a covered condenser. Please note that installation that follows your state and local codes is required, normally requiring an EPA-certified installer for most of the work.

Installation and Maintenance

The Goodman AVPTC37D14 comes with a factory-installed TXV kit, preventing the need to install one to increase the unit's efficiency. The unit is also able to be installed in any orientation - upflow, downflow, or horizontal - which allows it to be extremely versatile in application. For easy maintenance, there are two access panels on the unit, and there is a CFM indicator and a front-panel sight glass. There is also a built-in control board function that helps you diagnose the unit should the need arise.

Enhanced Comfort

The Goodman AVPTC37D14 is ComfortNet compatible, allowing it to communicate with compatible condensers. The variable speed motor provides the most precise temperature control possible. Both of these features keep you as comfortable as possible, no matter what temperature you like to keep the thermostat set on.

More Information
3 Ton Multi-Positional Variable Speed Goodman Air Handler
FeatureSpec
SKUAVPTC37D14
Weight (in lbs)155
Brand/ManufacturerGoodman
UPC663051609518
Blower MotorVariable Speed - ECM
Maximum CFM1,375
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts
RefrigerantR410A
Filter Size23" x 20"
Liquid Line3/8"
Suction Line7/8"
Electrical208/240 V, 1 Phase, 60 Hz
Max Breaker Size15 amps
Min. Breaker Size6.5 amps
Tonnage3 Ton
Fuel TypeElectric
Height53 7/16"
Width24"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 3 Ton 17.2 SEER2 High Efficiency Central Air Conditioner Condenser - R410A Two Stage
FeatureSpec
SKUGSXC703610
Weight (in lbs)238
Brand/ManufacturerGoodman
Replaces

GSXC1603610

GSXC1803610

UPC663051642928
Cooling BTU36,000
Blower MotorTwo Stage ECM Motor
Decibel Level (dBA)72
Horsepower0.333 HP
Energy StarYes
RefrigerantR410A
SEER2 (Efficiency)17.2
Condenser StagesTwo Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line7/8"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size40 Amps
Min. Breaker Size24.1 Amps
Tonnage3 Ton
ConnectionSweat
Height39 1/2"
Width35 1/2"
Depth35 1/2"
Warranty10 Years Parts and Lifetime Compressor with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING ,
