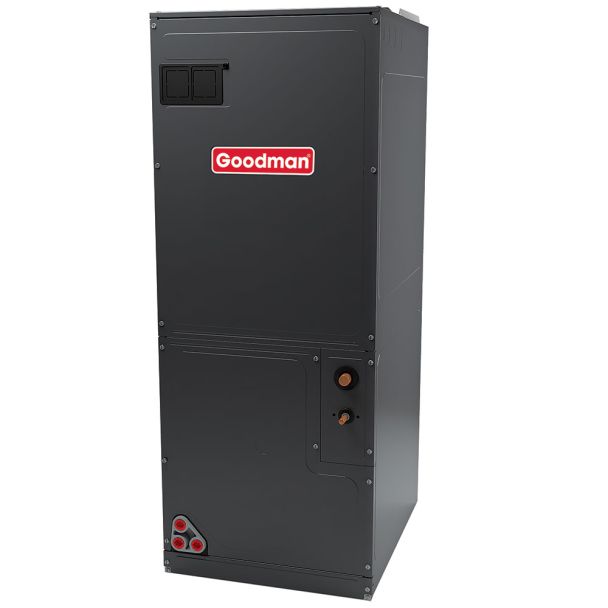

The Goodman AVPTC37D14 air handler is a variable speed, energy efficient unit compatible with ComfortNet communicating technology. If you want the best of the best air handler for your home, the AVPTC37D14 is the best option for you.

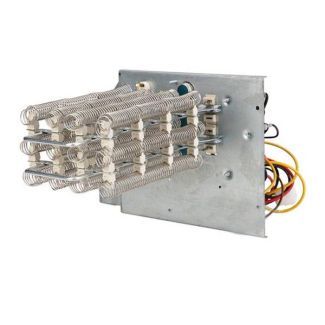

The AVPTC37D14 air handler is rated for an output of 3 tons. In many cases, this tonnage will be larger than the condenser it is paired with, which increases the overall efficiency of the unit. Please note that this air handler needs a condenser to heat or cool. For straight heating or when backup heat is necessary in a heat pump application, the air handler is able to accommodate heat strips, available at an additional cost to be field-installed.
Goodman offers a 10 year parts warranty with online registration and when the unit is matched with a covered condenser. Please note that installation that follows your state and local codes is required, normally requiring an EPA-certified installer for most of the work.
The Goodman AVPTC37D14 comes with a factory-installed TXV kit, preventing the need to install one to increase the unit’s efficiency. The unit is also able to be installed in any orientation—upflow, downflow, or horizontal—which allows it to be extremely versatile in application. For easy maintenance, there are two access panels on the unit, and there is a CFM indicator and a front-panel sight glass. There is also a built-in control board function that helps you diagnose the unit should the need arise.
The Goodman AVPTC37D14 is ComfortNet compatible, allowing it to communicate with compatible condensers. The variable speed motor provides the most precise temperature control possible. Both of these features keep you as comfortable as possible, no matter what temperature you like to keep the thermostat set on.
|3 Ton Multi-Positional Variable Speed Goodman Air Handler|
|Weight (in lbs)||155.000000|
|Blower Motor||Variable Speed - ECM|
|Electric Backup Heat Capabilities (Optional)||5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts|
|Filter Size||23" x 20"|
|Electrical||208/240 V, 1 Phase, 60 Hz|
|Max Breaker Size||15 amps|
|Min. Breaker Size||6.5 amps|
|Warranty||10 Years with Online Registration|
|Safety Information||PROPOSITION 65 WARNING|
