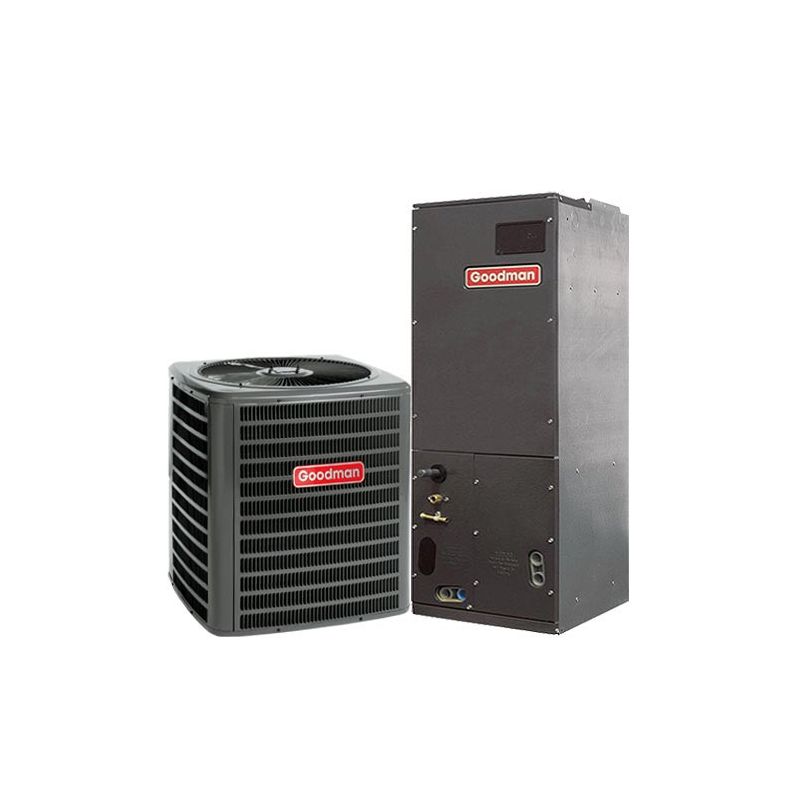

The Goodman® GSZ14 14 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and cooling industry. R-410A is chlorine-free to help prevent damage to the ozone layer. With its 14 SEER rating, the GSZ14 will help reduce energy consumption throughout the life of the system.
All Goodman 14 / 15 SEER heat pumps must be installed with a bi-flow thermostatic expansion valve. This valve is installed in front of the indoor evaporator coil inline with the line set piping. If you are installing a heat pump with a backup heat source which will be a fuel furnace, you will need to install an electronic all fuel kit.
Please note that this heat pump equipment comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. Yes, you can purchase this equipment without being EPA certified. And, if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However, we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work.
Standard Features
Cabinet Features
The AVPTC 's blower design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. This air handler is ideal for either new or retrofit installations.
Standard Features
Cabinet Features
The Goodman AVPTC49D14 air handler is a variable speed, energy efficient unit compatible with ComfortNet communicating technology. If you want the best of the best air handler for your home, the AVPTC49D14 is the best option for you.
The AVPTC49D14 air handler is rated for an output of 4 tons. In many cases, this tonnage will be larger than the condenser it is paired with, which increases the overall efficiency of the unit. Please note that this air handler needs a condenser to heat or cool. For straight heating or when backup heat is necessary in a heat pump application, the air handler is able to accommodate heat strips, available at an additional cost to be field-installed.
Goodman offers a 10 year parts warranty with online registration and when the unit is matched with a covered condenser. Please note that installation that follows your state and local codes is required, normally requiring an EPA-certified installer for most of the work.
The Goodman AVPTC49D14 comes with a factory-installed TXV kit, preventing the need to install one to increase the unit’s efficiency. The unit is also able to be installed in any orientation—upflow, downflow, or horizontal—which allows it to be extremely versatile in application. For easy maintenance, there are two access panels on the unit, and there is a CFM indicator and a front-panel sight glass. There is also a built-in control board function that helps you diagnose the unit should the need arise.
The Goodman AVPTC49D14 is ComfortNet compatible, allowing it to communicate with compatible condensers. The variable speed motor provides the most precise temperature control possible. Both of these features keep you as comfortable as possible, no matter what temperature you like to keep the thermostat set on.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 51,150 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 68,200 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
| 4 Ton Multi-Positional Variable Speed Goodman Air Handler | |
|---|---|
| SKU | AVPTC49D14 |
| Weight (in lbs) | 167.000000 |
| Brand/Manufacturer | Goodman |
| Blower Motor | Variable Speed - ECM |
| Maximum CFM | 1,840 |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Refrigerant | R410A |
| Filter Size | 23" x 20" |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Electrical | 208/240 V, 1 Phase, 60 Hz |
| Max Breaker Size | 15 amps |
| Min. Breaker Size | 6.5 amps |
| Tonnage | 4 Ton |
| Fuel Type | Electric |
| Height | 58" |
| Width | 24.5" |
| Depth | 21" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 5 Kilowatt 16,200 BTU Goodman Heater Coil | |
| SKU | HKSC05XC |
| Weight (in lbs) | 8.000000 |
| Brand/Manufacturer | Goodman |
| Heating BTU | 16,200 |
| Electric Heat | 5 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 35 amps |
| Min. Breaker Size | 32 amps |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 8 Kilowatt 23,800 BTU Goodman Heater Coil | |
| SKU | HKSC08XC |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Heating BTU | 23,800 |
| Electric Heat | 8 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 50 amps |
| Min. Breaker Size | 48 amps |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 10 Kilowatt 34,100 BTU Goodman Heater Coil | |
| SKU | HKSC10XC |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Heating BTU | 34,100 |
| Electric Heat | 10 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 60 amps |
| Min. Breaker Size | 57 amps |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 15 Kilowatt 51,150 BTU Goodman Heater Coil | |
| SKU | HKSC15XB |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Heating BTU | 51,150 |
| Electric Heat | 15 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 25 amps |
| Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 25 amps |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 20 Kilowatt 68,200 BTU Goodman Heater Coil | |
| SKU | HKSC20DB |
| Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman |
| Heating BTU | 68,200 |
| Electric Heat | 20 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 50 amps |
| Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 50 amps |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
| SKU | LS38783830 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Suction Line Insulation Thickness | 3/8" |
| Length | 30 feet |
| Safety Information | PROPOSITION 65 WARNING |
| 50 Feet of 3/8" LL x 1 1/8" SL x 3/8" Insulated Line Set | |
| SKU | LS381183850 |
| Weight (in lbs) | 48.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 1 1/8" |
| Suction Line Insulation Thickness | 1/2" |
| Length | 50 feet |
| Safety Information | PROPOSITION 65 WARNING |
