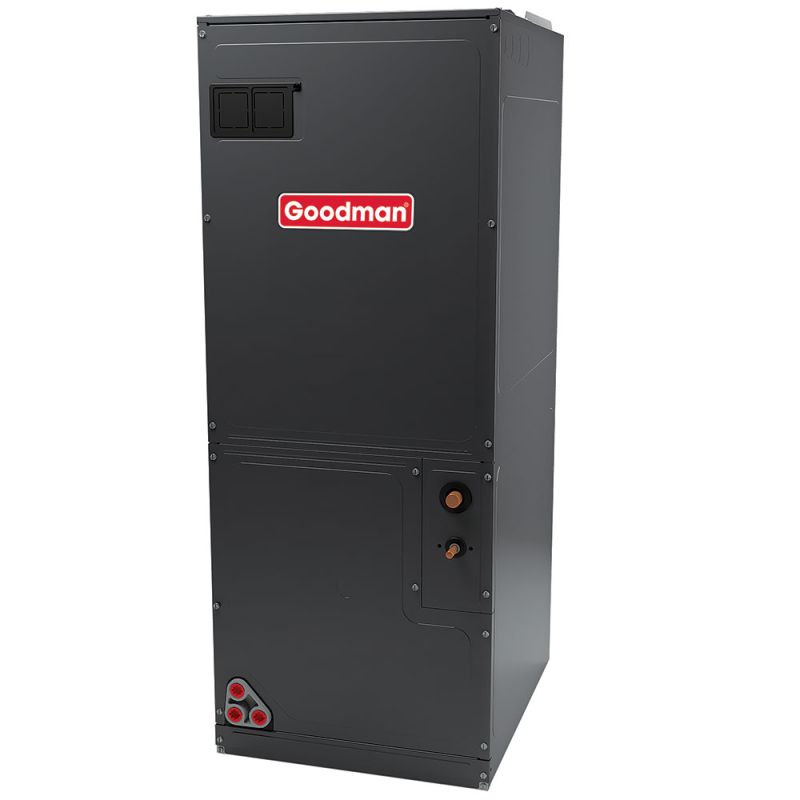

The Goodman AVPTC49C14 air handler is a variable speed, energy efficient unit compatible with ComfortNet communicating technology. If you want the best of the best air handler for your home, the AVPTC49C14 is the best option for you.
The AVPTC49C14 air handler is rated for an output of 4 tons. In many cases, this tonnage will be larger than the condenser it is paired with, which increases the overall efficiency of the unit. Please note that this air handler needs a condenser to heat or cool. For straight heating or when backup heat is necessary in a heat pump application, the air handler is able to accommodate heat strips, available at an additional cost to be field-installed.
Goodman offers a 10 year parts warranty with online registration and when the unit is matched with a covered condenser. Please note that installation that follows your state and local codes is required, normally requiring an EPA-certified installer for most of the work.
The Goodman AVPTC49C14 comes with a factory-installed TXV kit, preventing the need to install one to increase the unit’s efficiency. The unit is also able to be installed in any orientation—upflow, downflow, or horizontal—which allows it to be extremely versatile in application. For easy maintenance, there are two access panels on the unit, and there is a CFM indicator and a front-panel sight glass. There is also a built-in control board function that helps you diagnose the unit should the need arise.
The Goodman AVPTC49C14 is ComfortNet compatible, allowing it to communicate with compatible condensers. The variable speed motor provides the most precise temperature control possible. Both of these features keep you as comfortable as possible, no matter what temperature you like to keep the thermostat set on.
Put serious quality in your utility space with a Goodman 4-ton air handler from the best Goodman distributor online. A Goodman air handler is as good as they get for the investment, and this multi position air handler is not only easy on the budget, but also on energy bills as well.
We have listed the Goodman AVPTC49C14 at a wholesale price that won’t be beaten by any other dealer. In fact, it’s guaranteed. Shipping is free as well, making an already-great value even better.
Goodman is one of the fastest rising manufacturers of HVAC equipment, consistently delivering on their promise to provide excellent quality at the lowest price possible. Every unit is triple tested before it ever leaves their Houston, TX manufacturing facility.
A 4-ton AC air handler, when teamed up with a dependable condenser/compressor unit and attached to a competent ductwork system, can provide climate control for a medium to large house in an ideal climate. For this Goodman 4-ton air handler, dimensions are compact – 21 inches wide, 21 inches deep and 49 inches tall - but what makes this unit truly versatile is its ability to be configured for any airflow direction. It is easily configured for upflow, downflow or horizontal flow.
When creating or upgrading a new AC system, it’s important that the air handler have a higher capacity than the outdoor compressor/condenser unit. This reduces unnecessary run time and saves energy. This 4-ton air handler unit can be paired with a conventional cool-only air conditioner or with a heat pump that reverses the AC process in winter, delivering heat instead of cool.

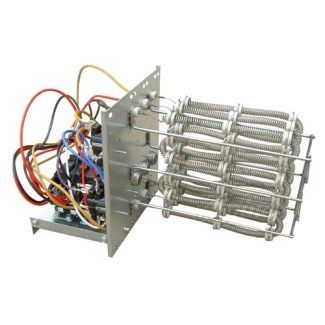

Heat pumps are always good additions to any home central air system, but there are days where the outside air is too cold for them to work effectively. This air handler can be adapted to an electric heating coil or strip (optional) for temporary back-up service on the coldest days.
The AVPTC49C14 has a variable speed blower motor to provide the most precise temperature control possible. Traditional air handlers usually have an all-on/all-off blower function, but this unit gradually increases or decreases the fan speed as directed by the temperature setting. This eliminates cold drafts and excessive air flow in general.
A licensed HVAC installer is required to install this unit, but it will be a painless process, thanks to its multi-positional orientation and its intuitive design features. Maintenance is likewise easy, with a CFM (Cubic Feet per Minute) indicator, front panel sight glass and a built-in control board function for easy diagnostics.
For more information, order assistance or advice on what’s best for your AC needs, contact our award-winning customer service team. There are also free PDF files you can download that provide information on features, installation requirements, parts, service, and warranty.
4 Ton Multi-Positional Variable Speed Goodman Air Handler | |
---|---|
SKU | AVPTC49C14 |
Weight (in lbs) | 125.000000 |
Brand/Manufacturer | Goodman |
Blower Motor | Variable Speed - ECM |
Maximum CFM | 1,675 |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts |
Refrigerant | R410A |
Filter Size | 19.5" x 20" |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Electrical | 208/240 V, 1 Phase, 60 Hz |
Max Breaker Size | 15 amps |
Min. Breaker Size | 6.5 amps |
Tonnage | 4 Ton |
Fuel Type | Electric |
Height | 49" |
Width | 21" |
Depth | 21" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
