Key Takeaways
- Proper planning is essential for a long-lasting, efficient ice machine – Choosing the right type, cooling method, and installation location helps avoid costly breakdowns, wasted energy, and health code violations.
- Different ice machine types suit different needs – Undercounter units are ideal for small spaces, modular systems handle high-volume operations, and countertop machines work well for self-serve or healthcare settings.
- Placement and storage impact performance and compliance – Adequate space, airflow, workflow efficiency, and the correct bin size ensure reliable ice production while meeting FDA and NSF/ANSI health standards.
Article Contents
It takes more than just selecting the largest machine and plugging it in to install a commercial ice maker. There are a variety of types of ice machines with different installations that need to be considered.
This commercial ice machine installation guide will guide you through every important decision you'll need to make, whether you're expanding your healthcare facility, opening a new restaurant, or improving your office break room.
Why Proper Installation Matters More Than You Think
Before we dive into the technical details, let's talk about why getting this right from the start is so important. A poorly planned ice machine installation can lead to:
- Insufficient ice production during peak hours
- Higher energy bills due to poor ventilation
- Frequent breakdowns and expensive repairs
- Health code violations in food service environments
- Wasted space and workflow disruptions
The good news? Your commercial ice machine will last for 10-15 years or more with proper planning and regular maintenance.

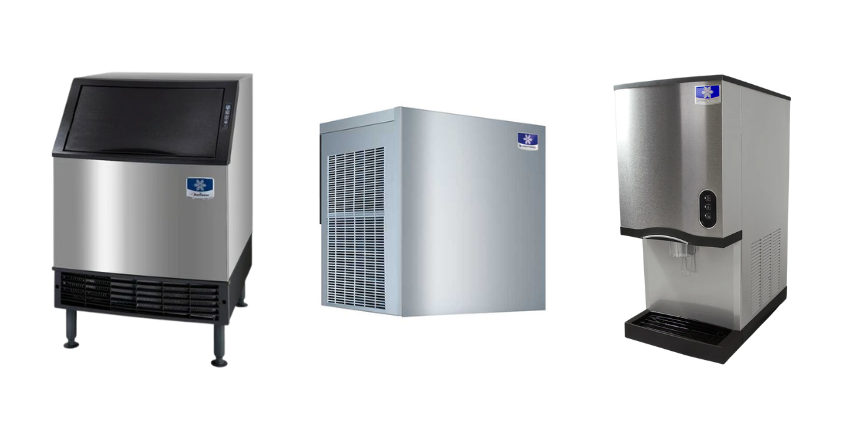

How to Choose the Right Commercial Ice Machine Type
Choosing the right ice maker type for your needs is an important first step in the installation process. Let's go over the three main types.
Undercounter Ice Machine Types
Undercounter ice machines are usually used by small to medium-sized businesses. These compact units, which produce between 50 and 400 pounds of ice a day, fit neatly beneath most countertops. They're perfect for:
- Small cafes and coffee shops
- Office break rooms
- Medical facilities
- Bars with limited space
The all-in-one design of undercounter ice makers is their greatest feature; the storage bin and ice maker are combined into one unit, making installation easy.
Modular Ice Machine Setup
Modular ice machines are the way to go if you need to produce a significant amount of ice—think 500 pounds or more per day. These "head-only" units need a separate storage bin and are solely focused on producing ice.
- Higher production capacity
- Flexible storage options
- Easier maintenance access
- Better long-term value for high-volume operations
Restaurants, large offices, and hotels typically choose modular systems because they can produce a lot of ice and have separate storage.
Countertop Options
Countertop ice machines are small and can be placed on top of counters. These compact units are ideal for:
- Self-serve beverage stations
- Healthcare settings
- Temporary or seasonal operations
- Supplemental ice production
They are commonly used for self-service and in hospitals where people are always on the move.
Air-Cooled vs. Water-Cooled Ice Machine Pros and Cons
Selecting the appropriate cooling technique is another important choice you will make. There are three main types, each with unique benefits.

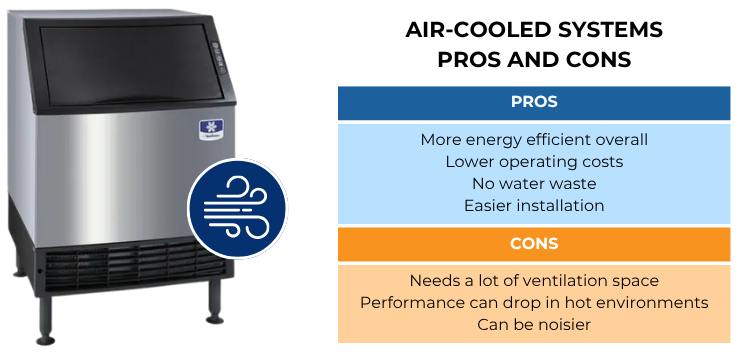

Air-Cooled Systems
Air-cooled ice machines rely on ambient air to disperse heat. A built-in fan draws in surrounding air to cool the condenser, and continuous airflow throughout the day prevents overheating and ensures reliable operation.

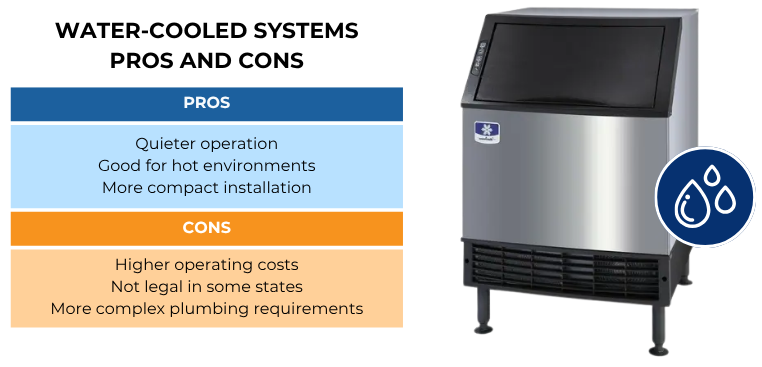

Water-Cooled Systems
Water-cooled ice machines use a continuous stream of water to chill the condenser, with that circulation serving as the heart of their cooling system.

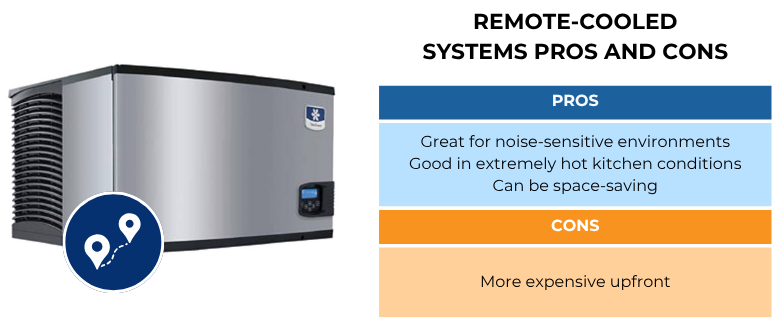

Remote-Cooled Systems
Remote ice machines house all heat-generating components in a separate unit—often installed outdoors or in a spacious utility area—making them an excellent choice for upscale installations.
Where to Install a Commercial Ice Machine
The location of commercial ice makers has an impact on everything from efficiency to adherence to health codes. Consider the following:
Space Requirements
Every ice machine needs space for:
- Air circulation
- Opening the door
- Plumbing and electrical connections
- Easy access for maintenance
Without enough space, air circulation and ventilation can suffer. Poor airflow can lead your ice machine to:
- Work harder and use more energy
- Produce less ice
- Break down more frequently
- Have a shorter lifespan
We recommend at least 6 inches of space on all sides (check manufacturer specs for specific requirements).
Workflow Considerations
Consider how your employees will use the ice maker. The ideal location keeps ice easily accessible while minimizing steps. Easy and quick access means your employees will save time spent walking around.
Health Code Compliance
Food service establishments must consider contamination prevention. Your ice machine should be:
- Away from dish pits and prep sinks
- Protected from splashing and steam
- Accessible for regular cleaning
Make sure to follow guidelines set by FDA and NSF/ANSI for installation requirements.

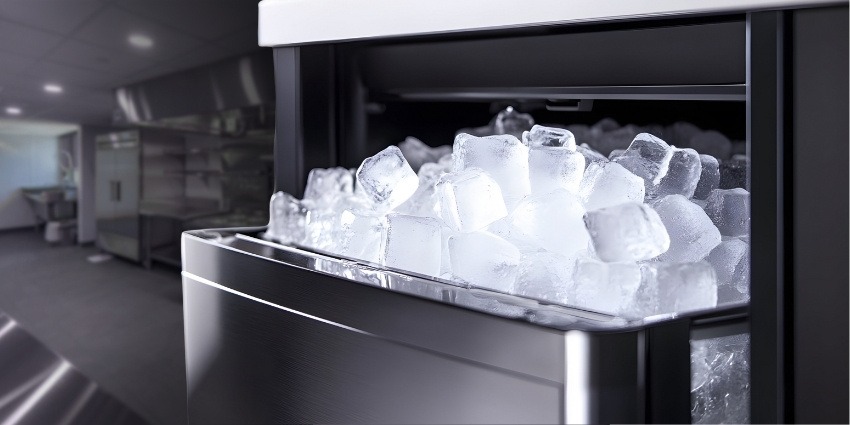

What Size Ice Bin Do I Need for My Restaurant?
Be sure to account for storage bin space and location when installing your ice machine. If you've chosen a modular system, selecting the right ice bin size is crucial.
Ice overflows in a bin that is too small, causing waste and messes. However, in many situations, a bin that is too big is worse. Ice melts if it sits too long and refreezes, forming clumps and degrading quality. Additionally, you are paying for unnecessary extra storage space.
Consider your usage habits as well. A restaurant with consistent service throughout the day needs different storage than a venue with heavy weekend rushes but quiet weekdays.
Final Thoughts: Setting Your Business Up for Success
Installing a commercial ice machine correctly the first time saves money, prevents headaches, and ensures your business has reliable ice production for years to come. The key is taking time upfront to plan.
And always get installation help when you need it! If you’re unsure about how to install your ice machine, call a professional and save any installation mistake costs. This will also ensure that any warranty you have stays valid. Need help with your commercial ice machine installation? Our techs at HVACDirect.com can guide you through the buying and installation process. Contact us today to discuss your specific requirements and get your project started on the right foot.
