Understanding Furnace Cabinet Width

Key Takeaways

Furnace cabinet width affects airflow and installation compatibility, with standard sizes like 14", 17.5", 21", and 24.5" matching different ductwork setups.
Measuring is simple: Use a tape measure across the front of the unit from edge to edge to determine the correct width.
Choosing the right width reduces install costs and maximizes efficiency, ensuring the new unit fits your existing HVAC system without expensive modifications.

When replacing or upgrading your furnace, ensuring the new unit fits seamlessly into your existing space is crucial. One of the key measurements to consider is the cabinet width. This guide will walk you through the importance of cabinet width and how to measure it accurately.

Understanding Furnace Cabinet Width

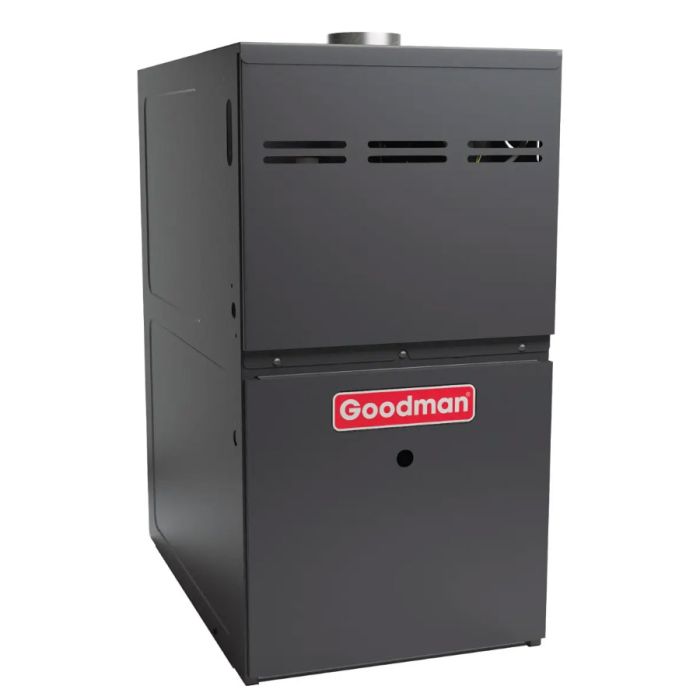

What Is Furnace Cabinet Width?

The cabinet width refers to the horizontal measurement of the furnace's casing. Standard widths typically include:

14 inches
17.5 inches
21 inches
24.5 inches

These sizes correspond to different airflow capacities and are designed to match various ductwork configurations.

Cabinet Width	Typical Application	Approx. Airflow (CFM)	Ductwork Size
14 inches	Small homes, limited space	800 – 1200 CFM	12" x 20" or 14" x 20"
17.5 inches	Medium-sized homes	1200 – 1600 CFM	16" x 20" or 18" x 20"
21 inches	Large homes, higher airflow	1600 – 2000 CFM	18" x 20" or 20" x 20"
24.5 inches	Expansive homes, maximum airflow	2000 – 2400+ CFM	20" x 24" or larger

Why Is It Important?

Selecting a furnace with the correct cabinet width ensures:

Proper Airflow: Aligning with existing ductwork promotes efficient air distribution.
Ease of Installation: A matching width minimizes the need for modifications.
Cost Efficiency: Reduces potential expenses related to ductwork alterations.

Step-by-Step Guide to Measuring Cabinet Width

Tools You'll Need

Measuring tape
Notebook or digital device for recording measurements

Measurement Process

Locate the Furnace: Ensure the area around the furnace is accessible and safe.
Identify the Front Panel: This is typically where the control board and burners are located.
Measure the Width: Place the measuring tape across the front of the furnace from one side to the other, capturing the full width.
Record the Measurement: Note the width in inches, rounding to the nearest standard size.

Matching Cabinet Width to Your Home's Needs

Considerations Based on Home Size

14 inches: Suitable for smaller homes or spaces with limited installation room.
17.5 inches: Common in medium-sized homes with standard airflow requirements.
21 inches: Fits larger homes needing higher airflow capacity.
24.5 inches: Designed for expansive homes with significant heating demands.

Ductwork Compatibility

Ensuring your new furnace matches the width of your existing ductwork is vital. A mismatch can lead to:

Reduced efficiency
Increased energy costs
Potential system strain or damage

Final Thoughts

Accurately measuring your furnace's cabinet width is a foundational step in the replacement process. During this process, you will also have to consider your furnace's configuration as well. It ensures compatibility, promotes efficiency, and can save both time and money.

For a visual demonstration, you can watch the video above:

How to Measure Furnace Cabinet Width - Watch Now
